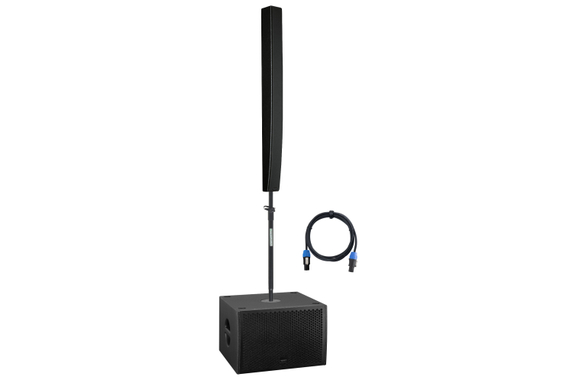

Seeburg L16j/G Sub 1201dp++ Mono Set

Seeburg L16j / G Sub 1201dp++ Mono Set!

Ultra-slim and discreet line array speakers for demanding speech and music applications in acoustically challenging spaces such as churches, foyers, and lecture halls. The use of waveguides significantly improves the horizontal dispersion and coupling characteristics of the 3" wideband drivers. The L series includes six variants differing in length and curvature. By coupling multiple units, the system can be expanded as needed and adapted to the required sound reinforcement task.

Conventional Sound Line

The acoustic coupling of individually arranged sources in the L series line arrays results in strong vertical beamforming, increasing range and providing more even sound distribution across the listening area.

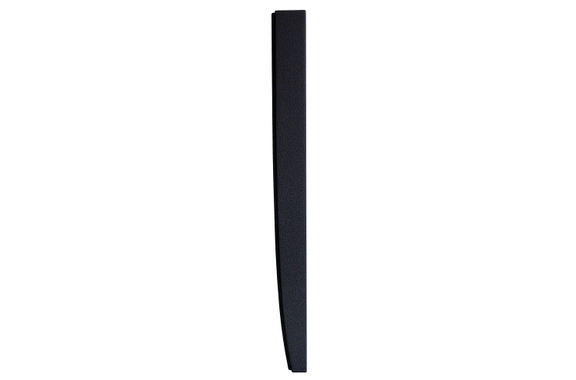

In the near field, the dispersion is optimized by a special curvature of the line (j- or c-versions). Additional benefits include greatly reduced feedback tendency, as only a small portion of the sound energy emitted by the speaker is picked up by the microphone.

As the line length increases, these characteristics intensify and also affect greater distances from the speaker line. Due to the improved ratio of direct to reflected sound, speech intelligibility is significantly enhanced.

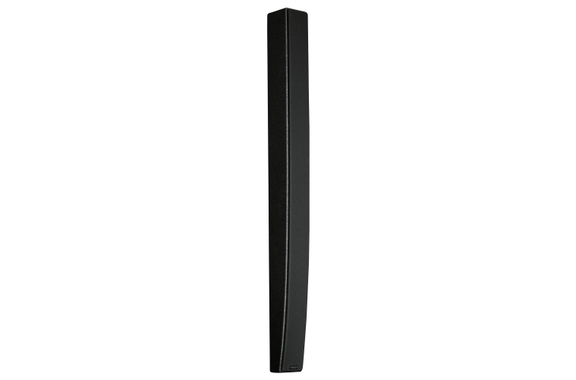

Dispersion: L 16i and L 16j

The L 16j system is suitable for acoustic coverage in the range of 2 m to 25 m distance. Extending the range is possible by adding an L 16i system.

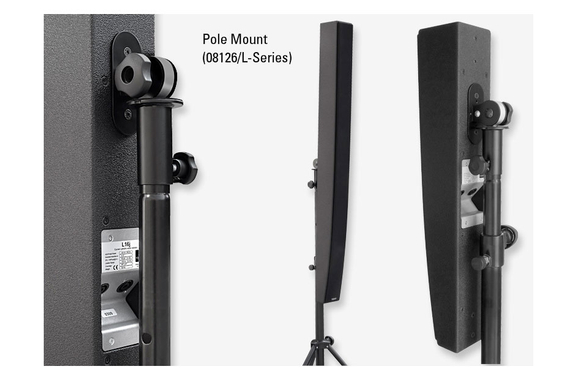

All six variants of the L series line arrays can be combined freely. Special accessories have been developed for mounting. Acoustic simulation software EASE FOCUS is available for free download to simulate results. For more complex planning, data sets for simulation programs like EASE, Ulysses, and CATT-acoustic can be used.

G Subwoofer Series

The G Subs are versatile high-performance subwoofers designed especially for deep and precise bass reproduction. They impress with good handling and a restrained, exclusive, modern design.
While the G Sub 1001, 1201, and 1501 models with their enlarged footprint can safely support GL systems and other HiMid systems in stationary operation, the G Sub 1801 and G Sub 1802 models feature dimensions tailored to "truck size" requirements.

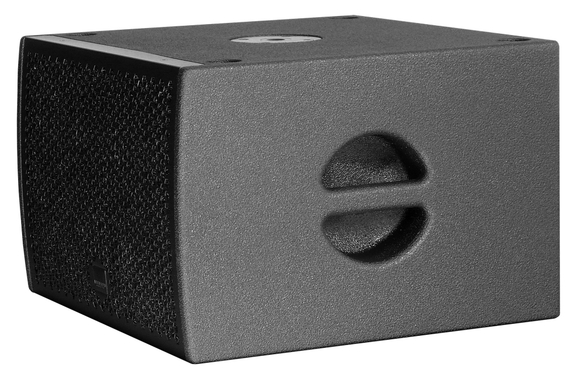

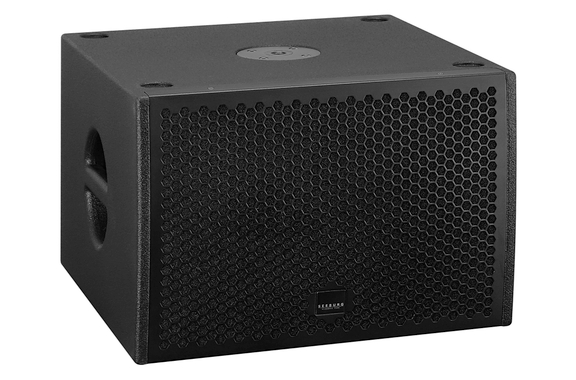

G Sub 1201dp++

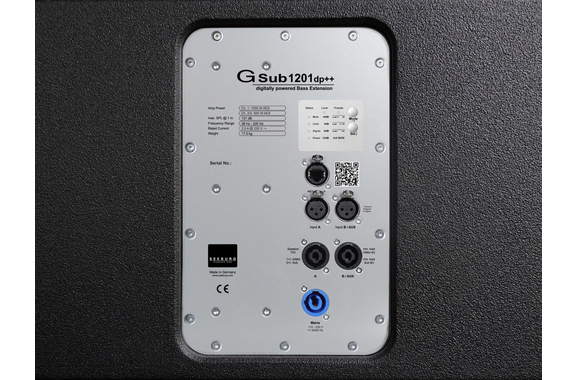

Compact 12" high-performance subwoofer with three-channel DSP amplifier electronics and two signal inputs. Four practical presets and volume adjustments can be selected to suit different applications. The two integrated additional amplifiers drive two HiMid or fullrange systems.

Its slim design, modern look, and high power make the G Sub 1201 dp++ ideal for applications requiring particularly discreet installation and precise bass reproduction.

The G Sub 1201 dp++ is delivered with DSP-controlled digital amplifier modules (dp = digitally powered). Various factory-configured presets and volume settings can be recalled. High-quality industrial-grade electronic components and a top-notch circuit design ensure excellent audio quality and overload resistance while effectively minimizing interference noise.

Highly effective and intelligent limiter systems guarantee reliable operation without audibly compromising acoustic properties.

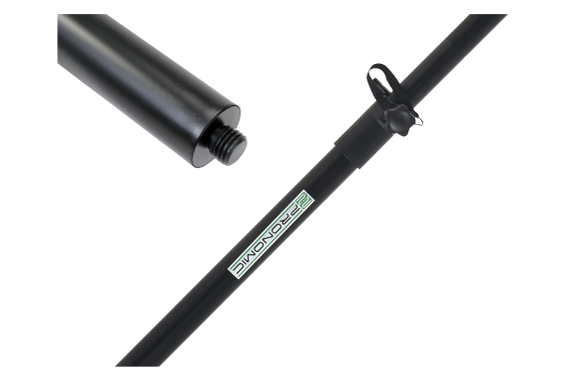

Lightweight, Robust Distance Rod with M20 Thread

With Pronomic distance rods, top units can be mounted directly on subwoofers at the correct height. Almost all subwoofers already feature a suitable mount. Depending on the version, the rods can be screwed on with an M20 thread or simply slipped on with the 35mm end.

Pronomic distance rods are also suitable for heavy active tops. A locking pin secured with a fixing screw prevents accidental slipping. The robust design ensures long life even under the toughest stage conditions.

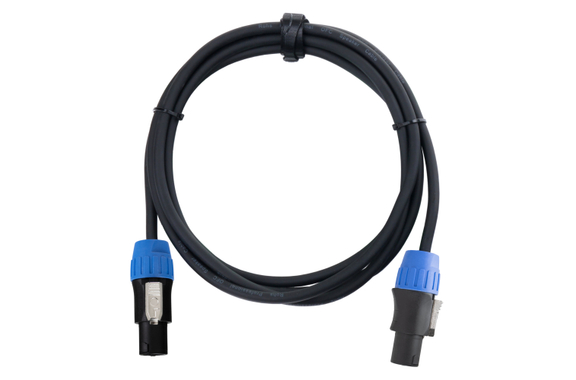

Professional Speaker Cable with High-Quality Connectors

Pronomic speaker cables are perfect for use on stage or in rehearsal rooms. The 2-conductor cables with 2x 1.5 mm² cross-section are equipped with robust Speakon-compatible connectors.

The Acoustic Line L Series – Audible from the First to the Last Row!
