Seeburg Acoustic Line G Sub 1201dp++ Bass Extension!
The G-Subs are versatile high-performance subwoofers specially designed for deep and precise bass reproduction. They impress with easy handling as well as a restrained exclusive and modern design.
While the G Sub 1001, 1201, and 1501 models with their enlarged base dimensions can securely accommodate GL systems and other HiMid systems in standing operation, the G Sub 1801 and G Sub 1802 models pay special attention to "truck size" adapted dimensions.

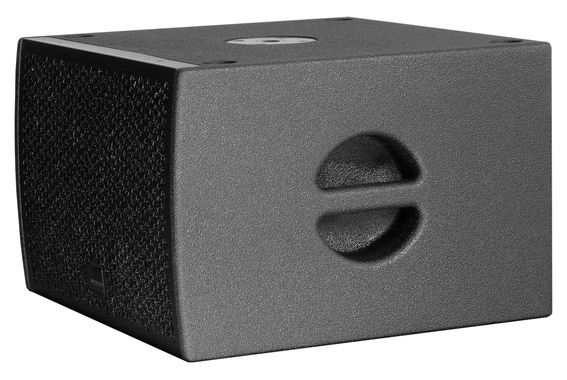

G Sub 1201dp++
Compact 12" high-performance subwoofer with three-channel DSP amplifier electronics and two signal inputs. To adapt to various applications, four practical presets and volume adjustments can be accessed. The two integrated additional amplifiers serve to drive two HiMid or fullrange systems.
Its slim design, modern look, and high power make the G Sub 1201 dp++ interesting for many applications where a particularly unobtrusive installation and precise bass reproduction are important.
The G Sub 1201 dp++ is delivered with DSP-controlled digital amplifier modules (dp = digitally powered). Various factory-configured presets and volume settings can be recalled. High-quality industrial electronic components and a first-class circuit design ensure high audio quality and overload resistance while effectively minimizing interference noise.
Highly effective and intelligent limiter systems guarantee high operational reliability without audibly restricting the acoustic properties.
Absolute Peak Performance for Your Show!
Features
- Three-channel amplifier electronics with DSP
- Flat bass reflex enclosure
- Class-D amplifier with DSP controller
- DSP with HDLM FPGA processing
- 4 presets
- 2 recessed carrying handles
- M20 pole mount
Technical Data
- Loudspeaker configuration: 12" neodymium (3" VC)
- Power:
- 500 W AES (single mode) / 100-230 V
- 1000 W AES (dual mode) / 100-230 V
- 2 x 500 W AES / 4 Ω - HiMid - Rated current: 1.6 A @ 230 V
- Max. input signal: 25 dBu
- DSP: HDLM FPGA processing
- AD / DA: 24 bit / 96 kHz
- Latency: 0.8 ms
- Maximum level: 131 dB
- Frequency response (-6dB): 38 - 220 Hz
- Dimensions (H x W x D): 33 x 48.5 x 48.5 cm
- Weight: 17.5 kg

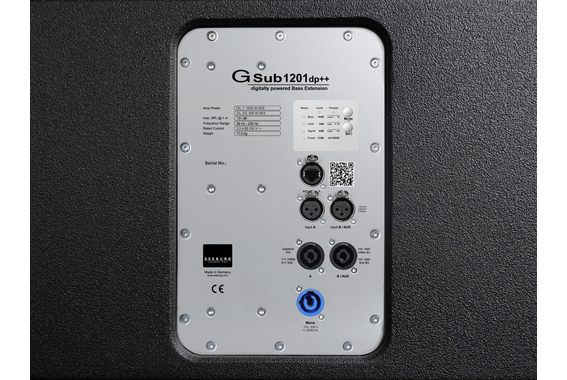

Connections
- 2 x Neutrik XLR in
- 1 x Neutrik PowerCon in
- 2 x Neutrik Speakon NL4MP out
Scope of delivery
- 1 x Seeburg Acoustic Line G Sub 1201dp++ subwoofer
- 1 x power cable
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00065972
- Power RMS (Watts) 1000
- Wheels included No
- Inputs EtherCon, XLR
- Stand mount flange M20
- Outputs EtherCon, speakON, XLR
- Subwoofers 1x 12 Zoll
- Colour Black
- Weight in kg 17,5
