High-Quality DSP Sounds With the Easiest Operation!
The subwoofer in Pronomic's C series scores with clear, punchy sound at an incredible price. Reliable technology and a stage-ready enclosure set a new standard for this speaker.
Powerful Speaker
The C-118SA features an 18" speaker driven by a 3" voice coil. In combination with the 800-watt (RMS) power amp, it reaches a maximum level of 126 dB.
Smart Technology

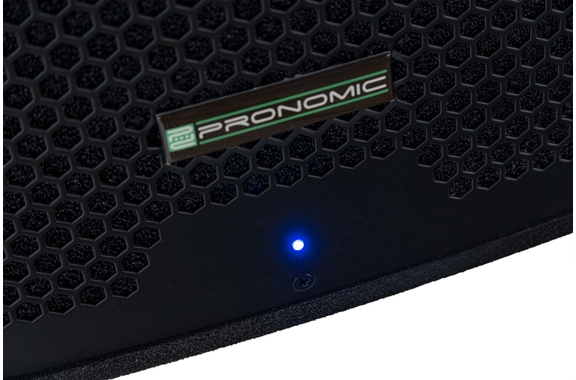

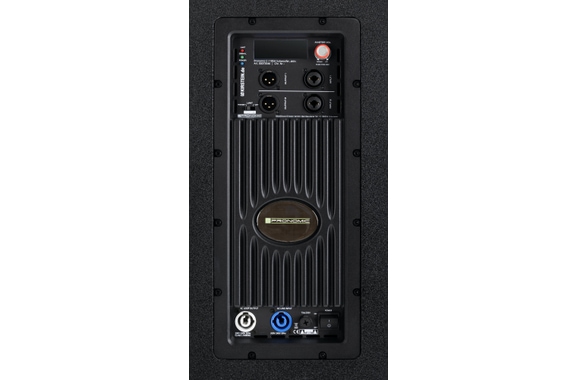

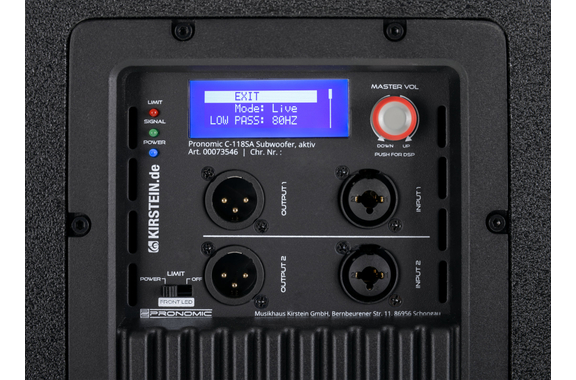

The subwoofer has two line inputs in combo format, and two XLR outputs for sending the signal on. Using the rotary control and the display, you can make all key adjustments intuitively. The front LED indicates either power on (blue) or the internal limiter engaging (red). Alternatively, the LED can be turned off completely.
DSP Presets and Additional Settings
Four sound presets are on board for different applications:
- Live: Very linear with a very low cutoff frequency
- Music: Slight bass boost at 50 Hz
- DJ: Stronger bass boost at 50 Hz
- C-Series: Tuned filters for the Pronomic C-Series cabinets
To achieve the best possible sound, the subwoofer's crossover frequency can be matched to the tweeters in use. Polarity and a delay of up to 16 ms are also adjustable.
Rugged Enclosure

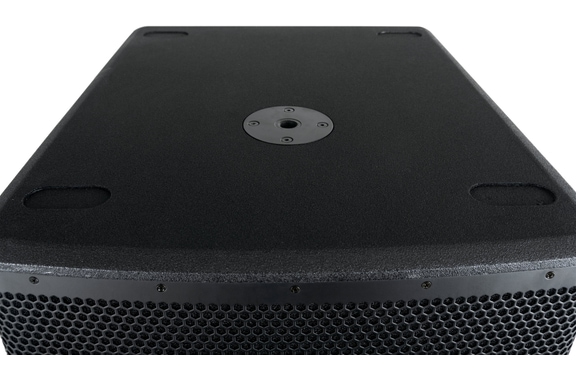

The sturdy 15 mm MDF panels are finished with a durable textured lacquer. Large recessed handles sit on both sides. As you expect in pro gear, the speaker flange for optional satellite speakers features an M20 thread.
Proper Low-End for Your Stage!
Features
- Active subwoofer
- Power: 1600 watts (peak), 800 watts (RMS)
- Speaker: 18 inch (46 cm)
- 3" voice coil (80 oz)
- Amplifier type: Class D
- Max. SPL: 126 dB
- Sensitivity (1m/1W): 96.5 dB
- Frequency range: 30 - 200 Hz
- Impedance: 4 ohms
- 2x balanced line input (XLR/jack combo)
- 2x balanced line output (XLR)
- 48 kHz/24 bit DSP
- DSP presets: Live, Music, DJ, and C-Series
- Adjustable crossover frequency (Off, 80 Hz, 100 Hz, 120 Hz, or 150 Hz)
- Adjustable delay (0 - 16 ms in 0.1 ms steps)
- Polarity switchable +/-
- Volume control from -60 dB to 0 dB
- LED indicators for power, input signal, and limiter
- Front LED (selectable display of power, limiter, or off)
- M20 flange for pole mount

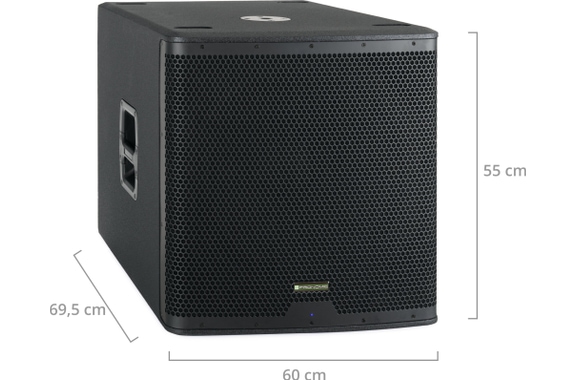

- Dimensions (WxHxD): 55 x 60 x 69.5 cm
- Weight: 39.5 kg
Scope of delivery
- 1 x Pronomic C-118SA Active Subwoofer
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00073546
- Power RMS (Watts) 800
- Inputs 6.3mm Klinke, XLR
- Weight in kg 39,5
- Stand mount flange M20
- Wheels included No
- Subwoofers 1x 18 Zoll
- Outputs XLR
- Colour Black
Reviews
| 5 Stars |
|
2 |
| 4 Stars |
|
0 |
| 3 Stars |
|
0 |
| 2 Stars |
|
0 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
This rating has been translated automatically. Original language
This rating has been translated automatically. Original language
Questions about product
Question by Mario Fischhuber on 10.10.2024
Can you screw wheels on it and where? Danje
Answer by Musikhaus Kirstein:
Theoretically, you may of course continue to attach components to the subwoofer yourself. However, this will invalidate any warranty claim. We are therefore unable to provide tips on how and where to best attach castors to the subwoofer.
Question by Andy Neumann on 21.05.2024
Hello, do 2 pronomic c215 fit on the sub? How much does the threaded piece in the sub hold when a bracket is put on it?
Answer by Musikhaus Kirstein:
You can easily use an M20 / 35mm spacer bar (e.g. the following: https://www.kirstein.de/Boxenstative/Pronomic-Distanzstange-Distanzrohr-M20-Stahl.html? ) to mount a C-215 on the sub. We do not recommend mounting additional speakers.
Question by Frank Eckelmann on 19.05.2024
Hello, if I connect 2 C-212 MA to the C-118SA, what is the best way to get the stereo signal from the cell phone/laptop with 3.5 mm jack to the corresponding components?
Cell phone => MA1 => SA => MA2
or
Cell phone SA => MA1 via out 1 and MA2 via out 2
or...
so that each of the MAs plays one of the stereo channels and the SA plays both...
Answer by Musikhaus Kirstein:
The correct way would be to connect the cell phone to the inputs of the subwoofer using a Y-cable (e.g. this one: https://www.kirstein.de/Zubehoer-Audiokabel/Cordial-CFY-1-8-WMM-XLR-Adapterkabel-1-8-m-Schwarz.html? ) to the inputs of the subwoofer.
From there, use normal XLR cables to connect the two outputs to the left and right C-212 respectively. This will give you the best sound results.
Question by Thomas on 28.09.2023
Hello!
The c118sa better to combine with c210 or c212 active tops?
VG and thanks
Answer by Musikhaus Kirstein:
Both are possible and sound good. Whether it is better to take the 10s or the 12s tops depends on the size of the event.
Question by Frederic Jubert on 12.07.2023
Hello I just bought your subwoofer Pronomic C-118SA Subwoofer active 2x set, I need your knowledge in active subwoofer my question is what do you mean :
Adjustable crossover frequency (Off, 80 Hz, 100 Hz, 120 Hz or 150 Hz)
Adjustable delay (0 - 16 ms in 0.1 ms steps), +/- polarity switchable
Answer by Musikhaus Kirstein:
The crossover frequency is the frequency above which the signal is passed to the tops. You set this frequency to match the frequency response of the tops you are using (e.g. if your tops have a frequency response of 100Hz to 18kHz, set the subwoofer to 100Hz).
Delay is only needed if you are setting up a delay line for very large events.
The polarity can be switched to prevent phase cancellations when operating two subwoofers.
Question by Max Morgenstern on 14.06.2022
Hello can you connect the subwoofer also with a soundboks 3 via xlr
Answer by Musikhaus Kirstein:
Yes, works with XLR.
