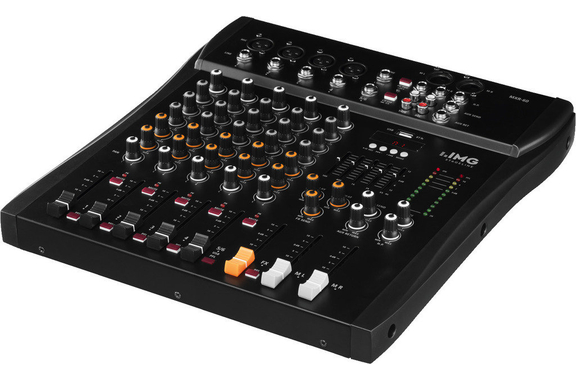

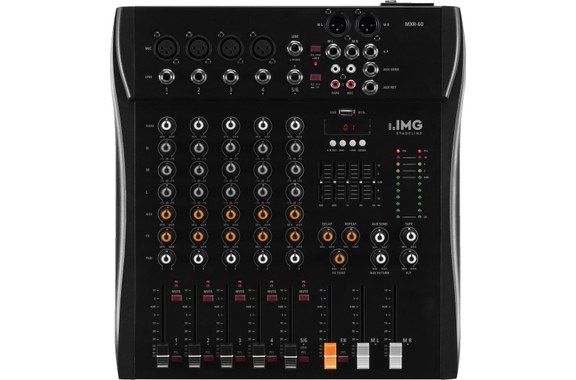

IMG Stageline MXR-60

• 6-Channel Audio Mixer with Built-in MP3 Player and Bluetooth Receiver
• Integrated USB Audio Interface (recognized and addressed as an external sound card)
• Full-Duplex USB Port (simultaneous recording and playback possible) for playing digital audio data from a computer and recording the mix to the computer
• 4 Mono Input Channels with Gain Control, 3-Band EQ and Pan Pot
• 1 Stereo Input Channel with 3-Band EQ and Balance Control
• MP3 Player
• USB Interface
• Bluetooth Receiver
• Adjustable DSP Delay
• Adjustable Aux Return Input and FX Send Output
• Tape Record/Play Connections
• 5-Band Stereo Graphic Equalizer
• +48V Phantom Power, centrally switchable
• Pre-listening (PFL) of Stereo Input Channels via adjustable headphone output
• Stereo LED Level Meter

Connections

• 4 x XLR Mic Inputs
• 1 x 6.3 mm Jack L/R Line Input
• 4 x 6.3 mm Jack Line Inputs
• 1 x RCA L/R Tape (Play)
• 1 x 6.3 mm Jack L/R AUX Input
• 1 x 6.3 mm Jack L/R Master Output
• 1 x XLR L/R Master Output
• 1 x 6.3 mm Jack Effect Send
• 1 x 6.3 mm Jack Headphone Output
• 1 x RCA L/R Tape (Rec)

Technical Data

• Input Channels: 6
• Number Mic/Mono: 4
• Number Stereo: 1
• Frequency Range: 20-20000 Hz
• Total Harmonic Distortion: < 0.03 %
• Signal-to-Noise Ratio: > 82 dBA
• Bass Control: ±15 dB/80 Hz
• Mid Control: ±15 dB/2.5 kHz
• Treble Control: ±15 dB/12 kHz
• Equalizer: 5-Band EQ
• Phantom Power: +48 V
• Power Supply: ~ 230 V/50 Hz/20 VA
• Line Voltage: ~ 230 V
• Line Frequency: 50 Hz
• Power Consumption Operating: 20 VA
• Permissible Operating Temperature: 0-40 °C
• Dimensions (W x H x D): 324 x 53 x 340 mm
• Weight: 2.9 kg

• 1 x IMG Stageline MXR-60 Mixer
• 1 x Power Supply
