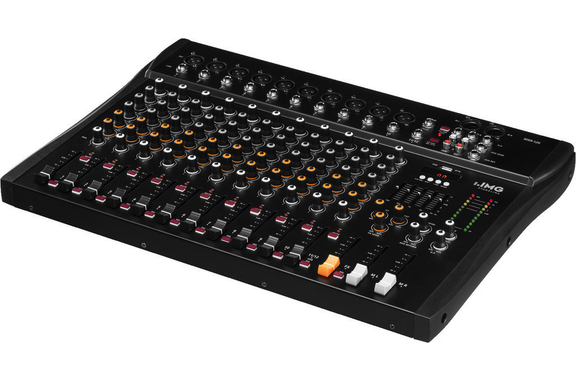

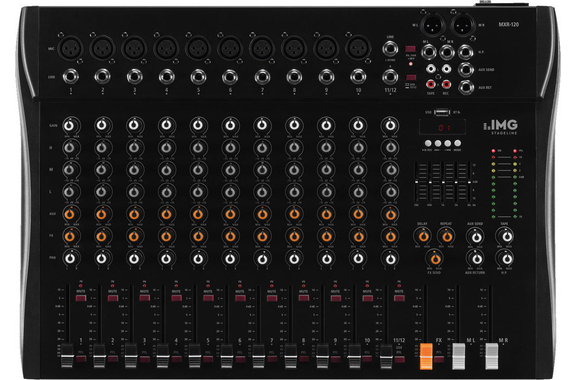

IMG Stageline MXR-120

• 12-channel audio mixer with built-in MP3 player and Bluetooth® receiver
• Integrated USB audio interface (recognized and addressed as an external sound card)
• Full-duplex USB port (simultaneous recording and playback possible) for playing digital audio data from the computer and recording the mix to the computer
• 10 mono input channels with gain control, 3-band EQ and pan pot
• 1 stereo input channel with 3-band EQ and balance control
• MP3 player
• USB interface
• Bluetooth® receiver
• Adjustable DSP delay
• Adjustable aux return input and FX send output
• Tape record/play connections
• 5-band stereo graphic equalizer
• +48 V phantom power, centrally switchable
• Pre-listening (PFL) of stereo input channels via adjustable headphone output
• Stereo LED level meter

Connections

• 10 x XLR, mic input: 2.2 mV, balanced
• 1 x 6.3 mm jack L/R, line input: 50 mV (stereo)
• 10 x 6.3 mm jack, 30 mV (mono)
• 1 x RCA L/R, tape (play): 290 mV
• 1 x 6.3 mm jack L/R, aux input: 420 mV
• 1 x XLR L/R, master output: 880 mV, balanced
• 1 x 6.3 mm jack L/R, 880 mV
• 1 x 6.3 mm jack, effect send: 9 V
• 1 x RCA L/R, tape (rec): 400 mV
• 1 x 6.3 mm jack, headphone: = 8 Ω
• USB: yes
• Bluetooth®: yes

Technical Data

• Input channels: 12
• Number mic/mono: 10
• Number stereo: 1
• Frequency range: 20-20000 Hz
• Distortion factor: < 0.03 %
• Signal-to-noise ratio: > 82 dBA
• Bass control: ±15 dB/80 Hz
• Mid control: ±15 dB/2.5 kHz
• Treble control: ±15 dB/12 kHz
• Equalizer: 5-band EQ
• Phantom power: +48 V
• Power supply: ~ 230 V/50 Hz/30 VA
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption operating: 30 VA
• Permissible operating temperature: 0-40 °C
• Dimensions (W x H x D): 498 x 53 x 340 mm
• Weight: 4.4 kg

• 1 x IMG Stageline MXR-120 12-channel audio mixer
• 1 x power cable
