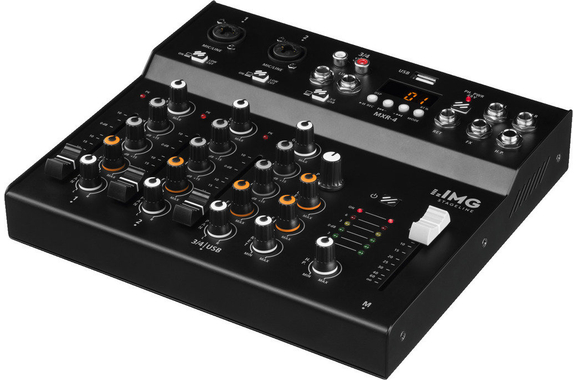

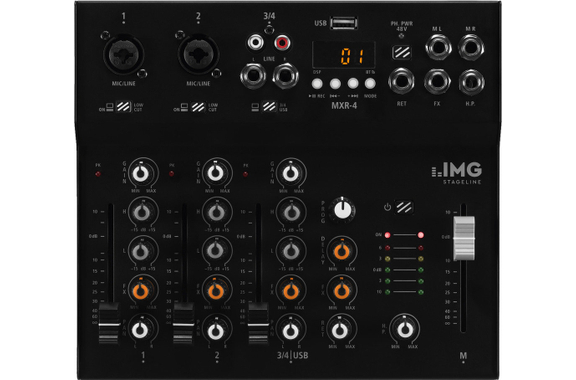

IMG Stageline MXR-4 - 4-Channel USB Mixer with Bluetooth & MP3 Player!
This compact mixer offers versatile mixing of audio signals (microphones, instruments, line-level devices). The mixed signal is output via the 6.3 mm jack sockets ML, MR, and the USB port. The USB port also serves as an input for audio data when connected to a computer and for the integrated audio player to play MP3, WAV, or WMA files from a USB stick. The audio player is additionally equipped with a Bluetooth module.
Compact Analog Mixer for Small to Medium Events!
Features
- 4-Channel Audio Mixer with DSP Effects Unit, Built-in MP3 Player and Bluetooth Receiver
- Integrated USB Audio Interface (recognized and addressed as an external sound card)
- Full-Duplex USB Port (simultaneous recording and playback possible) for playing digital audio data from the computer and recording the mix to the computer
- 2 Mono Input Channels with Gain Control, 2-Band EQ and Pan Pot
- 1 Stereo Input Channel with 2-Band EQ and Balance Control
- MP3 Player
- USB Interface
- Bluetooth Receiver
- 16 Different DSP Effects
- Adjustable Aux Return Input and FX Send Output
- +48 V Phantom Power, centrally switchable
- Adjustable Headphone Output
- Stereo LED Level Meter
- Power Supply via USB or Included Power Adapter
Connections
- 2 x XLR Mic Input
- 2 x 6.3 mm Jack L/R Line Input
- 2 x 6.3 mm Jack Line Input
- 1 x 6.3 mm Jack L/R AUX Input
- 1 x 6.3 mm Jack L/R Master Output
- 1 x 6.3 mm Jack Effect Send
- 1 x 6.3 mm Jack Headphone Output
Technical Data
- Input Channels: 4
- Number Mic/Mono: 2
- Number Stereo: 1
- Frequency Range: 20-20000 Hz
- Total Harmonic Distortion: < 0.03 %
- Signal-to-Noise Ratio: > 83 dBA
- Bass Control: ±15 dB/80 Hz
- Treble Control: ±15 dB/12 kHz
- Phantom Power: +48 V
- Power Supply: USB or included
- Power Adapter
- Operating Temperature Range: 0-40 °C
- Dimensions (W x H x D): 228 x 53 x 205 mm
- Weight: 1.4 kg
Scope of delivery
- 1 x IMG Stageline MXR-4 Mixer
- 1 x Power Adapter
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00069506
- Inputs 3.5mm Stereo-Klinke, Bluetooth, XLR
- additional FX Yes
- Colour Black
- Outputs 6.3mm Klinke, USB
- Number of microphone inputs 2
