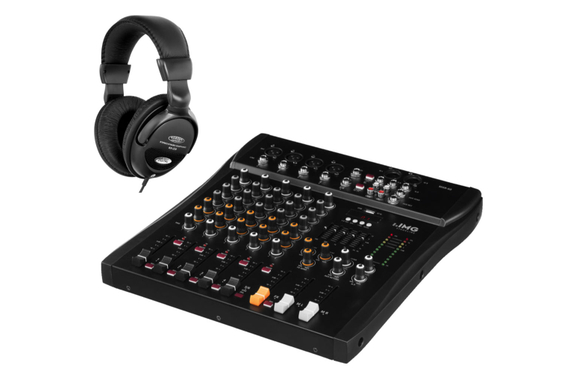

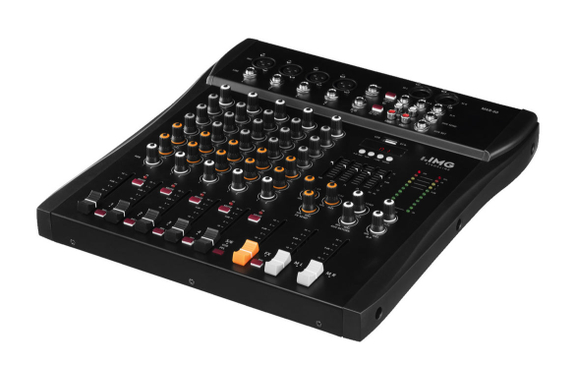

IMG Stageline MXR-60 - 6-Channel USB Mixer with Bluetooth, MP3 Player & Effects!
This mixer is versatile for mixing audio signals (microphones, instruments, devices with line level). The summed signal is output via the ML, MR, REC output jacks and the USB port. The USB port also serves as an input for audio data when connected to a computer and for the integrated audio player to play MP3, WAV, or WMA files from a USB stick. The audio player is also equipped with a Bluetooth module.
Practical Comfort Headphones Included
The KH-238 delivers a full, balanced sound with rich bass reproduction and clear highs. The extension offers 12 steps on each side for optimal adjustment. For even more wearing comfort, the ear cups are mounted to rotate on two axes. The thick, soft padding of the circumaural ear cups additionally provides good external noise isolation.

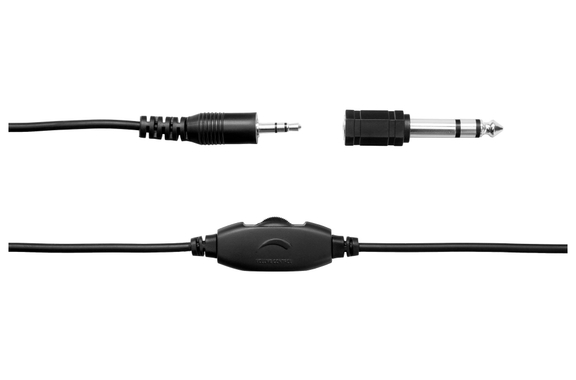

The volume control integrated in the cable is always at hand, simplifying use with a PC or MP3 player. The 3.5 mm stereo jack plug provides excellent transmission characteristics, and an adapter to 6.3 mm jack (stereo) is also included in the scope of delivery.
Compact Analog Mixer for Small to Medium Events!
Features

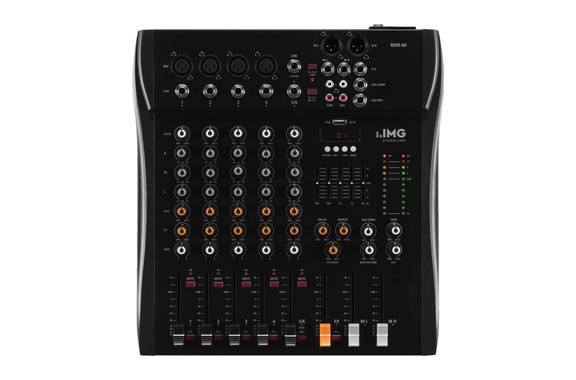

IMG Stageline MXR-60
- 6-channel audio mixer with built-in MP3 player and Bluetooth® receiver
- Integrated USB audio interface (recognized and addressed as external sound card)
- Full-duplex USB port (simultaneous recording and playback possible) for playing digital audio data from the computer and recording the mix to the computer
- 4 mono input channels with gain control, 3-band EQ and pan pot
- 1 stereo input channel with 3-band EQ and balance control
- MP3 player
- USB interface
- Bluetooth® receiver
- Adjustable DSP delay
- Adjustable aux return input and FX send output
- Tape record/play connections
- 5-band stereo graphic equalizer
- +48 V phantom power, centrally switchable
- Pre-listening (PFL) of stereo input channels via adjustable headphone output
- Stereo LED level meter
Connections
- 4 x XLR mic input
- 1 x 6.3 mm jack L/R line input
- 4 x 6.3 mm jack line input
- 1 x RCA L/R tape (play)
- 1 x 6.3 mm jack L/R AUX input
- 1 x 6.3 mm jack L/R master output
- 1 x XLR L/R master output
- 1 x 6.3 mm jack effect send
- 1 x 6.3 mm jack headphone output
- 1 x RCA L/R tape (rec)
Technical Data
- Input channels: 6
- Number mic/mono: 4
- Number stereo: 1
- Frequency range: 20-20000 Hz
- Distortion factor: <0.03 %
- Signal-to-noise ratio: > 82 dBA
- Bass control: ±15 dB/80 Hz
- Mid control: ±15 dB/2.5 kHz
- Treble control: ±15 dB/12 kHz
- Equalizer: 5-band EQ
- Phantom power: +48 V
- Power supply: ~ 230 V/50 Hz/20 VA
- Voltage: ~ 230 V
- Frequency: 50 Hz
- Power consumption operation: 20 VA
- Permissible operating temperature: 0-40 °C
- Dimensions (W x H x D): 324 x 53 x 340 mm
- Weight: 2.9 kg

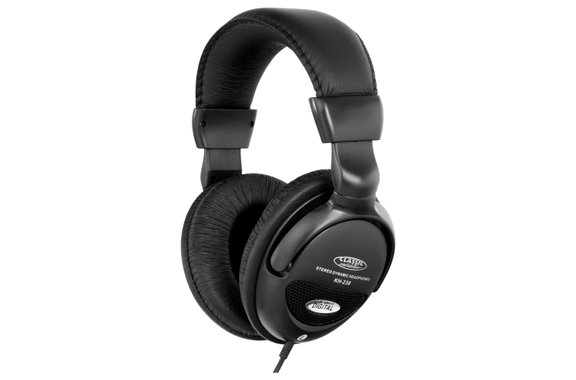

Classic Cantabile KH-238 Headphones
- High-quality dynamic headphones
- Speaker: ø 40 mm
- Frequency response: 20 to 20,000 Hz
- Sensitivity: 110 dB SPL (at 1kHz)
- Nominal impedance: 32 ohms
- Soft padded, circumaural ear cups
- Good external noise isolation
- Soft padded, wide headband
- Size adjustable in 12 steps per side
- Padding material: synthetic leather
- Integrated active bass
- Volume control integrated in cable
- Cable: 4 m with one-sided feed
- Plug: 3.5 mm stereo jack
- Adapter: nickel-plated 6.3 mm stereo jack
- Net weight (without cable): 226 g
- Gross weight: 283 g
Scope of delivery
- 1 x IMG Stageline MXR-60 Mixer
- 1 x Power Supply
- 1 x Classic Cantabile KH-238 Headphones
- 1 x Adapter 3.5 mm Jack to 6.3 mm Jack
Specification
- Product number 00069508
- Inputs 6.3mm Klinke, Bluetooth, Cinch / RCA, XLR
- additional FX No
- Colour Black
- Outputs 6.3mm Klinke, Cinch / RCA, USB, XLR
- Number of microphone inputs 4
