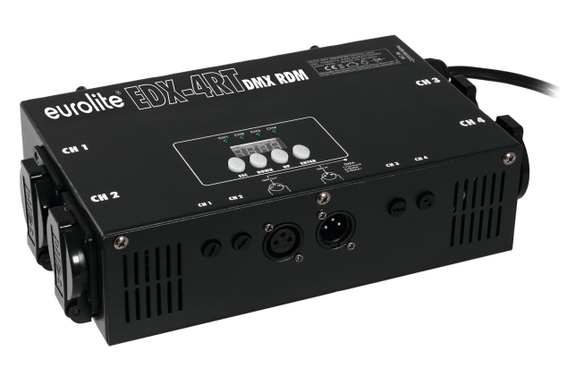

EUROLITE EDX-4RT DMX RDM Truss Dimmerpack!
The compact 4-channel DMX dimmer from Eurolite delivers a maximum output power of 1150 W per channel with a handy LED status indicator for each output channel. The dimmer allows you to set separate dimmer curves for each channel (linear, quadratic, inverse quadratic, switching).
The truss dimmerpack also features 10 programmable chases with up to 30 scenes each, chase playback (automatic or music-controlled), 10 programmable scenes, and RDM support.

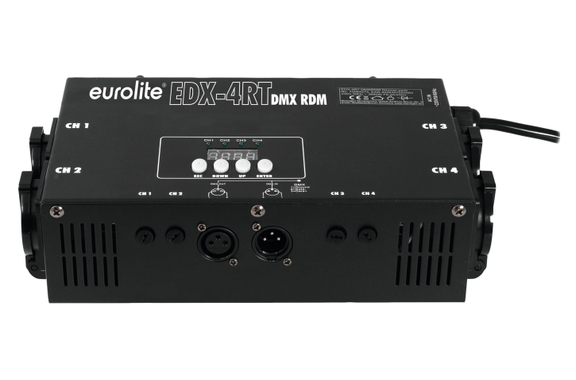

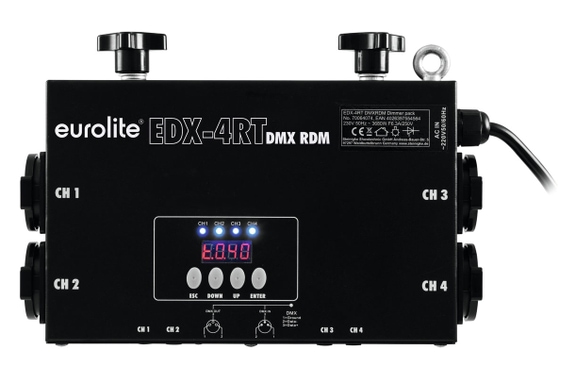

The control unit with a 4-digit LED display on top is used for DMX addressing and menu navigation.
Additionally, the EDX offers a 3-pin DMX512 input and output, as well as further outputs via the 4 grounded power sockets. The dimmerpack is lightweight at only 2.5 kg and, with its two M8 threads, is ideal for wall, ceiling, and truss mounting.
Ideal for Every Lighting Technician!
Features
- 4-channel DMX dimmerpack for truss mounting
- LED status indicator per output channel
- Control unit with 4-digit LED display for addressing and settings
- Separate dimmer curves for each channel (linear, quadratic, inverse quadratic, switching)
- 10 programmable chases with up to 30 scenes each
- Chase playback possible automatically or music-controlled
- 10 programmable scenes
- RDM support
- DMX512 input and output

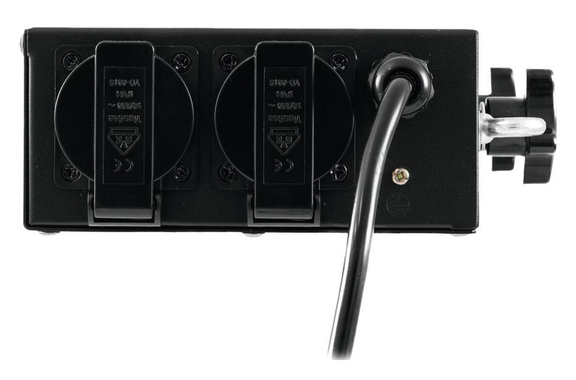

- Outputs via 4 grounded power sockets
Technical Data
- 2 x M8 threads
- Control: RDM, stand-alone, music control via microphone, DMX
- Power supply: 230 V AC, 50 Hz
- Output power: max. 1150 W per channel
- Max. 3680 W
- Power connection: fixed power cable with grounded plug
- Power output: 4 x grounded sockets (W), flip cover built-in version
- Programs: 10 sequences
- With up to 30 scenes each
- DMX channels: 4
- DMX input: 1 x 3-pin XLR (M) built-in version
- DMX output: 1 x 3-pin XLR (F) built-in version
- Dimensions (W x H x D): 28 x 7.5 x 19.5 cm
- Weight: 2.5 kg
- Color: Black
Scope of delivery
- 1 x Eurolite EDX-4RT DMX RDM Truss Dimmerpack
Specification
- Product number 00066808
- Colour Black
