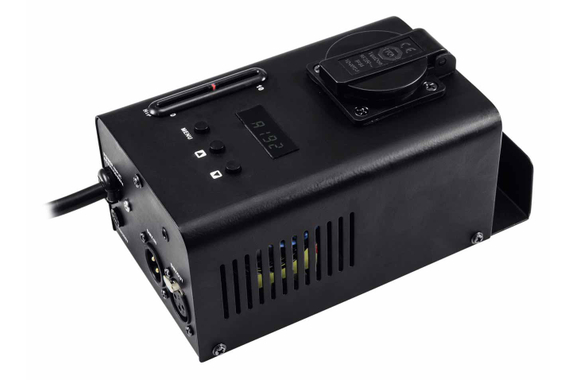

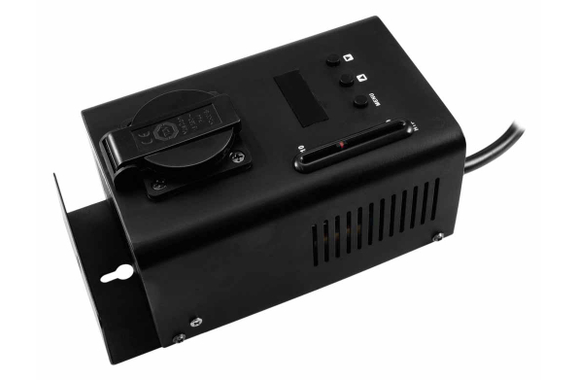

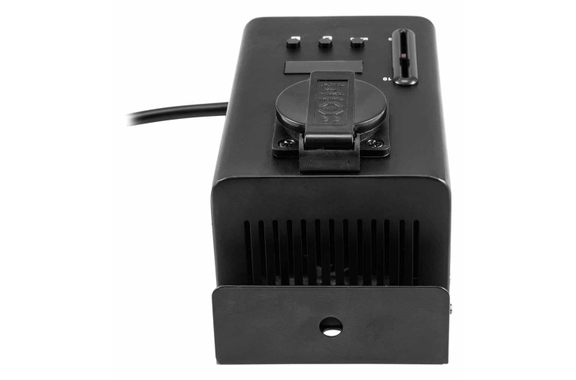

Eurolite EDX-1 MK2 DMX Dimmerpack - dims perfectly!
The compact 1-channel dimmer from Eurolite has a maximum output power of 10 A. The operating mode can be easily switched between dimmerpack and switchpack. The LED display on top is used for DMX addressing and menu navigation.
Additionally, the EDX features a 3-pin DMX input and output, as well as a grounded socket as output. The dimmerpack is lightweight at only 1.1 kg, making it ideal for wall, ceiling, and truss mounting.
Perfect for every lighting technician!
Features
- Compact 1-channel DMX dimmer
- Max. output power 10 A
- Operating mode switchable between dimmerpack and switchpack
- LED display for DMX addressing and menu navigation

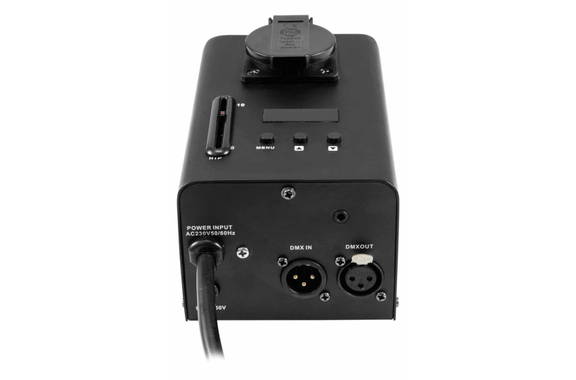

- 3-pin DMX input and output
- Output via 1 grounded socket
- For wall, ceiling, and truss mounting
Technical Data
- Power supply: 230 V AC, 50 Hz
- Max. total power: 2300 W
- Max. total current: 10 A
- Number of channels: 1
- Output socket: 1 grounded socket
- DMX output: 3-pin XLR chassis socket
- DMX input: 3-pin XLR chassis plug
- Dimensions: 182 x 92 x 65 mm
- Weight: 1.1 kg
Scope of delivery
- 1 x Eurolite EDX-1 MK2 DMX Dimmerpack
Specification
- Product number 00055190
- Colour Black
