Ideal for Every Lighting Technician!

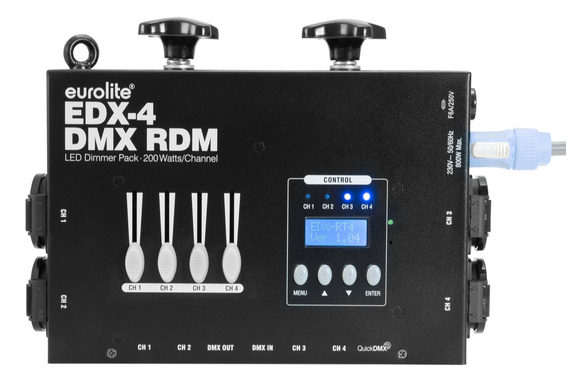

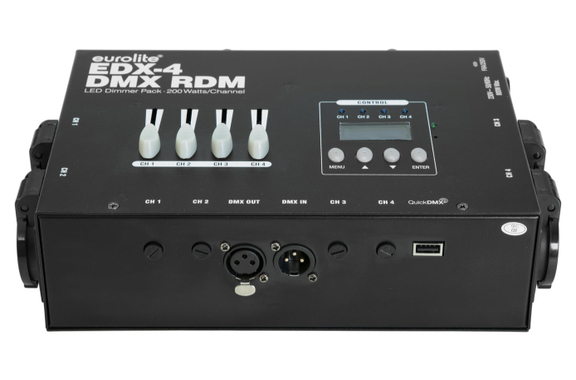

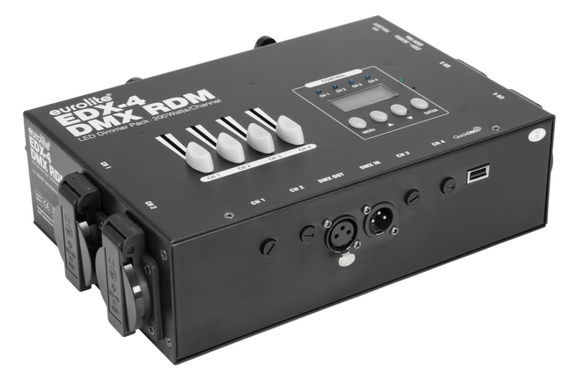

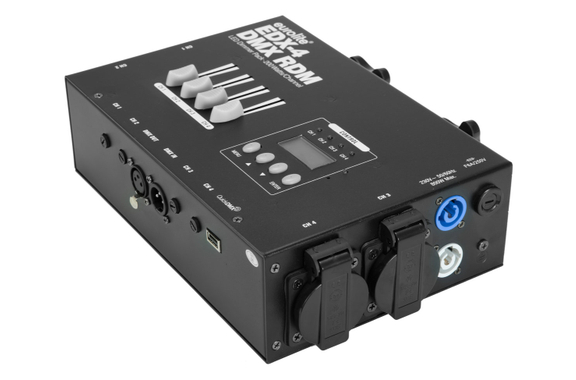

The EDX-4 from Eurolite is a 4-channel dimmer for controlling the brightness of connected LED lamps. It can be operated via DMX signal from a lighting console. Menu settings are made through the integrated control unit with LED display. The housing allows for mounting on trusses.
Operation with QuickDMX Wireless Receiver
The device features an additional DMX input for a QuickDMX receiver (sold separately). This connection allows a DMX control signal to be transmitted wirelessly to the device. The port is designed as a USB socket, providing the required 5 V operating voltage for the receiver. Using the QuickDMX wireless system eliminates the complex cabling between the DMX lighting controller and the dimmer.
The EDX-4 can also be operated without an external DMX controller, provided that the DMX controller or QuickDMX receiver is not connected to the EDX-4.
Automatic Operation and Music Control
In "Auto" mode, 16 chase programs are available, running at an adjustable speed. In "Music" mode, the EDX-4 uses the built-in microphone to play the chase programs in sync with the music rhythm (with pronounced bass beats). The microphone sensitivity can be adjusted to the music volume in the submenu.
Eurolite - Lighting Technology in Great Variety!
Features
- Eurolite LED Dimmer Pack
- Type: EDX-4 DMX RDM
- Phase-cut dimmer with 4 channels
- Load capacity of 200 watts per channel
- DMX, automatic, and music modes
- Independent DMX addressing per channel possible
- QuickDMX connection for wireless DMX link
- 16 built-in chase programs with adjustable speed
- Dimmer or switch operation
- 4 channel faders for device control
- Control panel with LCD display for easy configuration
- LED status indicators per output channel
- 2 x M10 rigging points
- Power input and output for easy cabling
- Controllable via QuickDMX over USB (optional), RDM, stand-alone, music control via microphone, DMX
- Operable in 1; 4; 6 CH DMX mode
Technical Data
- Power supply: 230 V AC, 50 Hz
- Output power
Max. 200 W per channel
Max. 800 W total - Power connection: Power feed P-Con (blue), built-in power cable version with protective earth plug
- Power output
4 x protective earth (W), flip cover built-in version
1 x PowerCON (grey), built-in bypass version - DMX channels: 1; 4; 6
- DMX input: 3-pin XLR (M)
- DMX output: 3-pin XLR (F)
- Control channels: 4
- Rigging points: 2 x M10 thread
- Display type: LCD display
- Weight: 2.65 kg
- Dimensions (W x D x H): 21 x 29 x 9 cm
- Color: Black
Scope of delivery
- 1 x Eurolite EDX-4 DMX RDM LED Dimmer Pack
- 1 x Power cable
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00078191
- Colour Black
