Let There Be Light - With the Eurolite LED PLL-384 CW/WW Panel!
Flat, even light is indispensable for many applications. In photography, film, exhibition construction and on stages you often need a bright, large-area light that is perfectly uniform. The PLL-384 panel from Eurolite delivers exactly that: its 384 super-bright white LEDs light up any situation while remaining energy-efficient and environmentally friendly.
The panel operates without a fan and is therefore completely silent. It offers smooth, stepless dimming with four selectable dimmer speeds. The fixture is flicker-free and suitable for filming.

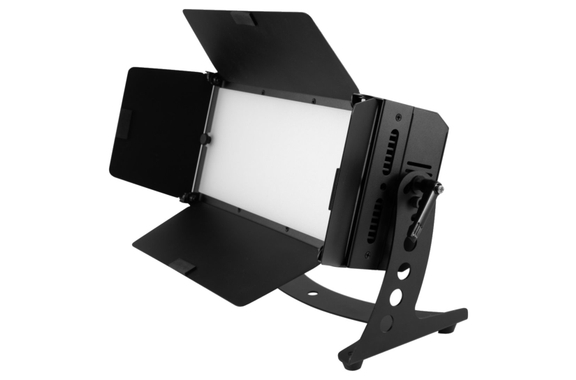

Four barn doors limit the beam or prevent unwanted glare toward the audience. They also serve as good transport protection for the frosted front panel. In addition, the rugged metal housing protects the unit from damage.
Eurolite - Lighting Technology In A Wide Variety!
Our specialists from the Live & Studio department are looking forward to your call.
Features
- Eurolite LED Panel Light With DMX Control
- Type: LED PLL-384 CW/WW Panel

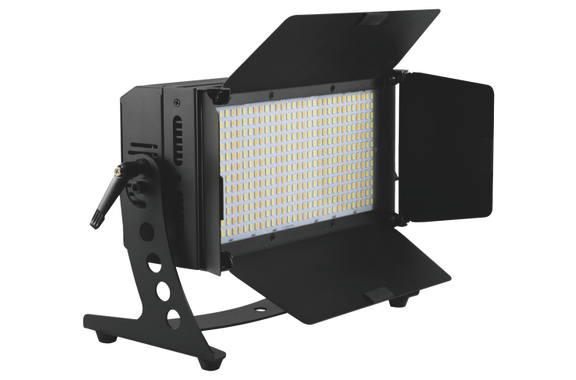

- LED: 192 x SMD 5730 0.5 W Cold White (CW)
- LED: 192 x SMD 5730 0.5 W Warm White (WW)
- Variable Color Temperature 2700 - 5700 K
- Controllable via
DMX
Master/Slave Function
Stand-alone
CRMX by LumenRadio via USB (optional)
QuickDMX via USB (optional)
W-DMX by Wireless Solution via USB (optional)
Quick-select potentiometer for brightness and color temperature - 69 Preset Color Temperature Settings
- Quick Adjustment Of Color Temperature & Brightness Via Rotary Control
- Energy-efficient, Long-lasting & Environmentally Friendly
- Frosted Diffuser Panel For Homogeneous & Soft Continuous Light
- Perfect Glare And Transport Protection Thanks To Four Barn Doors
- Electronic Dimmer (0 - 100 %)
- Strobe Effect 1 - 20 Hz

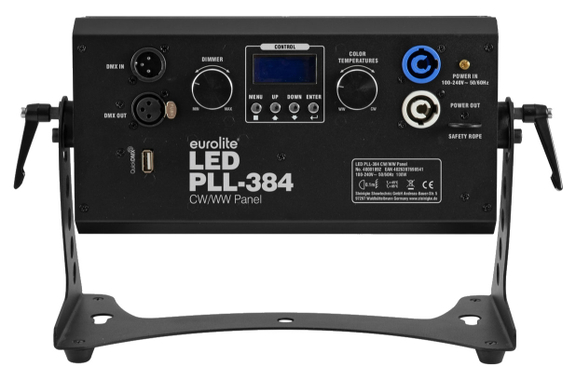

- Control Panel With LCD Display For Easy Configuration
- Compatible With QuickDMX - Eurolite's Wireless DMX System
- Phantom-powered USB Socket For QuickDMX, CRMX And W-DMX Receivers (Optional)
- Master/Slave Operation For Synchronized Runs With Multiple Units
- Adjustable Mounting Bracket
- Additional Rubber Feet Protect The Unit When Placed On The Floor
- Power Input/Output For Easy Linking Of Up To 8 Units
- Operable In 2-1; 2-2; 3-1; 3-2; 4 CH DMX Modes
- Device Cooling Via Temperature-Controlled Fan
- Flicker-free Projection
- Very High Color Rendering Index (CRI)
Technical Data
- Power Supply: 100-240 V AC, 50/60 Hz
- Total Power Consumption: 100 W
- Protection Rating: IP20
- Lamp Type: LED
- 192 x SMD 5730 0.5 W Cold White (CW)
- 192 x SMD 5730 0.5 W Warm White (WW)
- Color Temperature: 2700K - 5700K adjustable
- DMX Channels: 5
- DMX Input: 3-pin XLR (M) flush-mount
- DMX Output: 3-pin XLR (F) flush-mount
- Cooling: Temperature-controlled fan
- Color Rendering Index (CRI) Greater Than: 90 Ra
- Beam Angle: 50°
- Beam Angle (1/2 Peak): 50°
- Beam Angle (1/10 Peak): 100°
- Noise Classification: Class 0 (no noise)
- Dimensions (L x W x H): 34.7 x 13.8 x 21.1 cm
- Weight: 3.52 kg
- Housing Color: Black
Scope of delivery
- 1 x Eurolite LED PLL-384 CW/WW Panel
Specification
- Product number 00086677
- Black light / UV No
- DMX interface Yes
- Colour spectrum White
- IP rating IP20
- Light source power (Watts) 100
- Colour Black
