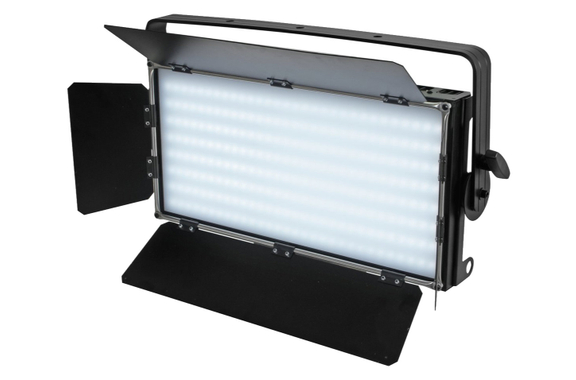

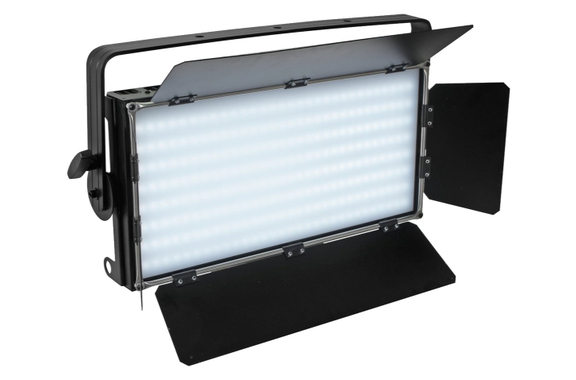

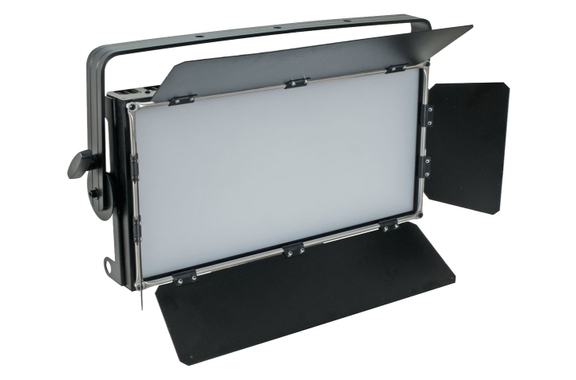

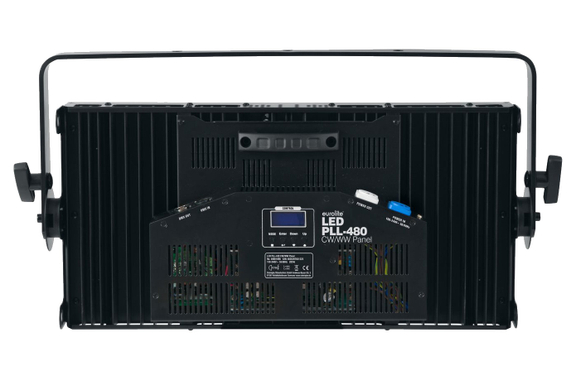

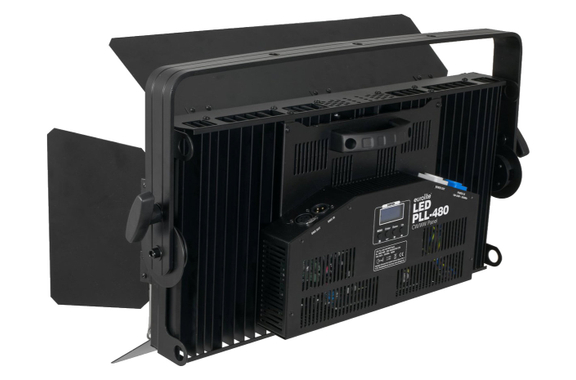

Let there be light — with the Eurolite LED PLL-480 CW/WW Panel!
Flat light is indispensable for many applications. In photography, film, trade-show construction and on stages, you often need a bright, even flat light. The PLL-480 panel from Eurolite delivers exactly that. With its 480 super-bright white LEDs it lights up any scene while remaining energy-efficient and eco-friendly.
The panel operates fanless and is therefore completely silent. It is continuously dimmable, with four different dimmer speeds available. The fixture is flicker-free and suitable for film work.
Four barn doors limit the light or prevent unwanted glare in the audience area. In addition, the barn doors provide good transport protection for the milky front surface. The robust metal housing also protects the unit from damage.
Eurolite - Lighting Technology in Great Variety!
Our specialists from the Live & Studio department are looking forward to your call.
Features
- Eurolite LED panel with DMX control
- Type: LED PLL-480 CW/WW Panel
- Color temperature continuously adjustable between 3200 K and 5600 K
- Continuously dimmable
- Manual operation or DMX512 control
- 4 adjustable dimmer speeds
- CRI > 90
- Addressing and settings via control unit with LCD
- Master/slave function
- Strobe effect
- Adjustable mounting bracket
- Comfortable carrying handle
- Stand or truss mounting
- P-Con power connectors for easy linking of up to 8 units
- LEDs: 480 x SMD 0.5 W CW/WW (homogeneous color mixing)
- Operable in 5-channel DMX mode
- Device cooling via passive convection
- Controllable via DMX
- Preprogrammed in Light J software
- Flicker-free projection
Technical Data
- Power supply: 100–240 V AC, 50/60 Hz
- Total power consumption: 205 W
- Protection class: IP20
- Lamp type: LED
- LEDs: 480 x SMD 0.5 W CW/WW (homogeneous color mixing)
- Color temperature: 3200 K – 5600 K adjustable
- DMX channels: 5
- DMX input: 3-pin XLR (M) built-in
- DMX output: 3-pin XLR (F) built-in
- Cooling: Passive convection cooling
- Control: DMX; Light J software
- Color rendering index (CRI) greater than: 90 Ra
- Beam angle: 120°
- Beam angle (1/2 peak): 120°
- Illuminance in lux (lx): CW 3 m: 398 lx, 6 m: 119 lx
- WW 3 m: 391 lx, 6 m: 117 lx
- All at 3 m: 787 lx, 6 m: 234 lx
- Noise classification: Class 0 (no noise)
- Display type: LCD display
- Dimensions (W x D x H): 64 x 12.5 x 33 cm
- Weight: 12.6 kg
- Housing color: Black
Scope of delivery
- 1 x Eurolite LED PLL-480 CW/WW Panel
Specification
- Product number 00080302
- DMX interface Yes
- Light source power (Watts) 205
- Colour spectrum White
- Black light / UV No
- Colour Black
