Let There Be Light - With the Eurolite LED PIX-144 RGB Bar!
What a glow — the Eurolite LED PIX-144 RGB light bar makes any party shine. With a wealth of lighting and color options, it puts every event and occasion in the right light.
Full Brightness

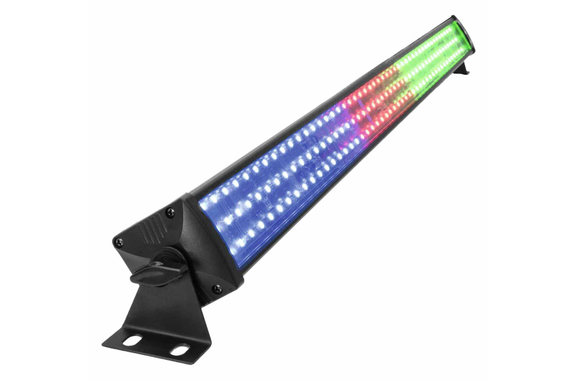

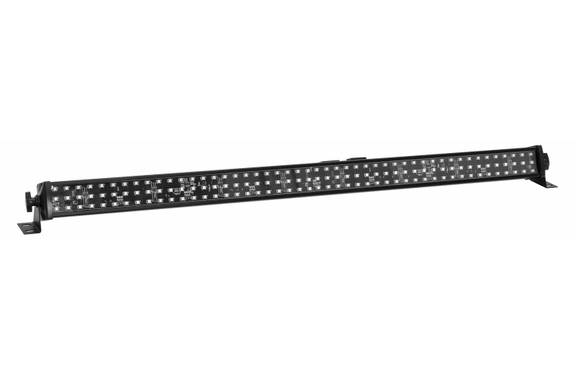

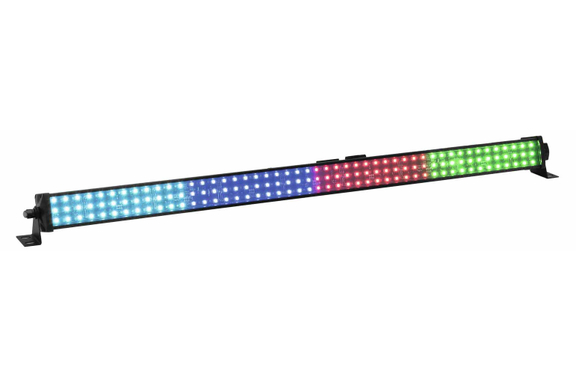

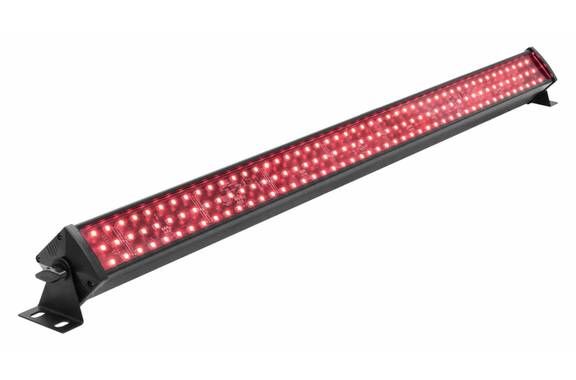

Equipped with 144 SMD LEDs in Red, Green and Blue, the 100 cm long PIX-144 bar delivers a flicker-free projection. It is divided into 8 pixels (light units with 18 LEDs each) that can be individually addressed via DMX. The LED bar offers static colors, RGB color mixing, internal programs, a dimmer function and a strobe effect — all adjustable via DMX or the Master/Slave mode.
Operation & Control
The LED PIX-144 RGB bar can run in DMX-controlled mode or in standalone mode using the Master/Slave function. Addressing and settings are made via the control board on the top, with four control buttons and an LED display.
If you prefer sound control, you can set the sensitivity of the built-in microphone individually via the control board to suit your needs. Additionally, 3, 5, 6, 12, 24 or 48 DMX channels can be selected. Of course, DMX512 control via any commercially available DMX controller is also possible (controller not included).
Finally, Mounting

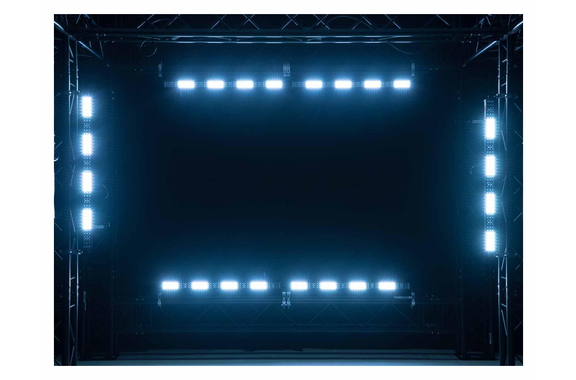

Eurolite offers several mounting options for the LED PIX-144 RGB bar. It can be mounted hanging or standing and can be locked in position on the brackets. For larger events or simply more party coverage, there is also a through output to power up to 8 devices.
For a Radiant Performance - Eurolite!
Features
- Equipped with 144 x SMD LEDs in the colors Red, Green and Blue
- Flicker-free projection
- 3, 5, 6, 12, 24 or 48 DMX channels selectable
- Operable via DMX or in standalone mode with Master/Slave function
- Addressing and settings via control board with four control buttons and LED display
- Functions: static colors, RGB color mixing, internal programs, dimmer, strobe effect adjustable via DMX or Master/Slave

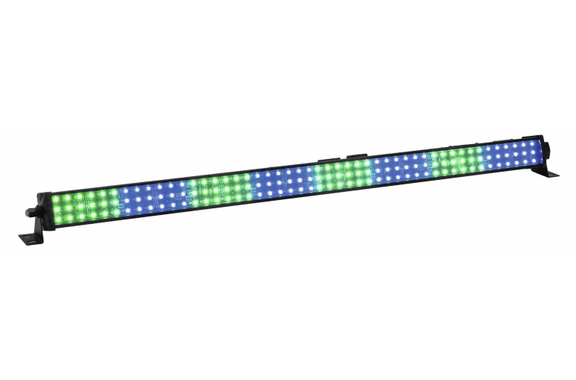

- Divided into 8 pixels (light units with 18 LEDs each) that can be individually controlled via DMX
- Sound control via built-in microphone, sensitivity adjustable via control board

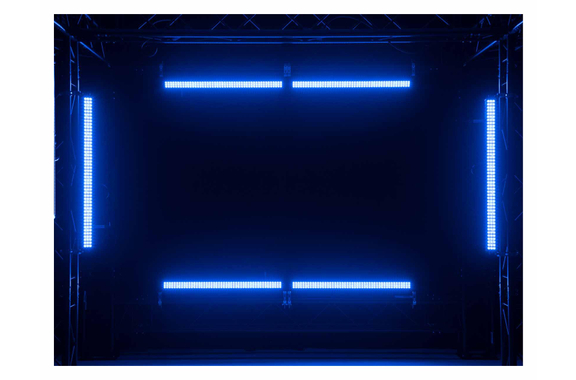

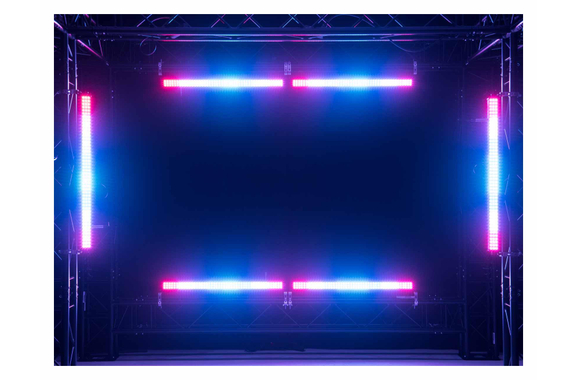

- Can be mounted hanging or standing
- Lockable on the brackets
- Switching power supply technology for mains voltages between 100 and 240 volts
- DMX512 control possible via any commercially available DMX controller
- Through output to power up to 8 devices
- Ready to connect with the supplied IEC mains lead with earth-pin plug
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 25 W
- DMX control channels: 3/5/6/12/24/48

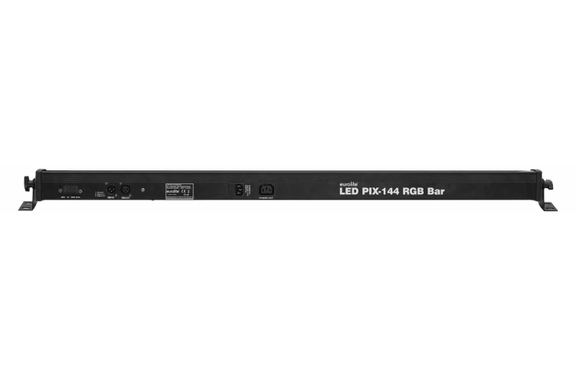

- DMX512 connection: 3-pin XLR
- Sound control: via built-in microphone
- Flash rate: 20 Hz
- LED type: RGB SMD
- LED count: 144
- Dimensions (L x W x H): 1020 x 65 x 80 mm
- Weight: 1.5 kg
Scope of delivery
- 1 x Eurolite LED PIX-144 RGB Bar
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00055178
- Light source power (Watts) 25
- DMX interface Yes
- Colour spectrum RGB
- IP rating IP20
- Black light / UV No
- Colour Black
