Let There Be Light - With the Eurolite LED PIX-144 RGB Light Bar!
Bring on the shine — the Eurolite LED PIX-144 RGB Light Bar makes the party world sparkle. Packed with lighting and color options that put every occasion and setting in the right light.
Full Brightness

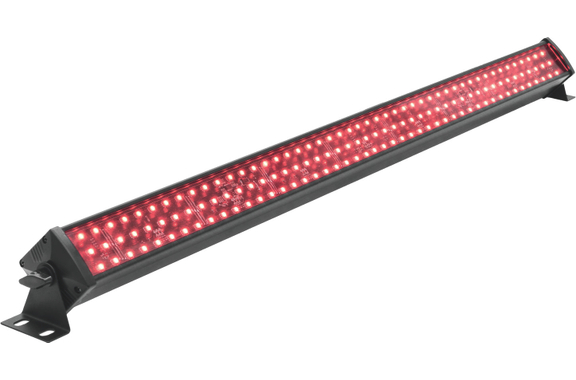

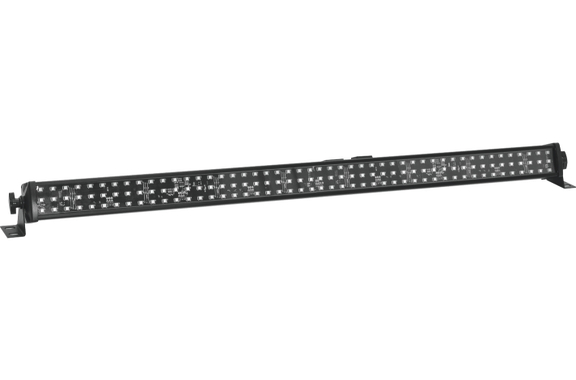

Equipped with 144 SMD LEDs in red, green and blue, the 100 cm PIX-144 bar delivers a flicker-free projection. It's divided into 8 pixels (light units of 18 LEDs each) that can be individually controlled via DMX. The LED bar offers static colors, RGB color mixing, internal programs, a dimmer function and a strobe effect — all adjustable via DMX or the Master/Slave mode.
Operation & Control
The LED PIX-144 RGB bar can operate under DMX control or as a standalone unit with Master/Slave functionality. Addressing and settings are handled via the control board on top, with four control buttons and an LED display.
If you prefer sound control, you can adjust the sensitivity of the built-in microphone individually via the control board to suit your needs. Additionally, 3, 5, 6, 12, 24 or 48 DMX channels can be selected. Of course, DMX512 control via any standard DMX controller is possible (not included).
Finally, Mounting

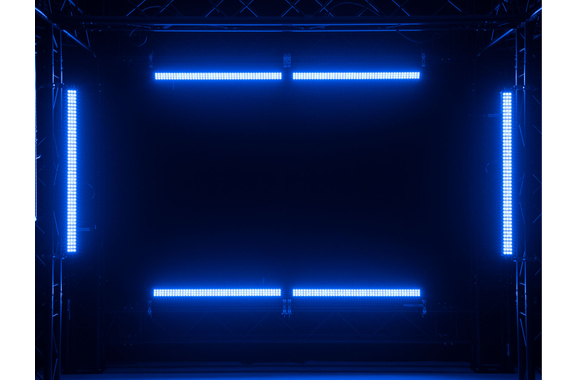

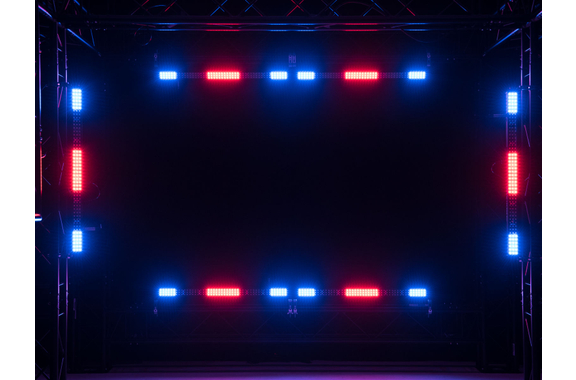

Eurolite offers several mounting options for the LED PIX-144 RGB bar. It can be mounted hanging or standing, and it can be locked in place on the brackets. For larger events or simply more party area, there is also a power-through output to supply power to up to 8 units.
For a Radiant Performance - Eurolite!
Features
- Equipped with 144 x SMD LEDs in red, green and blue
- Flicker-free projection
- 3, 5, 6, 12, 24 or 48 DMX channels selectable
- Operable via DMX or as standalone with Master/Slave function
- Addressing and settings via control board with four control buttons and LED display
- Functions: static colors, RGB color mixing, internal programs, dimmer, strobe — adjustable via DMX or Master/Slave

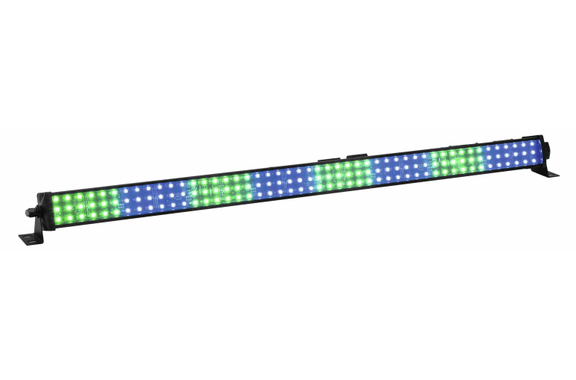

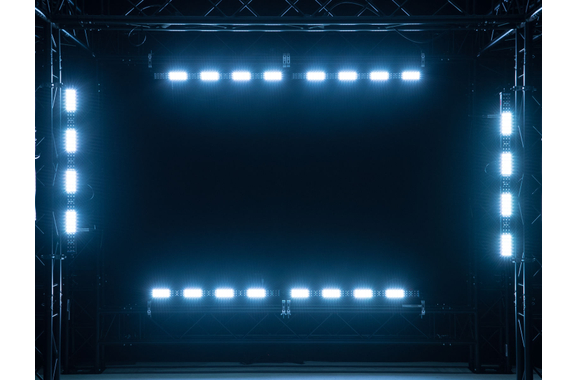

- Divided into 8 pixels (light units of 18 LEDs each) that can be individually controlled via DMX
- Sound control via built-in microphone, sensitivity adjustable via control board

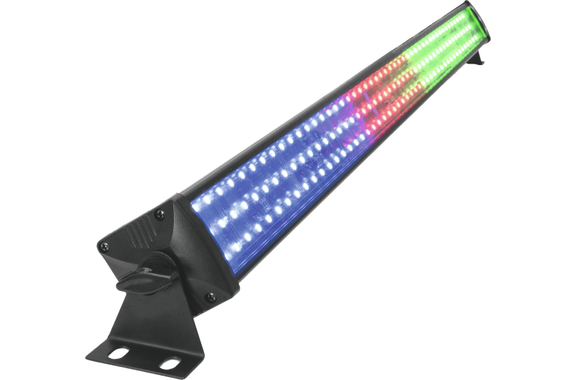

- Can be mounted hanging or standing
- Can be locked on the brackets
- Switch-mode power supply technology for mains voltages between 100 and 240 volts
- DMX512 control via any standard DMX controller possible
- Power-through output to supply power to up to 8 units
- Ready to use with included IEC mains lead with protective earth plug
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 25 W
- DMX control channels: 3/5/6/12/24/48

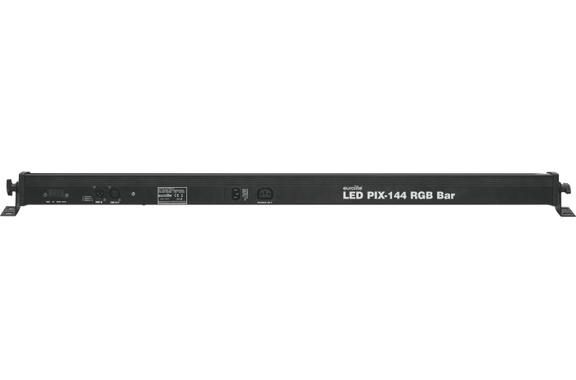

- DMX512 connector: 3-pin XLR
- Sound control: via built-in microphone
- Flash rate: 20 Hz
- LED type: RGB SMD
- Number of LEDs: 144
- Dimensions (L x W x H): 1020 x 65 x 80 mm
- Weight: 1.5 kg
Scope of delivery

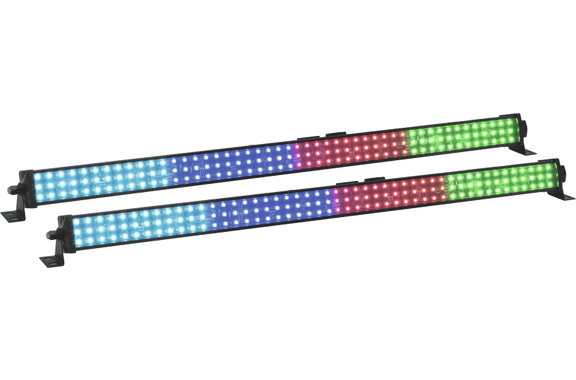

- 2 x Eurolite LED PIX-144 RGB Light Bars
Specification
- Product number 00120784
- Black light / UV Nein
- DMX interface Ja
- Colour spectrum RGB
- IP rating IP20
- Light source power (Watts) 50
- Colour Schwarz
