Let There Be Light - with the Eurolite LED PIX-144 RGBW Bar!
What a shine in my place - the Eurolite LED PIX-144 RGBW light bar makes the party world glow. Packed with many lighting and color options that put every occasion and event in the perfect light.
Full Brightness

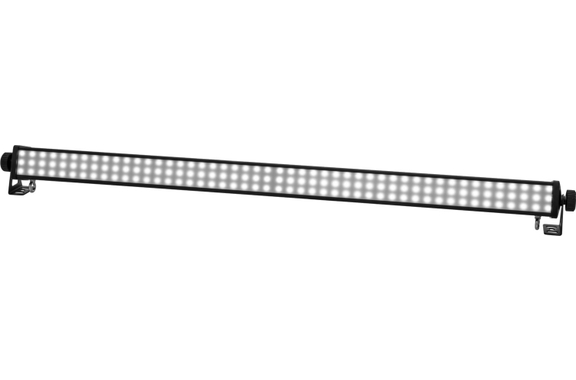

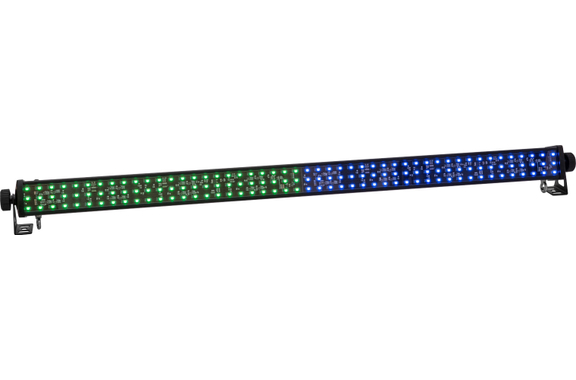

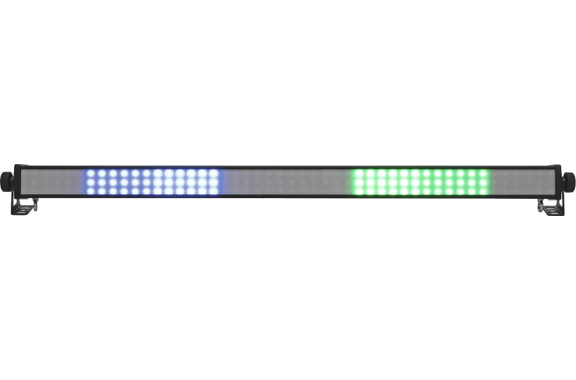

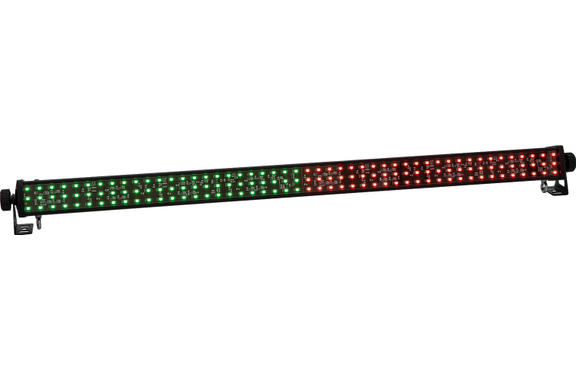

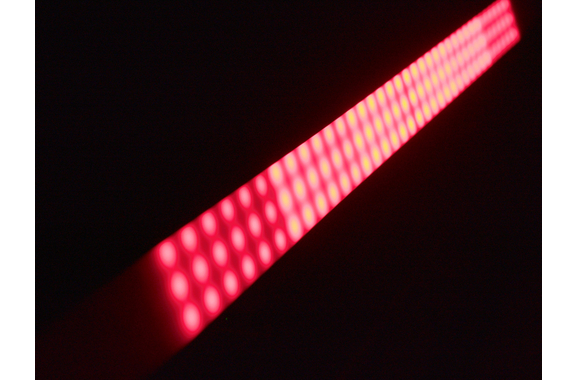

Equipped with 144 SMD LEDs in red, green, blue, and white, the 100 cm long PIX-144 bar delivers flicker-free projection. It’s divided into 8 pixels (lighting units with 18 LEDs each), individually controllable via DMX. The LED bar offers static colors, RGBW color mixing, internal programs, a dimmer function, and a strobe effect. All adjustable via DMX or master/slave mode.
Operation & Control
Control is via DMX, master/slave function, or music control. Optionally, it can also be controlled via USB using QuickDMX, W-DMX, or CRMX.
Mounting

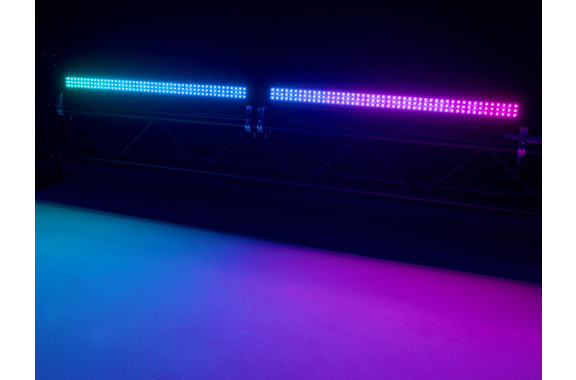

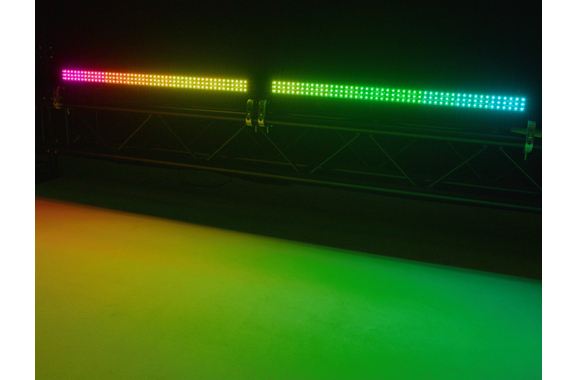

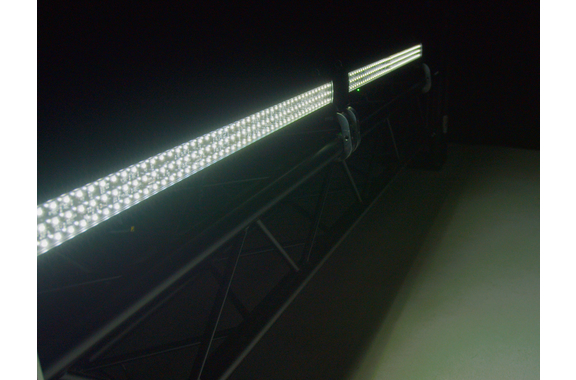

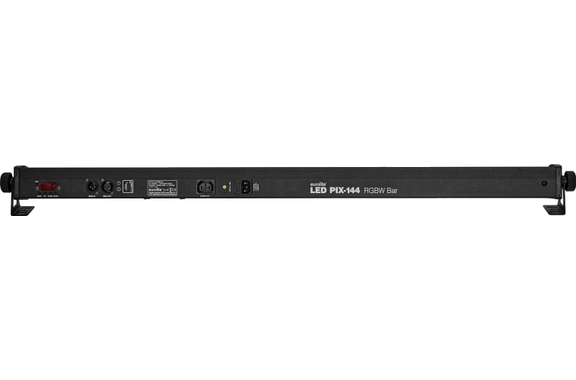

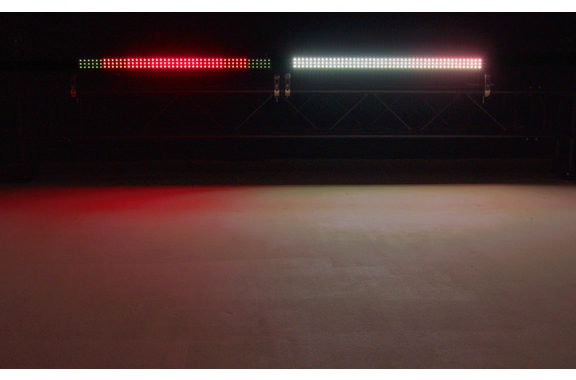

Eurolite provides several mounting options for the LED PIX-144 RGBW bar. It can be mounted hanging or standing and is lockable on the brackets. For larger events or more party space, there’s also a thru-connection output for power supply to up to 8 units.
Eurolite - Lighting Technology in Great Variety!
Features
- Eurolite RGBW Bar
- Type: LED PIX-144 RGBW
- Equipped with 144 powerful SMD 5050 4in1 QCL RGBW LEDs (homogeneous color mixing)
- 8 segments individually controllable
- Electronic dimmer; seamless color mixing; adjustable color change; preset colors
- Strobe effect
- 16 integrated show programs
- 4-digit 7-segment LED display
- Preprogrammed for Light Captain
- Power input and output for easy linking of up to 8 units
- Control via DMX, stand-alone, master/slave function & music control
- Optional control via USB using QuickDMX, W-DMX by Wireless Solution, CRMX by LumenRadio
- Housing material: metal
- Weight: 1.63 kg
- Dimensions (L x W x H): 108 x 6.5 x 9 cm
- Color: black
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 50 W
- Protection rating: IP20
- Protection class: Class I
- Power connection: Power input via cold device (M) built-in version power cable with protective contact plug (included)
- Power output: Cold device (W) built-in version
- Fuse: 5 x 20 mm, T 1 A replaceable fuse
- Flash rate: 0 - 20 Hz
- DMX channels: 6; 9; 16; 30; 58

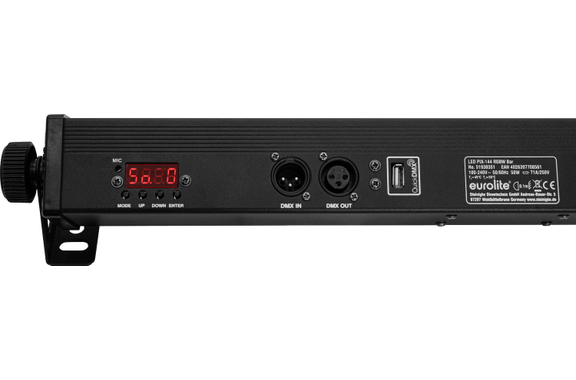

- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (W) built-in version
- Cooling: Passive convection cooling
- Beam angle: 120°
- Beam angle (1/2 peak): 120°
Scope of delivery
- 1 x Eurolite LED PIX-144 RGBW Bar
- 1 x Power cable
- 2 x Mounting brackets

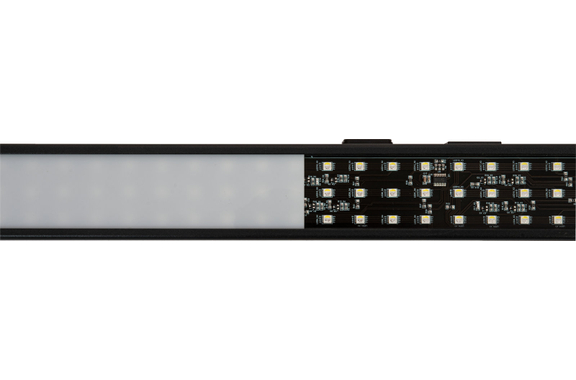

- 1 x Diffuser plate
Specification
- Product number 00100041
- Black light / UV No
- Colour spectrum RGBW
- Colour Black
- IP rating IP20
- DMX interface Yes
- Light source power (Watts) 50
