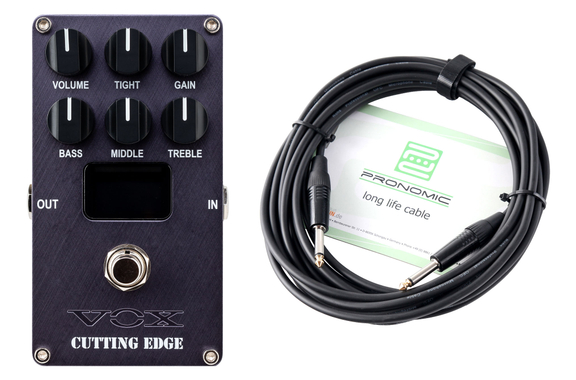

Vox Valvenergy Cutting Edge Pedal SET

Vox Valvenergy Cutting Edge - Nutube Preamp in Pedal Format!

The VALVENERGY series includes 4 analog Nutube tube preamps in pedal format, specializing in the authentic sound of various tube amplifiers, and offering exceptional versatility with a total of three different operating modes.

VOX has been pursuing a dual approach for some time, producing traditional tube amps alongside amps with the innovative Nutube tube technology. The experience gained has been consolidated to ensure that guitar pedals with Nutube behave just like a full-fledged tube amplifier.

The response and playing feel are so realistic that all the tube sounds demanded today can be effortlessly delivered. Additionally, these pedals offer a novel channel switching function and a line-level output, leaving all other pedals far behind.

What Is "Nutube"?

Nutube is a new type of tube developed by KORG and Noritake Itron Corporation that uses the properties of vacuum fluorescent displays to create a warm and rich tube sound. A Nutube features an anode-grid structure that behaves exactly like a full-sized triode tube. This results in the same harmonic richness and response as conventional amplifier tubes.

• Equipped with a Nutube for rich tube sound and inspiring response
• Bypass buffer for low-noise signal transmission when the effect is off
• Multiple connection modes for different applications
• CHANNEL-SWITCH function for behavior like a multi-channel amplifier (when using multiple VALVENERGY pedals)
• OLED display with graphical sound visualization

Nutube for Rich Tube Sound and Authentic Response

The Nutube, jointly developed by KORG and Noritake Itron, is the heart of every VALVENERGY pedal. It generates the response, overtone structure, and punch of a real tube amplifier. The VALVENERGY series offers robust tube sounds in 4 flavors.

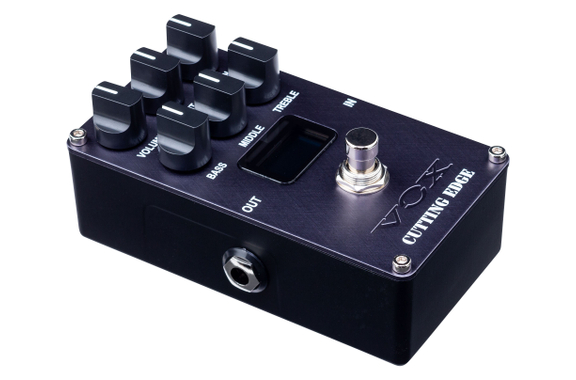

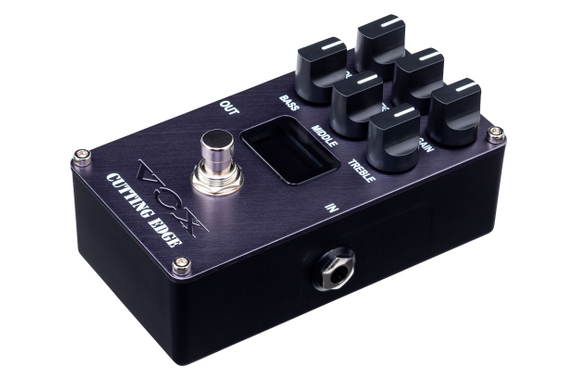

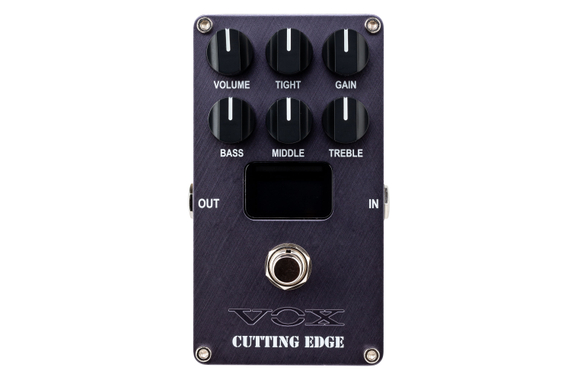

CUTTING EDGE

This pedal produces a brutal and assertive metal sound. It features 4 tone controls with plenty of expressive potential, from "tight" distorted sounds for riffs to mega-fat lead tones.

• GAIN control: Determines the distortion intensity
• VOLUME control: Sets the output level
• TREBLE control: Adjusts the amount of high frequencies. Turning left makes the sound rounder and darker, turning right brightens the tone
• MIDDLE control: Adjusts the mid frequencies. Turning right emphasizes mids, turning left creates the classic "scooped" sound
• BASS control: Adjusts the low frequencies. Turning left thins the sound, turning right adds punch
• TIGHT control: Controls the influence of distortion on the bass content of the signal. This setting greatly affects the distortion sound. Especially with palm muting, it provides a more defined tone

Circuits with Huge Potential

The VALVENERGY series drives fully analog circuits with a 9V supply voltage boosted up to 15V. This provides a huge level boost and sufficient headroom for a wide dynamic range. This circuit design allows full use of the various VALVENERGY features.

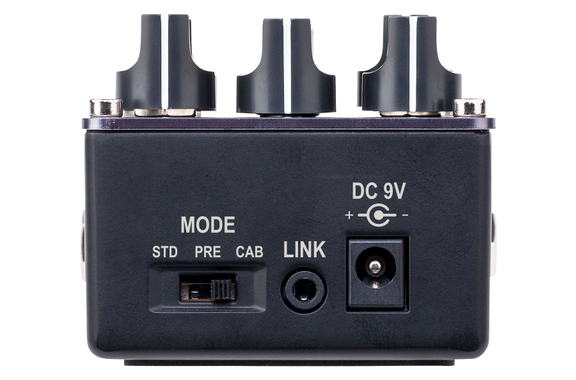

Three Different Operating Modes for More Flexibility

The output mode can be changed to suit your needs.
STANDARD: The pedal outputs an instrument-level signal. This allows connection to the input of a guitar amplifier.

PREAMP: The pedal outputs a line-level signal and can be connected, for example, to the RETURN jack of a combo amp or the input of a power amp connected to guitar cabinets.

CAB-SIM: The pedal outputs a line-level signal with cab simulation. In this mode, it can be connected directly to a mixing console or to a DAW (or audio interface) for guitar recordings.

Channel Switching Onboard

Using a standard 3.5mm stereo cable, the CH-SW jack (Channel Switch) can be connected to the same jack on another pedal. Then only one of the two pedals is active when you press the footswitch—this mimics switching between two channels on a guitar amplifier.
Using a 3.5mm stereo Y-cable, up to 3 pedals can be linked together.

OLED Display with Graphical Sound Visualization

The high-contrast OLED display on these pedals shows an oscilloscope, i.e., a graphical representation of the waveform distortions resulting from the control settings—in real time!

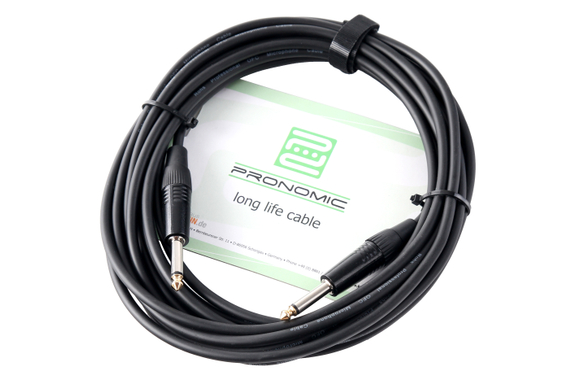

Instrument Cable

The Stage INST cables are professional guitar/instrument cables with high-quality plugs and gold-plated tips. This ensures low conductor capacitance and excellent audio transmission.

The VALVENERGY series offers robust tube sounds in 4 flavors!
