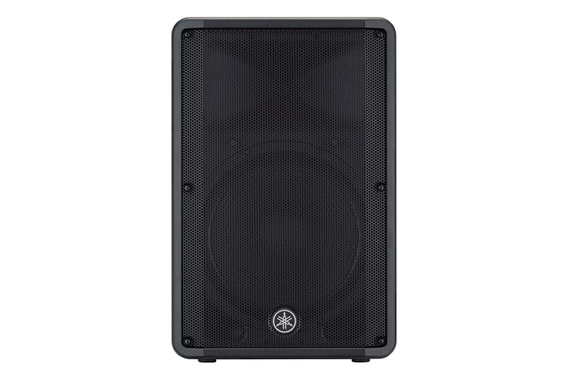

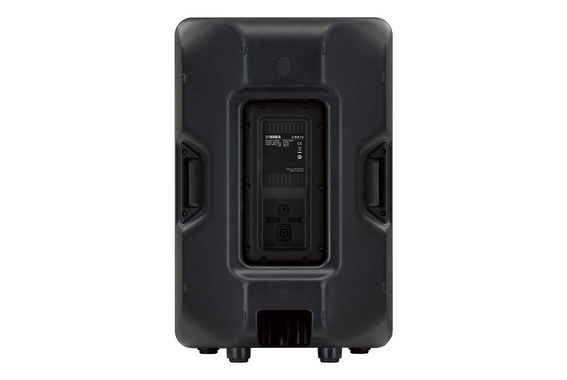

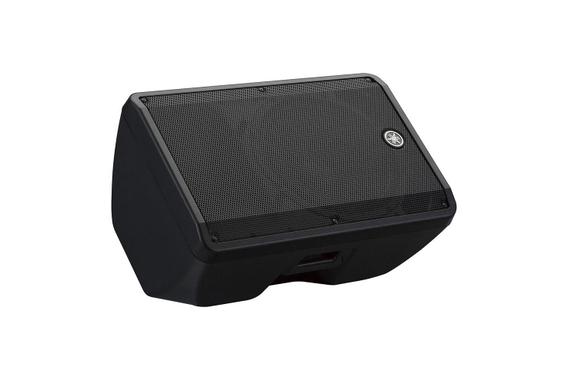

Yamaha CBR15 Passive Speaker Cabinet!
The CBR series is a new range of passive loudspeakers that draws heavily on Yamaha's outstanding expertise and many years of experience in developing top-tier systems of all kinds.
Through meticulous material selection, careful tuning of the audio components and a fresh, innovative approach to speaker design, our engineering team achieved its primary goal: to pack lots of power and crystal-clear sound into a compact, thoughtfully engineered enclosure, making the lineup equally suitable for FOH sound reinforcement, floor monitoring and flown applications.
- Custom drivers and a CD horn with wide dispersion for powerful, high-resolution sound
- HF protection and woofers with excellent transient response for reliable performance at any output level
- Rugged, easy-to-transport enclosure
- Easy connectivity
- Suitable for a wide range of applications
The CBR15 reaches lower frequencies than the other two models in the series. It delivers outstanding performance at FOH live events or DJ sets where volume and powerful bass are essential.
Features
- 2-way speaker cabinet
- Bass-reflex
- Woofer: 15"/2.5" voice coil (ferrite)
- Tweeter: compression driver, 1.4" voice coil (ferrite)
- Frequency Range: 46 Hz - 20 kHz
- Coverage (H/V): 90°/60°
- Crossover Frequency: 2.0 kHz
- Power Handling (RMS/PGM/PEAK): 250/500/1,000 watts
- Impedance: 8 ohms
- Max. Sound Pressure Level: 126 dB SPL
- Sensitivity (1W/1m): 96 dB SPL
- Connections: 1x 6.3 mm jack, 1x speakON NL4MP
- Cabinet: plastic
- Handles: 2x side-mounted
- Fly points: 2x bottom, 1x rear (M8 x 15 mm)
- Pole socket: bottom, 35 mm
- Dimensions (W x H x D): 455 x 700 x 378 mm
- Weight: 17.7 kg
Scope of delivery
- 1 x Yamaha CBR15
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00038478
- Colour Black
- Power rating (Watts) 250
- Multifunctional chassis Yes
- Impedance 8 Ohms
- Tweeters 1,4 Zoll
- Weight in kg 17,7
- Subwoofers 15 Zoll
