Compact, Powerful Complete PA System!
The Pronomic live set consists of a subwoofer and 2 tweeters, which can also be used alone as mobile fullrange speakers. Together with the stands, it really lets you crank up the heat.

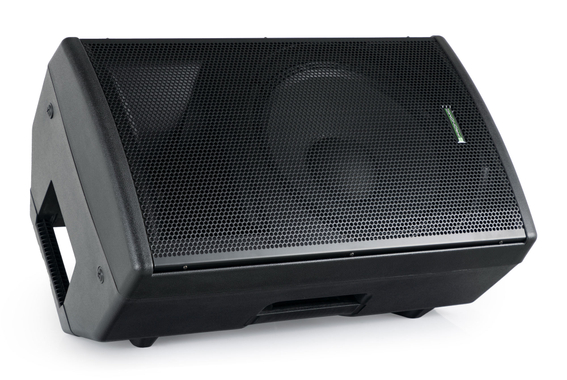

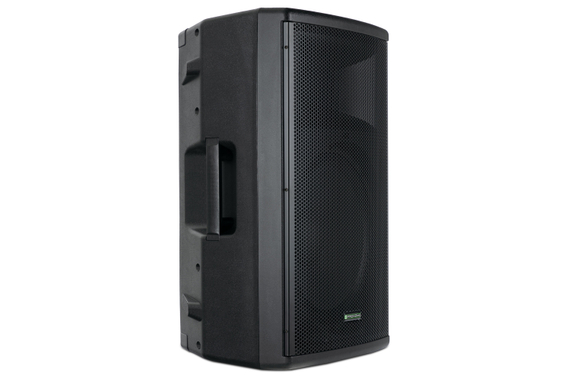

Fullrange/Tweeter Speaker
The cones housed in the sturdy plastic enclosure are powered by the built-in amplifier with 120 watts output. By splitting the audio signal to the two speakers at 2.8 kHz, a clear, powerful sound with excellent presence is achieved.

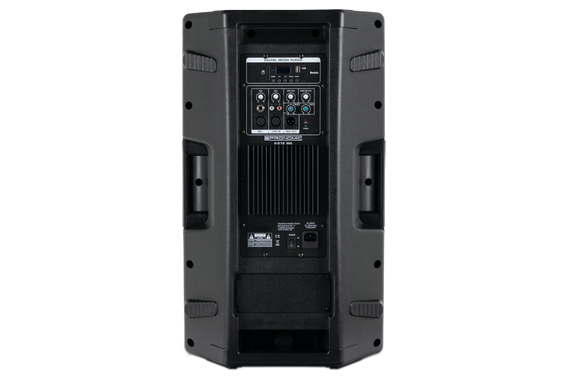

Connection Options
There is a mic input (XLR or 6.35 mm jack) for direct use with dynamic microphones. The second channel is for wired use of, e.g., laptops and MP3 players via RCA or line signals from mixers (XLR). Both channels have separate volume controls, and the summed signal can even be sent to another speaker via the MIX OUT output.
Media Player and Bluetooth® Receiver
A handy feature for casual DJs and party hosts: the integrated media player plays music from USB sticks and SD cards, controllable directly from the player and wireless remote. The wireless option works via Bluetooth®, allowing music to be streamed from smartphones and tablets directly to the speaker. You can select whether music is played from the media player or the aux input using the MP3/AUX button.

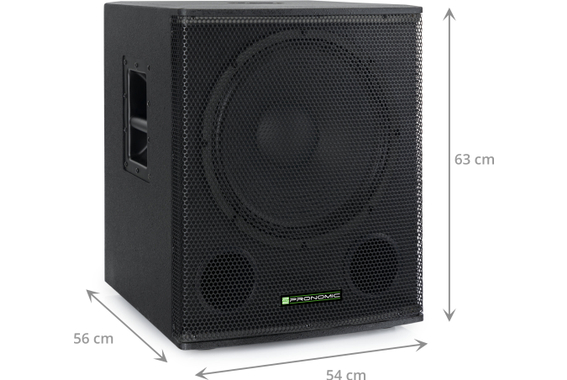

Subwoofer
The SA-18 SUB features an 18" speaker with two bass reflex ports. The cone is driven by a 2.5" voice coil, which combined with the 300 watt (RMS) amplifier delivers a maximum volume of 126 dB.

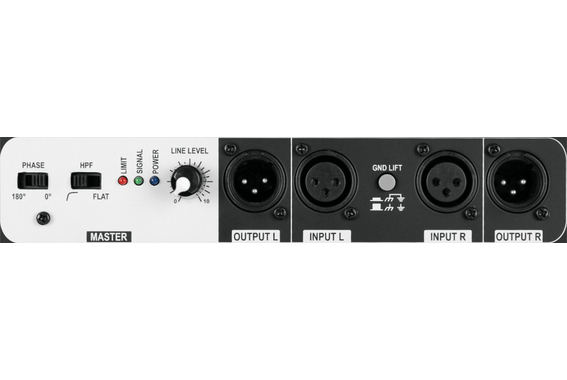

Smart Technology
The subwoofer has two line inputs in XLR format, and two XLR outputs for signal pass-through. These outputs feature a switchable high-pass filter that removes frequencies below 100 Hz. Additionally, the SA-18 SUB has a phase switch and a ground lift.
Sturdy Enclosure

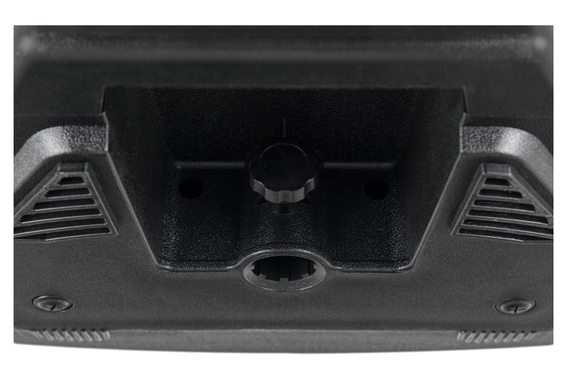

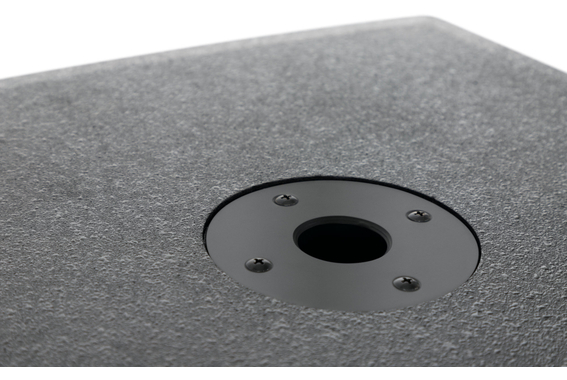

The sturdy 15 mm MDF panels are coated with a durable textured finish. Generous metal handles are located on both sides. Of course, the speaker flange for possible satellite speakers is made of steel.

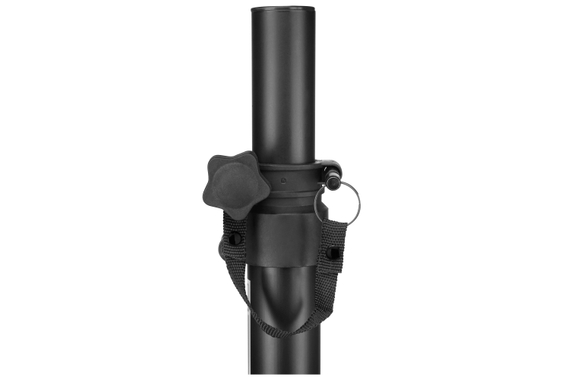

Speaker Stands
The practical stands ensure a secure footing for your speakers with their stable tripod design, whether on stage, in the rehearsal room, or at clubs. Various adjustment options guarantee maximum flexibility in setup, and an additional metal pin, attached to the stand with a nylon strap, provides extra safety against accidental speaker falls.
Powerful Sound and Flexibility!
Features
Satellites
- Woofer: 12" (305 mm)
- Tweeter: 1.0" compression driver
- SPL: 120 dB
- Power: 120 watts (RMS) / 250 watts (peak)
- Mic input (XLR or 6.35 mm jack)
- Line input (RCA or XLR)
- Media player for USB and SD storage media to play MP3 files
- Volume controls for mic input, line input, and AUX/MP3
- MIX OUT output (XLR socket)
- Master volume control
- 2-band equalizer
- Power and clip LEDs
- Frequency response: 60 Hz - 20 kHz
- Sensitivity (1m/1W): 94 dB
- Crossover frequency: 2.8 kHz
- Power input
- Frequency band (Bluetooth®): 2401.418 - 2480.498 MHz
- Durable, lightweight plastic enclosure
- 3 carrying handles (2x sides, 1x top)
- Black metal protective grille
- Dimensions (WxHxD): 38 x 59 x 32 cm
- Weight: 13.7 kg
Subwoofer
- Active subwoofer with Class AB amplifier
- Power: 600 watts (peak), 300 watts (RMS)
- Speaker: 18 inch (46 cm)
- 2.5" voice coil
- Max SPL: 126 dB
- Frequency range: 26 - 120 Hz
- 2x balanced line inputs (XLR)
- 2x balanced line outputs (XLR)
- Switchable line-out (flat/100 Hz HPF)
- Phase switch
- Ground lift switch
- Volume control
- LED indicators for power, input signal, and clipping
- 35 mm flange for distance pole
- Dimensions (WxHxD): 54 x 63 x 56 cm
- Weight: 37.1 kg
Stands
- Steel speaker stands
- Stable tripod construction
- Additional braces
- Large clamping screws for securing
- Safety pin with nylon strap
- Flange diameter: 35 mm
- Extendable from approx. 120 - 193 cm
- Max load: 50 kg
- Weight: 3.2 kg each
- Color: black
Scope of delivery
- 2 x E-212 MA 12" active speaker
- 1 x SA-18 SUB active subwoofer
- 2 x speaker stands
- 2 x XLR cables 10m
Specification
- Product number 00066457
- Inputs 6.3mm Klinke, Cinch / RCA, USB, XLR
- Configuration 2.1
- With mixing desk/power mixer No
- Power RMS (Watts) 540
- Satellites/Fullrange 12 Zoll/1 Zoll
- Colour Black
- Subwoofers 1x 18 Zoll
Reviews
| 5 Stars |
|
1 |
| 4 Stars |
|
0 |
| 3 Stars |
|
0 |
| 2 Stars |
|
0 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
Variant Pronomic Powerstage Economy 1815 2.2 Active PA System 850 Watts
This rating has been translated automatically. Original language
Woofer have a little too little power compared to the satellites.
Lower bass position is also missing here.
Who sowas not bothered, is very good with these boxes on the road.
Questions about product
Question by Guido Heinen on 10.06.2024
I don't understand how the satellites and the subwoofer are to be wired together, especially as the satellites probably both have a Line IN cinch input.
How does the system then communicate a stereo sound?
MfG Guido Heinen
Answer by Musikhaus Kirstein:
The system is wired as follows:
1. all audio sources are connected to input L&R of the subwoofer
2. the XLR cables included in the set are connected to the outputs L&R
3. the other end of the XLR cables is connected to the XLR input of the left & right top speakers.
This gives you a real stereo sound.
