Mobile Column PA System With DSP, Mixer And Stereo-Bluetooth Link!
Are you looking for an active column system that's quick to set up, sounds reliable and stands up to mobile use? The OMNITRONIC ROD-1043 delivers a wide usable frequency spectrum from 42–20,000 Hz, reaches up to 125 dB max level and—thanks to the integrated DSP and Bluetooth 5.3 with TWS—can be tailored to your application.
Sound And Sound Pressure
The usable frequency range of 42–20,000 Hz provides a solid bass foundation and clean highs, while the 125 dB max SPL offers plenty of headroom for speech, live music and DJ setups.
Flexible Signal Processing
The built-in DSP provides five practical presets—FLAT, CLUB, VOICE, BASS BOOST and BASS REDUCTION—so you can quickly tune the system to the room, source material and style.
Wireless Connectivity
Bluetooth 5.3 with Stereo-Link (TWS) enables wireless pairing of two ROD-1043 units into a true stereo setup, with a range of up to 10 m indoors for convenient handling with mobile devices.
Mobility And Handling
The transport-friendly design makes the system ideal for mobile gigs, presentations and spontaneous events where fast setup and teardown are required.
Features
Complete System
- Output Power: 350 W RMS
- Frequency Range: 42 - 20,000 Hz
- Max. SPL: 125 dB
- DSP: Multiband Compressor; Multistep Limiter; Active Phase Correction; Delay Compensation
- Weight: 19.2 kg
Subwoofer
- Frequency Range: 42 - 150 Hz
- Impedance: 1x 4 ohm

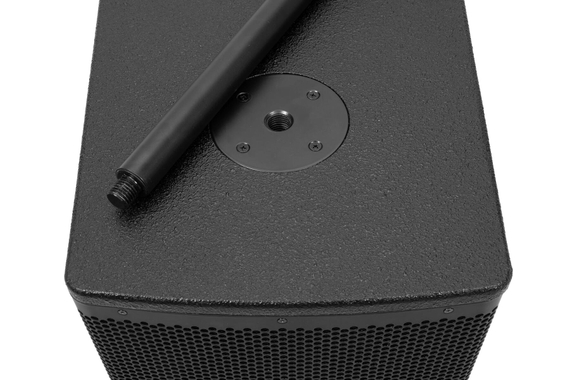

- Mounting System: M20 thread
- Speaker: 1x 10" woofer with 2" voice coil
- Enclosure: Bass-reflex

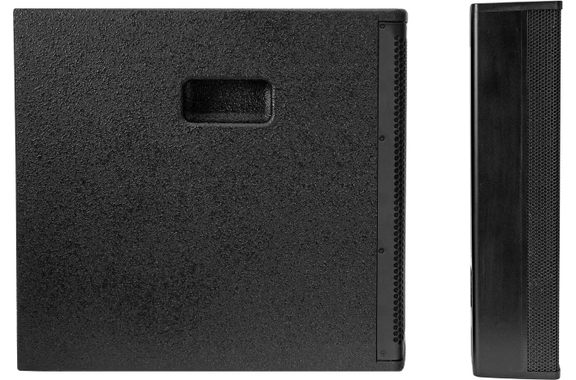

- Recessed Carry Handles: 2 pieces
- 4x plastic feet
- Material: MDF (medium-density fiberboard), 16 mm
- Color: Black, textured finish
- Dimensions (W x D x H): 32 x 46.5 x 44.5 cm
- Weight: 16.5 kg
Integrated Amplifier Module
- Output Power: 1x 200 W RMS (LF), 1x 150 W RMS (HF, 4 ohm)
- Power Connection: Power feed via IEC (male) built-in version; mains cable with grounded plug included
- Device Fuse: 5 x 20 mm, T 2.5 A (service-replaceable)
- DSP Presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
- Bluetooth: Version 5.3, 2.4 GHz with Stereo-Link (TWS), up to 10 m range indoors
- Amplifier Topology: Class D
- Controls: Volume control, power switch, input sensitivity switch
- Protection: Short Circuit; DC; Limiter; Overload
- Status LEDs: Signal, Limit, DSP Presets, Pairing, Link

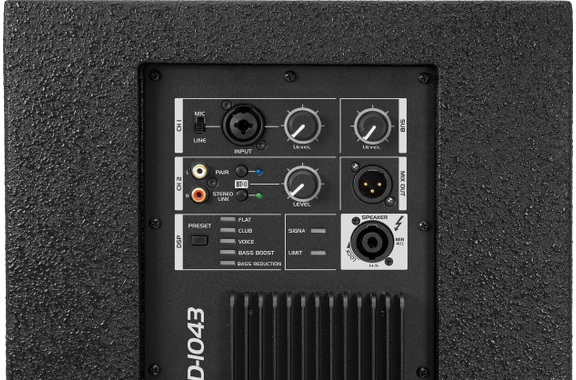

- Connections: 1x Mic/Line input (XLR/6.35 mm jack), 1x line input (Cinch), line output (XLR), 1x speaker output for tweeter
- Crossover Frequency: 150 Hz
Top Unit
- Power Handling: 160 W (Program), 80 W AES (Nominal)
- Frequency Range: 150 - 20,000 Hz
- Sensitivity: 90 dB (1W/1m)
- Dispersion: 100° x 20°
- Impedance: 1x 4 ohm
- Mounting System: Flange: Ø 25 mm

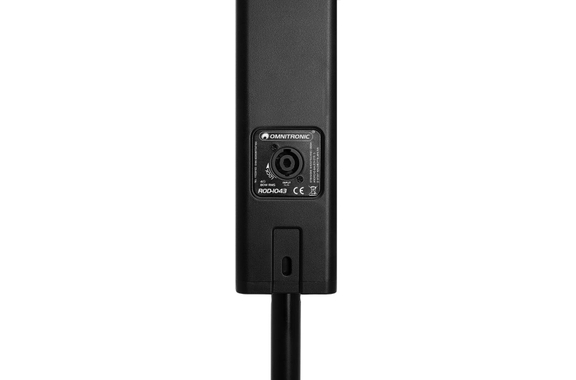

- Input: Top unit via 1 x speaker mounting socket
- Speakers: 4x 3" full-range speakers (neodymium magnet) with 0.75" voice coil
- Dimensions (W x D x H): 8.5 x 10.5 x 45 cm
- Weight: 1.43 kg
Pole
- Height: 59 - 95 cm
- 4-stage adjustable with locking pin
- Mounting System: M20 thread
- Spigot: Ø 25 mm
- Material: steel, painted
- Weight: 0.74 kg
Scope of delivery
- 1 x Subwoofer
- 1 x Top Unit
- 1 x Speaker Pole
- 1 x Mains Cable
- 1 x Speaker Cable
- 2 x Cable Ties
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00115341
- Subwoofers 1x 10 Zoll
- Colour Black
- Battery operation possible No
- Power RMS (Watts) 350
