Mobile Column PA System With DSP, Mixer And Stereo Bluetooth Link!
Are you looking for an active column system that assembles quickly, sounds reliable and stands up to mobile use? The Omnitronic ROD-1043 delivers a broadly usable frequency spectrum from 42–20,000 Hz, reaches up to 125 dB maximum level and, thanks to its integrated DSP and Bluetooth 5.3 with TWS, can be flexibly adapted to your application.
Sound And SPL
The usable frequency range of 42–20,000 Hz provides a solid low-end foundation and clean highs, while the maximum SPL of 125 dB offers ample headroom for speech, live music and DJ setups.
Flexible Signal Processing
The built-in DSP offers five practical presets — FLAT, CLUB, VOICE, BASS BOOST and BASS REDUCTION — so you can quickly tune the system to the room, the material and the style.
Wireless Connectivity
Bluetooth 5.3 with Stereo Link (TWS) enables wireless pairing of two ROD-1043 units into a true stereo setup, with up to 10 m indoor range for convenient handling with mobile devices.
Mobility And Handling
The transport-friendly design makes the system ideal for mobile gigs, presentations and spontaneous events where fast setup and teardown are required.
Protection Set For Your ROD-1043

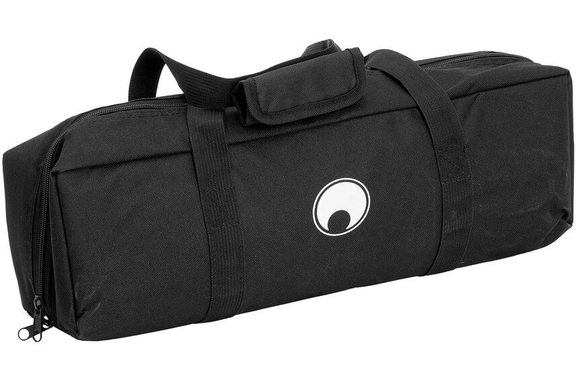

The Omnitronic ROD-1043 Cover Set reliably protects your column system during transport and storage. You receive two custom-fit bags made from hard-wearing black nylon.
Features

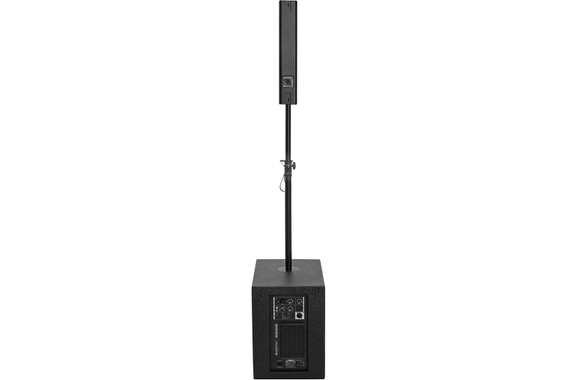

Complete System
- Output power: 350 W RMS
- Frequency range: 42 - 20000 Hz
- Max. SPL: 125 dB
- DSP: Multiband compressor; multistep limiter; active phase correction; delay compensation
- Weight: 19.20 kg

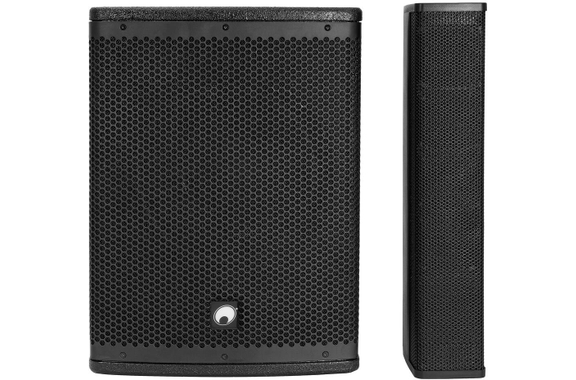

Subwoofer
- Frequency range: 42 - 150 Hz
- Impedance: 1x 4 Ohm

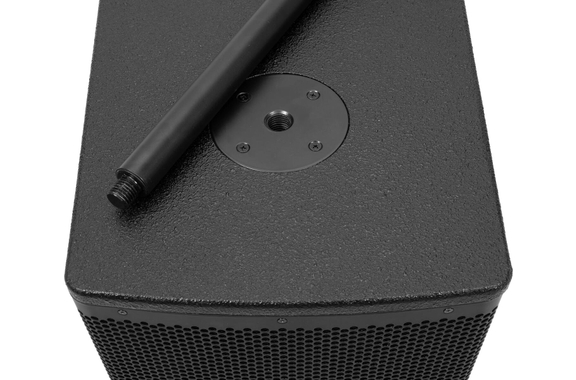

- Mounting system: M20 thread
- Speaker: 1x 10" woofer with 2" voice coil
- Enclosure: Bass-reflex
- Recessed carry handle: 2 pieces
- 4x plastic feet
- Material: MDF (medium-density fiberboard), 16 mm
- Color: Black, textured finish
- Dimensions (W×D×H): 32 x 46.5 x 44.5 cm
- Weight: 16.5 kg

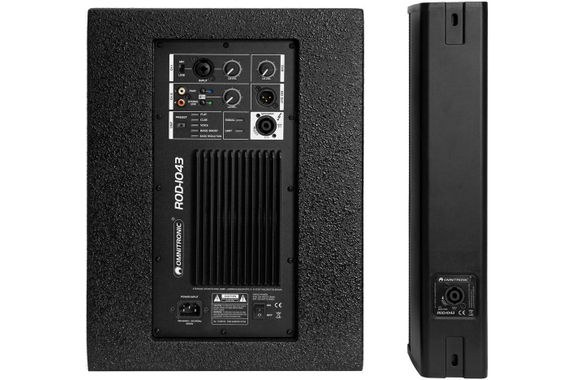

Integrated Amplifier Module
- Output power: 1x 200 W RMS LF, 1x 150 W RMS (4 Ohm) HF
- Power supply: IEC inlet (male) built-in version; mains cable with protective-earth plug included
- Device fuse: 5 x 20 mm, T 2.5 A — fuse to be replaced by service
- DSP presets: FLAT; CLUB; VOICE; BASS BOOST; BASS REDUCTION
- Bluetooth: Version 5.3, 2.4 GHz with Stereo Link (TWS), up to 10 m range indoors
- Circuit: Class D

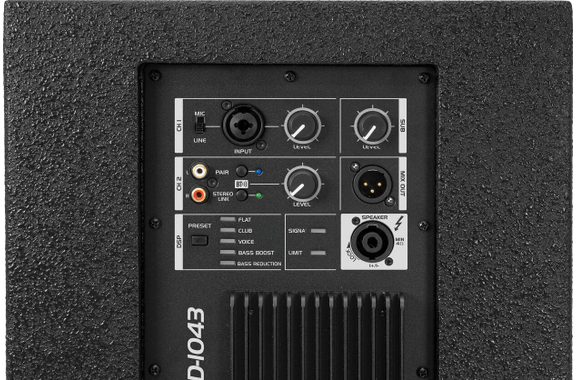

- Controls: Volume control, power switch, input sensitivity switch
- Protection: Short circuit; DC; limiter; overload
- Status LEDs: Signal, Limit, DSP Presets, Pairing, Link
- Connections: 1x Mic/Line input (XLR/6.35 mm jack), 1x Line input (phono), Line output (XLR), 1x speaker output for high-frequency drivers
- Crossover frequency: 150 Hz
Top Unit
- Power handling: 160 W (program), 80 W AES (nominal)
- Frequency range: 150 - 20,000 Hz
- Sensitivity: 90 dB (1 W/1 m)
- Coverage: 100° x 20°
- Impedance: 1x 4 Ohm
- Mount: Flange Ø 25 mm

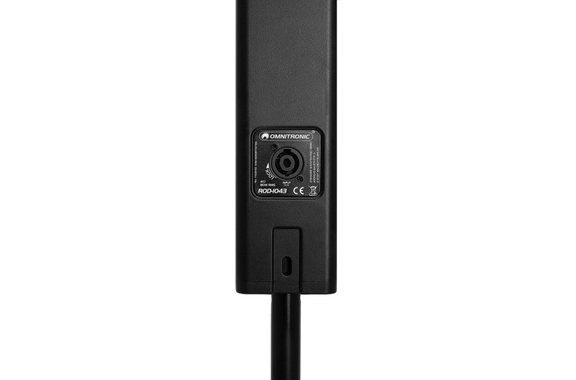

- Input: Top unit via 1 x speaker mounting socket
- Speakers: 4x 3" full-range drivers (neodymium magnet) with 0.75" voice coil
- Dimensions (W×D×H): 8.5 x 10.5 x 45 cm
- Weight: 1.43 kg

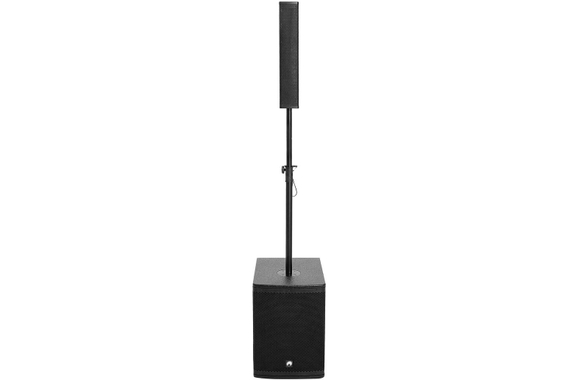

Spacer Pole
- Height: 59 - 95 cm
- 4-step adjustable with locking pin
- Mounting system: M20 thread
- Spigot: Ø 25 mm
- Material: Steel, painted
- Weight: 0.74 kg

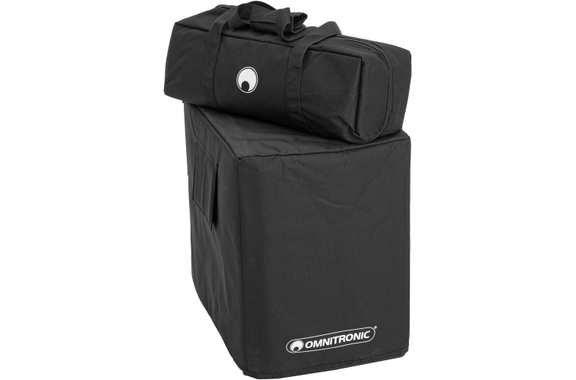

Cover Set

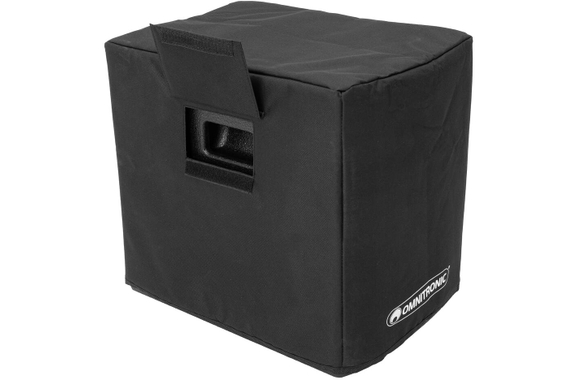

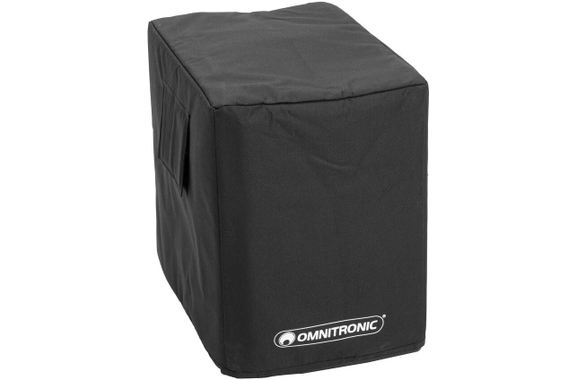

- 1x Cover for ROD-1043 Subwoofer
- 1 x Bag for ROD-1043 Top Unit
- Material: Nylon
- Color: Black

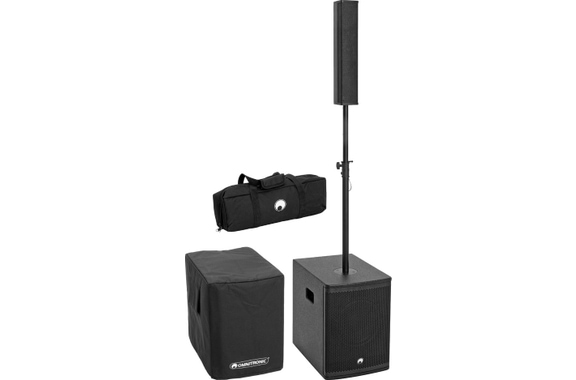

Scope of delivery
- 1 x Omnitronic ROD-1043 column system
- 1 x Cover Set
Specification
- Product number 00115354
- Colour Schwarz
- Battery operation possible Nein
- Power RMS (Watts) 350
- Subwoofers 1x 10 Zoll
