HK Audio LINEAR 5 MKII 118 Sub A

Proven Concepts Made Better

The LINEAR 5 MK II series is a consistent evolution of the proven and popular LINEAR 5 series. With more power at up to 3 kg less weight, more compact dimensions, and access to digital optimization via the DSP CONTROL software, daily work is elevated to a new level. New series components, such as the proprietary subwoofers and the LINEAR 5 MK II 110 XA and 115 XA fullrange mid/high units, expand the already very extensive range of applications.

Rotatable horns with optimal dispersion angles for each mid/high unit make them ideal solutions for cluster setups or stage monitors. Robust wooden enclosures ensure durability and investment protection. Extensive accessories for transport and weather protection, flying and mounting, make LINEAR 5 MK II a reliable workhorse.

DSP - Powerful and Smart

High-performance, integrated DSPs allow users to precisely tune the system components. They provide more usable sound pressure before distortion sets in and significantly reduce feedback risk.

Users can access four suitable presets directly on the speaker boxes, and via Ethernet connection and DSP CONTROL software, set up larger systems on Mac or PC and make adjustments during the event.

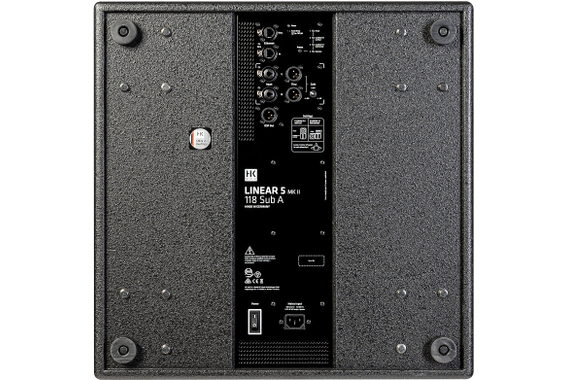

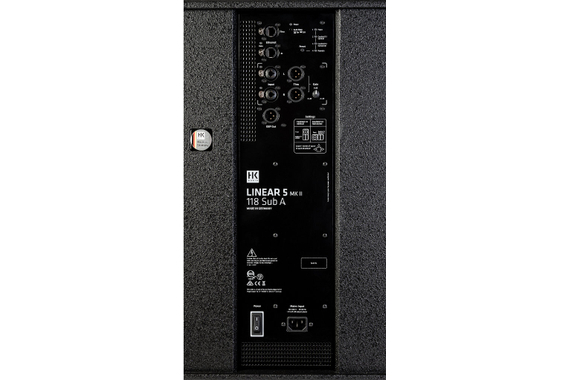

The DSP Out also allows integrating a non-network-capable speaker and independently processing the signal there with the DSP CONTROL software, regardless of the DSP settings on the speaker.

HK Audio DSP CONTROL - Always and Everywhere in Control

Full control over the entire sound setup, even during soundcheck and show? This is already familiar from large touring systems or the LINEAR 7 and LINEAR 9 series.

HK Audio DSP CONTROL enables remote control of all LINEAR 5 MK II components, from stage monitors to the complete PA via network and the proprietary HK Audio DSP CONTROL software for Mac and PC. The functions of the powerful DSPs, such as volume, EQing, limiting, delay, and polarity, are thus accessible directly from FOH at any time.

DSP CONTROL also offers the option to access functions like equalizer, limiter, volume, and mute bundled via sub and main groups. This greatly simplifies managing large speaker setups or multiple event spaces.

Virtual units make it possible to create a setup in advance without connected speakers. On-site, the virtual units can then be conveniently replaced by the network-capable speakers of the LINEAR 5 MK II series with a mouse click.

Cardioid - Problem Solver for Pros in Every Situation

Professional sound engineers counter sharp sound protection requirements, uncontrolled bass spread on and behind the stage, and high feedback risk in the low-frequency range with cardioid technology for subwoofers. This technical trick is now easy and possible without measurement technology: set up - select preset - done!

The bass sound pressure of the physically spherical radiating subwoofers is reduced by up to 34 dB behind the subwoofers through the cardioid setup. The forward radiation experiences a slight increase in sound pressure of about 2 dB. This results in a directional, heart-shaped radiation pattern.

The cardioid sound reinforcement technology can be used with vertically stacked subwoofers and also in horizontal setups. A huge advantage for low stages. The 1:1 vertical and 1:1 horizontal cardioid presets are unique features so far.

Robust Enclosures - Optimized for All Use Scenarios

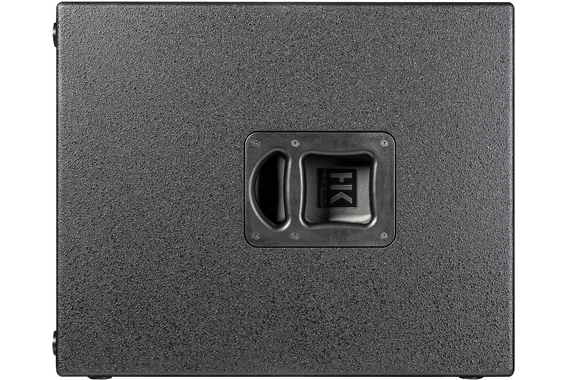

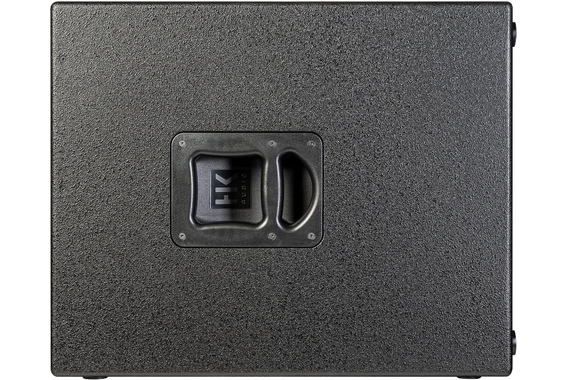

The acoustic properties and stability of wood cannot be matched by any other material in speaker construction. Therefore, all LINEAR 5 MK II components are housed in wooden enclosures made of MDF and birch plywood. The LINEAR 5 MK II 118 Sub A is made entirely of birch plywood. Despite the robust material, LINEAR 5 MK II is extremely compact and comparatively lightweight. MultiGrip handles ensure easy handling and provide secure hold in flight operation for the mid/high units, together with optional tilt brackets.

For use as compact, powerful, and feedback-resistant stage monitors, the enclosures of the LINEAR 5 XA mid/high units feature a 31° monitor angle and also offer a secure and stable stand when placed horizontally. The rotatable horns allow optimal adjustment of dispersion angles to the desired setup. The enclosures of the LINEAR 5 FA fullrange mid/high units provide more punch and volume in the bass range.

Smaller, Lighter, Louder

LINEAR 5 MK II is smaller, lighter, and louder than the LINEAR 5 series. With up to 3 kg less weight at the same sound pressure, the LINEAR 5 MK II 112 XA is the loudest and lightest mid/high unit in its speaker class. The new LINEAR 5 MK II 115 XA offers enormous volume and noticeable physical vibration, making it the most powerful and loudest mid/high unit in the series.

New Models

Flexible and broadly positioned – that’s what you expect from a good rental company, and that’s exactly what LINEAR 5 MK II offers. Mid/high units in all sensible sizes and proprietary subwoofers cover all conceivable application scenarios in this speaker class optimally and reliably.

The popular LINEAR 5 series has been completely revised, fundamentally adapted to the current demands of modern sound reinforcement systems, and expanded with the following models:

• LINEAR 5 MK II 110 XA - ultra-compact and powerful multifunction mid/high unit
• LINEAR 5 MK II 115 XA - volume, punch, and high sound pressure as monitor or mid/high unit
• LINEAR 5 MK II 115 SUB A - compact and punchy "easy handling" subwoofer
• LINEAR 5 MK II 118 SUB A - uncompromising power and pressure down to the deepest bass cellar
