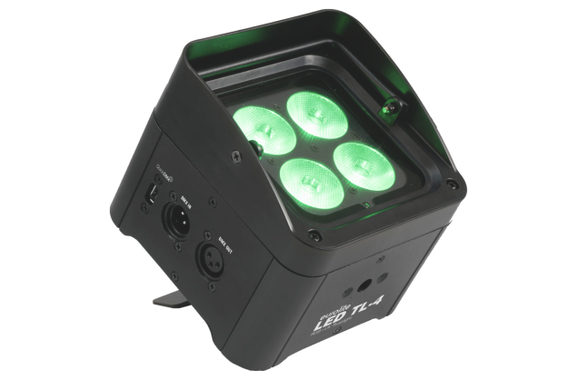

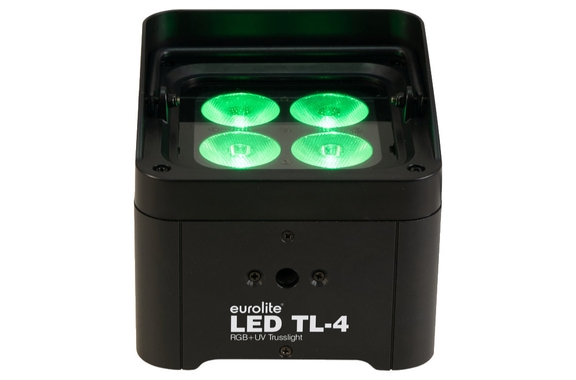

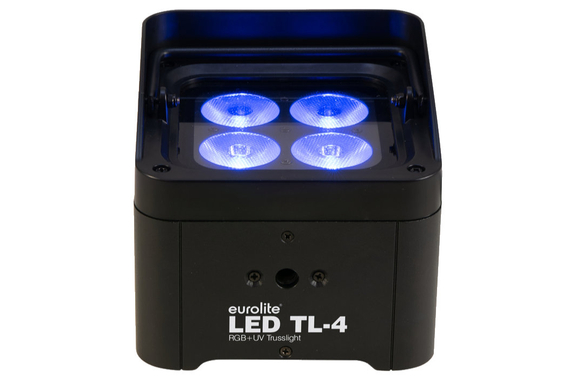

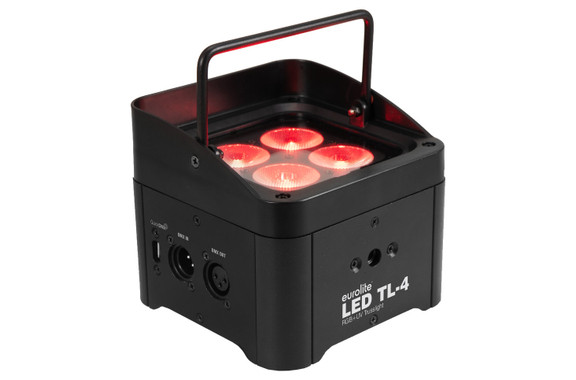

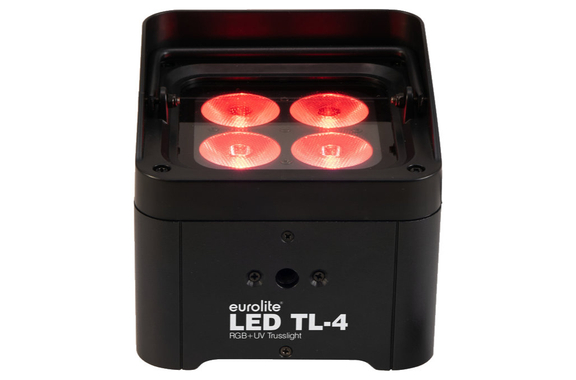

Eurolite LED TL-4 QCL RGB+UV Trusslight

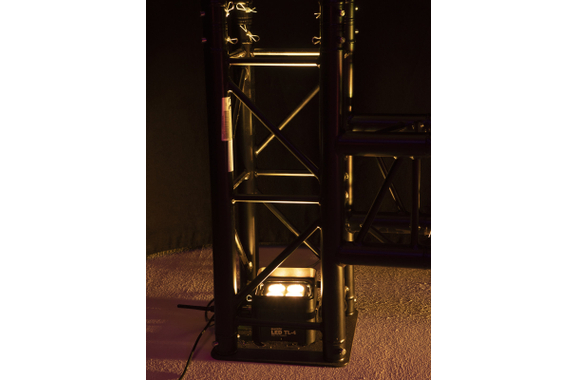

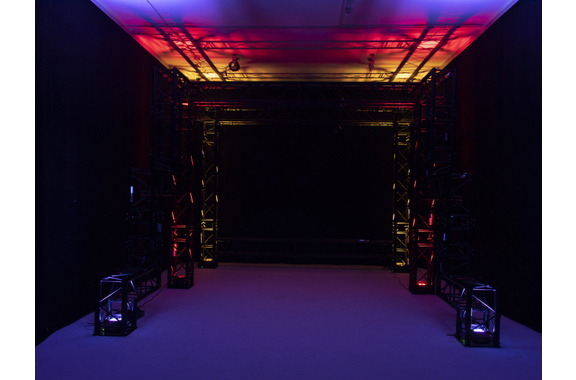

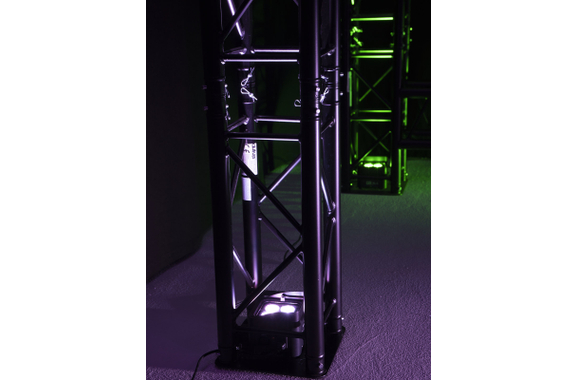

The flicker-free Eurolite TL-4 Trusslight is equipped with 4 x 8 watt 4in1 LEDs in red, green, blue, and UV colors. It is compact and powerful, making it perfect for mounting in trussing, for stand construction, and on stages.
On board are integrated show programs in auto and music mode, direct color selection for 18 colors, dimmer, and strobe effect with variable speed control. The trusslight can be used in master/slave mode.

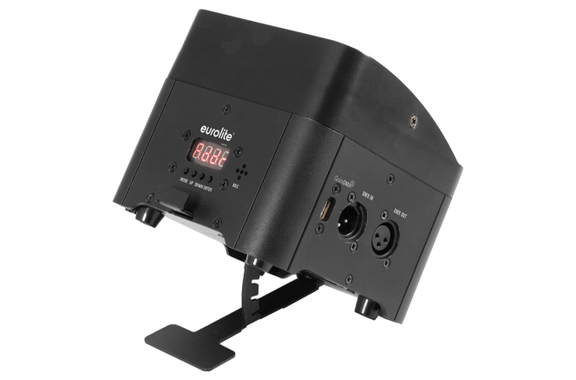

You control the addressing and settings via the integrated control unit with a four-digit LED display. You can operate the TL-4 either with the included infrared remote control, in standalone mode, via DMX, or optionally QuickDMX. Thanks to the IEC power connectors, you can easily link up to eight units.
Eurolite - Lighting Technology in Great Variety!
Features
- Compact and powerful
- 4 high-performance 8 W high-power 4in1 QCL RGB/UV LEDs (homogeneous color mixing)
- Seamless color mixing, color change, dimmer, and strobe effect
- Perfect for ALUTRUSS 4-POINT SYSTEM QUADLOCK
- M10 threaded insert for hanging installation

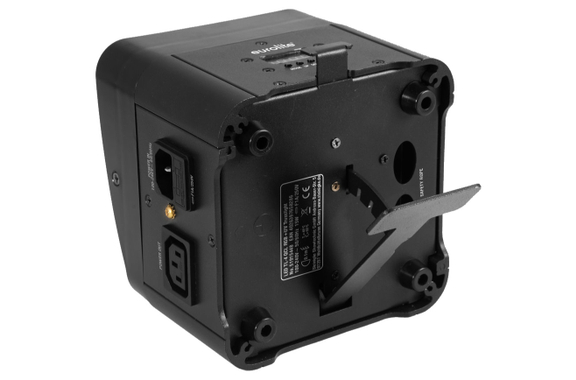

- Extendable stand with 5 positions for angled setup

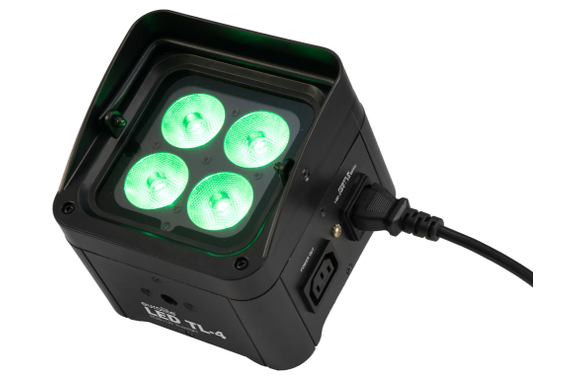

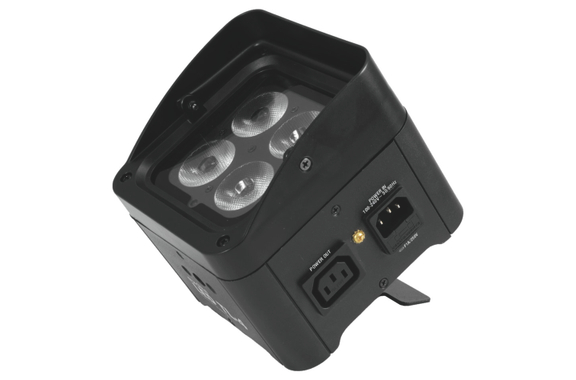

- Power input/output for easy linking of up to 8 units
- Integrated show programs
- Direct color selection for 18 colors
- Operable in 3; 4; 4; 8 CH DMX mode
- Device cooling via passive convection
- Controllable via DMX, music control via microphone, IR remote control (included), standalone
- Optional USB control: QuickDMX, W-DMX by Wireless Solution, CRMX by LumenRadio
- Preprogrammed for Light´J; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR DELUXE; Light Captain
- Beam angle of 13°
- Single-color 4-digit 7-segment LED display
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 15 W
- Protection class: IP20
- Power output: 1 x grounded socket (W), built-in version
- Flash rate: 0 - 20 Hz
- Beam angle: 13°
- Beam angle (1/2 peak): 13°
- Beam angle (1/10 peak): 30°
- Dimensions (L x W x H): 15.5 x 14.5 x 13 cm
- Weight: 1.56 kg
- Color: Black
Scope of delivery
- 1 x Eurolite LED TL-4 QCL RGB+UV Trusslight
- 1 x IR remote control
- 1 x Power cable
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00092375
- DMX interface Yes
- Light source power (Watts) 15
- Colour spectrum RGB/UV
- Black light / UV Yes
- Colour Black
