Eurolite LED TL-3 RGB+UV Trusslight!

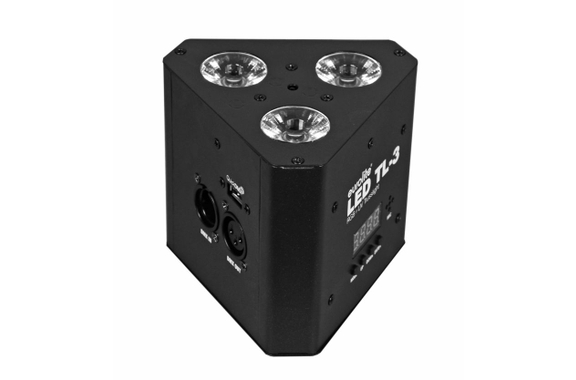

The flicker-free EUROLITE TL-3 Trusslight is equipped with three 7-watt 4in1 LEDs in Red, Green, Blue, and UV. It’s compact and bright, making it perfect for mounting in trussing, for stand construction, and on stages. The TL-3 fits perfectly with the 3-point ALUTRUSS DECOLOCK DQ3 system.
On board are integrated show programs in auto and music modes, direct color selection for 17 colors, dimmer, and strobe effect with variable speed. The trusslight can be used in master/slave mode.
You control addressing and settings via the built-in control unit with a four-digit LED display. You can operate the TL-3 with the included infrared remote control, in standalone mode, via DMX, or optionally with QuickDMX. Thanks to the IEC power connectors, you can easily link up to eight units.
Trusslight and Uplight with powerful 3 x 7-W RGB+UV LEDs!
Features
- Equipped with 3 x 7-W 4in1 LEDs in Red, Green, Blue, and UV
- DMX-controlled operation or standalone mode with master/slave function possible
- Built-in show programs in auto and music modes
- Direct color selection for 17 colors
- Features: static colors, seamless RGB+UV color mixing, internal programs, dimmer, strobe effect with variable speed, master/slave operation
- Compatible with QuickDMX – Eurolite’s wireless DMX system

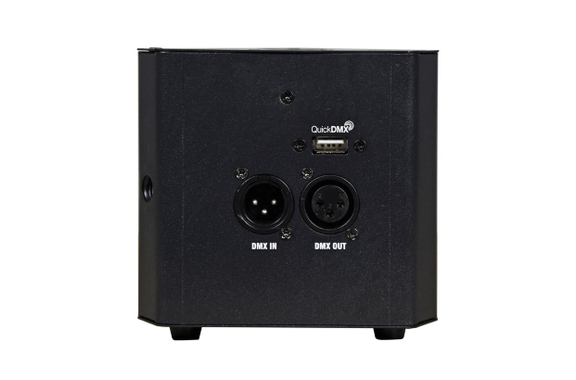

- Phantom-powered USB socket for QuickDMX receiver (accessory)
- DMX control possible via any standard DMX controller

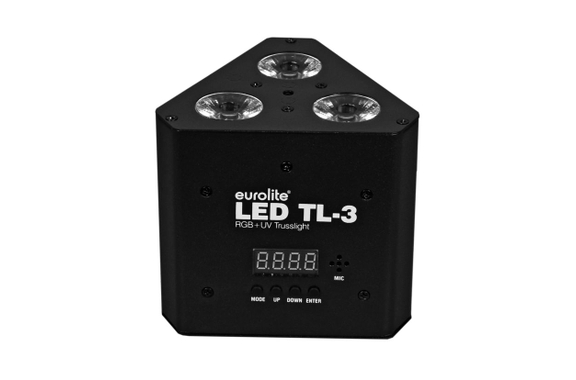

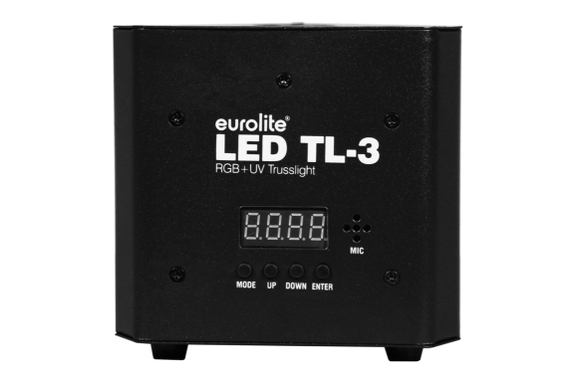

- Addressing and settings via control unit with 4-digit LED display

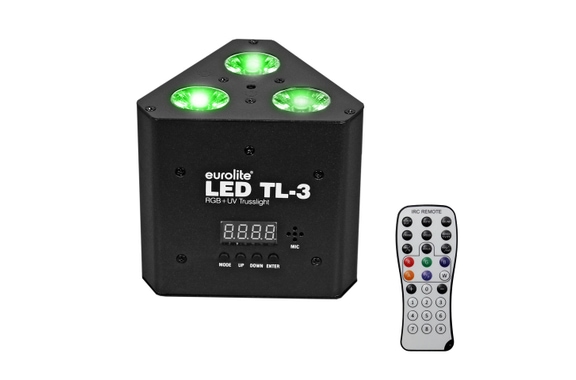

- Convenient remote control with included EUROLITE IR-7 remote

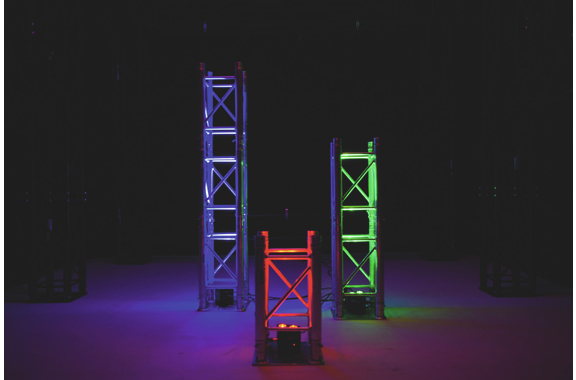

- Ideal for stand construction, stages, and anywhere trussing is used
- Perfect for ALUTRUSS 3-POINT SYSTEM DECOLOCK DQ3

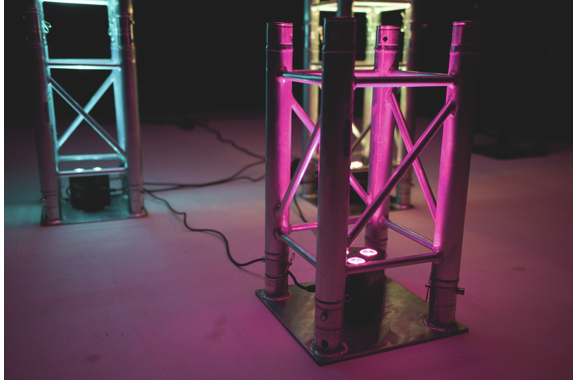

- Can be mounted hanging or standing

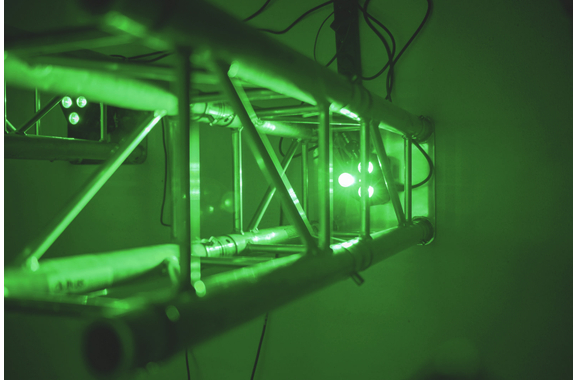

- M10 threaded insert for hanging installation
- Additional rubber feet if the spot is placed on the floor

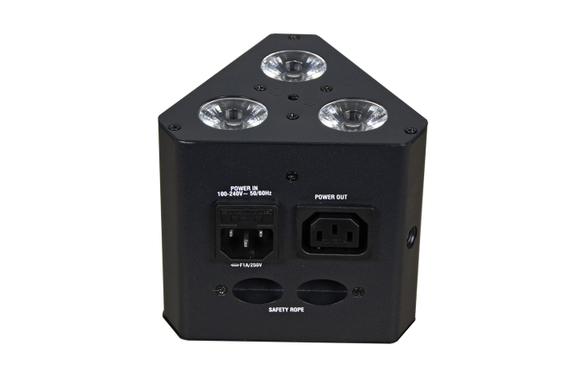

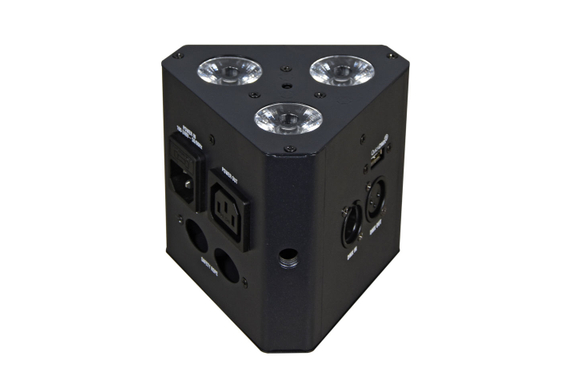

- IEC power connectors for easy linking of up to 8 units
- Switching power supply technology for mains voltage between 100 and 240 volts
- Operable in 3, 4, 4, 8 CH DMX modes
- Controllable via IR remote (included), standalone, DMX, master/slave function, QuickDMX via USB (optional), music control via microphone
- Preprogrammed in Light J Software, EUROLITE LED PC-Control 512 Software, EASY SHOW, LED EASY OPERATOR DELUXE
- Flicker-free projection
- Effects: UV, strobe effect, dimmable
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 15 W
- Power output: 1 x grounded socket (W), built-in version
- Fuse: F 1 A replaceable fuse
- Lamp type: LED lamp
- Flash rate: 1 - 20 Hz
- Beam angle: 16°
- Beam angle (1/2 peak): 16°
- Beam angle (1/10 peak): 33°
- Dimensions (W x D x H): 12.2 x 10.8 x 11.7 cm
- Weight: 0.89 kg
- Color: Black
Scope of delivery
- 1 x Eurolite LED TL-3 RGB+UV Trusslight
- 1 x Eurolite IR-7 Remote Control
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00074802
- DMX interface Yes
- Light source power (Watts) 15
- Colour spectrum RGB/UV
- Black light / UV Yes
- Colour Black
