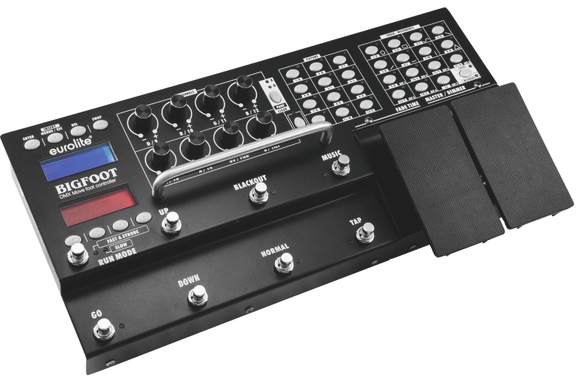

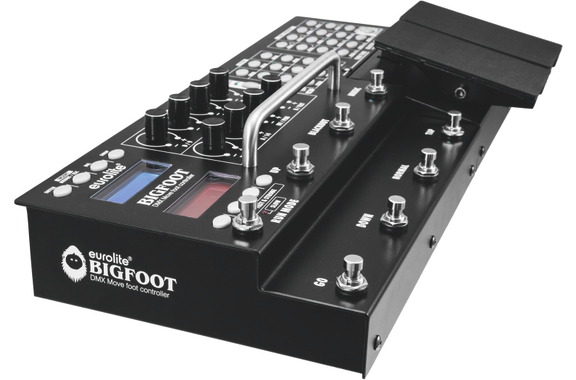

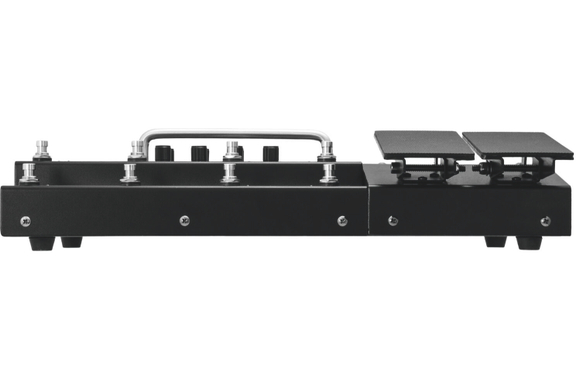

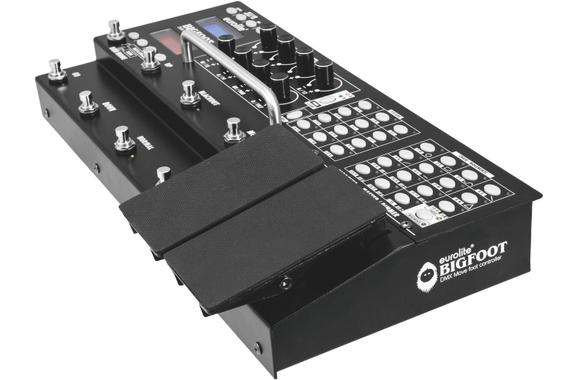

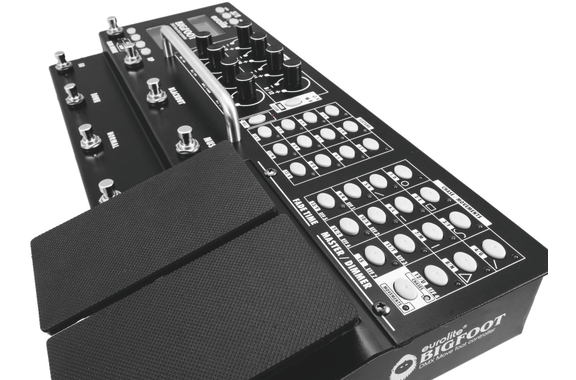

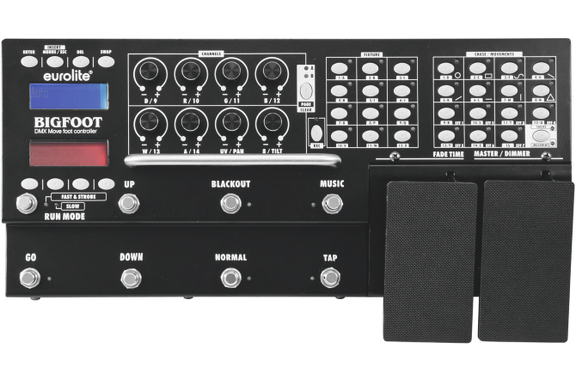

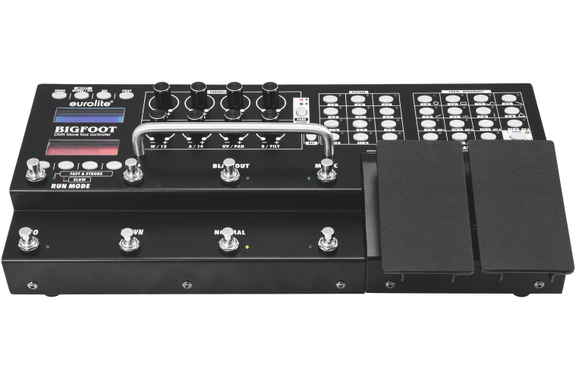

Eurolite DMX Controller Move Bigfoot 192

\r\n
• Fully programmable DMX foot controller for DMX lighting effect fixtures such as moving heads, scanners, and LED fixtures with RGBW color mixing
\r\n
• 192 DMX channels freely assignable to 16 control channels and individually invertible (soft patch)
\r\n
• For 12 devices with up to 16 control channels each
\r\n
• USB port for storing light-show data
\r\n
• Fast programming using the effect generator with motion and color effects
\r\n
• Multiple effects can be used simultaneously
\r\n
• 15 programmable chases with a total of up to 100 steps
\r\n
• Programs can be freely named
\r\n

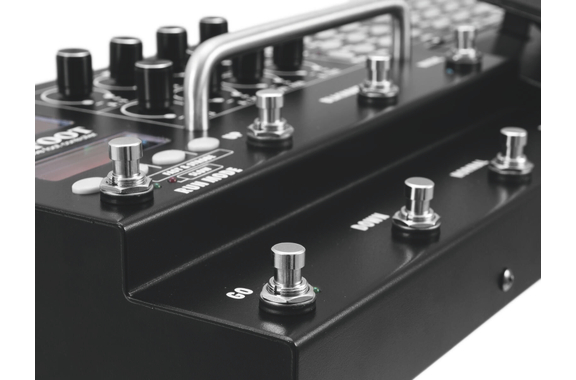

• Simply preselect the desired program and recall it with GO
\r\n
• Tempo control via audio signal or TAP button
\r\n
• Dimmer, fade time and other functions conveniently controllable by foot
\r\n
• 8 endless encoders on 2 levels for setting DMX values
\r\n
• Blackout function
\r\n

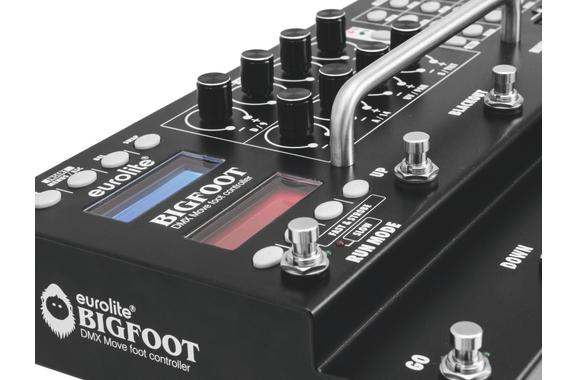

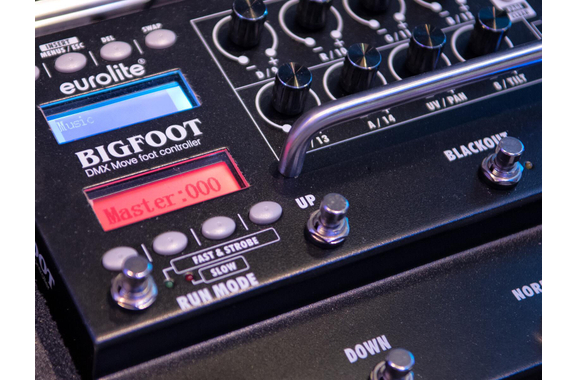

• 2 x backlit LCD displays (each 2 x 16 characters)
\r\n
• Music control via built-in microphone or line input
\r\n
• RDM functions (DMX address setting and identification)
\r\n
• 3-pin XLR connector
\r\n
• Firmware update via USB
\r\n
• Robust metal housing with carrying handle
\r\n

Technical Data

\r\n
• Power supply: 100-240 V AC, 50/60 Hz via included power supply (9 V DC, 800 mA)
\r\n
• Total power consumption: <10 W
\r\n
• Number of control channels: 192
\r\n
• Storable sequences: 15 with up to 100 steps
\r\n

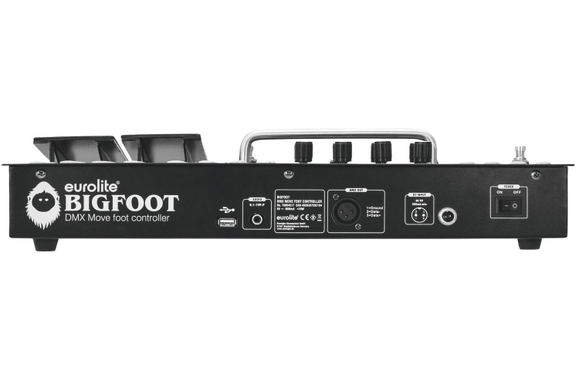

• DMX512/RDM output: 3-pin XLR panel connector
\r\n
• Suitable storage media: USB devices (FAT32)
\r\n
• Music control: via built-in microphone or audio input
\r\n
• Audio input: phono
\r\n
• Input sensitivity: 0.1-1 V
\r\n
• Dimensions (LxWxH): 450 x 240 x 100 mm
\r\n
• Weight: 4.5 kg
\r\n

\r\n
• 1x Eurolite DMX Move Bigfoot 192
\r\n
• 1x power supply
