This item is a returned item - condition: very good - with warranty.
Note on condition:
Return shipment with light signs of wear
Please note: As the item is already stored ready for shipping in our logistics center, further information about the condition or sending additional photos is unfortunately not possible.
Below you'll find the product description as new:
Whether Singer/Songwriter, Party DJ or Band - This Is Your Console!

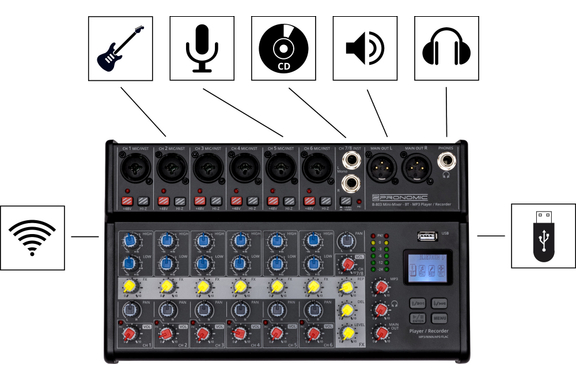

This console makes life a lot easier on small stages, at home and in the party room: the B-803 mixer provides channels for microphones, instruments and MP3 players. As special highlights, a Bluetooth receiver and a USB port are also on board. To fully meet professional demands, the main mix is output in XLR format. Unmatched in this price range!

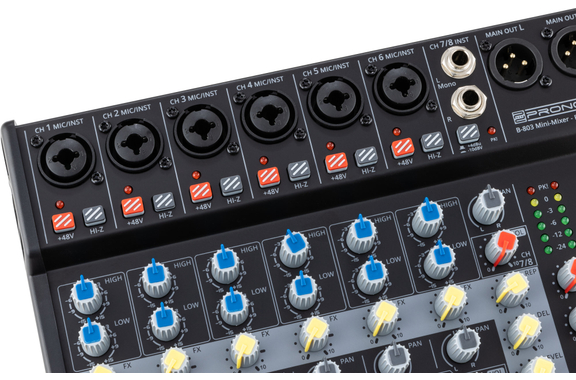

Channels 1 to 6
These channels feature XLR/jack sockets to connect a microphone or an instrument. For use with, for example, high-impedance guitars, a Hi-Z switch is even integrated. Do you have a condenser microphone that requires phantom power? No problem! Press the button and you're ready to go! For sound shaping there is a 2-band equalizer and an echo effect. The effect level and other settings can be conveniently adjusted via the yellow knobs. The peak indicator next to the level control warns of clipping.
Stereo Channel 7/8
For use with electronic instruments such as keyboards and samplers there is a dedicated channel with jack inputs. For quick adjustment of the input level a pad switch is installed directly under the jack sockets.

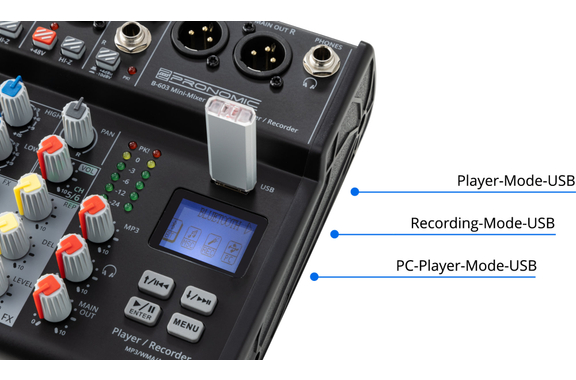

USB Playback
DJs will love it: a small USB stick full of music is enough to play to your guests all evening. Extensive transport functions allow easy handling of the MP3 player, which is intuitively operated via the crisp LCD display. A laptop or PC can also serve as the sound source; however, no data is transferred—only the raw audio signal is routed to the USB input.
USB Recording
A really simple and effective way to capture the evening for posterity is the recording function. The main mix—that is, all connected instruments and microphones—is saved as an MP3 file in stereo format on a USB stick. With a suitable USB cable this stereo track can of course also be recorded with a DAW on your computer. This is not only interesting for small bands in live use; you can also create your own recordings at home, e.g. as a playalong or backing track.

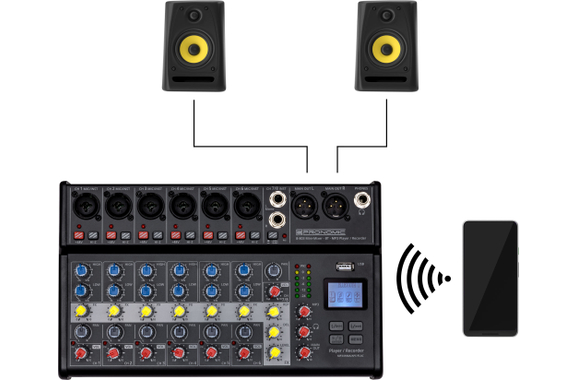

Bluetooth Receiver
If you don’t want to stay at the DJ desk during the party but want to mingle with the guests, the Bluetooth unit gives you full freedom of movement. Once paired, music can be sent wirelessly from a smartphone or tablet to the mixer within a range of about 10 meters.
Professional Features in a Tiny Package!

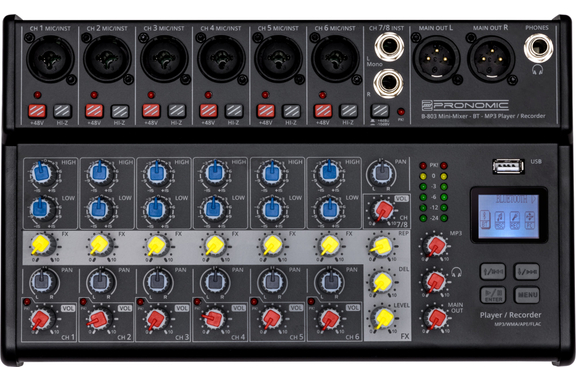

Features
- Compact 8-channel mixer
- 6 mono channels with balanced XLR/jack inputs
- 1 stereo channel with jack inputs
- Bluetooth receiver for music playback
- USB port for music playback and recording
- Switchable phantom power (+48 V) and Hi-Z switch for high-impedance instruments on channels 1-6
- Pad switch for channel 7/8
- Built-in echo effect for channels 1-6
- Peak indicator on all channels
- 2-band EQ (± 15 dB at 80 Hz / 12 kHz) and FX control on channels 1-6
- Volume and pan controls per channel
- Separate volume controls for Main Out and Phones
- 6-segment LED level meter
- Main Out in XLR format
- Headphone output: 6.3 mm jack
- Power supply via external power adapter
- Max. Output Level: 3 Vrms
- Crosstalk attenuation: 92 dB
- Dynamic range: 102 dB

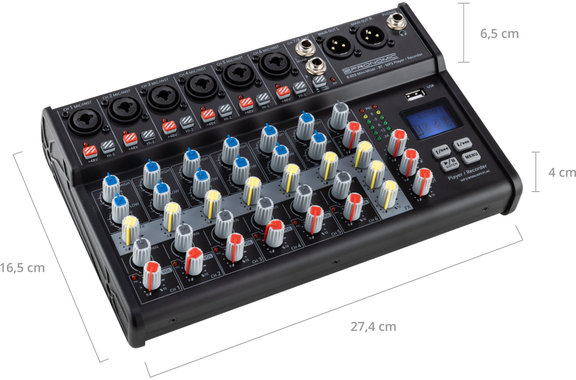

- Dimensions (W x H x D): 274 x 66 x 165 mm
- Weight: 1.45 kg
- Includes power supply
Scope of delivery
- 1 x Pronomic B-803 Mini Mixer
- 1 x Power Supply
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00085586
- Inputs 6.3mm Klinke, Bluetooth, USB, XLR
- additional FX No
- Colour Black
- Outputs 6.3mm Klinke, XLR
- Number of microphone inputs 6
Manuals
Reviews
| 5 Stars |
|
23 |
| 4 Stars |
|
5 |
| 3 Stars |
|
3 |
| 2 Stars |
|
0 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
Rating of article as a new product
This rating has been translated automatically. Original language
It sounds good, is low noise. It has XLR combo inputs and XLR outputs for the LR sum - that's great.
The 2-band tone control is useful.
Mp3 playback and recording make it an ideal practice console, but it's also practical as a small spare console for emergencies.
The fact that it also has a Bluetooth and USB audio interface on board is amazing.
The mp3 playback and recording functions are unfortunately rudimentary, there is no forward/rewind so you can only select whole tracks.
Recording to a USB stick is also only possible after studying the operating instructions.
It's a pity that a few functions such as forward and rewind would be very helpful.
Otherwise, the playback and recording section works like a cassette recorder and I've been looking for something like this for a long time. Idea in my head , record in - record idea , otherwise start computer , start DAW , set routing and the idea is gone .
Unfortunately there is not at least one monitor path that is routed to the headphone output, for example, then this little thing would be almost perfect.
The echo effect is usable, but a simple reverb would also have been useful.
Nevertheless, the B-803 mixer is a serious little mixer for limited applications.
