XS WIRELESS 2 Wireless Set With Headset Microphone!
Maximum flexibility for those who want to take the next step. The XS WIRELESS 2 grows with your needs, thanks to an intuitive LCD display for manual adjustments and 12 channels for all live applications across a wide UHF band.
The XS WIRELESS 2 HEADMIC SET is an easy-to-use all-in-one wireless system for singers and speakers, ideal for performances that combine singing/speaking and dance. The set includes a stationary True Diversity receiver in a metal housing, a lightweight condenser headset microphone, and a rack-mount kit.
Raise your voice!
Features
- Lightweight headset microphone and compact bodypack transmitter
- Sturdy True Diversity receiver with metal housing
- External antennas
- Easy configuration thanks to automatic frequency management and automatic frequency tuning via remote channel
- High flexibility with tunable UHF frequencies across a wide bandwidth
- Includes rackmount kit
- Up to 12 compatible channels

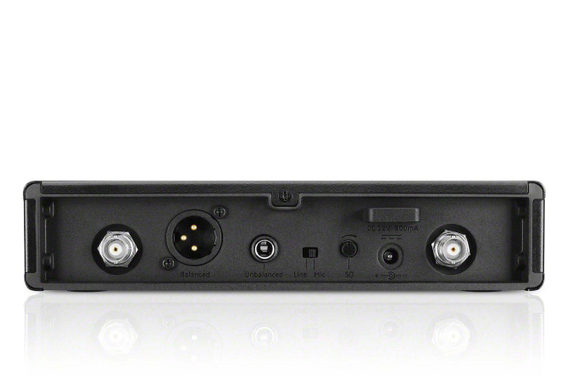

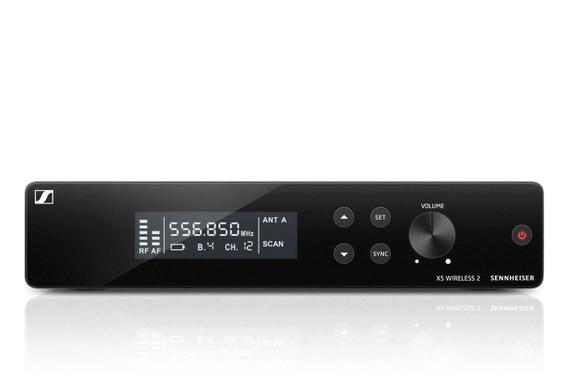

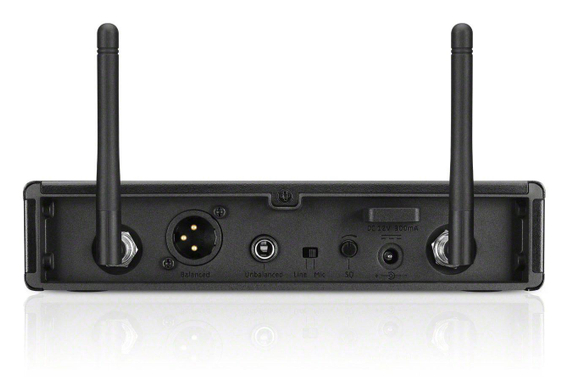

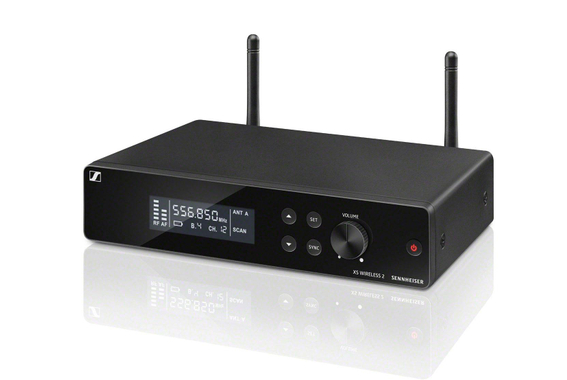

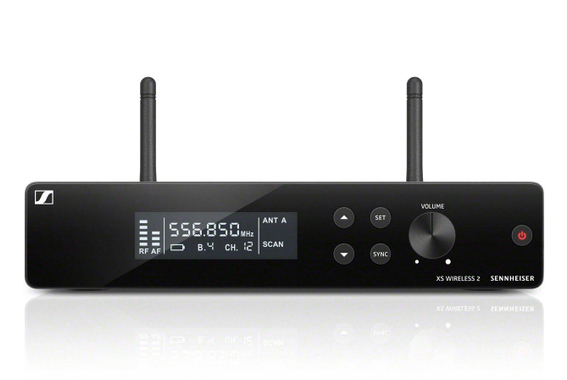

Receiver
- Dimensions: approx. 200 x 42 x 127 mm
- Weight: approx. 680 g
- Power supply: 12 V DC nom. / 300 mA
- Housing: Metal
- Audio frequency range: 50 to 16,000 Hz

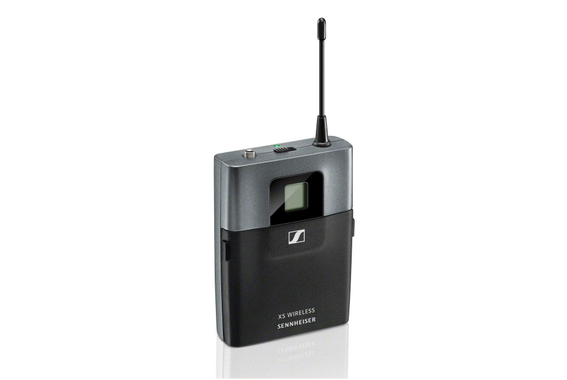

Transmitter
- Dimensions: approx. 71 x 96 x 28 mm
- Housing: rugged ABS plastic
- Weight: approx. 95 g
- Power supply: 2 AA batteries
- Audio frequency range: 50-16,000 Hz
- Operating time: approx. 10 hours

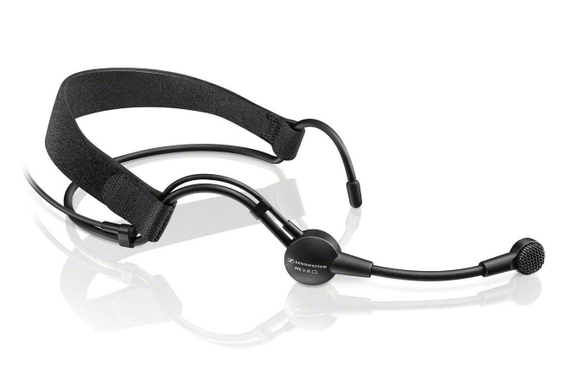

Microphone
- Condenser microphone
- Audio transmission range: 50 - 16,000 Hz (−3 dB)
- Total harmonic distortion at 1 kHz: = 0.9%
- Polar pattern: cardioid
Additional Data
- Signal-to-noise ratio: = 103 dBA
- RF output power: 10 mW
- Selectable bandwidth: up to 24 MHz
- Modulation type: Wideband FM
- Output level: 6.3-mm jack (unbalanced): +6 dBu XLR socket (balanced): +12 dBu
- Frequency: 8 frequency banks with 12 preset channels each
- Frequency range E: 821-832 MHz, 863-865 MHz
- Sensitivity, transfer factor: < 3 µV at 52 dB(A) rms S/N
- Squelch (noise gate): adjustable from 3 dBµV to 28 dBµV (with pilot tone)
- Synchronization: 2.4 GHz, Low Power OQPSK (only active via synchronization)
- Line/Mic level: 20 dB, switchable
- Adjustment range transmitter: 0 to -30 dB, adjustable in 10 dB steps
- Audio adjustment range: 40 dB, adjustable in 5 dB steps
- Temperature range: 0°C to +40°C
- Receiver principle: double superheterodyne
- Diversity technology: True Diversity
Scope of delivery
- 1 x Receiver EM-XSW 2
- 1 x Bodypack Transmitter SK-XSW
- 1 x Headset Microphone ME 3-II
- 1 x Power Supply NT 12-5 CW
- 2 x AA Batteries
- 1 x Rack-Mount Kit
- 1 x Bag
- 1 x User Manual
Specification
- Product number 00049312
- Colour Black
- Wireless transmitter mit Bodypack, mit Headset
- Frequencies 823 - 832 MHz
