Pronomic XANA Line Array System - Powerful. Flexible. Cost-Effective.
With the XANA Line Array System, Pronomic sets new standards for professional sound reinforcement. Developed for PA rental companies, event technicians and club operators, the fully active system impresses with uncompromising performance, innovative features and maximum flexibility - all at an attractive price.
Both the XANA L-208 TA subwoofer and the XANA L-208 TA top feature integrated Class-D amplifiers and state-of-the-art DSP technology, making external amplifiers and controllers unnecessary. The modular system includes the active subwoofer, the active top unit and the well-designed XANA transport dolly. Features like cardioid bass setup, scalable flight capability and rugged construction give you reliable and impressive sound solutions - from permanent installations to touring use. Intuitive control via the display or remote control and efficient logistics make XANA the economical choice for anyone who values quality and real-world usability.
This set does not include additional accessories such as flying frames, protective covers or similar items. To give you maximum flexibility and to let you use the XANA system in many different ways, we have deliberately omitted extra accessories. That way you can expand the set exactly to your individual requirements. Please add any accessories you need for your specific application separately - we are happy to advise you!
Modularity And Scalability

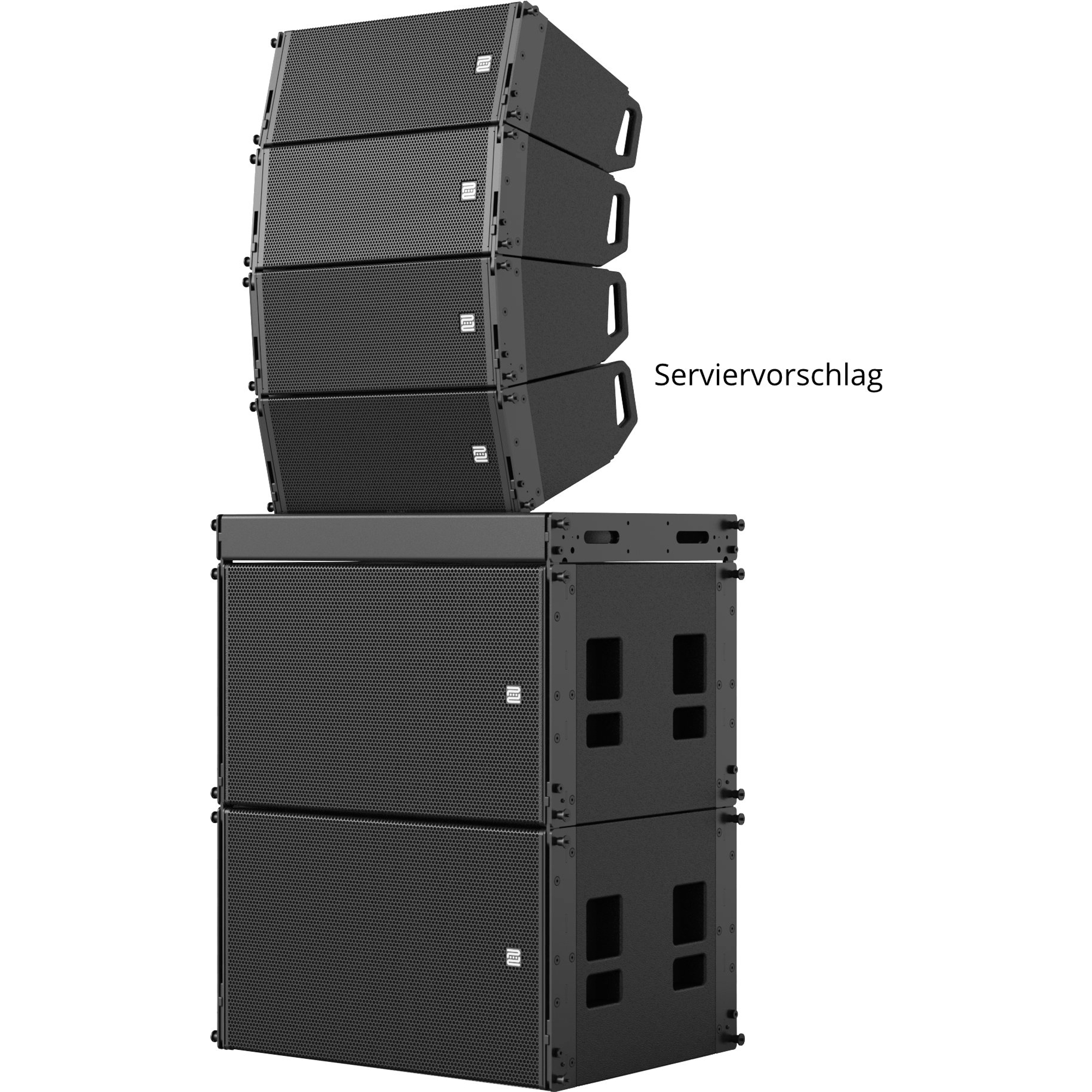

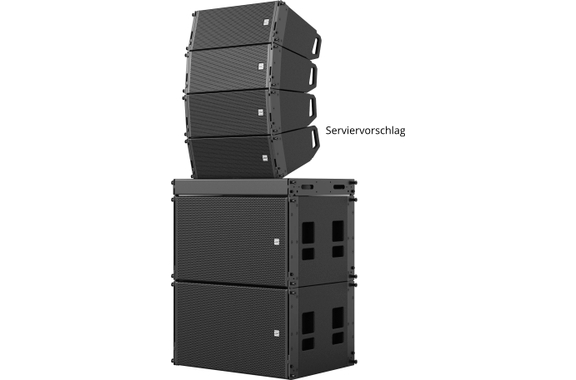

The XANA Line Array System is built completely modular and adapts flexibly to any event size. Whether small club gigs, medium corporate events or large open-air stages - by combining subwoofers and top units you can tailor the system precisely to your needs. The flight capability and the thoughtful rigging enable fast setups and provide maximum flexibility in daily operation.
Intuitive Control And Ease Of Use
With the integrated DSP control and the optional remote control via RS485 software, you have all sound-relevant parameters under control. Levels, delay, EQ and special features like the cardioid bass setup can be adjusted conveniently on the unit or centrally in the tech room. The clear LCD display and the Pronomic P.sysManager software ensure efficient workflows and precise sound tuning - even under time pressure.
Pronomic P.sysManager
With the Pronomic P.sysManager software you can control all XANA loudspeakers conveniently and efficiently from a distance. The Windows software allows grouping of the speakers and targeted adjustment of EQ, levels, delay and FIR filters. Special functions such as Array Length Correction (ALC), Field Ambience Correction (FAC) and the cardioid mode can be easily activated and fine-tuned. You have access at all times to remote test functions, monitoring of level, status and temperature as well as a clear real-time overview of all system components. Especially practical: complete setups can be configured and saved on the PC in advance, so that you can access all relevant settings immediately during on-site setup - saving time and ensuring a smooth process.
Outstanding Value For Money
Pronomic sets new standards for cost-effectiveness with the XANA Line Array System. You get professional audio quality, robust workmanship and cutting-edge technology at a price that is significantly below comparable branded products. High reliability, easy maintenance and low operating costs make XANA the ideal choice for rental companies, technicians and event organizers who refuse to compromise on performance or budget.

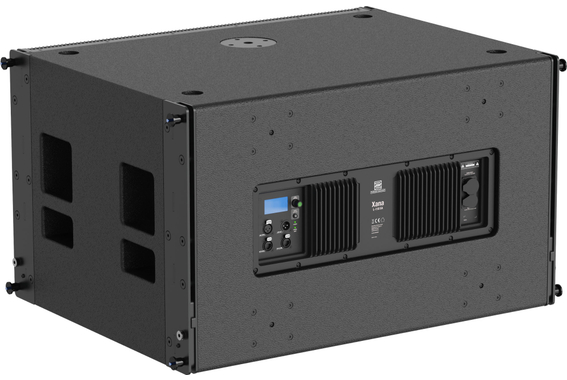

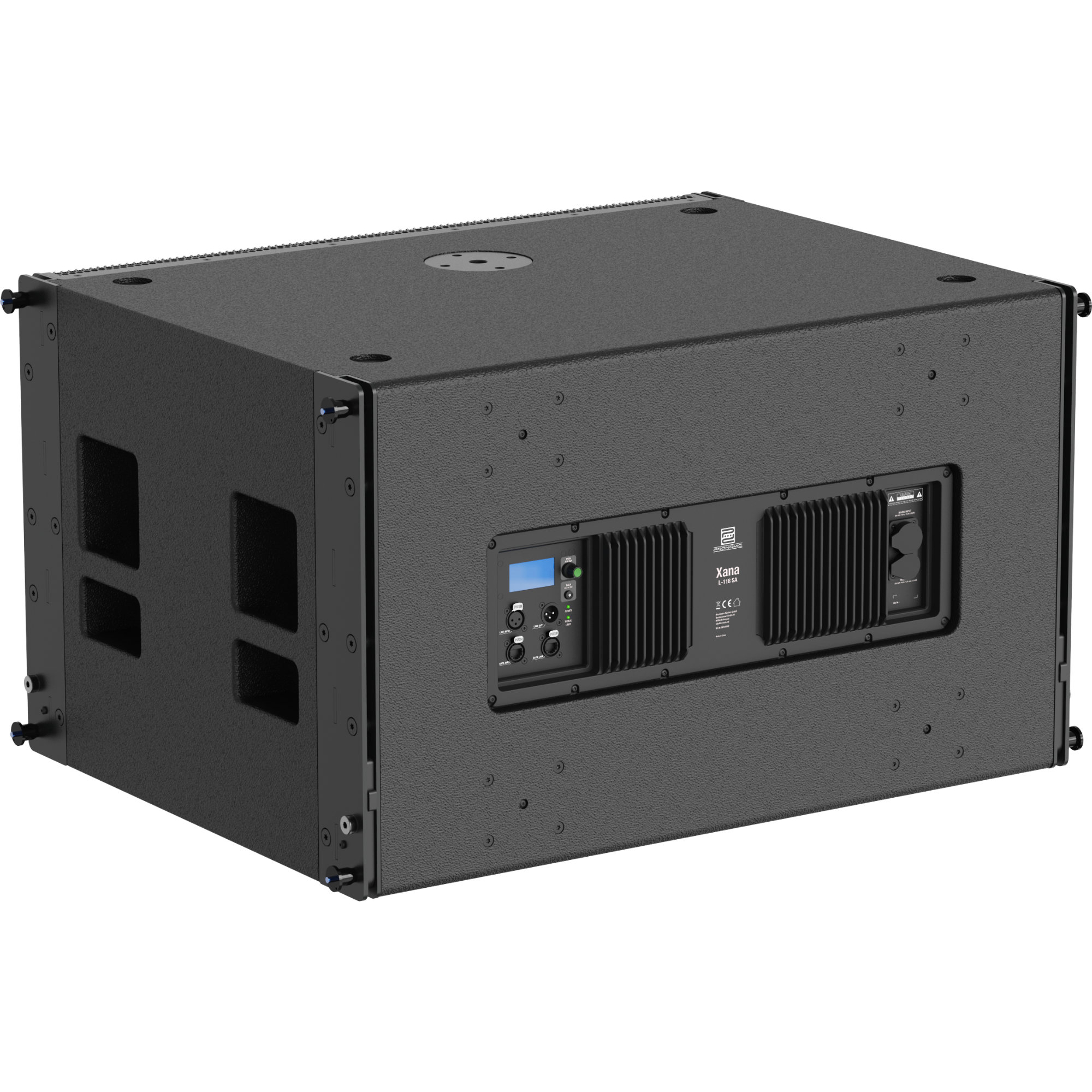

Maximum Bass, Intelligent Control

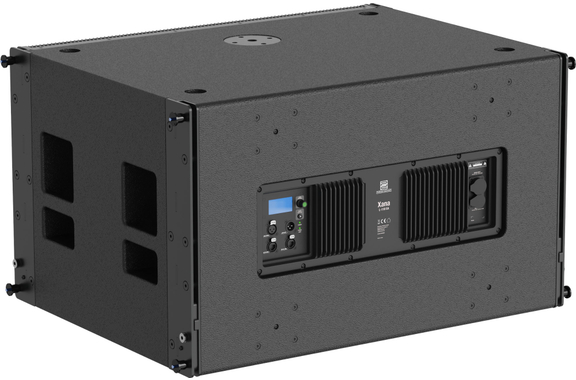

The XANA L-118 SA subwoofer delivers thick, deep bass with the highest precision - ideal for professional live events, clubs and touring. Thanks to the cardioid setup you can aim bass energy precisely and avoid unwanted reflections. With 4,800 watts peak power and a roadworthy construction, the L-118 SA is built for the toughest deployments.
Cardioid Bass Management
The cardioid setup enables directional radiation - perfect for acoustically demanding environments, outdoor events and club installations. Two or more subwoofers are required for this. Settings are applied conveniently via preprogrammed DSP presets.
Intuitive Control & Flexibility
DSP-assisted control, configurable via the LCD display or conveniently via RS485 software, gives you maximum control - whether at the unit or in the tech room.
Uncompromising Performance In A Compact Package

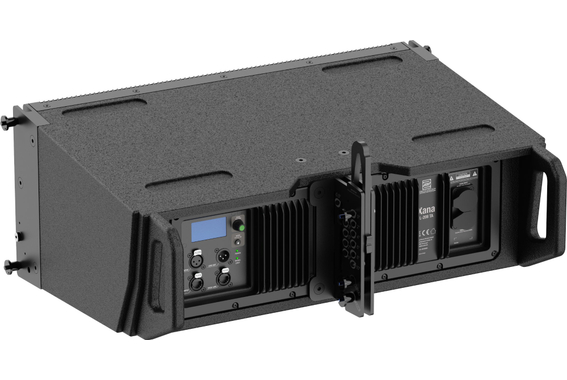

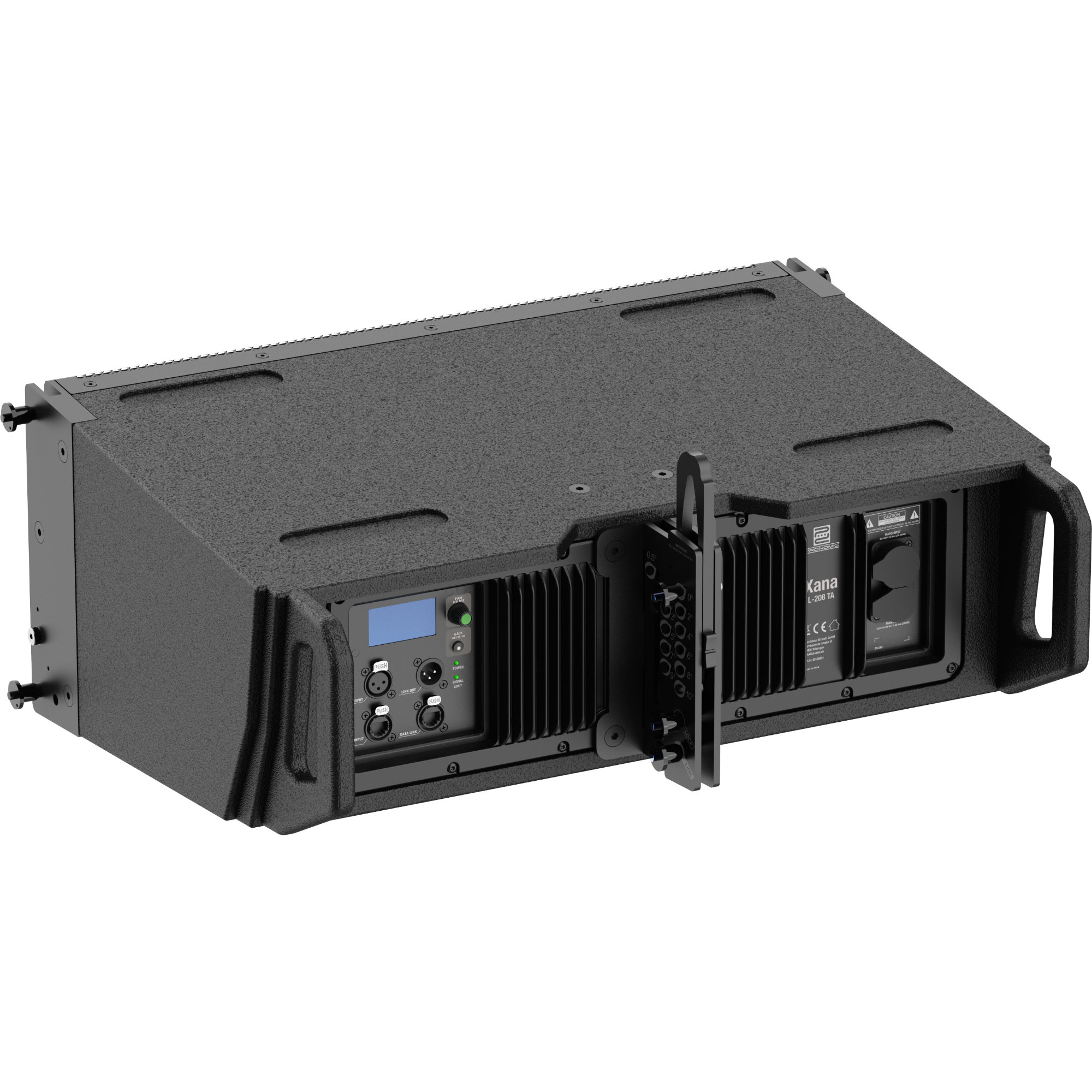

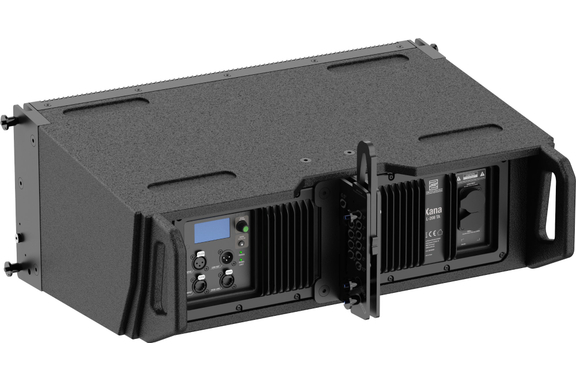

The XANA L-208 TA is an active 3-way line array top unit for demanding applications. It delivers clear, powerful sound, flexible scalability and smart control. Ideal for touring, clubs and permanent installations - a real workhorse for professional sound reinforcement.

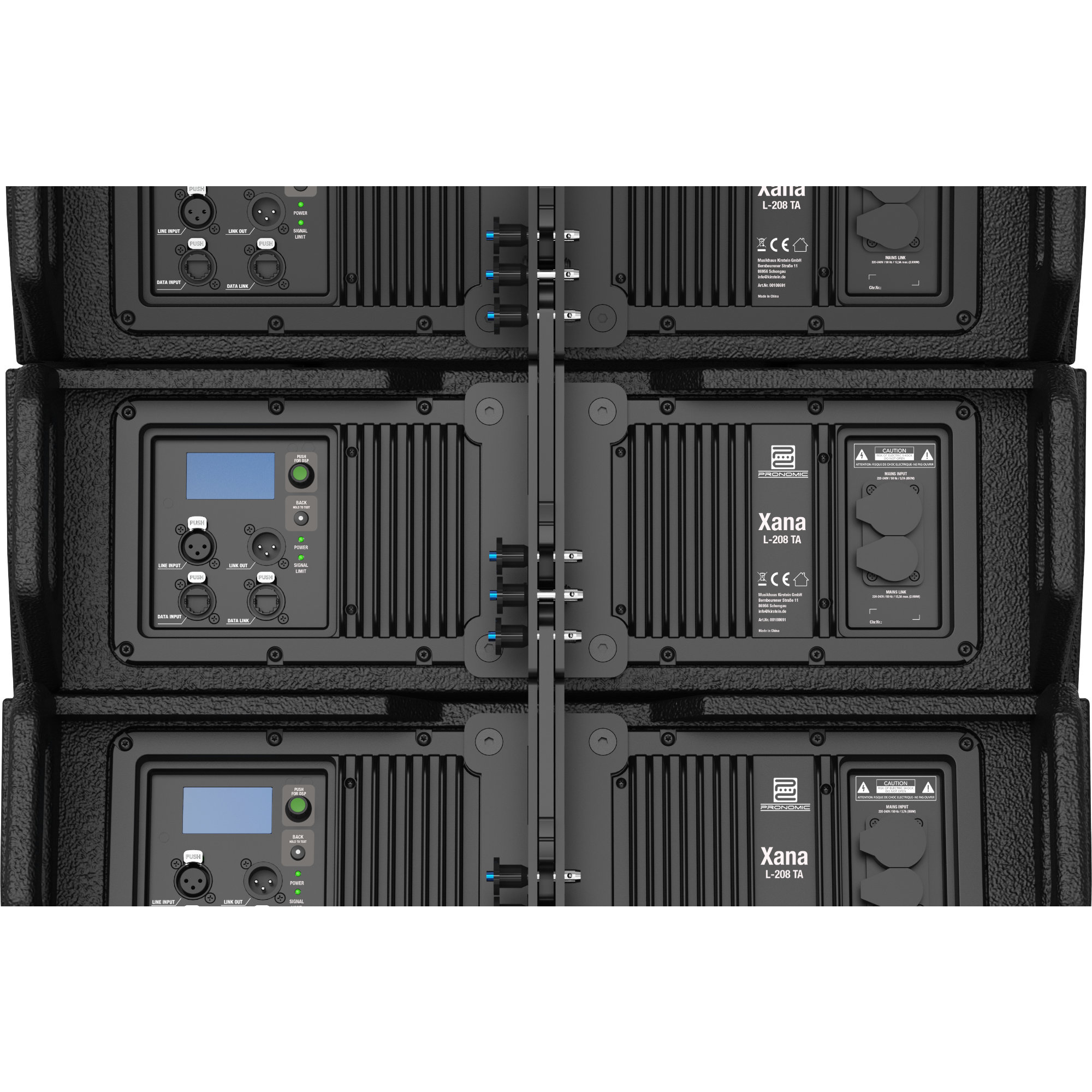

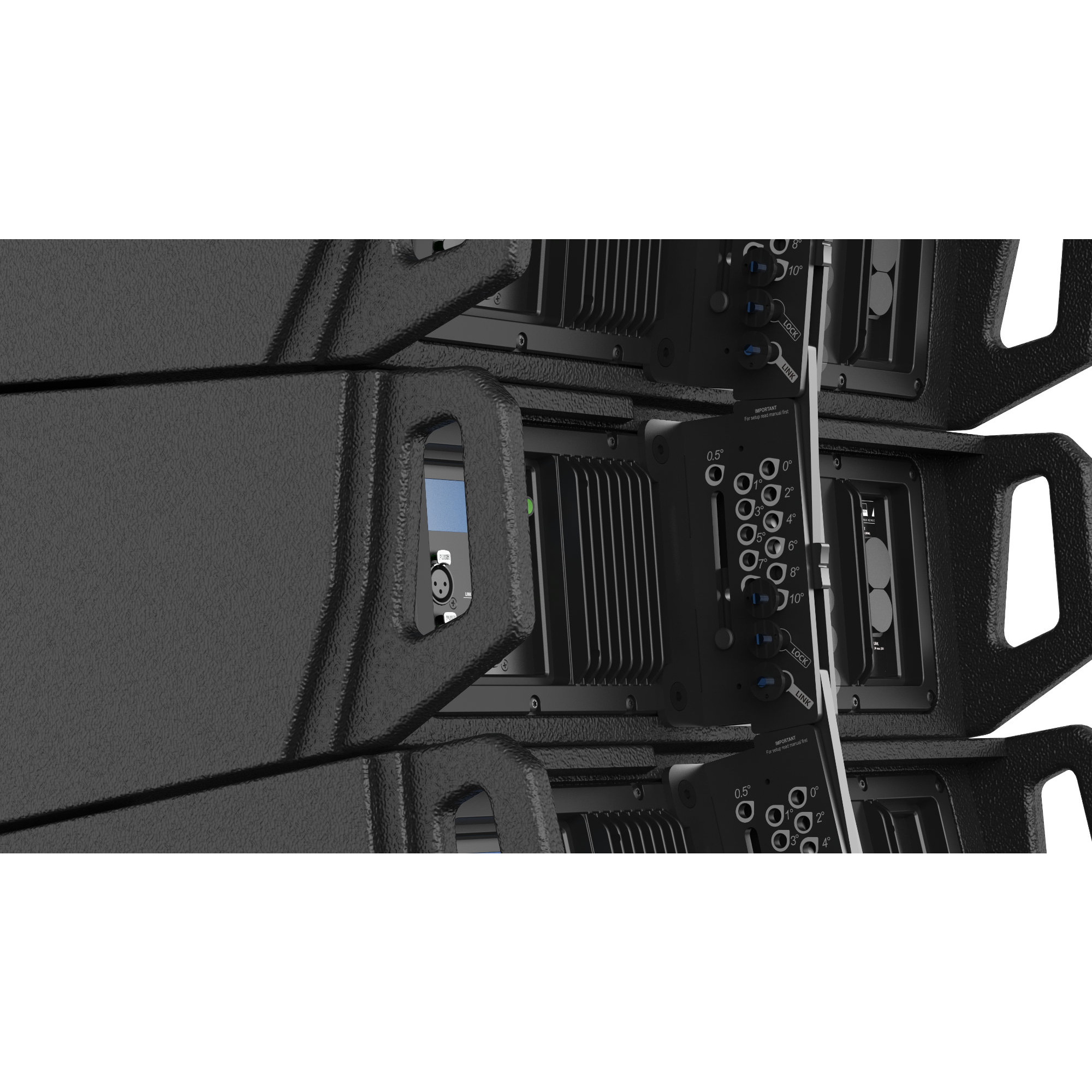

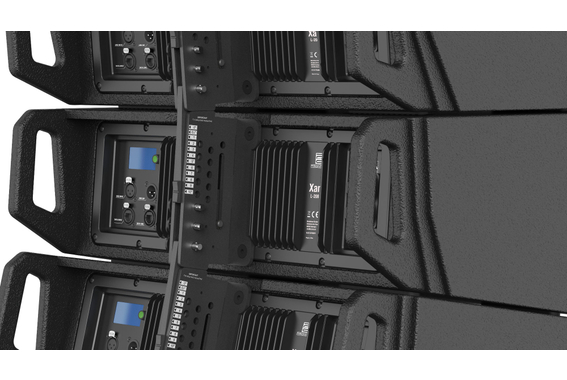

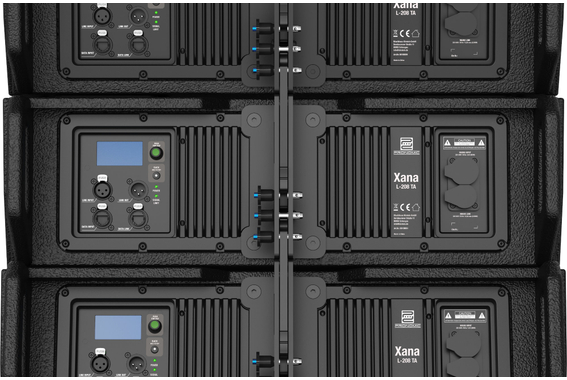

Flexible Scaling & Rigging

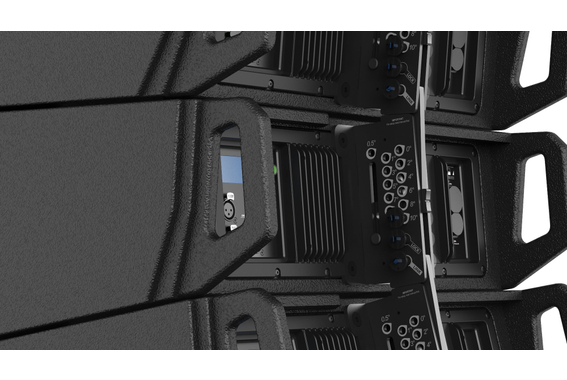

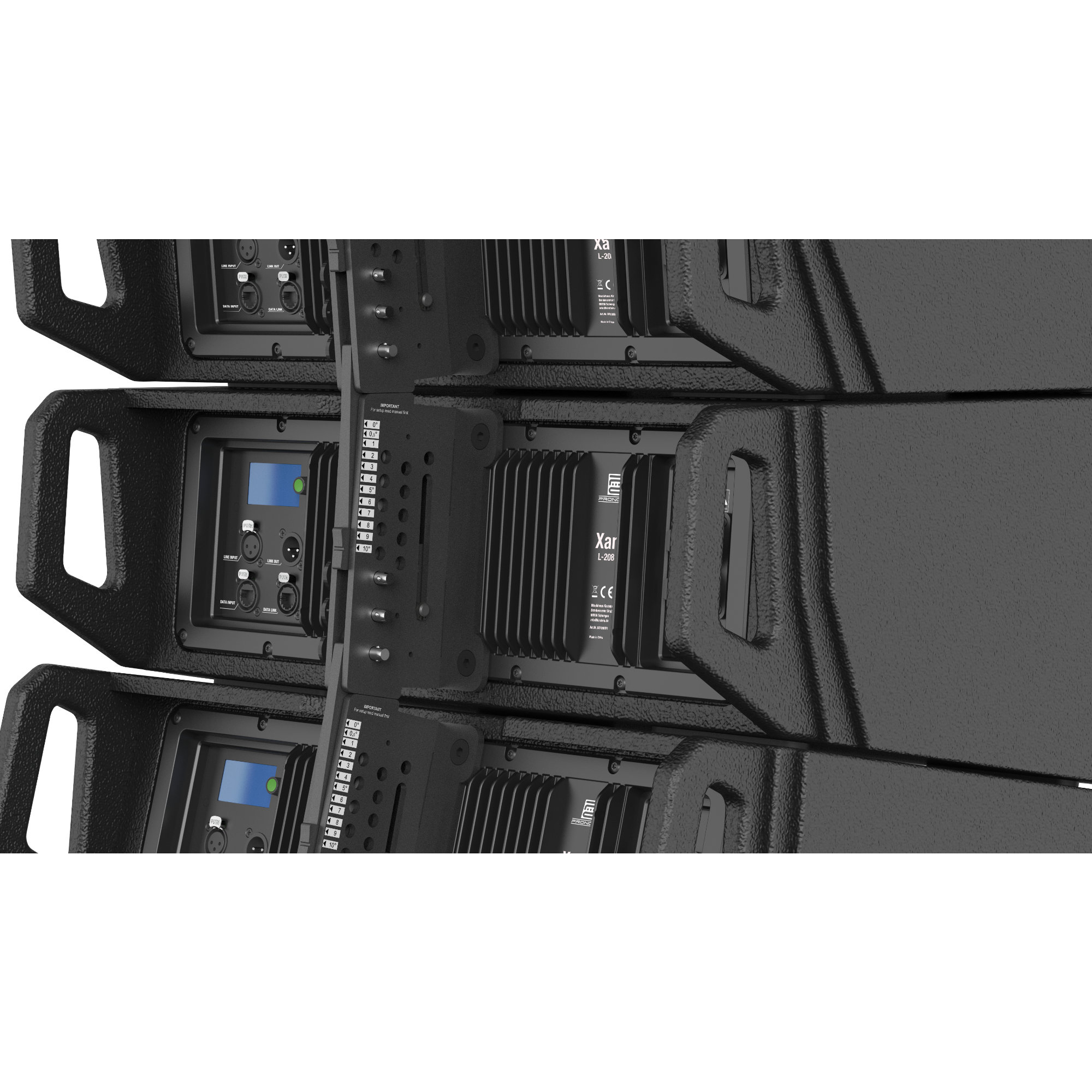

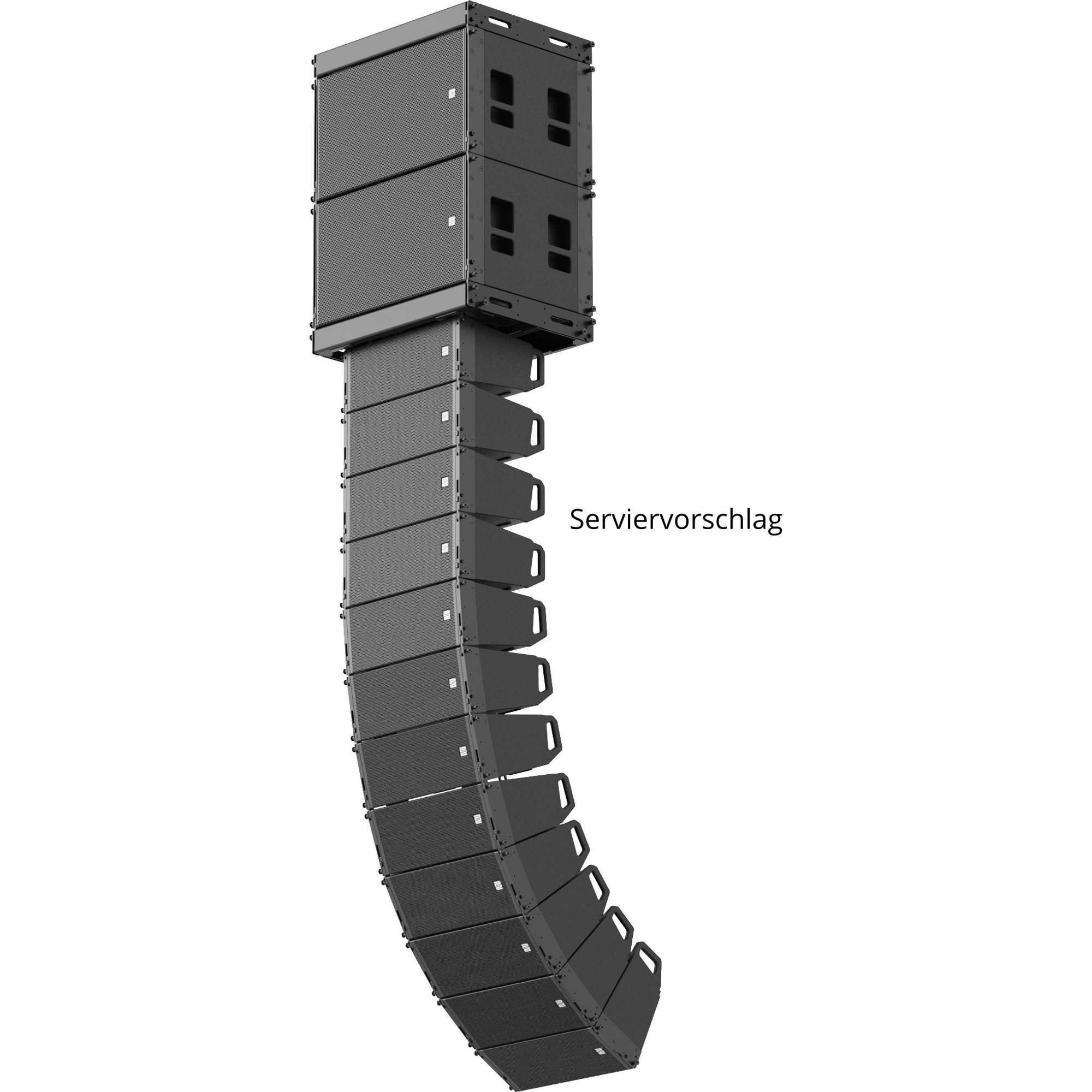

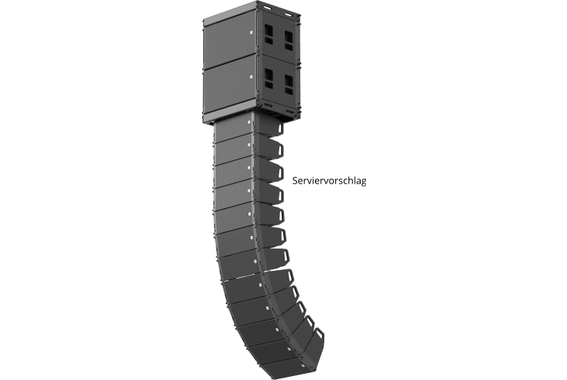

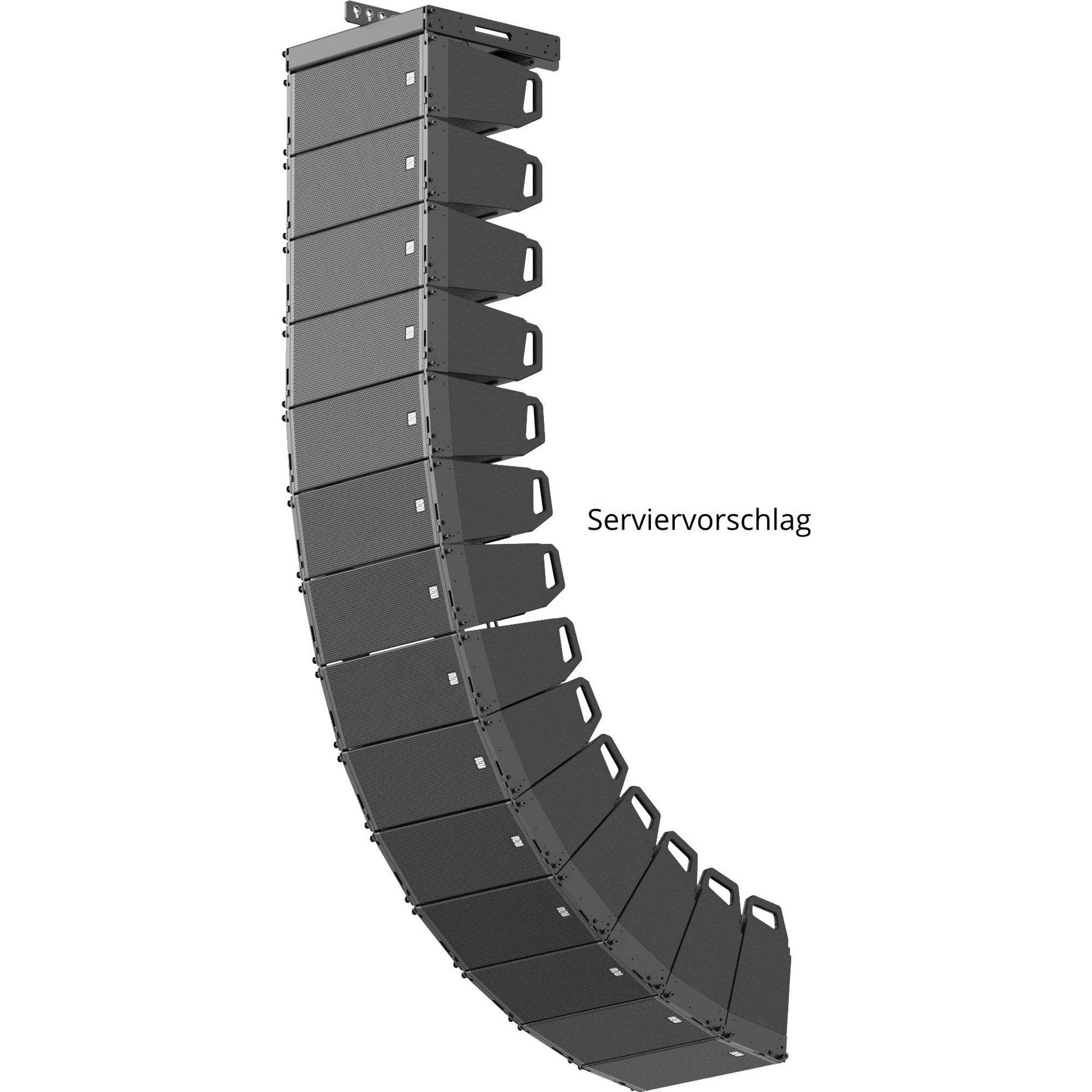

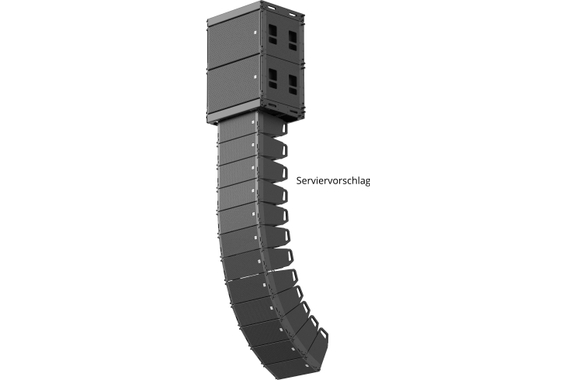

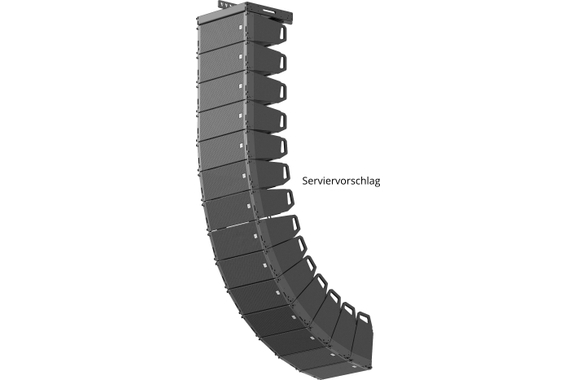

Up to 16 of these mid/high units can be flown or stacked per frame - offering maximum adaptability to any venue.
Professional DSP Features
Detailed parameter settings, FIR filters, ALC (Array Length Correction) and FAC (Field Ambience Correction) guarantee optimal sound tuning and the highest speech intelligibility.

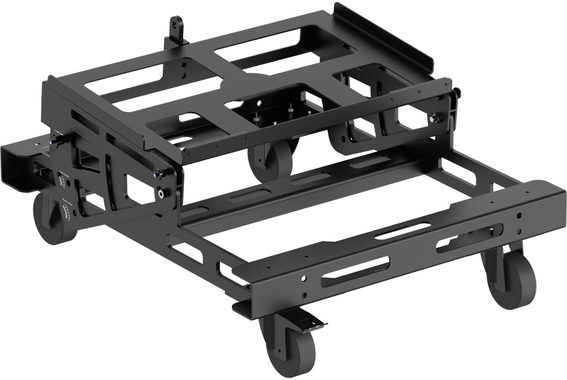

Efficiency For Your Touring Day

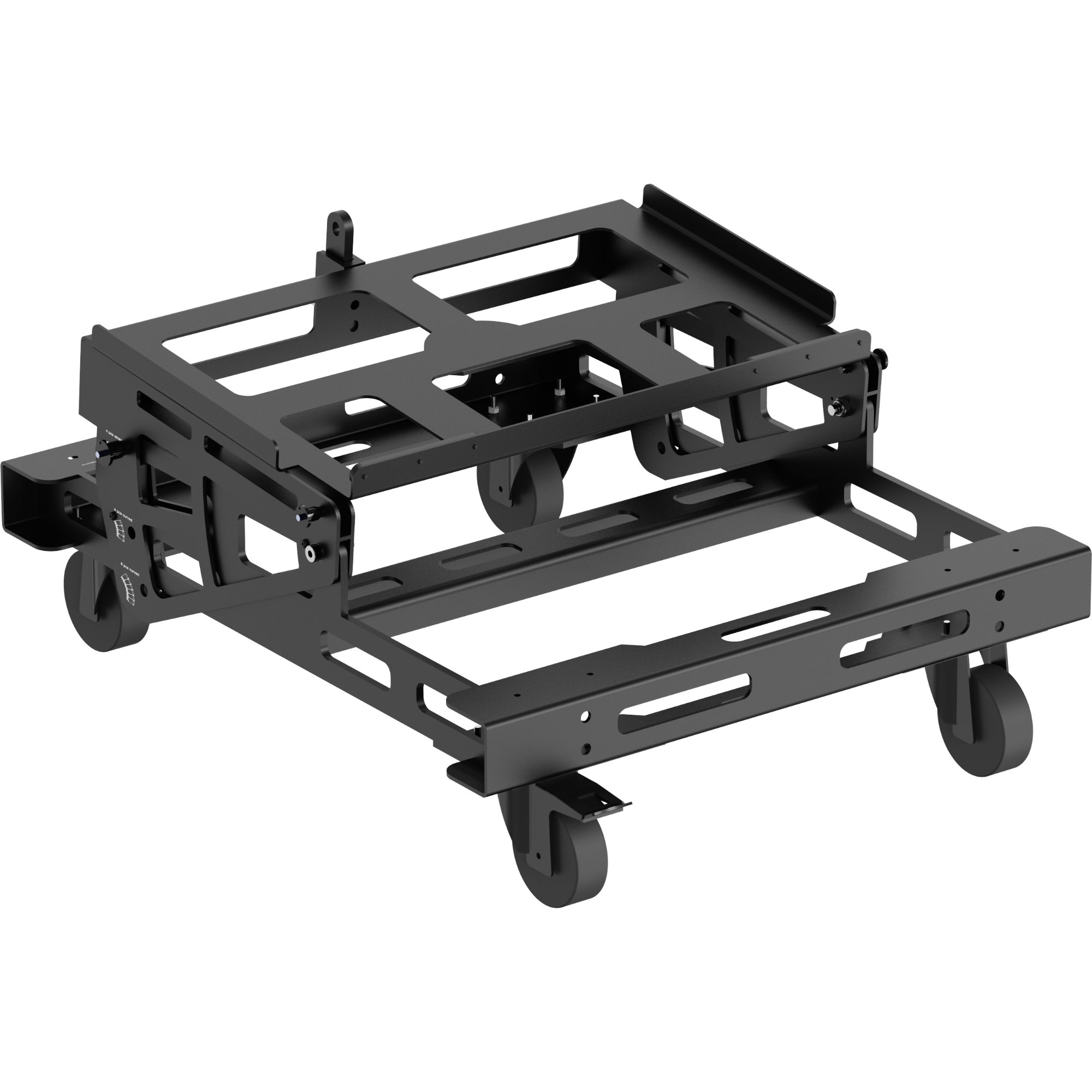

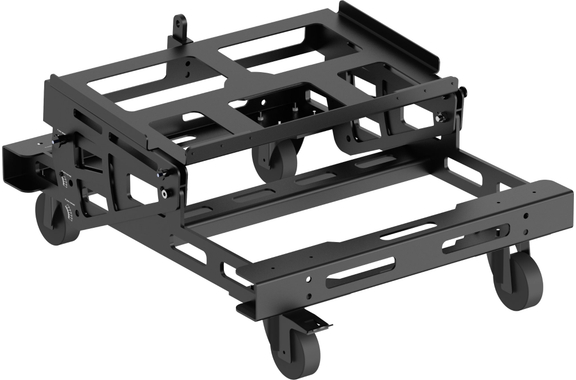

The XANA transport dolly makes transporting and handling your XANA L-208 TA top units extremely efficient. Designed for the demands of touring, the dolly holds up to six fully assembled top units and ensures smooth logistics during rigging and striking.
Robust, Well-Thought-Out Construction
The sturdy construction and two braked transport wheels give you maximum safety and longevity - even with frequent use. The cradle can be adjusted to the load to center the center of gravity as much as possible for curved speakers.
Optimal Space Utilization
Thanks to the space-saving, stackable design and custom-fit protective covers, you can store and transport your top units safely and efficiently.
Features
Subwoofer
- Active line array subwoofer
- Frequency range: 34 Hz - 150 Hz (-10 dB)
- Max SPL: 138 dB
- Speaker: 1x 18" neodymium / 4 ohm / 4" voice coil
- Amplifier power: 2,400 watts RMS / 4,800 watts peak (Class D)
- Cardioid setup available
- Cooling: No fan, convection cooling
- Mains voltage: 220 - 240 V / 50 Hz
- Controller: 32-bit DSP with level, delay and EQ adjustment (8x FIR filters)
- Control via LCD display & RS485 network
- LED indicators: Input signal, Limit
- Signal connectors: Line input 1x XLR 3-pin female (balanced), Line out 1x XLR 3-pin female (balanced)
- Network connectors: DATA input network socket (etherCON compatible), DATA link network socket (etherCON compatible)
- Power connections: 1x mains input (PowerCON TRUE1), 1x mains link (PowerCON TRUE1)
- Enclosure: Birch plywood with polyurethane coating
- Flyable, retrofittable transport wheels
- Flying system: 4 points
- Dimensions (W x H x D): 840 x 502 x 650 mm
- Weight: 70.8 kg
Top Unit
- Active 3-way line array top unit
- 2x 8" woofers, 2x 1.35" compression drivers
- Frequency range: 65 Hz - 20 kHz (-10 dB)
- Max SPL: 132 dB
- Coverage angle: 90° horizontal, 12° vertical
- Amplifier power: 1,400 watts RMS / 2,800 watts peak
- Cooling: No fan, convection cooling
- Mains voltage: 220 - 240 V / 50 Hz

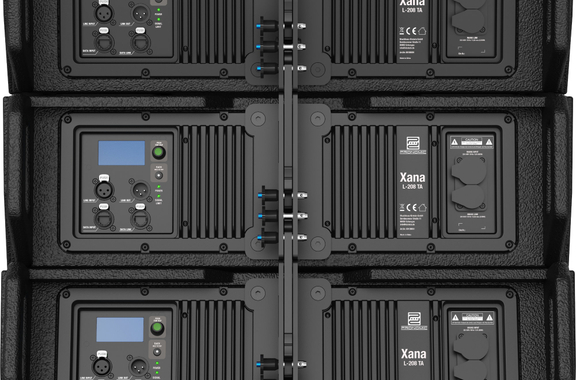

- Controller: 32-bit DSP with level, delay and EQ adjustment (8x FIR filters)
- Control via LCD display & RS485 network
- LED indicators: Input signal, Limit
- Signal connectors: Line input 1x XLR 3-pin female (balanced), Line out 1x XLR 3-pin female (balanced)
- Network connectors: DATA input network socket (etherCON compatible), DATA link network socket (etherCON compatible)
- Power connections: 1x mains input (PowerCON TRUE1), 1x mains link (PowerCON TRUE1) Power consumption: 3.7 A max. (850 W)
- Enclosure: Birch plywood with polyurethane coating
- Flying system: 3 points

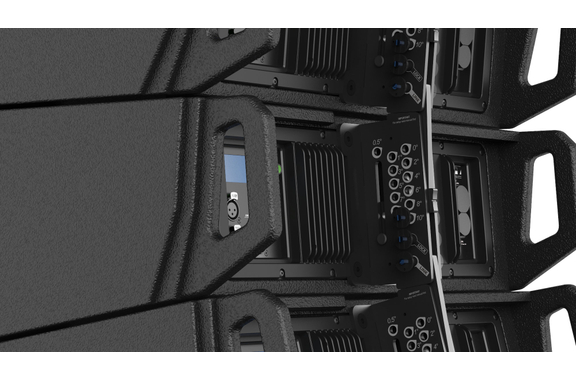

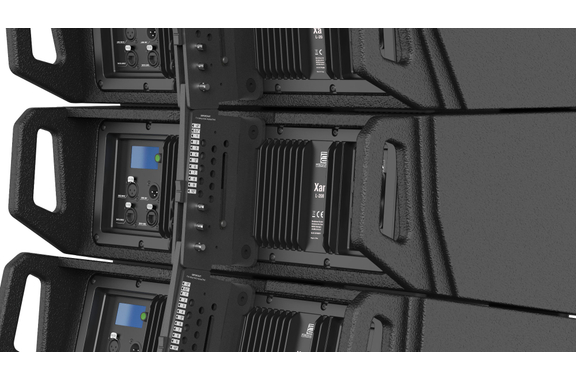

- 3-point rigging system, 0°–10° tilt angle (1° steps) + 0.5° increments
- Dimensions (W x H x D): 620 x 250 x 646 mm
- Weight: 26.0 kg
Dolly
- Suitable for 4 or 6 XANA L-208 TA top units
- Robust steel construction
- 3 angle settings
- 2 transport wheels with brake
- Space-saving, stackable design
- Color: Black

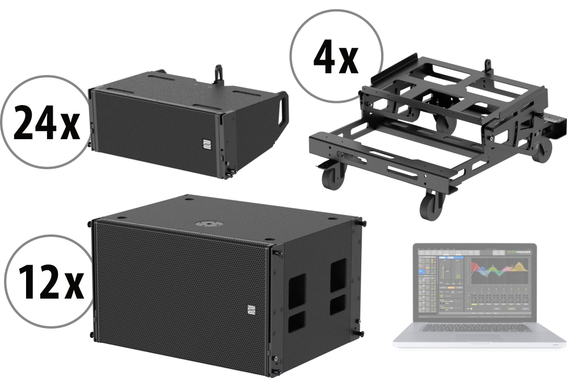

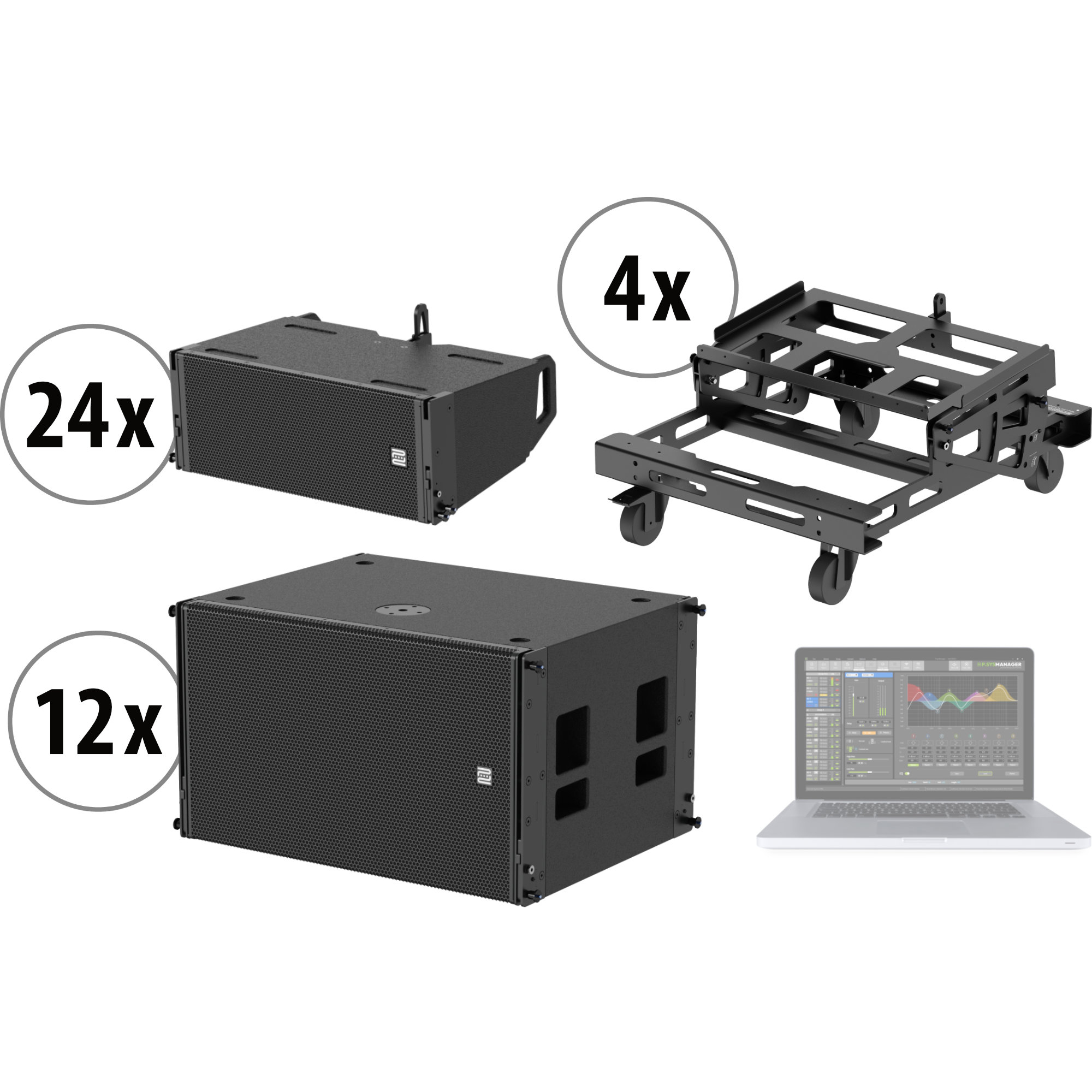

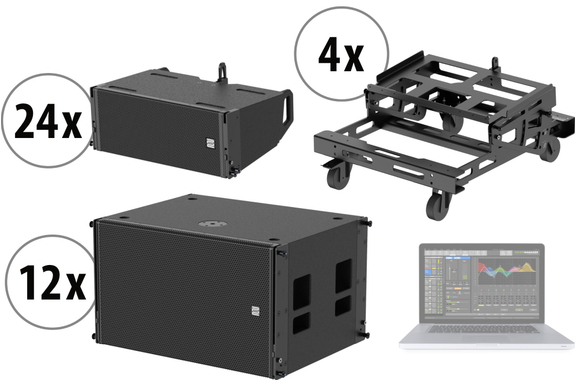

Scope of delivery
- 12 x Pronomic XANA L-118 SA Subwoofers
- 24 x Pronomic XANA L-208 TA Top Units
- 4 x Pronomic XANA L-208 TA Transport Dollies
Suitable accessories (Not included in the delivery.)
- Pronomic XANA L-208 TA Transport Dolly
- Pronomic XANA L-208 TA Protective Cover for 4 Units
- Pronomic XANA L-208 TA Protective Cover for 6 Units
- Pronomic USB-RS485 Interface for P.sysManager
- Pronomic XANA L-118 SA Protective Cover
- Pronomic XANA Flybar
- Pronomic XANA Tilt Unit for Flight Frames
- Pronomic XANA Standbase for L-208 TA Fly Frame
- Pronomic XANA L-208 TA Power Twist Connection Cable
- Pronomic XANA L-118 SA Power Twist Link Cable
- Pronomic XANA L-208 TA Power Twist Mains Cable
- Pronomic Caster Set for XANA Subwoofers
- Pronomic XANA Line Array Fly Small Blind Set
- Pronomic XANA L-208 TA Line Array Flying Frame + Flybar Set
- Pronomic XANA L-118 SA Line Array Fly Frame + Flybar Set
Specification
- Product number 00113366
- Colour Schwarz
- Subwoofers 18 Zoll
- Satellites/Fullrange 8 Zoll/1,35 Zoll
- Power RMS (Watts) 62400
- With mixing desk/power mixer Nein
- Inputs EtherCon, XLR
- Configuration 2.2
