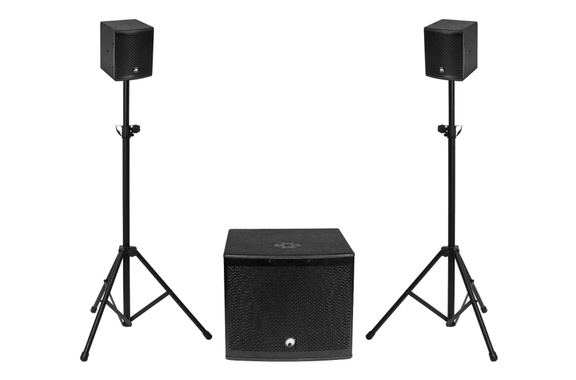

Omnitronic MOLLY 2.1 Stand Set

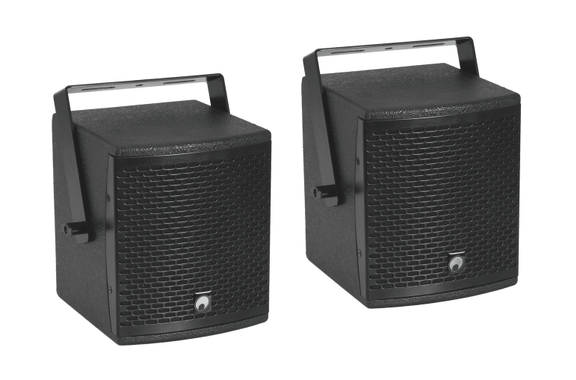

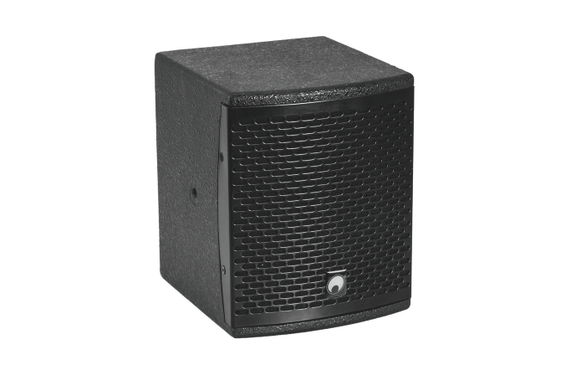

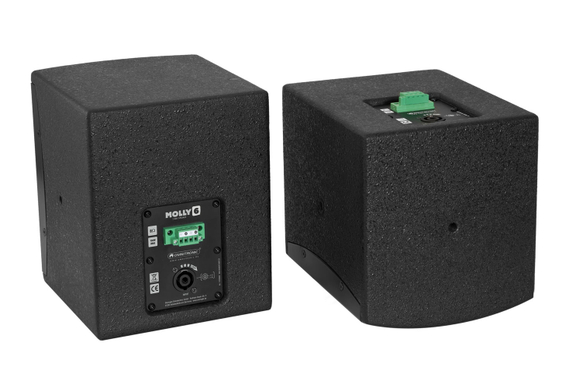

Omnitronic MOLLY-6 Top

• 8-ohm speaker pair with 6.5" woofer and 1" tweeter
• Extension for MOLLY-12A subwoofer for 2.1 and 4.1 operation
• Includes 2 x U-brackets for wall, ceiling, and stand mounting
• Accessory adapter required for stand mounting
• Connecting 2 satellites via extension bracket and cable (accessory) possible
• Power handling: 130 W RMS/260 W program
• Connections: 1 x speaker and screw terminal
• MDF cabinet with M8 threaded inserts
• Durable textured paint and metal grille
• Brackets and cables available as accessories

Technical Data

• Nominal power handling: 130 W RMS
• Program power handling: 260 W
• Frequency range: 150 - 20000 Hz
• Sensitivity: 95 dB (1W/1m)
• Max. sound pressure: 119 dB
• Impedance: 8 ohm
• Connections: 1 x via speaker socket (female), 1 x via screw terminal
• Speaker: 1 x woofer (6.5") approx. 17 cm
• Voice coil woofer (1") approx. 2.5 cm
• 1 x tweeter (1") approx. 2.5 cm
• Speaker type: surface speaker (wall/ceiling)
• Color: black
• Weight: 8.90 kg

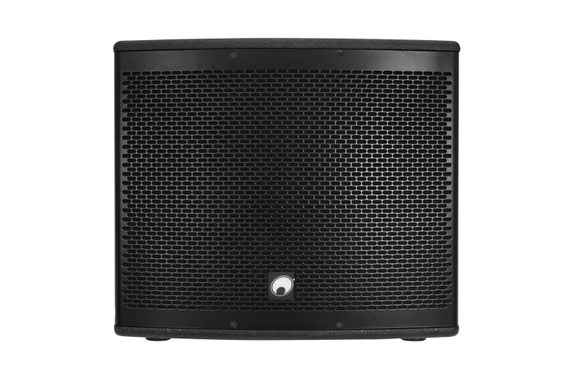

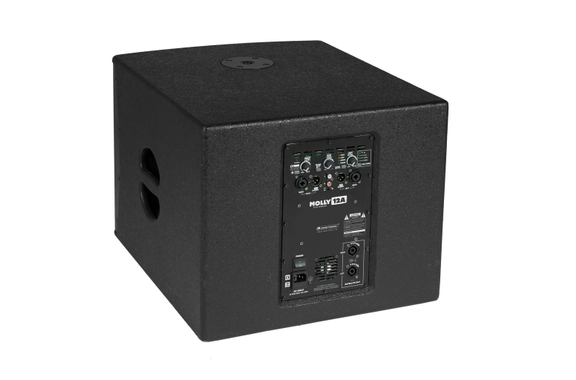

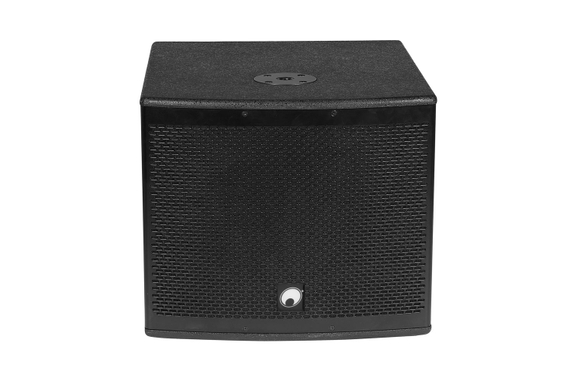

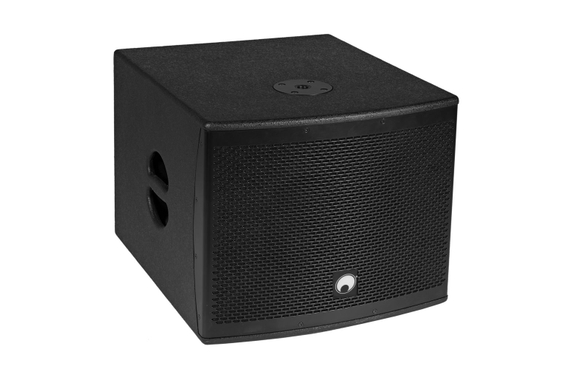

Omnitronic MOLLY-12A Subwoofer

• 12" bass reflex subwoofer with DSP and 700 watts RMS power
• Flexible expansion with MOLLY-6 satellites for 2.1 and 4.1 operation
• DSP-controlled Class-D amplifier (500 W + 2 x 100 W)
• Integrated Bluetooth® audio streaming for wireless music enjoyment
• 4 EQ presets with status indicators
• Signal limiter and crossover
• Signal inputs via combo jacks (XLR/phone), RCA and 3.5 mm mini jack
• XLR outputs for linking additional MOLLY systems or active speakers
• Volume for subwoofer and satellites L/R adjustable separately
• Stereo-mono switch
• Phase inversion switch
• Fault, limit, signal and power indicators
• Integrated protection circuits: soft start, short circuit, limiter, overvoltage, overheating
• M20 metal flange for satellite mounting
• Multiplex cabinet with durable textured paint and metal grille
• Built-in handles and low weight for easy transport
• Delivery includes 2 speaker cables
• For mobile live and DJ applications and installation in bars, shops, conference rooms and home cinemas
• Digital signal processor
• Controllable via Bluetooth®

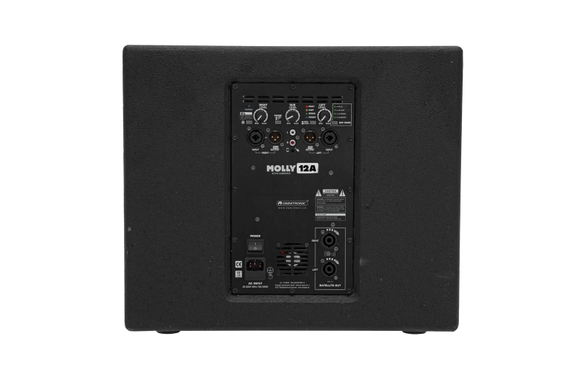

Connections

• Input: 2 x line via 3-pin XLR/6.35 mm phone (female) combo jack built-in version
• Input: 1 x line via 3.5 mm phone jack (stereo) built-in version
• Input: 1 x line via stereo RCA
• Output: 2 x line via 3-pin XLR
• Output: 2 x top via speaker socket (female)

Technical Data

• Power supply: 230 V AC, 50 Hz
• Total power consumption: 1000 W
• Output power: 1 x 500 W RMS
• 2 x 100 W RMS (8 ohm)
• 2 x 200 W RMS (4 ohm)
• Speaker: 1 x woofer (12") approx. 30 cm
• Voice coil woofer (3") approx. 8 cm
• Frequency range: 40 - 160 Hz
• Sensitivity: 103 dB
• Max. sound pressure: 128 dB
• DSP: digital signal processor
• Control: Bluetooth®
• Mounting system: M20 thread
• Circuit: Class D
• Dimensions (W x D x H): 47 x 57 x 40 cm
• Weight: 22.10 kg

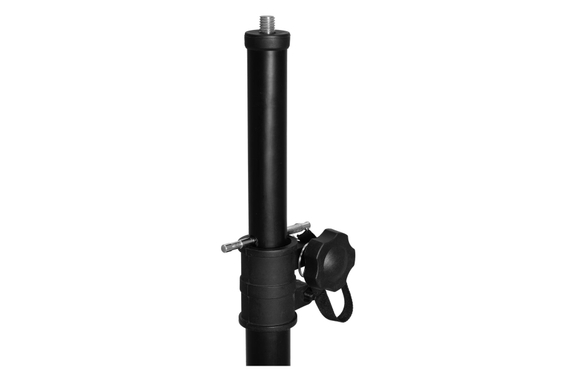

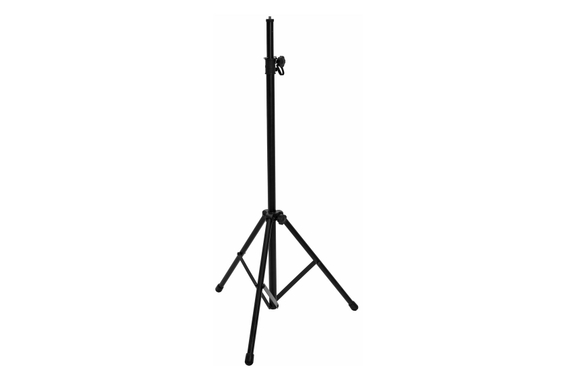

Omnitronic Speaker Stands

• Matching speaker stand for the BOB system
• Sturdy steel construction
• Extendable up to 170 cm
• Height adjustable in 5 steps, with safety pin
• Tube diameter Ø 30 mm
• M10 mounting thread suitable for BOB-4 satellites
• Scratch-resistant black paint
• Maximum load capacity: 14 kg
• Height: max. 1.70 m / min. 1.07 m
• Weight: 2.15 kg
• Color: black

• 1 x Omnitronic MOLLY-6 Top satellite speaker pair with bracket
• 1 x Omnitronic MOLLY-12A subwoofer
• 2 x Omnitronic speaker stands BOB system
