Mackie DL16S - Create Your Best Live Mixer Ever!
The DL32S and DL16S bring the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability plus brand-new free DAW "Tracktion Waveform" software, all in a completely new stagebox form factor with built-in WiFi. Mount it in a rack, place it on your desk, or right on stage. Mix your way!

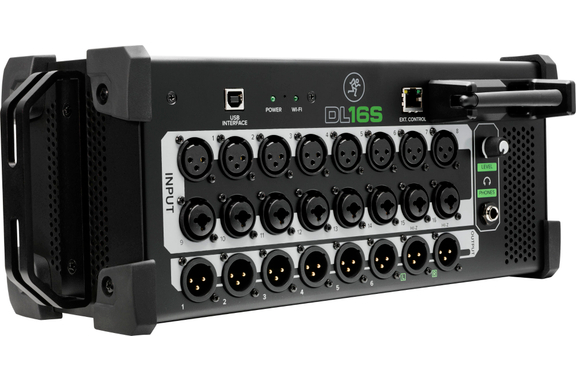

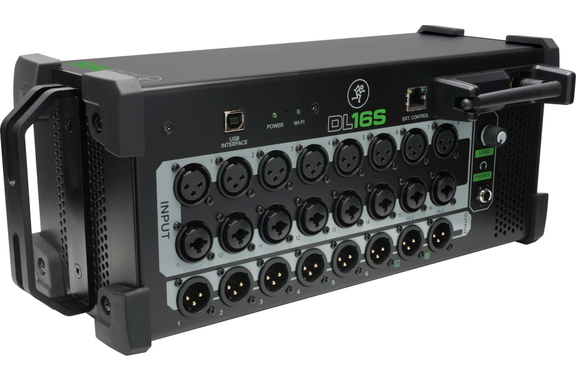

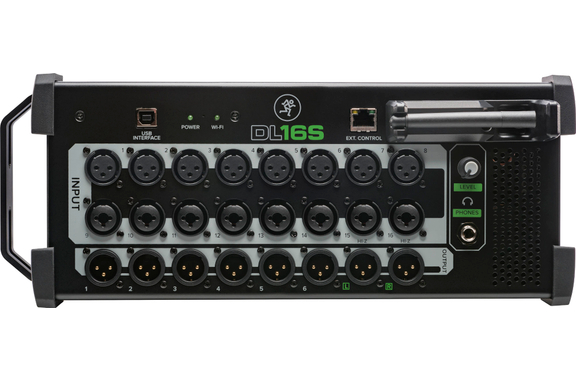

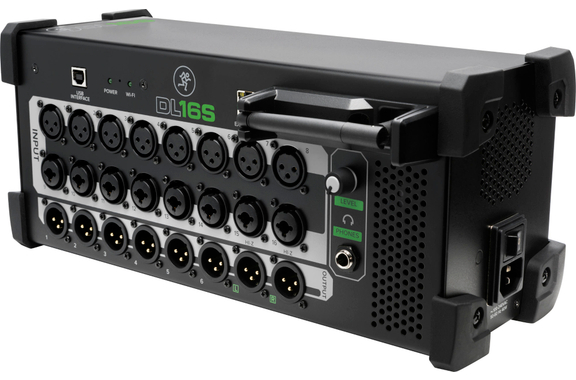

The Mackie DL16S delivers 16 channels with Onyx+ mic preamps from the proven DL series in a brand-new, stage-friendly Built-Like-A-Tank design. Thanks to the integrated Wi-Fi network and comprehensive multi-platform support of the market-leading Master Fader control app, you can start mixing right out of the box. With full DSP power on each of the 16 channels and 13 buses plus 4 effects processors, the DL16S provides the muscle to sound great at every gig.
Impressive multitrack recordings are possible via the 16x16 USB interface, and individual tracks can even be played back on each channel for effortless virtual soundchecks. The Master Fader app offers extremely intuitive control over everything on up to 20 devices simultaneously, including the ability to recall every single setting digitally for incredibly fast setup. Take control of your live mix with the Mackie DL16S.
Your Story, Your Mix, Your Mackie DL16S!
Features
General
- Wireless digital 16-channel mixer
- 16 recallable Onyx+ mic preamps
- 8 assignable XLR outputs plus a headphone output
- Proven Master Fader control app
- 16 x 16 24-bit USB recording
- No multicore needed - place anywhere
- Complete control via iOS, Android, Mac, or PC
- No fixed FOH position - mix from anywhere
- Supports up to 20 different devices controlling simultaneously
- Multiple sound engineers can work on the mixer
Processors & Routing
- 16 input channels with 4-band PEQ + HPF, gate, compressor, and RTA/spectrograph
- All input channels can be stereo linked
- 13 output buses with 4-band PEQ + HPF/LPF, 31-band GEQ, compressor/limiter, alignment delay, and RTA/spectrograph
- 8 stereo-linkable aux sends
- 6 stereo-linkable subgroups
- Main L/R bus
- 6 VCAs and 6 mute groups
- 4 stereo effects processors with dedicated sends and returns featuring effects like reverbs, delays, chorus, flanger, and more
- Fully flexible I/O routing with A/B source selection per channel
- Assignable oscillator including pink/white noise and sine waves
- Modern and vintage versions for compressor, gate, and EQ
Multitrack Recording & Playback
- 16x16 24-bit USB audio interface for Mac or PC
- Record entire concerts
- Playback of break music, backing tracks, and more, even directly on a dedicated stereo channel
- Virtual soundcheck
- Cost-effective interface solution with many channels for recording studios
- Integrate plugins from Mac or PC during live shows
Master Fader App
- Intuitive and easy operation
- Fast navigation with view groups and overview windows
- Quick setup with plenty of factory and user presets
- Access limiting allows flexible UI customization and prevents unwanted changes by other users
- Quick access to channel editing, signal routing, and a wide selection of great-sounding effects with presets for fast start
- Export presets, shows, and full system backups via Dropbox, email, and more
- Full offline operation
- Easy and regular updates
- Compatible with iOS, Android, macOS, and Windows
Tracktion Bundle
- Waveform OEM with extensive plugin bundles for instant professional recordings
- The DAW Essentials Bundle for Waveform OEM includes 16 powerful plugins like equalizer, compressor, reverber8, and limiter
Physical Data
- Dimensions (H x W x D): 142 x 358 x 147 mm
- Weight: 2.8 kg
Scope of delivery
- 1 x Mackie DL16S
- 1 x Rack ears
- 1 x Power supply
Specification
- Product number 00056699
- Colour Black
- WiFi Yes
- Number of microphone inputs 16
- Outputs 6.3mm Klinke, RJ45 Netzwerkbuchse, USB, XLR
- Expansion Slot No
- Inputs 6.3mm Klinke, RJ45 Netzwerkbuchse, USB, XLR
- Labelable channel strip Yes
