The Studiomaster Club XS + Series - Now with Footswitch Input for DSP Effects!
The new Club XS + models for 2020 offer all the great features of the standard Club range and now additionally feature a DSP on/off footswitch socket and an aesthetic overhaul, with redesigned control knobs and in digital Studiomaster black.
Compact, portable mixers with 5 to 16 inputs, Bluetooth connectivity, built-in DSP effects as well as playback and recording functions for USB / SD cards. 3-band EQ, 2 auxiliary devices, balanced microphone / line connections, compressor control and a useful mute switch for all microphone and line input channels plus 2-band EQ with 2 auxiliary devices for both stereo channels.
There are also balanced XLR outputs for the main outputs, jack outputs for auxiliary and control rooms, as well as phono connections for recording and playback. The Club XS is ultra-compact, lightweight, high quality and extremely versatile.
High-Quality Dynamic DJ Headphones Included
The KH-238 delivers a full, balanced sound with rich bass reproduction and clear highs. It offers plenty of volume yet clean and precise positioning in the stereo field. Naturally, the softly padded, wide headband is length adjustable.
The extension offers 12 steps per side and can be optimally adjusted. For even more wearing comfort, the ear cups are mounted on two axes for rotation. The thick, soft padding of the circumaural ear cups also provides good external noise isolation.
The volume control integrated in the cable is always at hand, simplifying use with PC or mp3 player. The 3.5 mm stereo jack plug provides excellent transmission characteristics and a 6.3 mm stereo jack adapter (stereo) is also included in the scope of delivery.
The Perfect Mixer for Every Live Performance & Home Recording!
Features

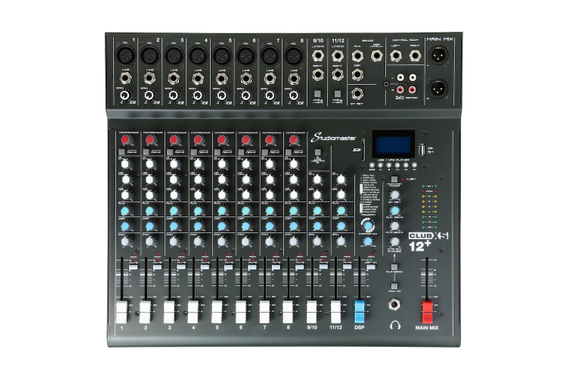

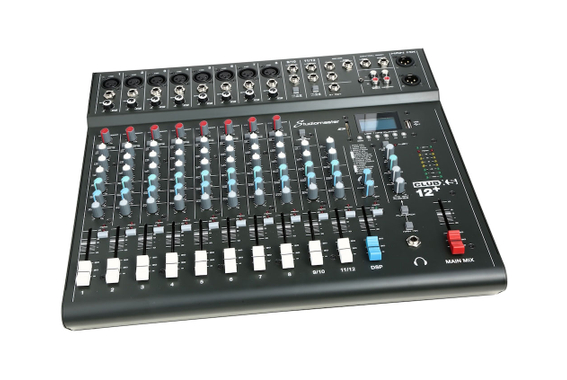

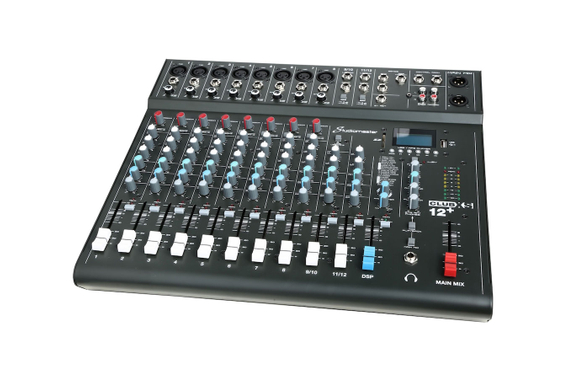

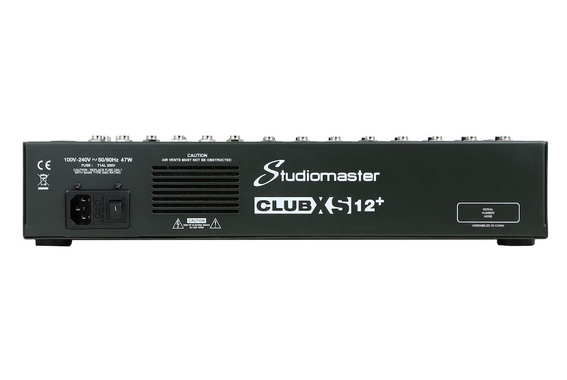

Studiomaster Club XS 12+ Mixer
- Compact 10-channel mixer
- Inputs: 12
- Microphone input channels: 8
- Stereo input channels: 2
- Tone control: 3-band EQ and high-pass filter on all microphone channels
- Power supply: built-in
- Compressor: Adjustable on all microphone channels
- USB/SD card: recording-playback, Bluetooth playback option
- Effects: 16 high-quality DSP effects
- Footswitch input for DSP effects on/off
Technical Data
- Mic gain range: -6 dB to -50 dB (Mic)
- Line gain range: +10 dB to -34 dB (Line)
- EIN: -100 dB
- Frequency response: 10 Hz - 20 kHz +1/-3 dB (microphone channel)
- THD: <0.1% (microphone channel)
- SNR: 80 dB
- Max. output level: +26 dBu (balanced), +20 dBu (unbalanced)
- Channel EQ: 12 kHz (Hi), 2.5 kHz (Mid), 45 Hz (Lo), 80 Hz (Lo Cut)
- Power requirement: 100 V - 240 V
- Dimensions: 415 x 80 x 365 mm
- Weight: 5.5 kg

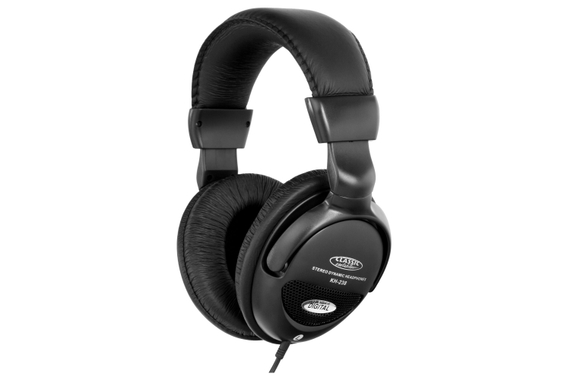

KH-238 Headphones
- High-quality dynamic headphones
- Speaker: ø 40 mm
- Frequency range: 20 to 20,000 Hz
- Sensitivity: 110 dB SPL (at 1kHz)
- Nominal impedance: 32 Ohm
- Soft padded, circumaural ear cups
- Good external noise isolation
- Soft padded, wide headband
- Size adjustable in 12 steps per side
- Padding material: synthetic leather
- Built-in active bass
- Volume control integrated in cable
- Cable: 4 m with one-sided feed
- Plug: 3.5 mm stereo jack
- Adapter: nickel-plated 6.3 mm stereo jack
- Net weight (without cable): 226 g
- Gross weight: 283 g
Scope of delivery
- 1 x Studiomaster Club XS 12+ Mixer
- 1 x Classic Cantabile KH-238 Headphones
- 1 x Adapter 3.5mm jack to 6.3mm jack
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00066332
- Inputs 6.3mm Klinke, Cinch / RCA, XLR
- additional FX Yes
- Colour Black
- Outputs 6.3mm Klinke, Cinch / RCA, XLR
- Number of microphone inputs 8
