Pronomic B-403 Mini Mixer with Bluetooth® and USB Recording

  • Compact 4-channel mixer, 2 mono channels with balanced XLR/jack inputs, 1 stereo channel with jack inputs, bluetooth receiver for music playback
  • USB port for music playback and recording, switchable phantom power (+48 V) and Hi-Z switch for low impedance instruments on channels 1+2, pad switch for channel 3/4
  • Built-in echo effect for channels 1 + 2, peak display on all channels, 2-band EQ (± 15 dB at 80 Hz / 12 kHz) and FX controls on channels 1+2, volume and panorama controls per channel
  • Separate volume controls for main out and phones, 6-digit LED level display, main out in XLR format, headphone output: 6.3mm jack, power supply via external power supply unit
  • Max. output level: 3Vrms, distortion factor at 1KHz (THD+N): <0.03%, crosstalk attenuation: 92 dB, dynamic range: 102 dB, dimensions (W x H x D): 166 x 66 x 165 mm, weight: 0.89 kg, power supply included
Pronomic
Variants (2)
Pronomic B-603 Mini Mixer with Bluetooth® and USB Recording
Pronomic B-803 Mini Mixer with Bluetooth® and USB Recording
Pronomic B-603 Mini Mixer with Bluetooth® and USB Recording Pronomic B-603 Mini Mixer with Bluetooth® and USB Recording Pronomic B-603 Mini Mixer with Bluetooth® and USB Recording
Pronomic B-603 Mini Mixer with Bluetooth® and USB Recording
  • Compact 6 channel mixer, 4 mono channels with balanced XLR/jack inputs, 1 stereo channel with jack inputs, Bluetooth receiver for music playback
  • USB port for music playback and recording, switchable phantom power (+48 V) and Hi-Z switch for low impedance instruments on channels 1-4, pad switch for channel 5/6
  • Built-in echo effect for channels 1-4, peak display on all channels, 2-band EQ (± 15 dB at 80 Hz / 12 kHz) and FX controls on channels 1-4, volume and panorama controls per channel
  • Separate volume controls for Main Out and Phones, 6-digit LED level meter, Main Out in XLR format, headphone output: 1/4" jack, power supply via external power supply unit
  • Max. Output level: 3Vrms, distortion factor at 1KHz (THD+N): <0.03%, crosstalk attenuation: 92 dB, dynamic range: 102 dB, dimensions (W x H x D): 220 x 66 x 165 mm, weight: 1.17 kg, power supply included
73,40 €
Pronomic B-803 Mini Mixer with Bluetooth® and USB Recording Pronomic B-803 Mini Mixer with Bluetooth® and USB Recording Pronomic B-803 Mini Mixer with Bluetooth® and USB Recording
Pronomic B-803 Mini Mixer with Bluetooth® and USB Recording
  • Compact 8 channel mixer, 6 mono channels with balanced XLR/jack inputs, 1 stereo channel with jack inputs, Bluetooth receiver for music playback
  • USB port for music playback and recording, switchable phantom power (+48 V) and Hi-Z switch for low impedance instruments on channels 1-6, pad switch for channel 7/8
  • Built-in echo effect for channels 1-6, peak display on all channels, 2-band EQ (± 15 dB at 80 Hz / 12 kHz) and FX controls on channels 1-6, volume and panorama controls per channel
  • Separate volume controls for Main Out and Phones, 6-digit LED level meter, Main Out in XLR format, headphone output: 1/4" jack, power supply via external power supply unit
  • Max. Output level: 3Vrms, distortion factor at 1KHz (THD+N): <0.03%, crosstalk attenuation: 92 dB, dynamic range: 102 dB, dimensions (W x H x D): 274 x 66 x 165 mm, weight: 1.45 kg, power supply included
94,40 €

Free shipping (DE) inkl. VAT.

Ready for shipping
Delivery time 1 - 3 working days
Delivery on Wednesday, 03.04.2024, if you order within  4 Days 5 Hrs. 21 Min. with Express delivery.
or

Whether singer/songwriter, party DJ or small band - this is your console!

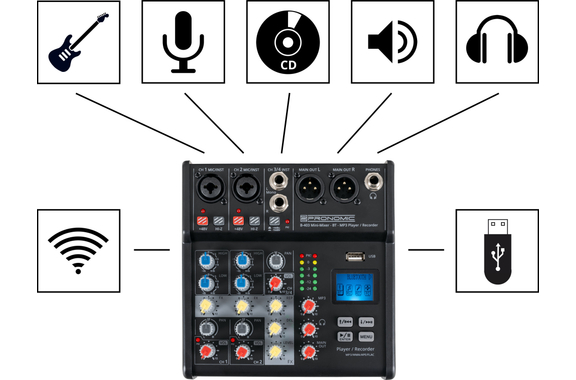

This console simplifies the work on small stages, at home and in the party room tremendously: With the B-403 mixer, channels for microphones, instruments and MP3 players are available for you. As special highlights, however, a Bluetooth® receiver as well as a USB port are also on board. To meet professional requirements, the sum signal is provided in XLR format. Unique in this price range!

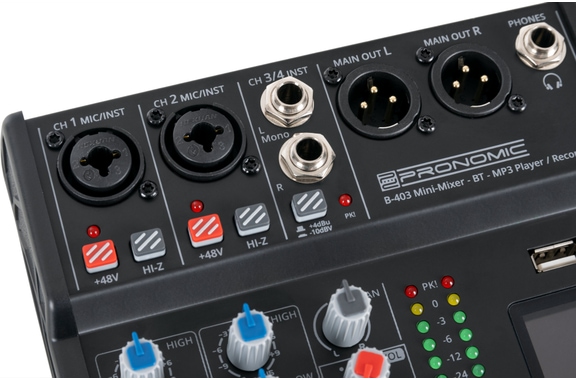

Channels 1 and 2

These channels have XLR/jack sockets to connect a microphone or an instrument to them. For operation with e.g. low impedance guitars, there is even a Hi Z button integrated. You have a condenser microphone that needs phantom power? No problem! Just press the button and you're ready to go!

Stereo channel 3/4

A separate channel with jack inputs is available for operation with electronic instruments such as keyboards and samplers.

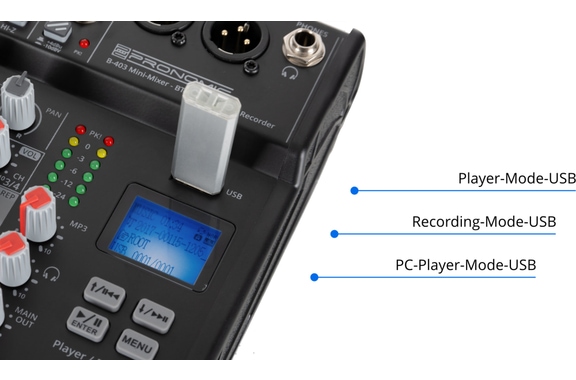

USB playback

The heart of DJs rejoices: a small USB stick full of music is enough to keep the guests entertained for the whole evening. Extensive transport functions allow easy handling of the MP3 player, which is operated intuitively with the razor-sharp LCD display.

USB recording

A really simple and effective possibility to record the evening for future generations is the recording function. The sum signal, that is, all connected instruments and microphones, is saved as an MP3 file in stereo format on a USB stick.

Bluetooth® receiver

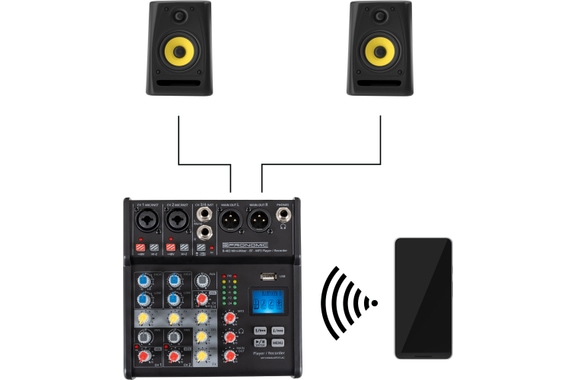

If you don't just want to stay at the DJ booth during the party, but want to mingle with the guests, the Bluetooth® unit gives you full freedom of movement.

Professional features in the smallest of spaces!

Suitable accessories (Not included in the delivery.)

Specification

  • Product number 00073861
  • Inputs 6.3mm Klinke, Bluetooth, USB, XLR
  • additional FX No
  • Colour Black
  • Outputs 6.3mm Klinke, XLR
  • Number of microphone inputs 2

Reviews

4.7/5.0
Based On 20 ratings
Show all reviews
5 Stars
15
4 Stars
3
3 Stars
2
2 Stars
0
1 Star
0

A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.

Great quality
Review from Frau on 14.02.2024
This rating has been translated automatically. Original language flag from
 verified purchase
A great device for the price.
However, when recording (USB recording) via the USB port, it only works with a 32GB stick
and can only record at 128 kbit/s.
Egg-laying wool-milk sow
Review from Gerhard on 19.12.2023
This rating has been translated automatically. Original language flag from
 verified purchase
Received it today and tested the
Bluetooth function. To listen with the headphones I had to realize as a layman that this only works together with the mp3 and the headphones volume control. I have a great home studio that I have to "activate" every time before use.
With this mini mixer standing next to me, I can, for example, record notes before going to the home studio, use it as a practice device and play 2-3 songs in the cafe.
Yes, now the effect.....
If you know what a Lexikon Hall can do and how much it costs, you'll be unhappy.
But I am glad to have bought such a PROBLEM SOLVER. See PRICE !!!!!!!
Thanks to KIRSTEIN for the super-fast delivery (despite the Christmas sales. 👍👍👍
works as described
Review from Matthias on 06.08.2023
This rating has been translated automatically. Original language flag from
 verified purchase
at this price / performance ratio you should also not be negative
Does exactly what it is supposed to do
Review from Michael on 04.07.2023
This rating has been translated automatically. Original language flag from
 verified purchase
Delivery and scope of delivery absolutely as described.
The blender looks more valuable than I suspected, only the buttons themselves are relatively "thin".
However, you have to have the price in mind here, so that is absolutely okay.
The range of functions is completely sufficient for my application, you can read in advance what you get.
Somewhat unusual is the connection with the PC via a type A <> type A USB cable, you should have that in mind, I for example does not have such a stripe in the fundus. However, provided with the appropriate cable, the emulation works very well as a sound card.
Electric guitar, microphone, external line-in, as well as line-out work without interference, noise I could not detect so far, but I also power rather rarely with fully opened controllers ;-)

Conclusion: Everything is fine!
Good mini mixer!
Review from Steffen on 21.02.2023
This rating has been translated automatically. Original language flag from
 verified purchase
Little noise, good sound and a useful effect. With appropriate adapter cable also mobile with a Teufel Rockster Air for street music ( 2 pickups for handpan + possibly playback) usable. Good!

Questions about product

Your question about the article Pronomic B-403 Mini Mixer with Bluetooth® and USB Recording

Your question will be forwarded directly to the department and answered as soon as possible.

Question by Ralf Rafflenbeul on 28.03.2024

How large can the USB memory be?

Answer by Musikhaus Kirstein:

We recommend sticks with a maximum size of 64GB.

Question by Murat on 23.03.2024

Can USB recordings be made with simultaneous Bluetooth playback?

Answer by Musikhaus Kirstein:

No, that is not possible.

Question by BK on 07.02.2024

1. can the volume of the Bluetooth transmission also be controlled on the mixer?

2. how can a connection be made to two RCA inputs of a "normal" amplifier? Are there adapters from XLR to RCA (or does that make sense), or does this have to be done via the headphone socket?

Answer by Musikhaus Kirstein:

Yes, the volume of the Bluetooth signal can be controlled via the "Mp3" volume control.
Connection to an amplifier with cinch inputs is also possible, you only need the following cable: https://www.kirstein.de/Zubehoer-Audiokabel/Cordial-CFU-3-MC-Cinch-XLR-male-3m-Paar.html?

Question by Gerhard Hofer on 15.12.2023

I ordered the Pronomic B-403
primarily to use it as an unproblematic practice and recording mixer before I put the whole home studio into operation. As a notebook, so to speak. I hope to have it with me soon. But every now and then I compose
a little song for certain occasions. Acoustic guitar/vocals that I perform in the cafe. Since I own a Fender Acoustasonic 15, I would like to send Git. and MIc via the mixer into the MIc input (with only one volume pot) in mono XLR>XLR into the amplifier. Is this possible the way I envision it?
Thanks for the answer and happy holidays vin Gerhard from Vienna.

Answer by Musikhaus Kirstein:

Yes, that is possible.

Question by Dennis on 13.12.2023

We have 3 Teufel Rockstar Air 2 in use and would like to use the mixer. We also have a wired microphone.

Question 1: can you use 3 rockstar air 2 speakers with the mixer?

Question 2: Is it possible to connect a Bluetooth microphone

Answer by Musikhaus Kirstein:

This depends on the connections on your speaker. If you buy the appropriate cables, it is possible to connect the speaker to the mixing console. The Bluetooth connection is only intended for mobile devices. You can connect microphones via cable to one of the inputs.

Question by Martin Pickers on 13.09.2023

The mixer has yes 2 outputs, If I want only one output MONO? Adjust both to center and leave one output
leave empty or do you have another tip.

Answer by Musikhaus Kirstein:

If you want to tap a mono signal from only one output of the mixer, on which all signals can still be heard, you can simply leave all pan controls on center.

Question by Rainer Dobmaier on 29.08.2023

can you connect an active speaker via the headphone output of the B403 ? Have tried it - but did not work !

Answer by Musikhaus Kirstein:

To connect active speakers to the mixer, please use the two XLR main outputs. The headphone output is for headphones only.

Question by Peter Hellmann on 15.07.2023

So that the manual incorrectly states that a transmission of the sum signal to the PC via USB is not possible, I have already told by phone. Also that a power supply via USB 5V 1A is possible, is not in the German manual. Also it works that one can use the USB connection as input and with appropriate configuration of a MP3 player on the PC, music to the mixer can send, which one can add with the MP3 controller. So you can do video conferences with pure audio quality (I use a Shure condenser small band microphone with XLR connector), send the sum signal via USB to the PC and even send audio (MP3 songs) from the PC to the mixer, which you can mix with the MP3 potentiometer. To do this, you just have to minimize the noise reduction, otherwise the background music is faded out. My question: Why are these fabulous features of the mixer hidden? It would certainly find more buyers if the features were known.

Answer by Musikhaus Kirstein:

Thank you for your detailed review and information!

Question by Stefan_Mi on 15.05.2023

Does the mixer have enough power to drive a 250 Ohm studio headphone (e.g. beyerdynamic DT-770 Pro 250 Ohm)? Thanks! :)

Answer by Musikhaus Kirstein:

The small mixer can do that. As I said, if the mixer were a cell phone or tablet, it would look different.

Question by David on 03.01.2023

What kind of cable do i need to connect the mixer to my pc?
(Usb to usb?) is there such a thing

Answer by Musikhaus Kirstein:

Yes, there is such a cable. You need a USB-A to USB-A cable.

Question by Dirk Gebhardt on 29.11.2022

The reviews sound very promising. But I can't see any gain control for the two mic channels in the pictures. How to make an adjustment to a microphone?

Answer by Musikhaus Kirstein:

That is correct, a gain control is not available. Adjustments are only possible via the volume control.

Question by Christian Höllerich on 04.11.2022

How can I connect the mixer to the McGrey P212 MA active speaker, because I can't find a suitable cable.
Thanks in advance
With kind regards
Christian

Answer by Musikhaus Kirstein:

Good day,
Thank you for your inquiry.

You need for this jack 3 pole to XLR three pole would be the article number 00028755.
Simply enter in our webshop in the search.

If you have any further questions, please feel free to contact us.
