Compact & Versatile 4-Channel Mixer with USB & Bluetooth!

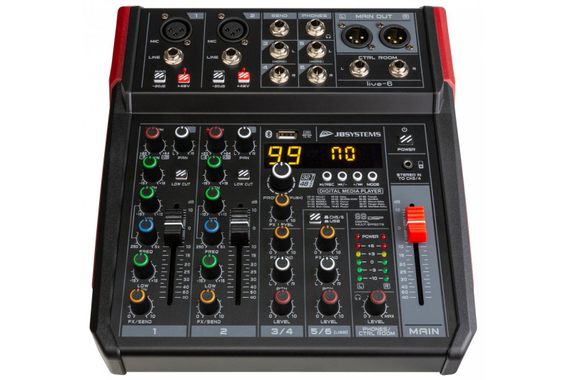

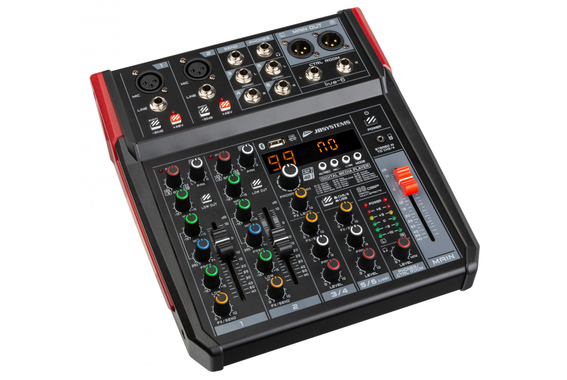

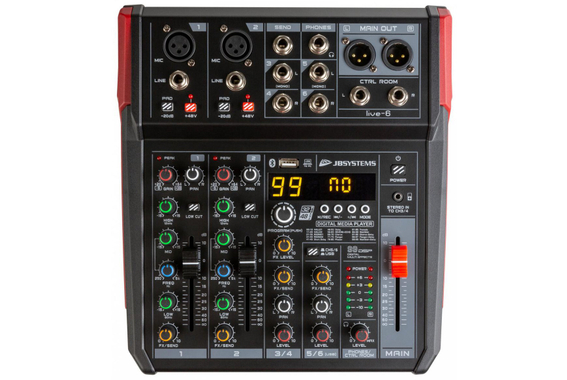

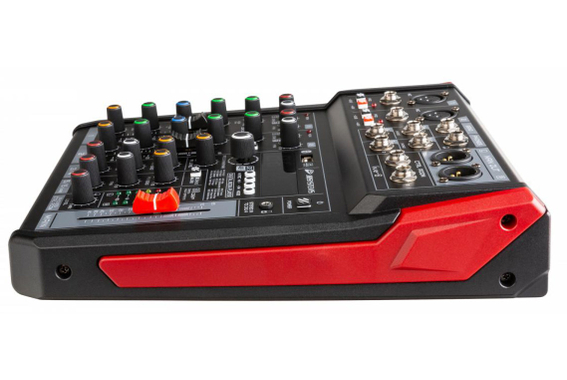

The Live-6 is a compact and versatile 4-channel PA mixer from JB Systems. It features 6 inputs over 4 channels (2 microphone/line, 1 mono/stereo line, 1 mono/stereo line/USB/player).
The USB port on top is bidirectional (for mono recording or stereo playback via PC/Mac). The Live-6 also includes a Bluetooth receiver.
If you power it with a power bank and battery-powered speakers, you’re 100 percent mobile.
Comfortable Stereo Headphones

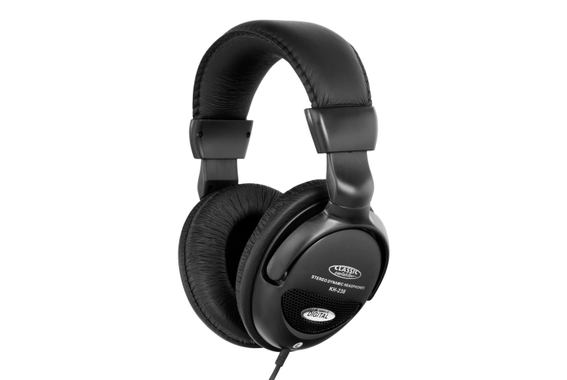

The KH-238 delivers a full, balanced sound with rich bass response and clear highs. It offers plenty of volume while maintaining clean and precise stereo imaging. Naturally, the softly padded, wide headband is adjustable in length. The extension provides 12 steps per side for optimal fit. For even more comfort, the ear cups are mounted on two-axis pivots. The thick, soft padding of the circumaural ear cups also ensures good external noise isolation. The integrated volume control on the cable is always within reach, making it easy to use with a PC or mp3 player. The 3.5 mm stereo jack provides excellent transmission quality, and a 6.3 mm stereo adapter is also included.
JB Systems - Your choice for consumer and prosumer light & sound!
Features
Mixer
- 6 inputs over 4 channels (2 microphone/line, 1 mono/stereo line, 1 mono/stereo line/USB/player).
- Bidirectional USB port (top): for mono recording or stereo playback via PC/Mac.
- Internal WMA, WAV, FLAC, APE & MP3 media player for USB sticks
- Media player can be used as mono/stereo MP3 recorder (128kbps).
- Built-in Bluetooth receiver
- Internal 32bit DSP effects unit with 99 effect variations
- Balanced master output
- Headphone + control room output with level control

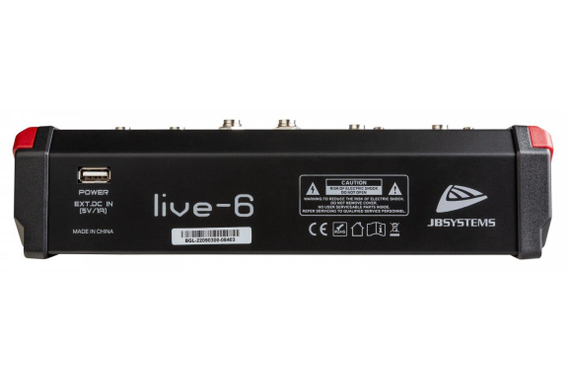

- Power supply: USB 5Vdc
- Dimensions (W x D x H): 250 x 280 x 60 mm
- Weight 1.8 kg

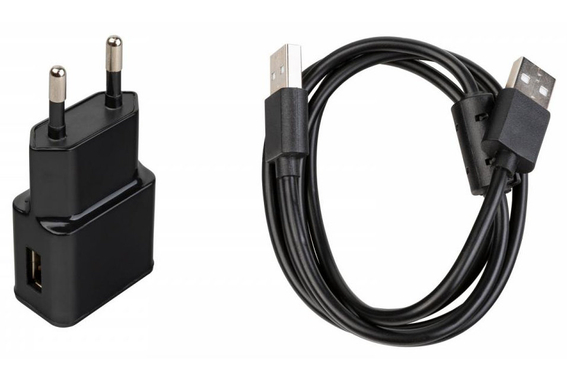

- Includes USB cable & power adapter
Headphones
- High-quality dynamic headphones
- Speaker diameter: 40 mm
- Frequency response: 20 to 20,000 Hz
- Sensitivity: 110 dB SPL (at 1kHz)
- Nominal impedance: 32 Ohms
- Softly padded, circumaural ear cups
- Good external noise isolation
- Soft padded, wide headband
- Adjustable size with 12 steps per side
- Padding material: synthetic leather
- Integrated active bass

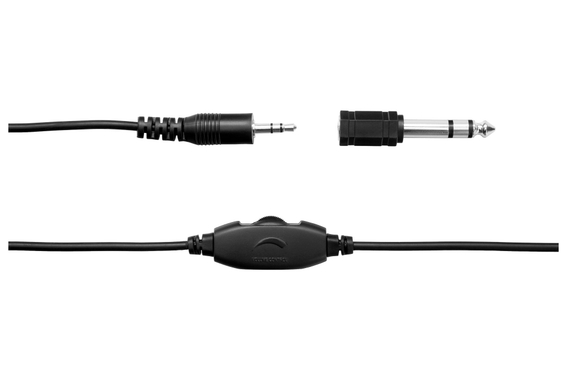

- Volume control integrated in cable
- Cable: 4 m with one-sided feed
- Connector: 3.5 mm stereo jack
- Adapter: nickel-plated 6.3 mm stereo jack
- Net weight (without cable): 226 g
- Gross weight: 283 g
Scope of delivery
- 1 x JB Systems Live-6
- 1 x Headphones
Specification
- Product number 00091258
- Colour Schwarz
- additional FX Nein
- Inputs 6.3mm Klinke, Bluetooth, USB, XLR
- Outputs 3.5mm Stereo-Klinke, 6.3mm Klinke, XLR
- Number of microphone inputs 2
