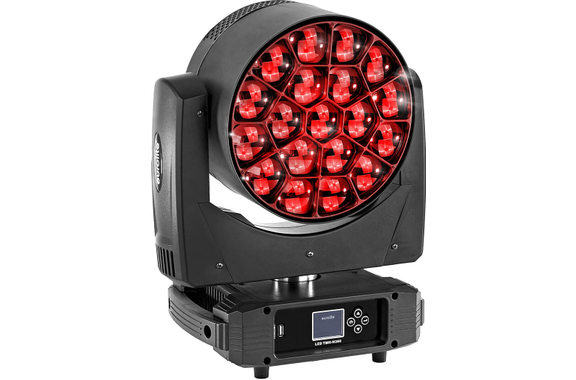

Eurolite LED TMH-H380 Beam/Wash/Flower Effect

Versatile Moving Head for Precise Light Shows!

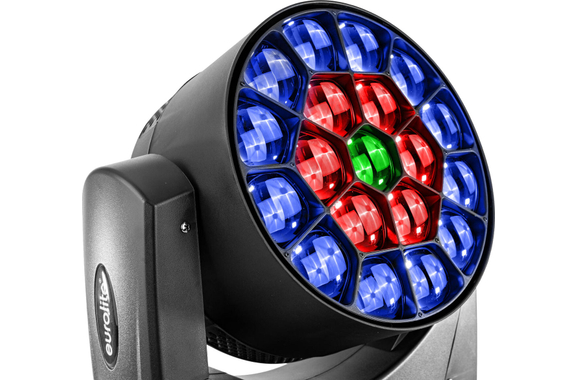

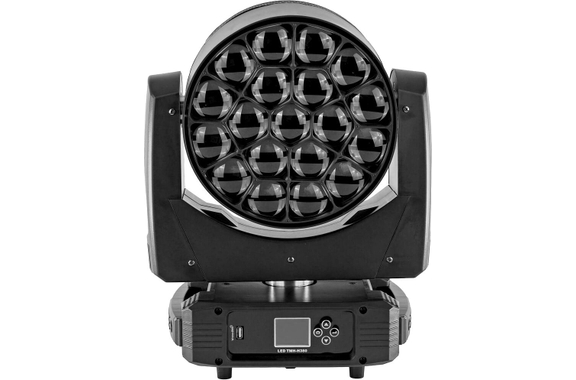

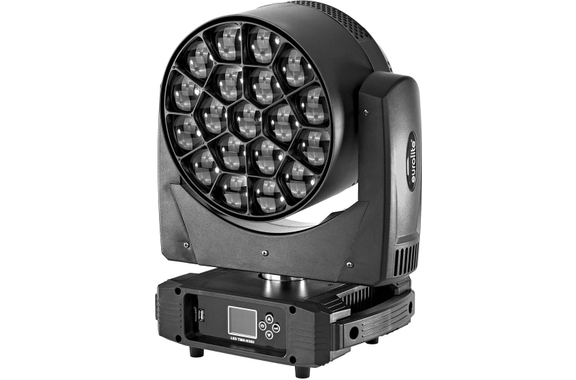

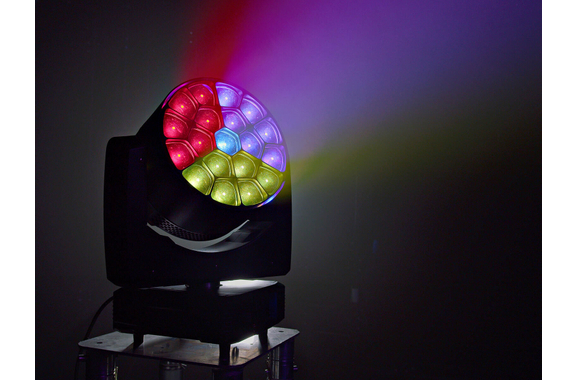

The Eurolite LED TMH-H380 Beam/Wash/Flower Effect is a professional moving head for demanding lighting installations in clubs, on stages, at galas, in bars, hotels and for mobile event use. The system combines beam, wash and flower effects in a compact housing and uses 19 powerful 4in1 QCL RGBL LEDs of 20 watts each. That gives you a strong output, homogeneous color mixing and flexible looks ranging from tight beams to wide wash areas. The individually controllable LEDs additionally open creative possibilities for pixel control, segmented effects and dynamic chases.

Performance and Optics

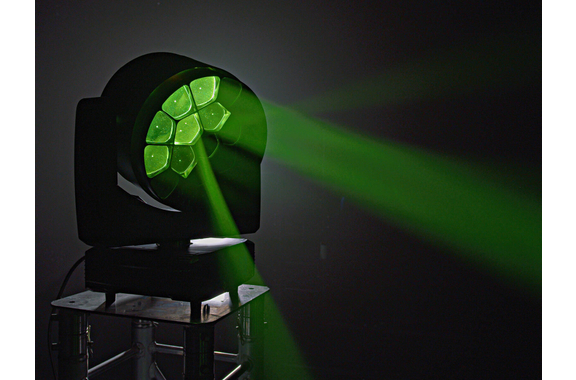

With its motorized zoom the unit covers a beam angle from 1° to 35°. This lets the TMH-H380 serve both tightly focused beam applications and broad wash scenes. In addition, the rotating lens optics add extra motion to the beam pattern and make the integrated flower effect stand out. Continuous color mixing, preset colors, the dimmer and adjustable pulse-width modulation make the unit especially attractive for professional setups where smooth dimming, camera compatibility and reproducible colors are required. The model is also powerful in terms of illuminance: according to the manufacturer, with a narrow beam angle and all LEDs active up to 86,946 lx at 1 m is possible.

Control and Integration

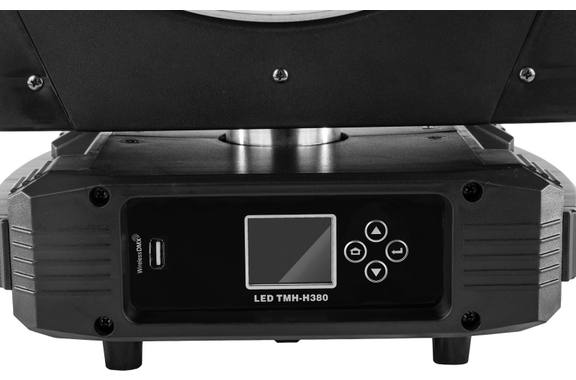

For integration into modern lighting systems the moving head offers a wide range of control options. Supported modes include stand-alone operation, music control via microphone, DMX and Master/Slave. Additionally, operation via optional USB solutions for QuickDMX, W-DMX by Wireless Solution and CRMX by LumenRadio is possible. Depending on the setup 18, 30 or 94 DMX channels are available. Exact positioning with 16-bit resolution, 540° PAN, 215° TILT and auto position correction ensures precise movements and reliable reproducibility in show operation. The multicolored LCD simplifies configuration directly on the unit.

Touring and Practical Use

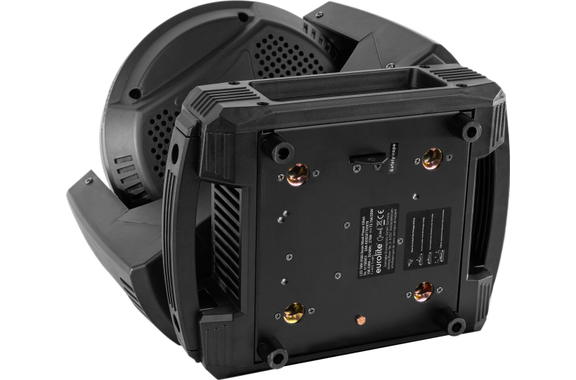

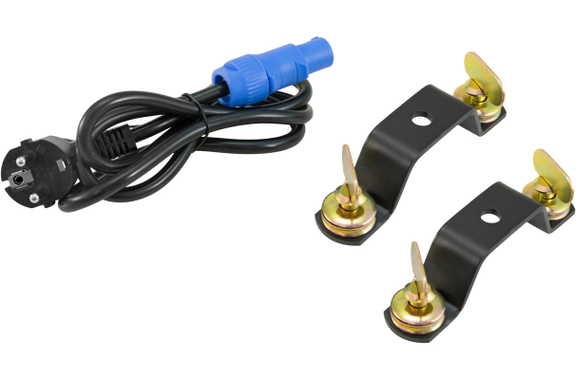

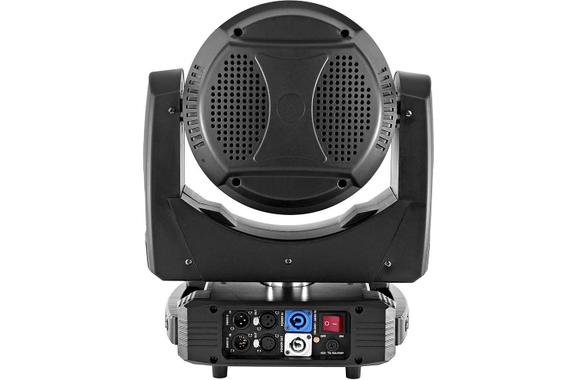

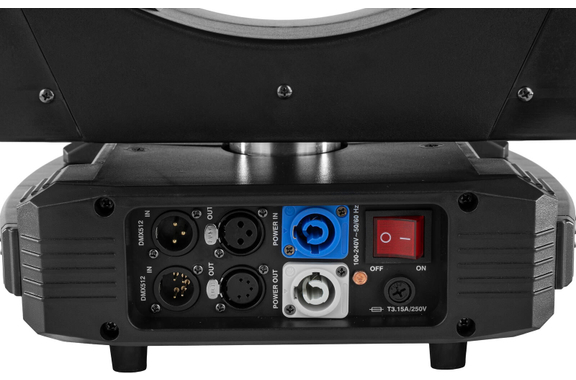

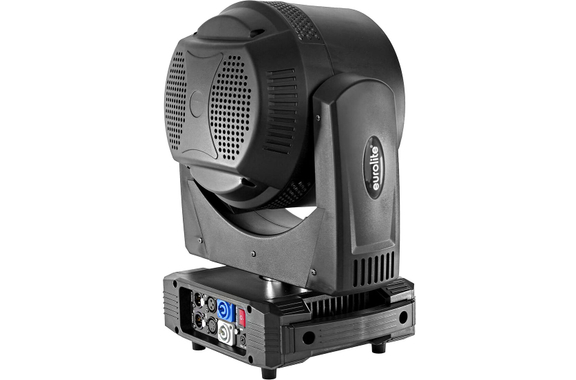

Mechanically the TMH-H380 is also designed for professional use. The metal housing, two robust carrying handles, four rubber feet and the included omega brackets support flexible use either standing or flown. For efficient power distribution the unit has a mains input via P-Con and a mains output for linking up to 8 units. Cooling is provided by one fan in the base and two temperature-controlled fans in the head. With IP20 the model is intended for indoor use. Dimensions (W x D x H): 34 x 22.5 x 34.5 cm. Weight: 11.10 kg. This moving head is therefore a strong choice for professional lighting concepts with high versatility and clear system integration.

Choose a Flexible Eurolite Moving Head for Convincing Light Effects!
