Compact Light Set, Radiant Performance!

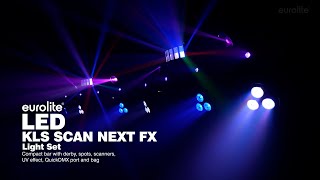

The Eurolite LED KLS Scan Next FX features 4 spots for colorful base lighting, UV LEDs for the popular blacklight effect, and a derby effect for party atmosphere. What sets this bar apart is the inclusion of two integrated scanners with gobo and color wheels. Each scanner is equipped with a highly effective 15-watt LED.
Various DMX Modes for Automatic and Manual Programs
The compact light effect bar from Eurolite offers over ten different DMX modes:
In the smallest mode with three channels, automatic and music-controlled programs can be accessed and switched.
The largest mode with 39 channels allows full control of each spotlight, the derby, and the scanners.
In some modes, the two scanners are controlled together. The menu allows you to invert one or both movement axes, i.e., mirror them. This simplifies control and creates a coherent image.
Wireless DMX
The KLS features a USB port for QuickDMX. An optional DMX wireless adapter can be plugged in here to enable wireless DMX transmission.
This option works not only from a lighting console to a single KLS bar but also between multiple KLS units for master-slave operation.
Control via Standalone, Remote, or Optional Footswitch
The KLS control options offer something for every user: Even without an external controller, 20 different programs can be set, running either automatically or music-controlled. These programs provide well-thought-out, finely color-coordinated shows.
The included infrared remote control allows you to select different programs and create colorful moods. Additionally, convenient control is possible via an optional footswitch.
Perfectly Highlight Musicians, Stage, and Dance Floor!
Features
- Eurolite LED KLS Scan Next FX Light Set
- Extremely lightweight, ideal for mobile use
- Crossbar with integrated DMX control unit and TV spigot (Ø 28mm) for stand mounting
- Swiveling mounting brackets for truss mounting
- Cooling: Fan
- Delivered pre-assembled in a practical carrying bag
- Music control via built-in microphone with sensitivity adjustment
- OLED display
- Spotlights: Spot each with 3 x high-power 4in1 QCL RGB/WW (homogeneous color mixing)
- Rotating derby with 6 bright LEDs (red, green, and blue)
- Light effect: Beam effect 2 x RGB
- Moving light: 2 scanners, each 1 x 15 W CW
- Bar: 4 x high-power UV
- Beam angle (1/2 peak): Spot 15°
- Mirror movement for both scanners separately invertible (e.g., for joint, counter-rotating control)
- Newly designed software with attractive programs
- 20 integrated show programs (including all 4 effect devices) in auto and music mode
- Addressing and settings via control unit with 4-digit OLED display
Control
- DMX
- IR remote control (included)
- QuickDMX via USB (optional)
- Wireless footswitch (optional)
- Master/slave function
- Standalone
- Music control via microphone
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 115 W
- Protection rating: IP20
- Protection class: Class I
- Power output: P-Con (gray), built-in version
- Fuse: 5 x 20 mm, T 2 A, replaceable
- Lamp type: LED
- Color wheel, gobo wheel with static gobos
- DMX channels: 3, 7, 13, 14, 15, 18, 19, 30, 32, 39
- DMX input: 1 x 3-pin XLR (M) built-in version
- DMX output: 1 x 3-pin XLR (F) built-in version
- Power connection: Power feed P-Con (blue), built-in version
- Power cable with protective contact plug (included)
- Includes remote control
- Dimensions (W x D x H): 110 x 15.5 x 43 cm
- Weight: 12.8 kg
- Housing color: Black
Scope of delivery
- 1 x Eurolite LED KLS Scan Next FX Light Set
- 1 x Euroline IR remote control
Specification
- Product number 00078393
- Black light / UV Yes
- Light source power (Watts) 115
- Colour spectrum Multicolor
- DMX interface Yes
- Colour Black
