Compact Light Set WS with Remote Control & Bag!
This compact light set from Eurolite is tailor-made for bands, small to medium stages, solo entertainers, and DJs. Compact yet equipped with everything you need to deliver a fantastic show.
A Radiant Performance

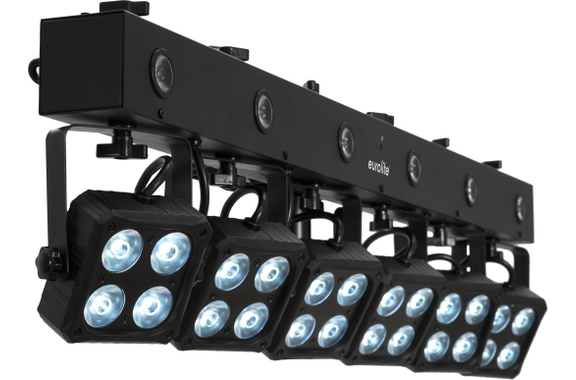

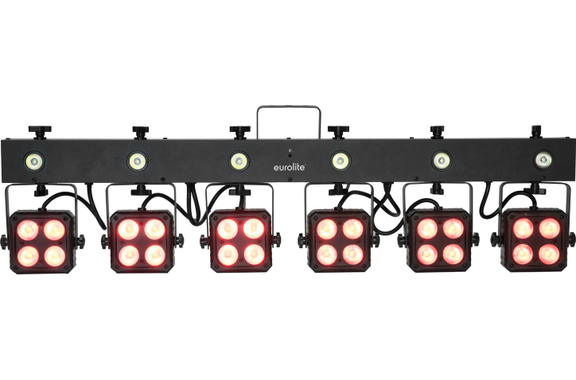

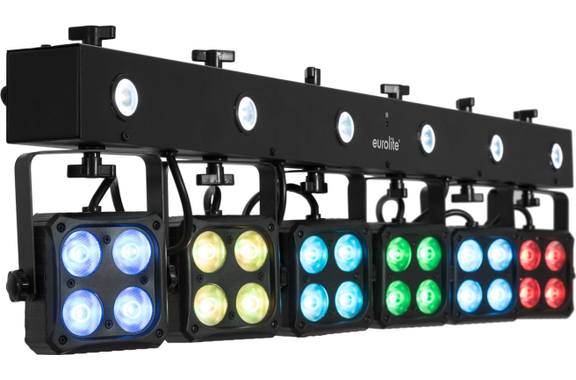

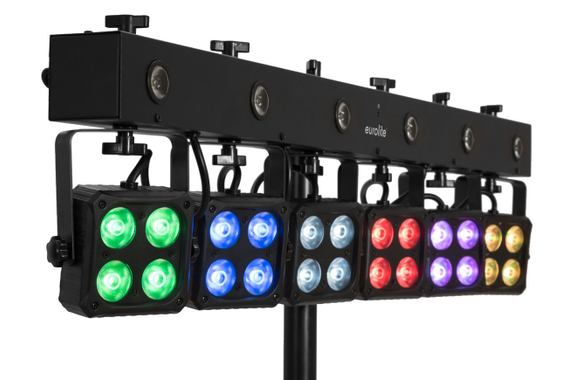

The DMX light effect bar consists of 6 spotlights, each with 4 powerful RGBW LEDs (4in1) per spot for a homogeneous RGBW light mix and a strobe effect with 6 white 1-W LEDs. The spotlights are pan and tilt adjustable, and each spot can be controlled individually via DMX.
Of course, the LED KLS-180/6 offers plenty: RGBW color mixing, color presets, internal programs, strobe effects with variable speed, dimmer, master/slave operation.
Easy Operation
The compact light set offers multiple setting and control options, easily adapting to any situation. Thanks to the crossbar with integrated DMX control unit and tripod socket, the light effect can be used not only in DMX mode but also in standalone mode.
There is also the classic music control via the built-in microphone with adjustable sensitivity. Additionally, the addressing and settings of the light set can be made via the control unit built into the crossbar with a 4-digit LED display. For convenient remote control, simply use the included remote control.
Various Mounting Options

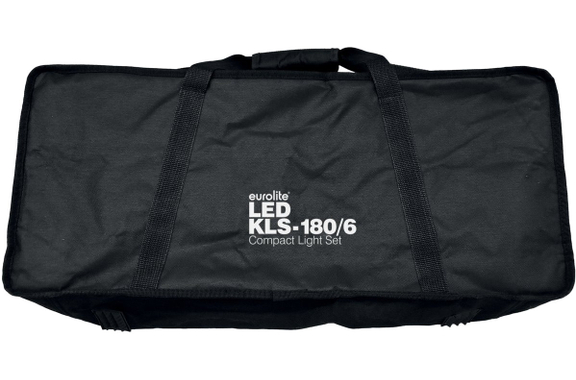

The light set is an absolute lightweight and therefore perfectly suited for mobile use, alternatively mountable on a speaker stand or trusses. The system is delivered pre-assembled in a practical transport bag.
Eurolite - Lighting Technology in Great Variety!
Features
- Eurolite Compact Light Set
- Type: LED KLS-180/6

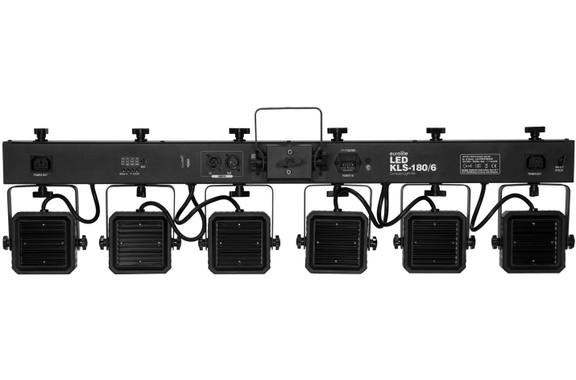

- Crossbar with integrated DMX control unit and tripod socket
- Absolute lightweight, ideal for mobile use

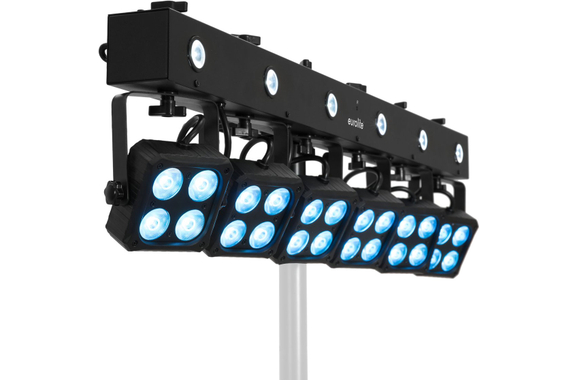

- Suitable for mounting on a speaker stand (not included) or trusses
- Delivered pre-assembled in a practical transport bag
- 6 spots with 4 powerful 8W LEDs 4in1 each enable homogeneous RGBW color mixing
- Bar with 6 white 1-W LEDs for strobe effect
- Spotlights pan and tilt adjustable
- Each spot can be controlled individually via DMX
- DMX-controlled operation or standalone mode with master/slave function possible
- Music control via built-in microphone, microphone sensitivity adjustable
- Compatible with QuickDMX - Eurolite's wireless DMX system
- Phantom-powered socket for optional QuickDMX receiver available
- Selectable 3, 4, 6, 8, 9, 11, 21, 24, or 29 DMX channels
- Functions
RGBW color mixing
Color presets
Internal programs
Strobe effects with variable speed
Dimmer
Music control
Master/slave operation - Addressing and settings via control unit with 4-digit LED display
- Additional control option via Eurolite IR-7 remote control (included)
- Black painted metal housing with swivel mounting bracket
- LED: Spot 6 x individually controllable with 4 x high-power 8 W 4in1 QCL RGBW each (homogeneous color mixing)
- LED: Strobe effect 6 x high-power 1 W CW
- Device cooling via passive convection cooling
- Controllable via
IR remote control
QuickDMX via USB (optional)
Standalone
Music control via microphone
DMX
Master/slave function - Flicker-free projection
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 90 W
- Protection rating: IP20
- Protection class: Class I
- Power connection: Power input cold device (M) built-in version power cable with protective contact plug (included)
- Power output: 2 x cold device (W) built-in version
- Fuse: T 1 A replaceable fuse
- Lamp type: LED lamp
- LED: Spot 4 x high-power 8 W 4in1 QCL RGBW (homogeneous color mixing)
- Strobe effect 6 x high-power 1 W CW
- Flash rate: 0 - 20 Hz
- DMX channels: 3; 4; 6; 8; 9; 11; 21; 24; 29
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (W) built-in version
- Cooling: Passive convection cooling
- Beam angle: 9°
- Beam angle (1/2 peak): 9°
- Beam angle (1/10 peak): 18°
- Display type: 4-digit 7-segment LED display
- Dimensions (W x D x H): 92.6 x 14.6 x 26.7 cm
- Weight: 6 kg
- Housing color: Black
Scope of delivery
- 1 x Eurolite LED KLS-180/6 Compact Light Set
- 1 x Eurolite IR Remote Control
- 1 x Eurolite Transport Bag
Specification
- Product number 00081396
- Black light / UV No
- Light source power (Watts) 90
- Colour spectrum RGBW
- DMX interface Yes
- Colour Black
