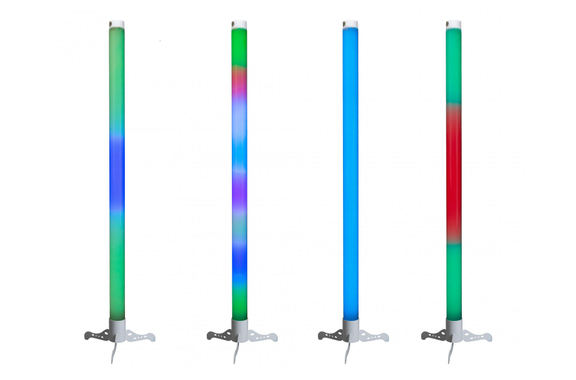

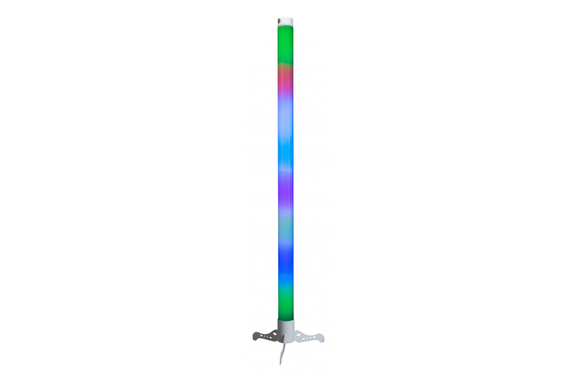

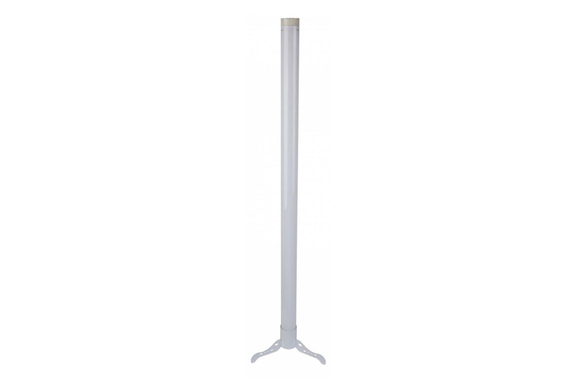

JB-Systems Pixel Pipe!
The JB Systems PIXEL PIPE with 8 RGB pixel zones is perfect for: stages, DJs, stores, venues, clubs, and more. Equipped with 32 x RGB SMD5050 LEDs divided into 8 sections. An IR remote control is included.
The Different Operating Modes:
- Standalone device with IR remote control: automatic/beat-synced color patterns
- Master/Slave mode: Multiple tubes can be combined for wonderful pre-programmed, music-synced light shows
- DMX-controlled: 3 different channel modes (3, 7, and 24 channels) with program selection and individual RGB control
Awesome LED bar for stages, DJs, stores, venues & clubs!
Features
- Perfect for use in retail stores, sales displays, architectural lighting, interior design, clubs, pubs, mobile DJs, trusses...
- Equipped with 32x RGB SMD5050 LEDs distributed over 8 zones
- The device offers various operating modes: - DMX control via 3, 7 or 24 channels including internal programs - Master/Slave mode - Standalone with IR remote control (included)
- Multiple units can be linked in Master/Slave mode to create stunning synchronized shows
- 4-digit LED display for easy menu navigation
- Includes detachable tripod stand for floor applications
Technical Data
- Power supply: 230V
- DMX connectors: 3-pin XLR IN/OUT
- Power connectors: IEC IN/OUT
- Light source: 32x RGB SMD5050 LEDs
- Power consumption: 12 watts
- DMX channels: 3 / 7 / 24
- Tube diameter: 50 mm
- Dimensions: 1050 x 200 x 220 mm
- Weight: 1.24 kg
Scope of delivery
- 1 x JB-Systems Pixel Pipe

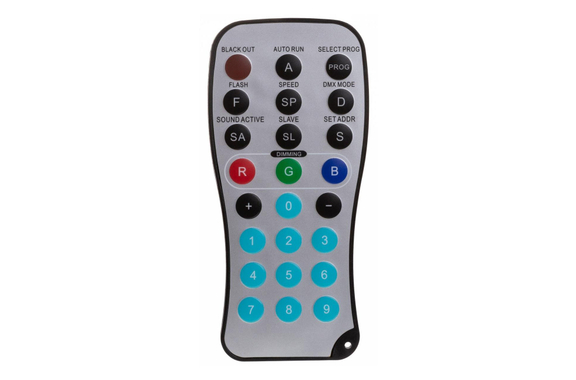

- 1 x IR remote control
- 1 x detachable tripod stand for floor applications
Specification
- Product number 00071967
- DMX interface Yes
- Light source power (Watts) 12
- Colour spectrum RGB
- Black light / UV No
- Colour White
