Eurolite LED BAR-8 Swing QCL Bar!

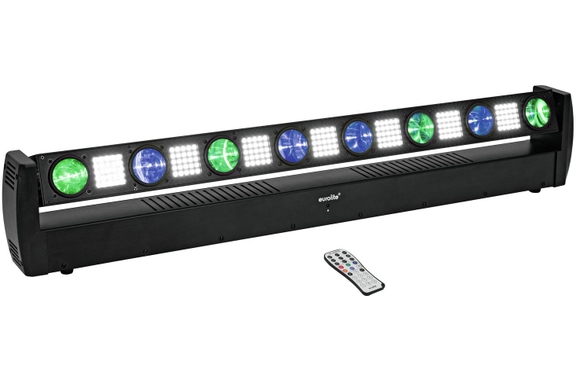

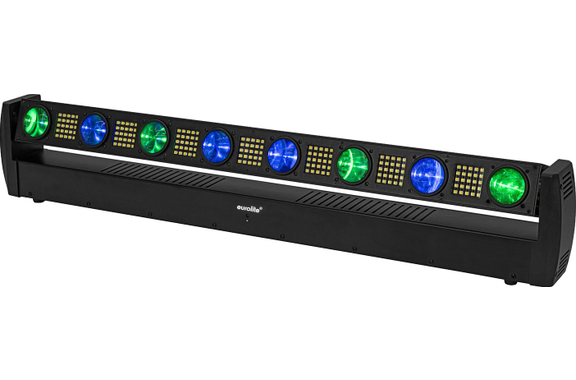

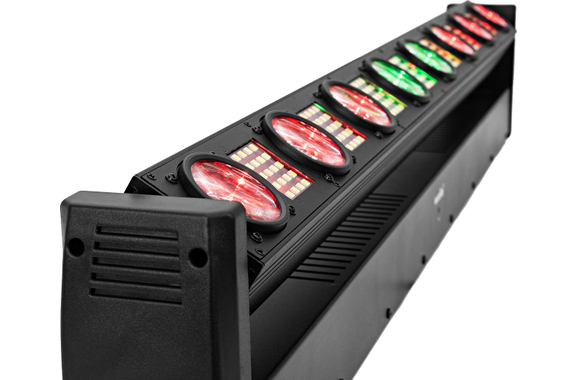

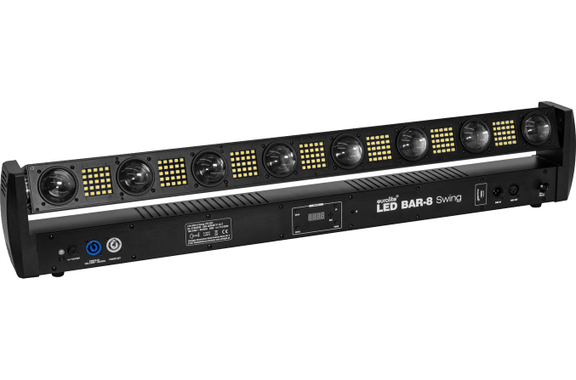

The Eurolite LED BAR-8 Swing QCL Bar is a tiltable LED light bar with eight beams and strobe effect. The fixture is equipped with eight powerful 8 W high-power 4in1 QCL RGBW LEDs, each segment individually controllable. The same applies to the strobe with its 175 powerful 0.2 W SMD 5050 cold white (CW) LEDs, of which seven segments are individually controllable.
In addition to the strobe effect, uplight effect, and beam effect, the LED light bar offers direct color selection for 18 colors, an electronic dimmer, color crossfade, color change, color selection, adjustable color mixing, and five integrated show programs. The Eurolite LED BAR-8 Swing QCL Bar can be controlled as usual via stand-alone, music control via microphone, DMX, or the included IR remote control.
Eurolite - Lighting Technology in Great Variety!
Features
- Strobe effect; uplight effect; beam effect
- Adjustable vertical tilt angle
- Direct color selection for 18 colors
- Device cooling via passive convection cooling
- Controllable via stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); music control via microphone

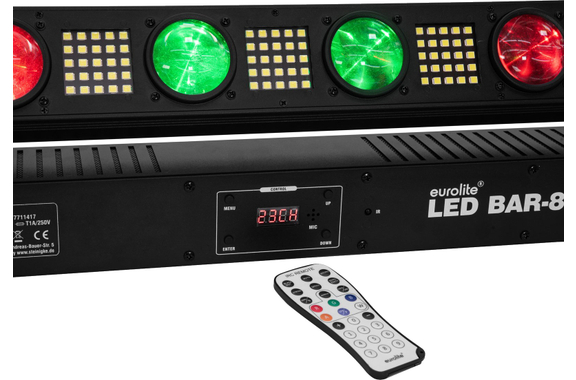

- 4-digit 7-segment LED display
- Electronic dimmer; color crossfade; color change; adjustable color mixing; color selection
- 5 integrated show programs
- Preprogrammed for Colorchief; Light Captain
- With mounting bracket
- Power input and output for easy linking of up to 8 units
- Suitable for applications such as: clubs/dance schools; stage; mobile DJs / solo entertainers; rental companies
- Very quiet operation
- Usage options: standing; flying
- ===Spotlight===
- 8 powerful 8 W high-power 4in1 QCL RGBW LEDs
- 8 segments individually controllable
- With a beam angle of 1°
- ===Strobe===
- 175 powerful 0.2 W SMD 5050 cold white (CW) LEDs
- 7 segments individually controllable
- With a beam angle of 120°
- ===Technical Data===
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 80 W
- Protection rating: IP20
- Protection class: Class I

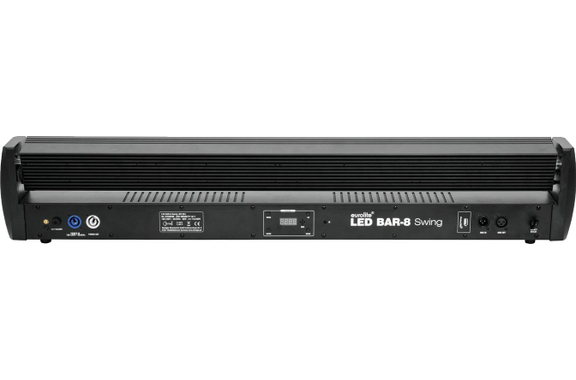

- Power connection: Power feed via P-Con (blue), built-in version power cable with protective contact plug (included)
- Power output: P-Con (gray), built-in version
- Fuse: 5 x 20 mm, T 1 A replaceable fuse
- Max. tilt movement TILT: 215° positioning
- Flash rate: 0 - 20 Hz
- DMX channels: 8; 12; 23; 27; 49
- DMX input: 3-pin XLR (M) built-in version
- DMX output: 3-pin XLR (F) built-in version
- Cooling: Passive convection cooling
- Control: Stand-alone; IR remote control; DMX; QuickDMX via USB (optional); master/slave function; W-DMX by Wireless Solution via USB (optional); CRMX by LumenRadio via USB (optional); music control via microphone
- Preprogrammed for: Colorchief; Light Captain
- Housing color: Black

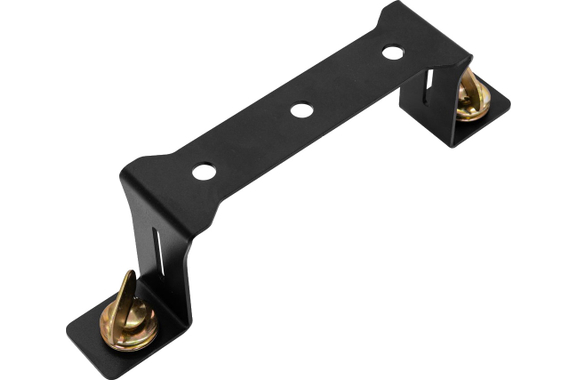

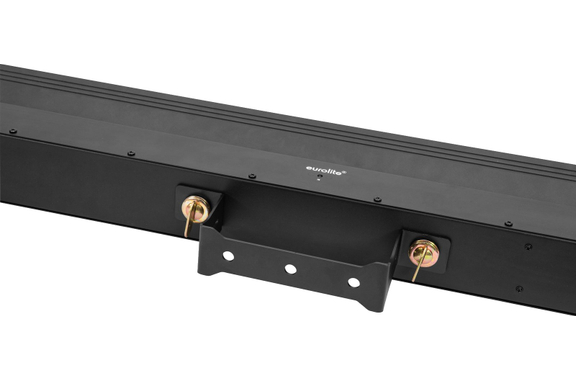

- Mounting system: Mounting bracket
- Display type: 4-digit 7-segment LED display
- USB port: Type A
- Dimensions (L x W x H): 1 m x 10.7 cm x 25.1 cm
- Weight: 7.30 kg
Scope of delivery
- 1 x Eurolite LED BAR-8 Swing QCL Bar
- 1 x IR remote control
- 1 x Power cable
Specification
- Product number 00105013
- DMX interface Yes
- Light source power (Watts) 80
- Colour spectrum RGBW
- Black light / UV No
- Colour Black
