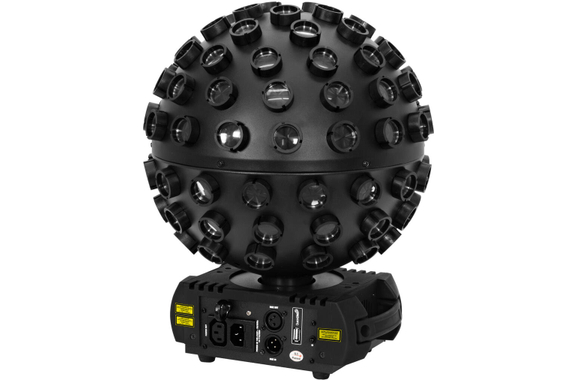

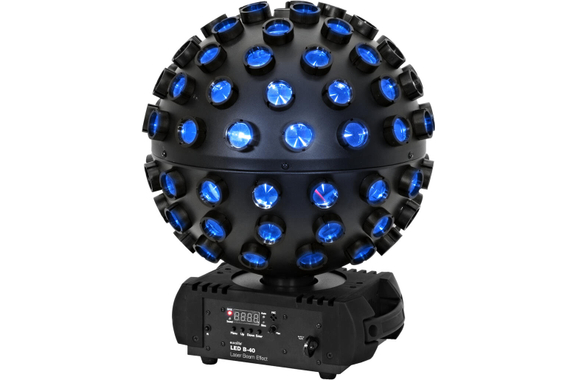

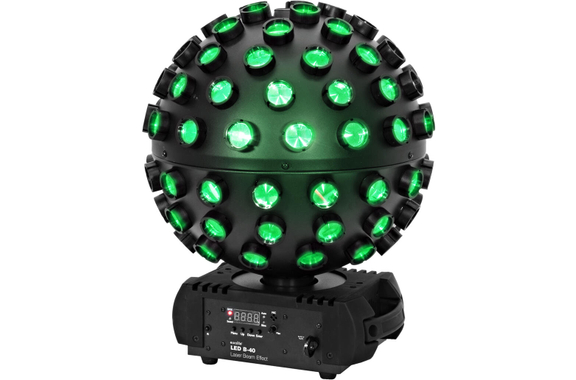

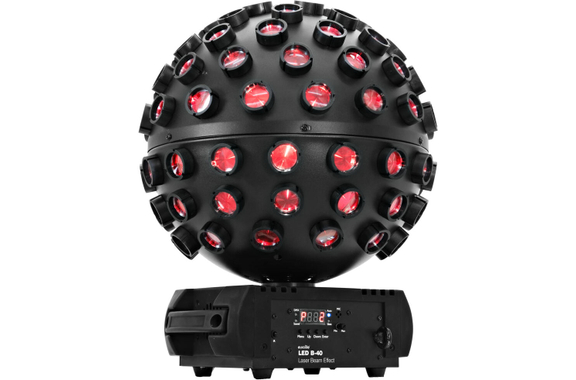

Eurolite LED B-40 Laser Beam Effect

• 2 laser diodes project hundreds of red and green laser beams
• 5 high-power 8 W SMD 9080 4-in-1 QCL RGBW LEDs
• 3 segments individually controllable
• Continuously variable rotation speed, continuous color mixing, electronic dimmer
• Laser, beam effect, strobe effect
• Laser class 2M
• No approval or appointment of a laser safety officer required
• 7 built-in show programs
• Device cooling uses passive convection
• Controllable via stand-alone, DMX, sound control via microphone, master/slave function, QuickDMX via USB (optional), W-DMX by Wireless Solution via USB (optional), CRMX by LumenRadio via USB (optional), IR remote control
• Preprogrammed for Light'J, LED PC-Control 512, EASY SHOW 1, Light Captain, EASY SHOW 2, EASY SHOW 3, Colorchief
• Includes mounting bracket
• Single-color 4-digit 7-segment LED display
• Mains input and output for easy linking of up to 8 units
• Suitable applications include: clubs/dance schools, party basements, mobile DJs/solo entertainers, rental companies
• Mounting options: standing, flown, on tripod

Technical Data

• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 65 W
• Protection rating: IP20

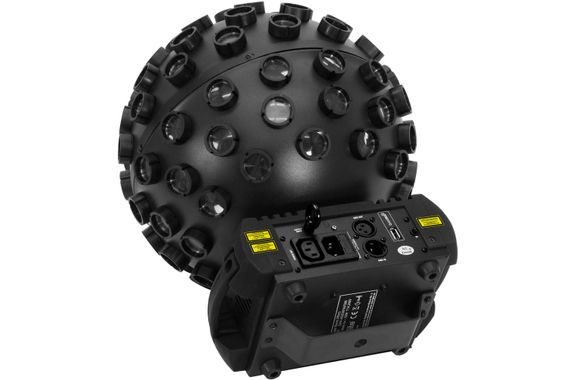

• Power connection: Power input via IEC inlet (M) — built-in version; power cable with protective-earth plug (included)
• Power output: 1x IEC outlet (W) — built-in version
• Fuse: 5 x 20 mm, T 1 A replaceable fuse
• Lamp type: LED lamp
• LED type: 5 x 8 W SMD 9080 4-in-1 QCL RGBW
• Strobe rate: 0 - 20 Hz
• Laser class: 2M
• Laser color: R/G (red/green)
• Laser module: Green (G) 40 mW 532 nm, Red (R) 100 mW 650 nm
• DMX channels: 3, 10, 22
• DMX input: 1x 3-pin XLR (M) — built-in version
• DMX output: 1x 3-pin XLR (W) — built-in version
• Cooling: Passive convection cooling
• Housing color: Black
• Mounting system: Mounting bracket
• Display type: Single-color 4-digit 7-segment LED display
• Dimensions (W x D x H): 31 x 31 x 39 cm
• Weight: 4.2 kg
• Noise classification: Class 2 (low noise)

• 1 x Eurolite LED B-40 Laser Beam Effect
• 1 x power cable
• 1 x omega bracket

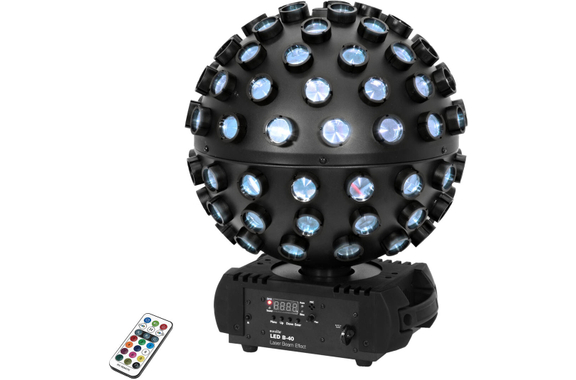

• 1 x remote control
• 4 x screws
• 4 x washers
