Let There Be Light - with the Eurolite LED PIX-144 RGB Bar!

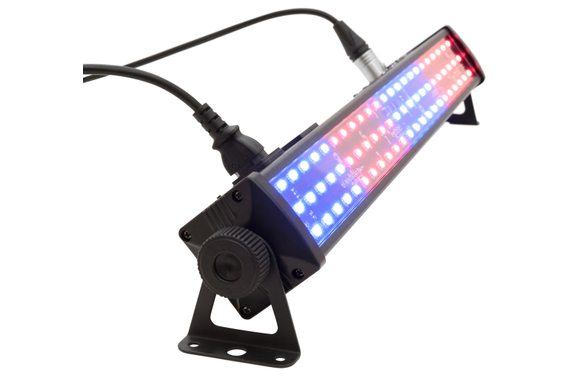

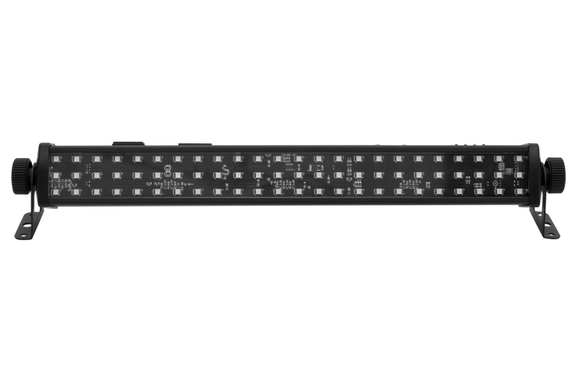

With the PIX-72, Eurolite has halved another LED bar: The PIX-72 is the half-sibling of the PIX-144. Its light surface consists of "only" 72 SMD LEDs, which can be controlled in four segments.

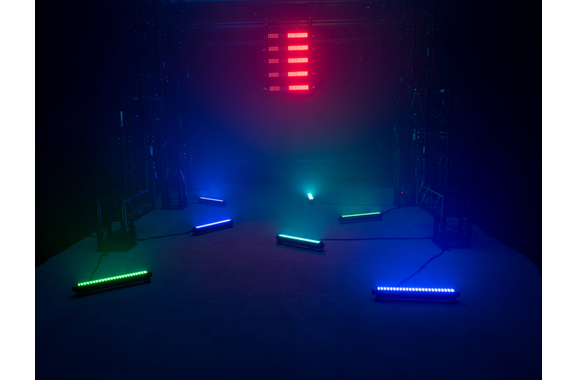

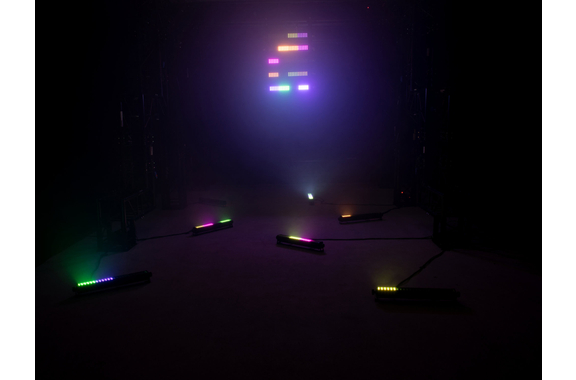

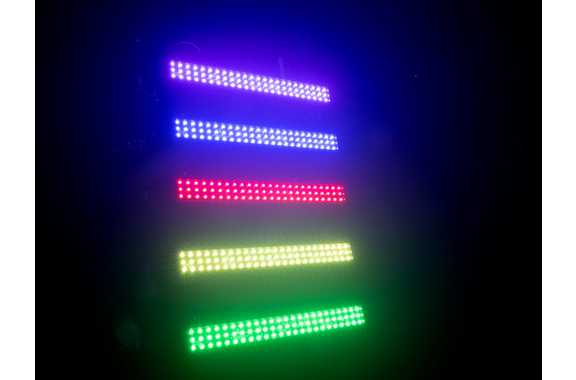

The extremely wide-angle light of these bars is perfect for illuminating areas or integrating the bar into the stage setup so the audience looks directly at the light surfaces. The color mixing is based on red, green, and blue.
Operation & Control

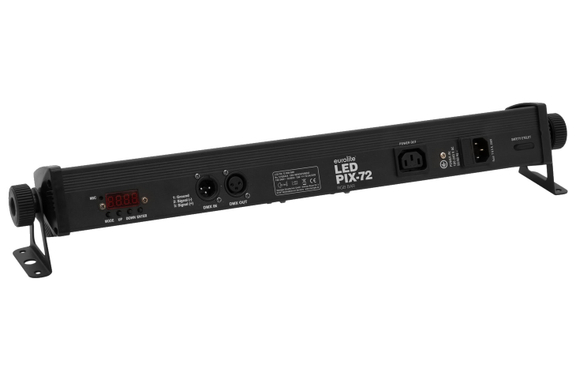

The LED PIX-72 RGB bar can run both in DMX-controlled mode and in standalone mode with master/slave function. Addressing and settings are done via the control board on the top, with four control buttons and an LED display.
Those who prefer music control can individually adjust the sensitivity of the built-in microphone via the control board to suit their preferences. Additionally, the bar is controllable in DMX mode.
Last But Not Least, The Mounting

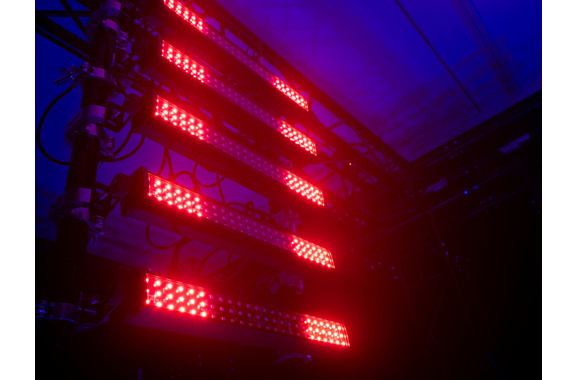

Eurolite offers several mounting options for the LED PIX-72 RGB bar. It can be mounted hanging or standing. It can also be locked in place on the brackets. For larger events or simply more party space, there is also a thru-connection output for powering up to 8 devices.
Matching Accessories for the Stage Area!
Eurolite offers a wide range of commercial products for private users as well as basic products for professional use.
The range extends from pinspots to lighting effects to special effects and the associated accessories.
Eurolite - Lighting Technology in Great Variety!
Features
- Equipped with 72 x SMD LEDs in Red, Green, and Blue
- Flicker-Free Projection
- Selectable 3, 5, 6, or 12 DMX Channels
- DMX-Controlled Operation or Standalone Operation with Master/Slave Function Possible
- Addressing and Settings via Control Board with Four Control Buttons and LED Display
- Functions: Static Colors, RGB Color Mixing, Internal Programs, Dimmer, Strobe Effect Adjustable via DMX, Master/Slave

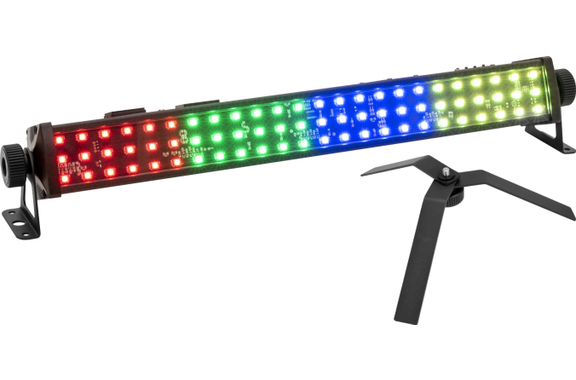

- Divided into 4 Pixels (Light Units with 18 LEDs Each) That Can Be Individually Controlled via DMX
- Music Control via Built-In Microphone, Sensitivity Adjustable via Control Board
- Preprogrammed for Light Captain
- Hanging and Standing Mounting Possible
- Locking Option on the Brackets
- Switching Power Supply Technology for Mains Voltage Between 100 and 240 Volts
- Thru-Connection Output for Powering up to 8 Devices
- Ready to Connect via Included IEC Power Cable with Protective Earth Plug
Technical Data
- Power Supply: 100-240 V AC, 50/60 Hz
- Total Power Consumption: 15 W
- DMX Control Channels: 3/5/6/12
- Music Control: Via Built-In Microphone
- Flash Rate: 20 Hz
- LED: 72 x SMD 5050 3in1 TCL RGB
- Number of LEDs: 72
- Dimensions (L x W x H): 565 x 70 x 90 mm
- Weight: 1.03 kg

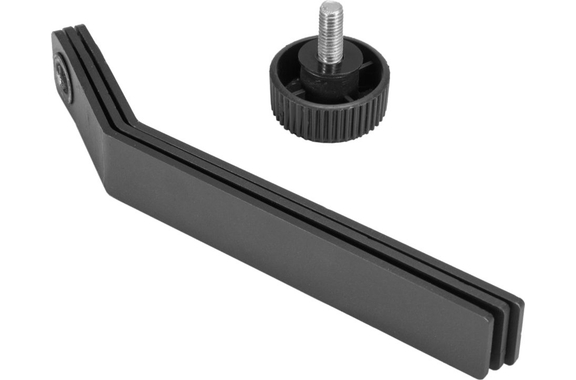

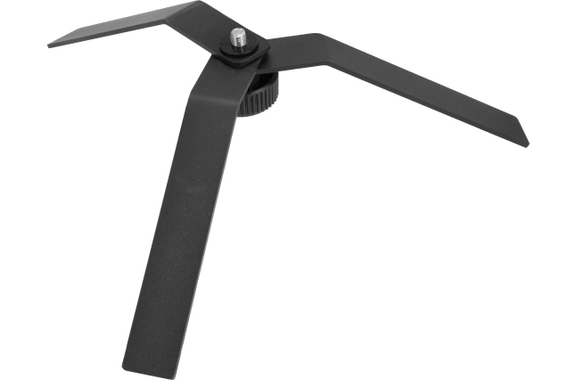

Eurolite FS-4 Floorstand Steel Black
- Eurolite Floorstand
- Type: FS-4
- Suitable for All Spotlights & Bars
- Maximum Load Capacity: 15 kg
- Mounting System: M8 Thread
- Material: Steel, Powder-Coated
- Weight: 390 g
- Dimensions (L x W x H): 31 x 27 x 8.5 cm
- Color: Black
Scope of delivery

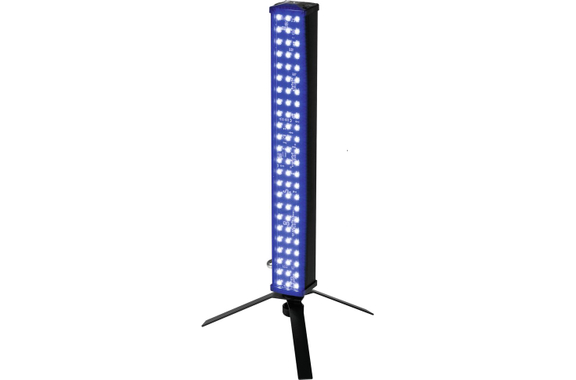

- 1 x Eurolite LED PIX-72 RGB Bar
- 1 x Eurolite FS-4 Floorstand Steel Black
Specification
- Product number 00095039
- Light source power (Watts) 15
- Savings offer with stand
- Colour Schwarz
