Light Effect with Music and DMX Control!

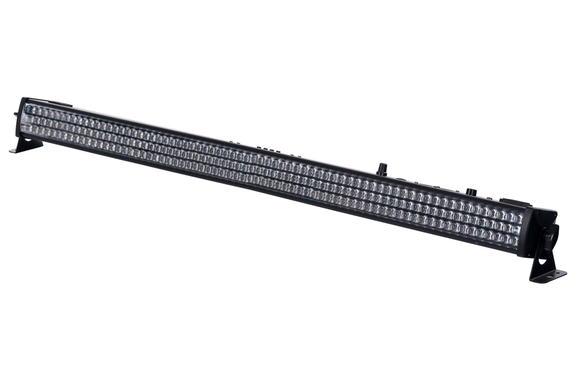

The Showlite LED Stage Bar is perfect for decorative lighting of walls and ceilings as well as for larger stages. The 216 powerful LEDs (R: 72, G: 72, B: 72) are comparably as bright as a conventional 200 watt halogen bulb and allow – especially when using multiple bars – atmospheric light design.
The stage bar can be programmed both via DMX and on the back for standalone operation. Of course, the bar can also be triggered via the built-in microphone, whose sensitivity can be adjusted. This makes it easy to create great color changes and strobe effects with very little effort.
Absolutely Silent
Thanks to the special housing design, heat is dissipated perfectly even without a fan. Therefore, the LED stage bar operates without audible noise.
Additionally, individual LED segments can be controlled separately via DMX (matrix effect). In 26 channel mode, 8 LED segments (3x 9 LEDs) can mix their own color, making it possible with suitable controllers to display videos or visuals across multiple stage bars.
Overview of the Different DMX Modes:
- 3 channel mode: 1 block (segments 1-8), RGB
- 5 channel mode: 1 block (segments 1-8), RGB + function + speed*
- 8 channel mode: 2 blocks (segments 1-4/5-8), RGB + function + speed*
- 14 channel mode: 4 blocks (segments 1-2/3-4/5-6/7-8), RGB + function + speed*
- 24 channel mode: all 8 segments RGB controllable
- 26 channel mode: all 8 segments RGB controllable + function + speed*
*Function and speed affect all segments globally.
The scope of delivery includes two screw-on feet for floor placement.
Features

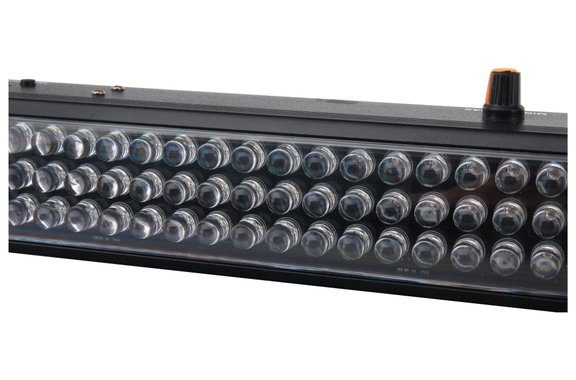

- 216 RGB LEDs at 10 mm (R: 72, G: 72, B: 72)
- 8 segments each with 3x 9 LEDs per color
- Up to 100,000 operating hours
- 3 operating modes: DMX-512, Master/Slave, Sound to Light
- 6 DMX modes: 3, 5, 8, 14, 24, and 26 channel modes
- In 26 channel mode, a separate color mix can be created for each segment
- Electronic dimming: 0-100%
- Auto mode with preprogrammed color scenes and chasers
- Strobe effect: 0-20Hz
- Adjustable speed
- Built-in microphone with sensitivity control

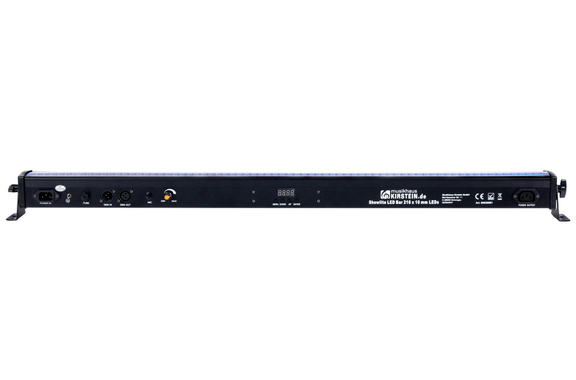

- LED display and 4 buttons for configuration

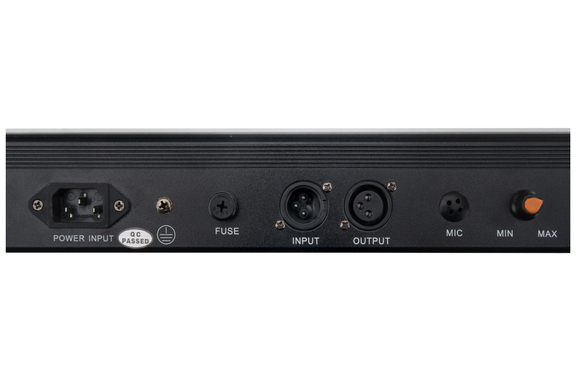

- DMX In/Out XLR 3-pin
- Beam angle: 25°
- Power consumption: 25 watts
- Power supply: 90 - 240 V/50 - 60 Hz
- Operating temperature: -20°C - 40°C
- Sturdy aluminum housing
- Cold device outlet for daisy-chaining additional bars
- Includes safety eyelet
- Dimensions housing only (WxHxD): 975 x 67 x 63 mm
- Weight with feet: 2.2 kg
Scope of delivery
- 1 x Showlite LED Stage Bar
- 1 x screw-on feet
- 1 x power cable
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00028581
- Black light / UV No
- Light source power (Watts) 25
- DMX interface Yes
- IP rating IP20
- Colour spectrum RGB
- Colour Black
Reviews
| 5 Stars |
|
10 |
| 4 Stars |
|
1 |
| 3 Stars |
|
0 |
| 2 Stars |
|
1 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
This rating has been translated automatically. Original language
The bar works great, the setting in the menu explains itself. Again and again gladly. Absolute purchase recommendation.
This rating has been translated automatically. Original language
Use this for fairs, combination with fog the effect comes across very well
Price - performance really great
The shipping is "SUPER FAST
Highly recommended!!!!
This rating has been translated automatically. Original language
This rating has been translated automatically. Original language
WHAT MORE COULD YOU WANT !!!!!
This rating has been translated automatically. Original language
Questions about product
Question by Andreas Brückner on 30.05.2022
hello I would like to know the layout of the 26 dmx channels.
is there an instruction for download
Answer by Musikhaus Kirstein:
https://www.kirstein.de/docs/manuals/sl-stagebar-dten-1112.pdf
Question by Jost on 01.01.2019
Hello,
which DMX controller is best for the LED bars?
Best regards
Jost
Answer by Musikhaus Kirstein:
The DMX Master Pro from Showlite works great with this stage bar. You can control up to 12 stage bars differently with the DMX Master.
