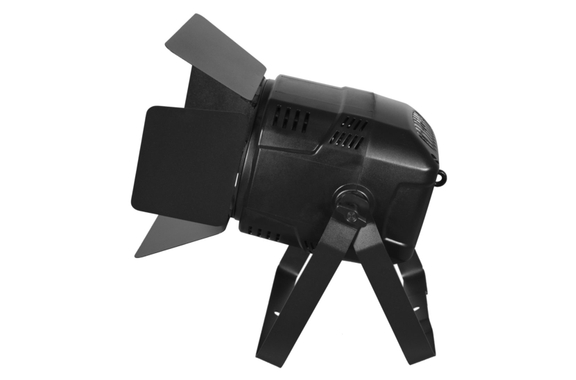

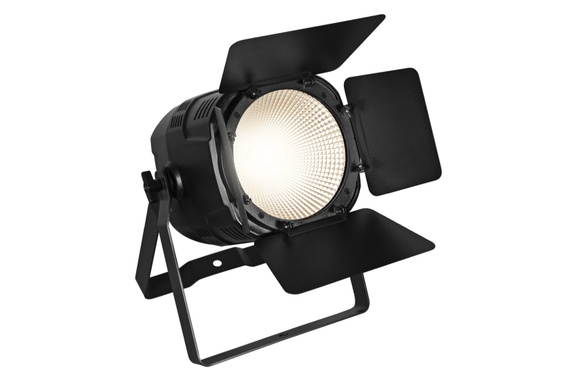

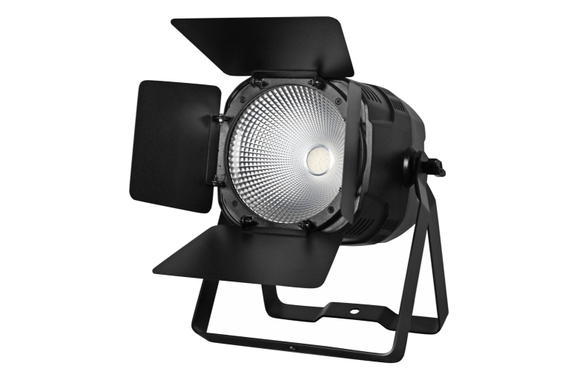

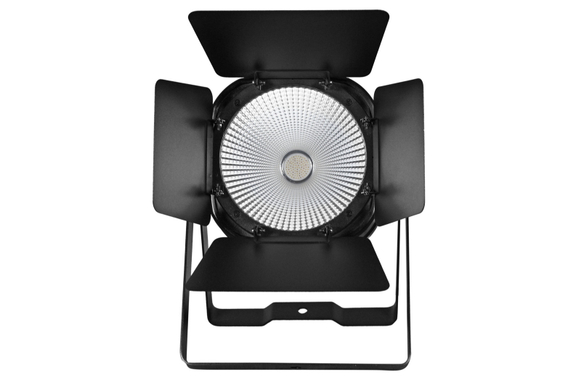

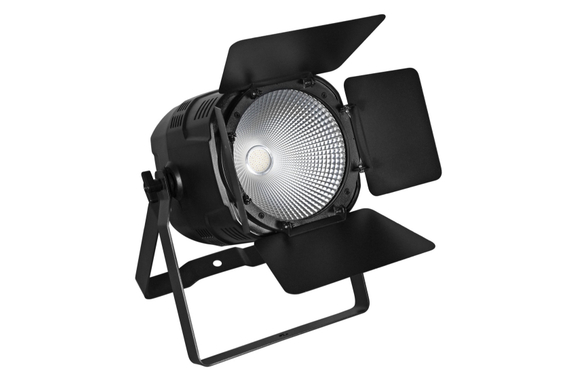

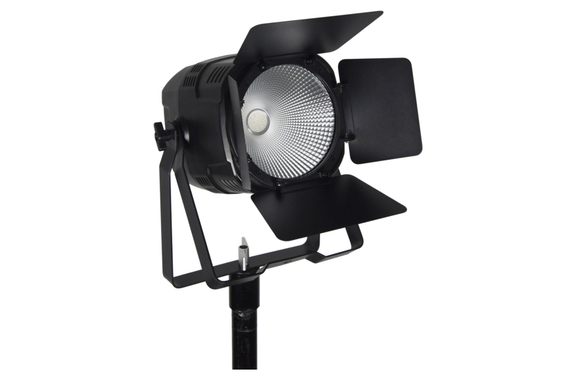

Eurolite LED Theatre COB 100 WW

• 1 powerful warm white 100-W COB LED
• Auto, music, master/slave, and DMX modes
• Integrated show programs in auto and music mode
• Dimmer and strobe effect

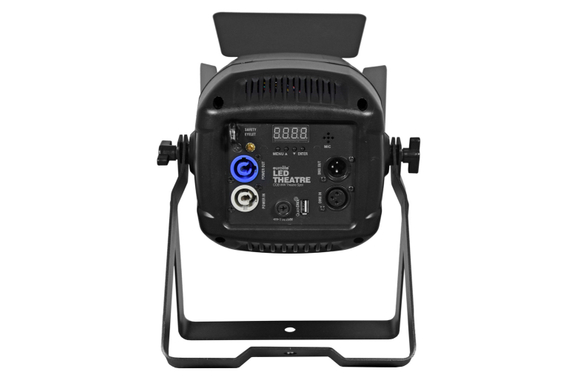

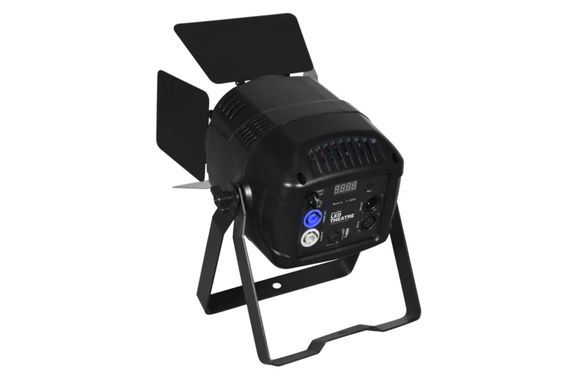

• Addressing and settings via control unit with 4-digit LED display
• Music control via built-in microphone with adjustable sensitivity
• Selectable 1 or 4 DMX channels
• Included safety wing nut
• Compatible with QuickDMX – Eurolite’s wireless DMX system
• Phantom-powered USB socket for QuickDMX receiver (accessory)
• Swivel mounting bracket
• Additional bracket for floor placement
• Switch-mode power supply technology for mains voltage between 100 and 240 volts
• P-Con power connectors for easy daisy-chaining of up to 8 units
• Very high color rendering index (CRI >90)
• LED: 1 x COB (chip-on-board) 100 W WW
• Operable in 1 or 4 CH DMX mode
• Device cooling via fan
• Controllable via stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional)
• Preprogrammed in Light J software
• Flicker-free projection

Technical Data

• Power supply: 100-240 V AC, 50/60 Hz
• Total power consumption: 85 W
• Protection class: IP20
• Power output: P-Con (gray), built-in version
• Fuse: T 1 A replaceable fuse
• Lamp type: LED lamp
• LED: 1 x COB (chip-on-board) 100 W WW
• Color temperature: 3100K
• Flash rate: 0 - 20 Hz
• DMX channels: 1; 4
• DMX input: 3-pin XLR (M) built-in version
• DMX output: 3-pin XLR (F) built-in version
• Power connection: power feed P-Con (blue), built-in version power cable with protective earth plug (included)
• Cooling: fan
• Control: stand-alone; DMX; music control via microphone; master/slave function; QuickDMX via USB (optional); Light J software
• Color rendering index (CRI) greater than: 95 Ra
• Beam angle: 40°
• Beam angle (1/2 peak): 40°
• Beam angle (1/10 peak): 70°
• Illuminance in lux (lx): WW 1m: 4025 lx, 3m: 521 lx, 6m: 155 lx
• Housing color: black
• Display type: 4-digit 7-segment LED display
• Dimensions (W x D x H): 24.3 x 31.1 x 32 cm
• Weight: 2.75 kg

• 1 x Eurolite LED Theatre COB 100 WW
