Precise Light Accents for Stage and Studio!

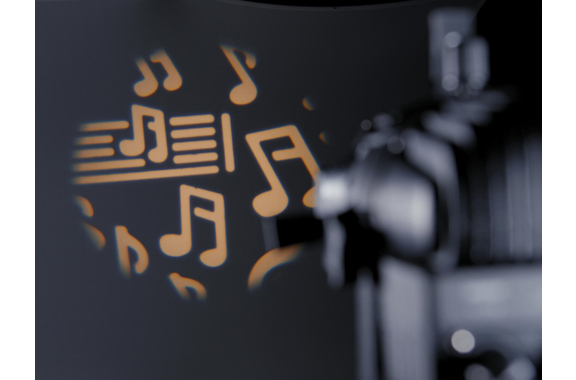

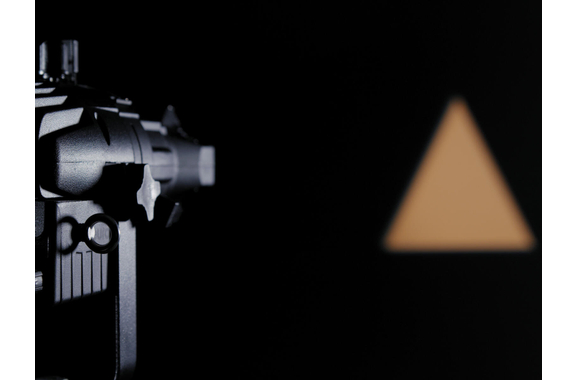

This compact profile spotlight delivers a warm-white 20 W LED, a narrow beam angle and precise manual focus control. Thanks to the built-in shutters you can shape the beam edge exactly, while the gobo holder enables creative projections. Ideal for theater, exhibitions, presentations or accent lighting at events.
Warm White for Natural Lighting Ambience
With a color temperature of around 3000 Kelvin, the spot produces a pleasant, harmonious light. That makes it especially suited for theatrical lighting, architectural lighting or atmospheric light design.
Precise Control Over the Beam

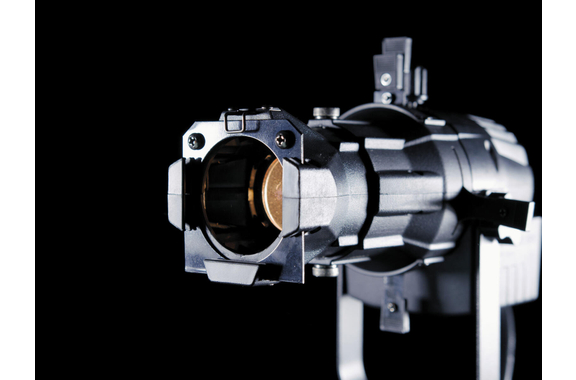

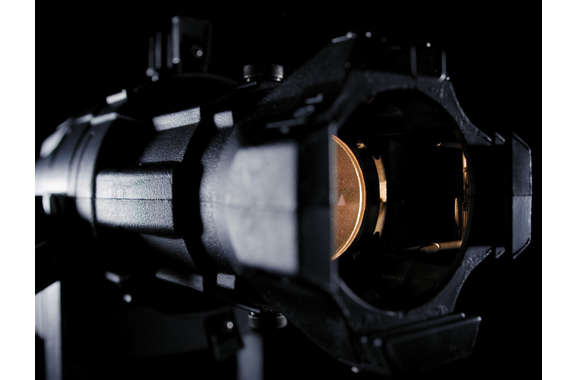

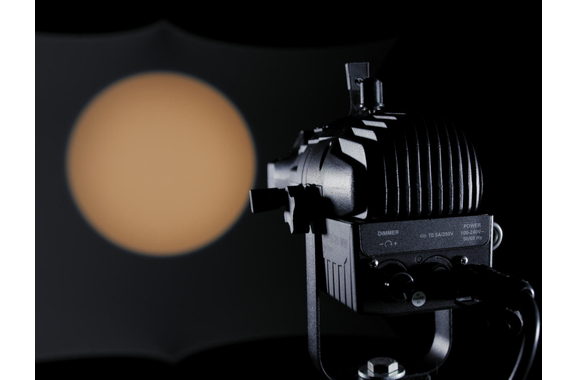

The fixed, narrow beam angle produces clear, defined light spots. The manual focus lets you set the beam edge soft or hard depending on the application. Four integrated shutters allow precise cropping of the projection.
Compact, Robust and Versatile

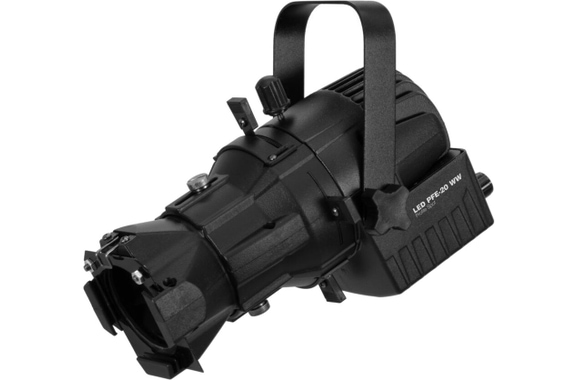

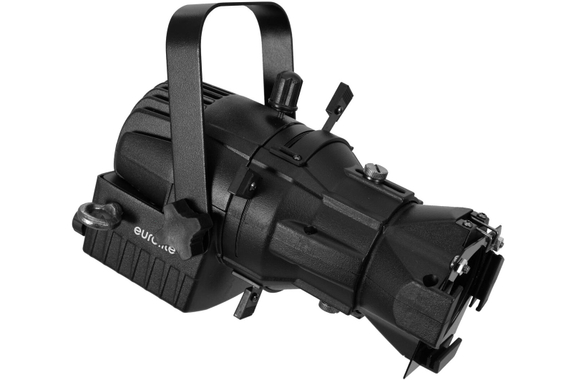

The sturdy matte-black housing, the supplied mounting bracket and the gobo holder provide flexible mounting options and increased versatility.
Features
- 4 Shutters
- 1 high-power 20 W COB LED (Chip-on-board) warm white (WW)
- Electronic dimmer
- Cooling via passive convection
- Flicker-free
- With a beam angle of 19°
- Very high color rendering index (CRI)
- Includes mounting bracket
- Suitable for applications such as: decoration, exhibition and shopfitting, restaurants, bars and hotels, video and photography, advertising/store windows
- Silent operation
- Mounting options: flown, on stand
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 20 W
- Ingress protection: IP20
- Safety class: Class I

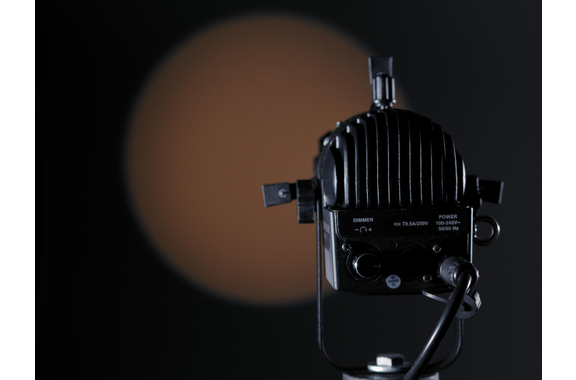

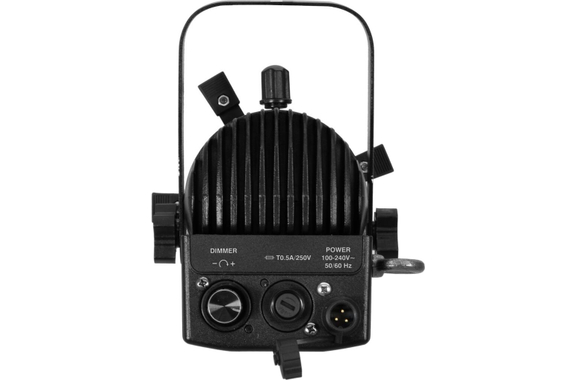

- Power input via 3-pin screw connector (male). Built-in version: mains cable with protective-earth plug (included)
- Fuse: 5 x 20 mm, T 0.5 A, replaceable
- Lamp type: LED lamp
- LED type: 1 x 20 W COB (chip-on-board), warm white (WW)
- Cooling: Passive convection cooling
- Projection: Flicker-free
- Beam angle: 19°
- Beam angle (1/2 Peak): 19°
- Color temperature: 3000 K
- Color rendering index (CRI): 97 Ra
- Illuminance in lux (lx): Warm white (WW) 1 m: 5177 lx, 3 m: 611 lx, 6 m: 154 lx
- Housing color: Matte black
- Mounting system: Mounting bracket
- Material: Die-cast aluminium, metal, plastic
- Length: 22.2 cm
- Width: 15.8 cm
- Height: 20.3 cm
- Weight: 1.23 kg
- Noise classification: Class 0 (no noise)
Scope of delivery

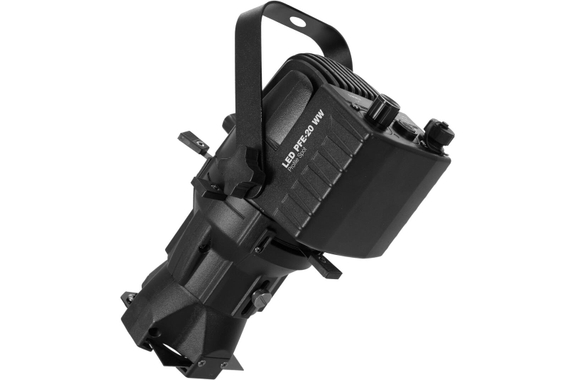

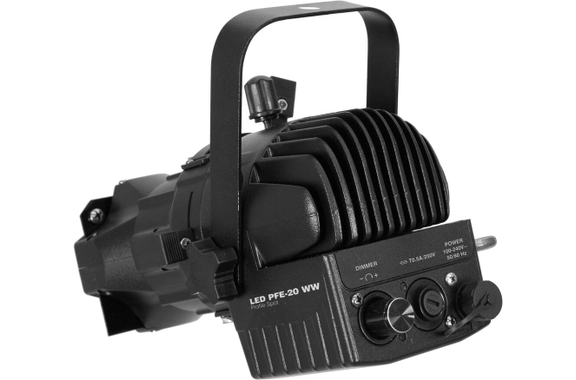

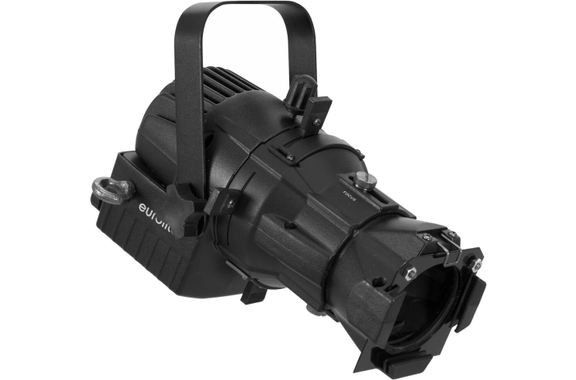

- 1 x Eurolite LED PFE-20 WW Profile Spot
- 1 x Gobo Holder
- 1 x Filter Frame
- 2 x Screws
- 2 x Washers
Specification
- Product number 00116686
- Colour spectrum WW (warm white)
- IP rating IP20
- DMX interface No
- Colour Black
- Light source power (Watts) 20
- Black light / UV No
