Warm-White LED Floodlight for Versatile Applications!

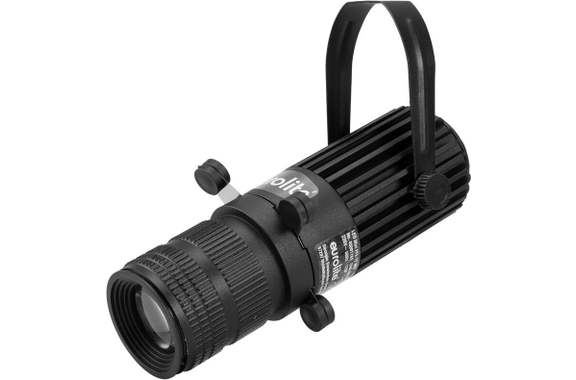

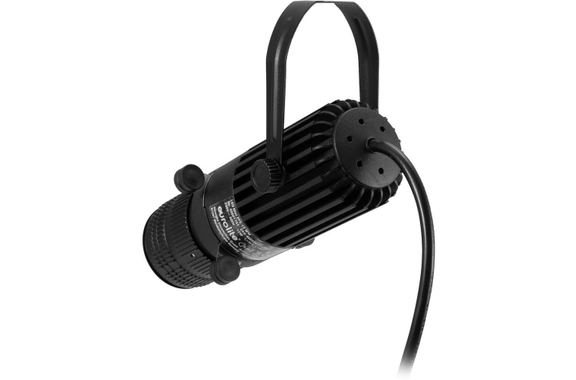

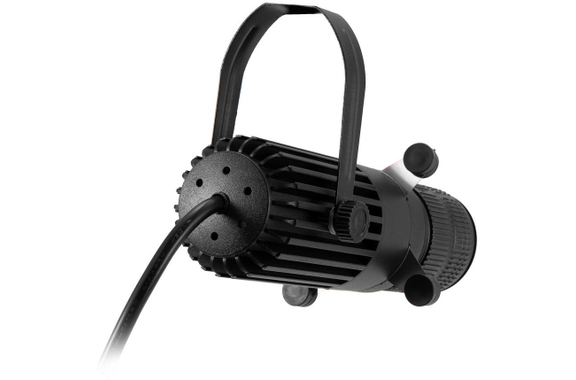

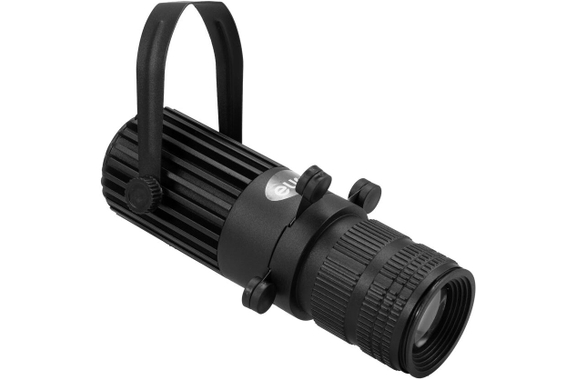

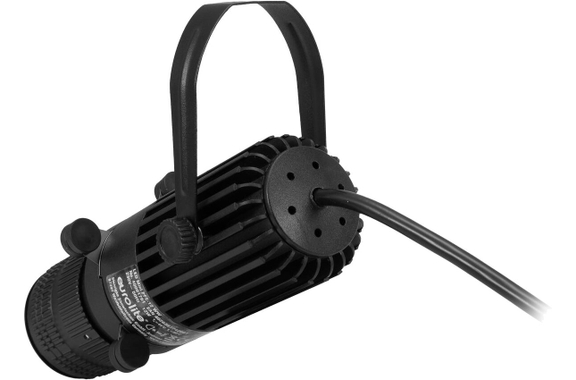

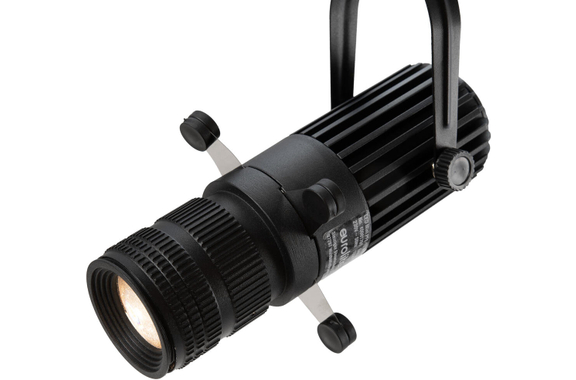

The Eurolite LED Mini PFE-12 WW is a compact LED floodlight with 12 warm-white LEDs that produces a pleasant, even light effect. Its small size and rugged housing let you deploy it flexibly indoors - whether as accent lighting, indirect illumination, or subtle stage effects.
Uniform Light Distribution
The 12 LEDs generate a pleasant warm-white light that bathes surfaces softly without glare. Ideal for atmospheric lighting in bars, studios, rehearsal rooms, theaters, or living-room setups.
Compact, Robust Design
The sturdy metal housing and permanently attached power cable ensure safe, long-lasting operation. Thanks to its small footprint, the LED Mini PFE-12 WW fits easily even into tight setups.
Plug In and Light Up!
Features
- 4 Barn Doors
- 1 high-power COB LED (Chip-on-Board)
- Manual focus
- Spot effect
- The unit uses passive convection cooling
- Easy mounting
- With a beam angle of 28°
- Very high Color Rendering Index (CRI)
- Includes mounting bracket
- Available in various versions
- Suitable for applications such as: clubs/dance schools, decoration, trade shows and retail, restaurants, bars and hotels, video and photography, advertising/shop windows
- Very quiet operation
- Suitable for flying installation
Technical Specifications
- Power Supply: 230 V AC, 50 Hz
- Total Power Consumption: 12 Watts
- Protection Rating: IP20
- Protection Class: Class I
- Power Connection: Fixed power cable with grounded mains plug
- Cable Construction: 3x 0.75 mm² H05VV-F
- LED Type: 1x COB (Chip-on-Board)
- Features: Manual focus
- Cooling: Passive convection cooling
- Mounting: Easy installation
- Beam Angle: 28°
- Beam Angle (1/2 Peak): 28°
- Color Temperature: 2778K
- Color Rendering Index (CRI): 98 Ra
- Illuminance in Lux (lx): Warm White (WW) 1 m: 2388 lx, 3 m: 282.5 lx, 6 m: 70.06 lx
- Luminous Flux: 960 lm
- Housing Color: Matte black
- Mounting System: Mounting bracket
- Material: Die-cast aluminum
- Length: 19 cm
- Width: 8.5 cm
- Height: 12.5 cm
- Weight: 0.50 kg
- Noise Classification: Class 1 (very low noise, suitable for noise-sensitive environments)
- Energy Efficiency Class (A - G): F
Scope of delivery
- 1 x Eurolite LED Mini PFE-12 WW Floodlight
Specification
- Product number 00116684
- Colour spectrum WW (warm white)
- IP rating IP20
- DMX interface No
- Colour Black
- Light source power (Watts) 12
- Black light / UV No
