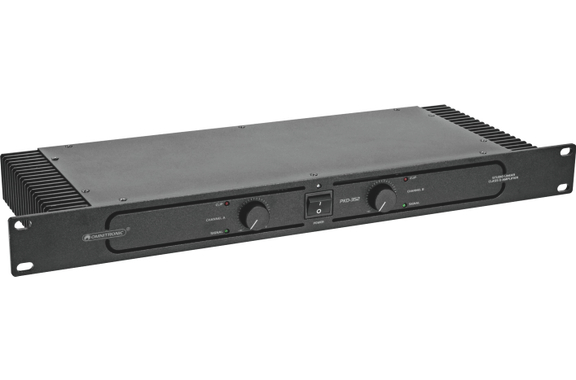

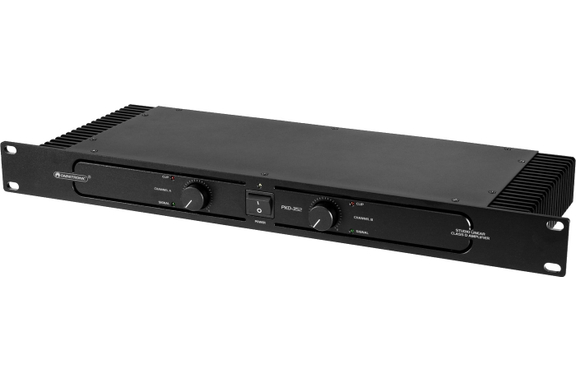

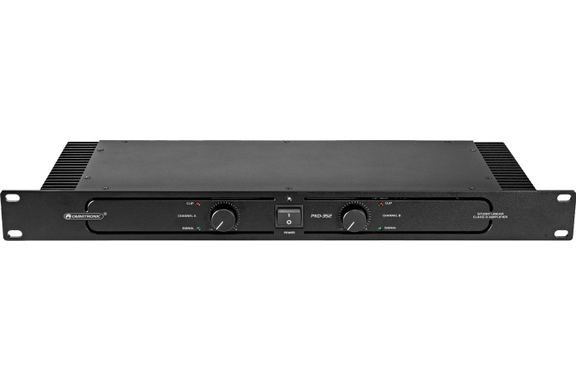

Omnitronic PKD-352 Class-D Studio Amplifier

2-Channel Studio Amplifier with Switching Power Supply!

Lightweight and low profile thanks to integrated switching power supply
2 selectable operating modes (stereo or bridged)
2 level controls
Speaker outputs via locking speaker sockets
(19") 48.3 cm rackmount 1 U

-20% 179€

instead of RRP: 224,91€

All prices include VAT

Ready for shipping

Standard Shipping

Delivery time 8 - 9 working days

Omnitronic PKD-352 Class-D Studio Amplifier!

The Omnitronic PKD-352 Class-D studio amplifier is a compact 2-channel studio amp with switching power supply, 2 x 175 watts / 4 ohms and 2 x 100 watts / 8 ohms. It impresses with its lightweight and low profile thanks to the integrated switching power supply. The studio amplifier can be set to two operating modes (stereo or bridged) and features two level controls.

Omnitronic - Technology Designed for Pleasure!

Features

Lightweight and low profile thanks to integrated switching power supply
2 selectable operating modes (stereo or bridged)
2 level controls
Electronically balanced inputs via XLR panel sockets with XLR thru outputs
Speaker outputs via locking speaker sockets
Device cooling via passive convection cooling
(19") 48.3 cm rackmount 1 U
===Technical Data===
Power supply: 230 V AC, 50 Hz
Total power consumption: 70 W 1/8 power
Protection class: SK I
Output power: 2 x 175 W RMS (4 ohms)
2 x 100 W RMS (8 ohms)
350 W RMS bridged (8 ohms)
Power connection: Power input via IEC (M) panel mount version power cable with protective earth plug (included)
Cable length: 1 m detachable
Device fuse: 4 x 10 mm, T 3.15 A fuse fixed (e.g. on PCB) installed
Frequency range: 20 - 20000 Hz
Signal-to-noise ratio: >105 dB
Total harmonic distortion: <0.05 % at 1 kHz
Cooling: Passive convection cooling
Impedance: Input: 20 kOhm, balanced
Input: 10 kOhm, unbalanced
Gain: 38 dB
Housing color: Black
Circuit: Class D
Rise time: 20 V/µs
Damping factor: >300
Controls: Power switch, volume control per channel, operating mode switch (stereo/bridge), input sensitivity switch
Protection circuit: Soft start; DC; VHF; current limiting; short circuit; limiter; overheating
Status LEDs: Power, signal, clip

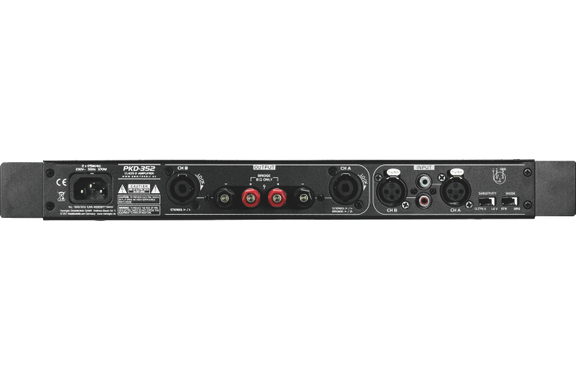

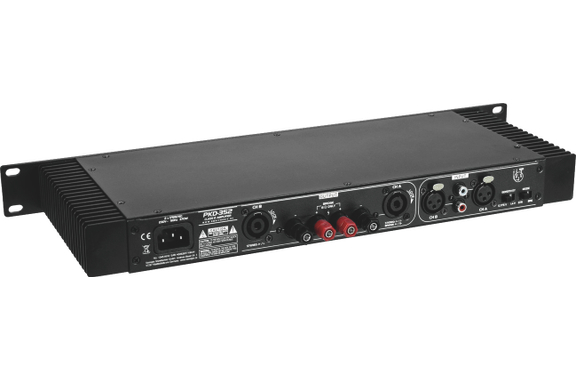

Connections: Input: Line via 2 x 3-pin XLR
Input: Line via 2 x RCA (W) panel mount version
Output: Speaker via 2 x speaker panel sockets (W)
Output: Speaker via 2 x screw terminals
Input sensitivity: 0.775 V; 1.4 V, switchable
Housing design: (19") 48.3 cm rackmount 1 U
Dimensions (W x D x H): 48.3 x 19 x 4.4 cm
Weight: 2.81 kg
