PA Mono Mixer Amplifier with 250 Watts Power!
The amplifiers of the MPVZ series are specially designed for use in PA sound systems.
There are 100 V outputs for six sound zones, each separately adjustable in volume. Alternatively, PA speakers with 70 V and 100 V audio transformers or 4-16 Ohm speakers can be connected to the direct outputs. Three microphones and three line-level devices can be connected to the six mixable inputs. Microphone channel 1 features an adjustable priority circuit that reduces the volume of other signal sources during an announcement. A gong can be triggered before an announcement. Additionally, a stereo RCA output is available for connection to line-level devices (e.g., mixing console).
Installation in PA systems must be carried out by qualified personnel!
Features
- Convenient control for PA speakers via 6-zone technology
- 6 PA zone outputs (100 V) each with 5-step volume control
- Master PA speaker output (70 and 100 V)
- Connection option for low-impedance speakers (4-16 Ohm)
- 2 rear microphone inputs (6.3 mm jack, unbalanced)
- 1 front microphone input (combo XLR/6.3 mm jack, unbalanced) on the front panel with adjustable priority function
- All microphone inputs with separate volume controls
- 3 line inputs (stereo RCA) with separate volume controls
- 1 line output (stereo RCA)
- Switchable gong
- Treble and bass tone controls for output signal
- 7-segment LED level meter
- Master control for output signal
- Protection circuits with LED indicators: overvoltage, short circuit, power-on delay
- Device cooling via fan
- (19") 48.3 cm rack mount 2 U
Technical Data
- Power supply: 230 V AC, 50 Hz
- Total power consumption: 500.00 W
- Output power: 250 W RMS
- Output current: Max. 2.5 A
- Power connection: Fixed power cable with protective earth plug
- Frequency range: 80 - 16000 Hz
- Signal-to-noise ratio: >75 dB microphone, >85 dB line
- Distortion factor: <0.5 % at 1 kHz
- Cooling: Fan
- Impedance: 4 Ohm; 8 Ohm; 16 Ohm; PA technology 100V
- Zone outputs: 6 adjustable zones
- Circuit: Class AB
- Protection circuit: current limiting; short circuit; power-on delay
- Equalizer: Master: 1 x 2-band mono control
- Status LEDs: Power, fault, level meter
- Inputs: 1 x microphone via 3-pin XLR/6.35 mm jack (W) combo socket built-in version, 2 x microphone via 6.3 mm jack (unbalanced), 3 x line via stereo RCA 0.3 V

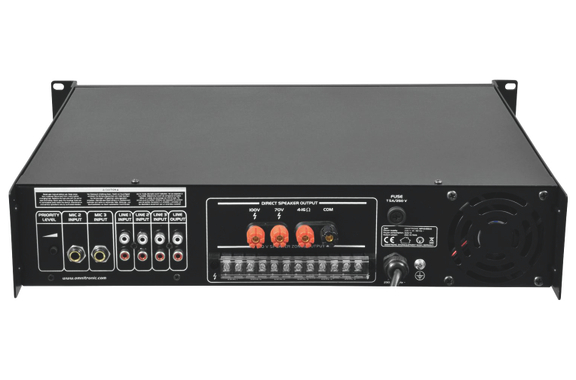

- Outputs: 1 x line via stereo RCA, speaker via screw terminal
- Housing type: (19") 48.3 cm rack mount 2 U
- Dimensions (W x D x H): 48.3 x 38.5 x 8.9 cm
- Weight: 11.15 kg
Scope of delivery

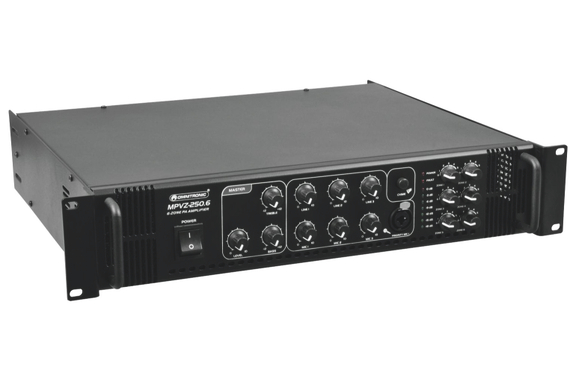

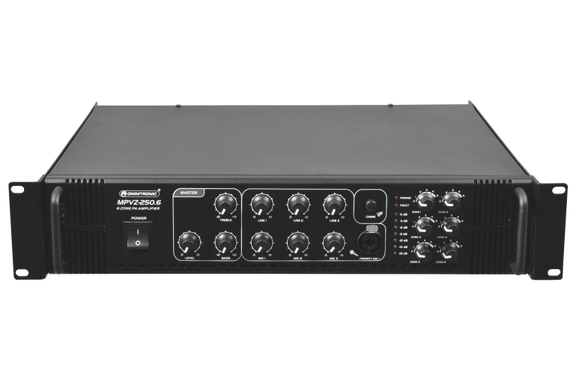

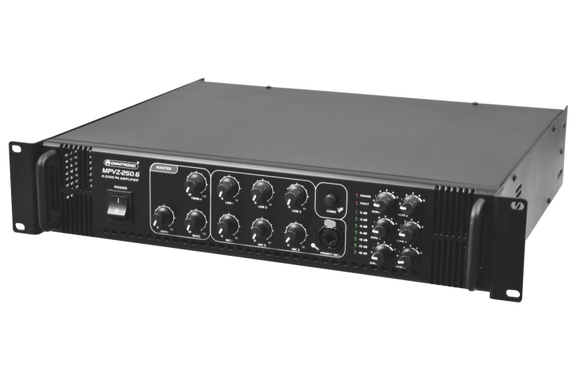

- 1 x Omnitronic MPVZ-250.6 Mixer Amplifier
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00078931
- Power (Watts) 250
- Colour Black
- Microphone input Yes, without phantom power
