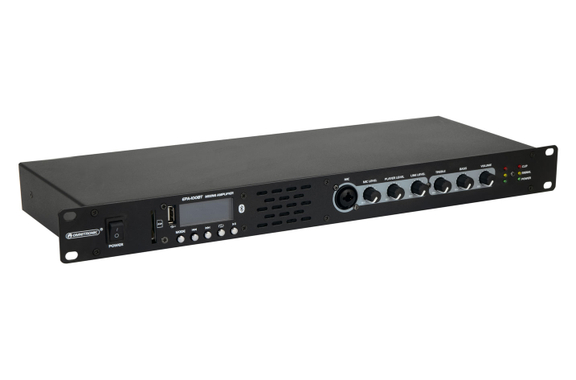

19" Mixer Amplifier with Audio Player, Bluetooth and 2 x 50 Watt Power!
The 1U slim stereo mixer amplifier EPA-100BT with efficient Class-D technology is especially suited for fixed installations in restaurants, gyms, and retail where simple music control is required.
It delivers 2 x 50 watts at 4 ohms and can play and control music from various sources. It features connection options for a microphone and a line-level audio source. Also integrated are an audio player with USB port and memory card slot, plus a Bluetooth receiver for wireless music enjoyment from smartphones, tablets, or any other Bluetooth device.
For easy music control in restaurants, gyms, and retail!

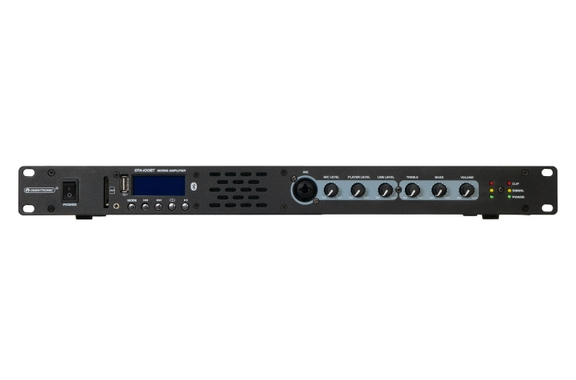

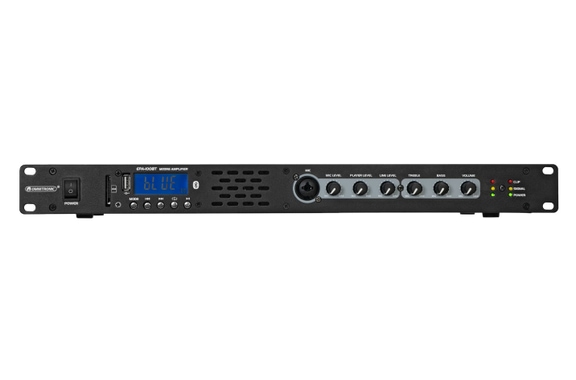

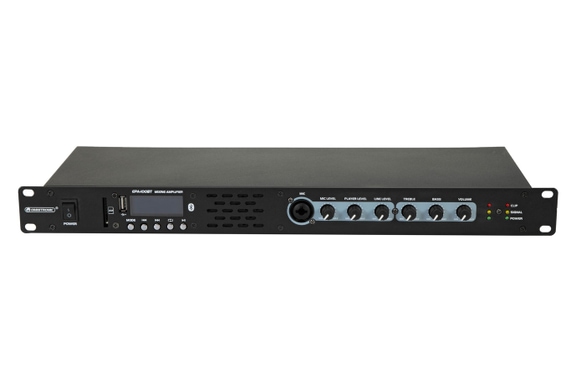

Features
- 1U slim stereo mixer amplifier with 2 x 50 watt power
- For easy music control, for example in restaurants, gyms and retail
- Built-in audio player with USB port and SD card slot
- Blue backlit LCD display
- Integrated Bluetooth audio streaming for wireless music enjoyment
- Adjustable stereo line input via XLR and RCA jacks
- Adjustable microphone input via combo XLR/phone jack on the front
- Controls for volume, bass and treble
- Signal, clip and power indicators
- Stereo line output via XLR and RCA jacks
- Screw terminals for low-impedance speakers
- Ground lift switch to prevent hum loops
- Limiter function for overload protection
- Efficient Class-D architecture
- Very low weight and compact height thanks to integrated switching power supply
- Rack mount, 1U
- Chassis design: (19") 48.3 cm rack mount built-in 1U

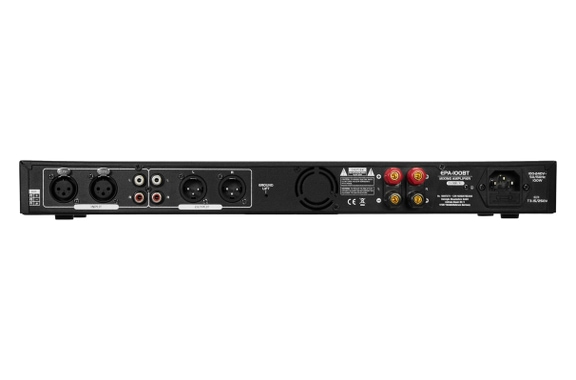

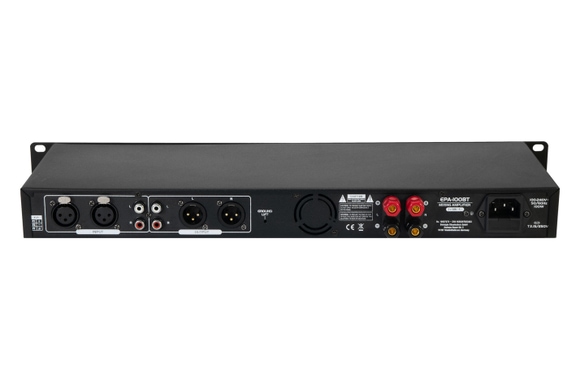

Connections
- Inputs:
- Line: RCA and XLR, balanced
- Mic: Combo XLR/6.3 mm phone jack, balanced - Outputs:
- Line: RCA and XLR, balanced
- Circuit: Class D
Technical Data
- Power supply: 100-240 V AC, 50/60 Hz
- Total power consumption: 100 W
- Power per channel (4 ohms): 50 W
- Power per channel (8 ohms): 30 W
- Power connection: Power input cold device (M) built-in version power cable with protective earth (included)
- Frequency range: 20 - 20000 Hz
- Fan: Yes
- Connections: 2 x 2-pole terminal
- Audio player: USB + SD + Bluetooth
- Range: 10 m Bluetooth
- Carrier frequency: 2.4 GHz
- Audio player playback format: MP3, WMA, WAV
- Compatible storage media: USB devices and SD(HC) cards up to 32 GB
- Dimensions (W x H x D): 48.3 x 4.45 x 21 cm
- Weight: 2.59 kg
Scope of delivery
- 1 x Omnitronic EPA-100BT Mixer Amplifier
Suitable accessories (Not included in the delivery.)
Specification
- Product number 00064134
- Colour Black
- Microphone input Yes, without phantom power
- Power (Watts) 100
