PA Amplifier With Digital Signal Processor!

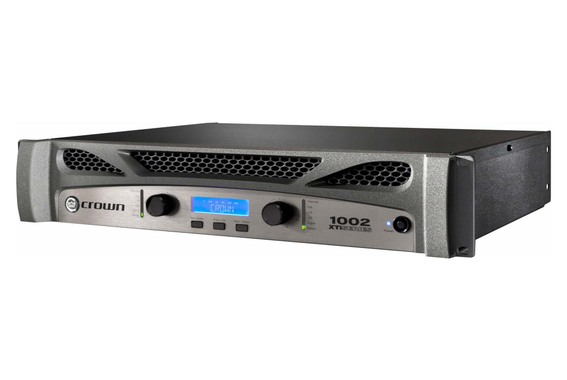

The amplifiers in the Crown XTi 2 series are ideal for musicians, bands and PA rental companies. They deliver maximum power with industry-leading reliability, excellent sound quality and minimal weight. The Crown XTi 1002 features a robust aluminum front with ergonomically shaped handles. The high-contrast LCD display with function buttons and knurled rotary controls enables fast, intuitive operation.
The powerful digital signal processor offers extensive parameters for signal processing, eliminating the need for an external speaker controller. All key sound-shaping tools—crossover, equalizer and delay—are on board. A limiter protects speakers from dangerous level peaks, ensuring each speaker delivers maximum sound and output.
The Crown XTi 1002 can be conveniently configured, controlled and monitored via the HiQnet Band Manager 2 software. The program also includes a database of factory presets for JBL loudspeakers. The software is available as a free download.
Best Sound Quality & Minimal Weight!
Features
- PA amplifier with DSP, 2x 500 Watt
- DSP functions: crossover, equalizer, delay, limiter, etc..
- Protection circuits against speaker short-circuit, DC, overheating, RF overload
- Software for configuration, control and monitoring (download)
- Factory presets for JBL loudspeakers
- Temperature-controlled high-performance fan
- 2x 700 Watt at 2 Ohm
- 2x 500 Watt at 4 Ohm
- 2x 275 Watt at 8 Ohm
- 1x 1,400 Watt at 4 Ohm, mono bridged
- 1x 1,000 Watt at 8 Ohm, mono bridged
- Damping factor >500
- 1.4 Volt input sensitivity
- DSP applications: Input EQ with 6 parametric filters per channel with adjustable Q factor and +/- 15 dB gain
- Crossover with high- and low-pass
- per channel with 6/12/18/24 dB per octave and switchable polarity
- Output EQ with 8 parametric filters per channel with adjustable Q factor and +/- 15 dB gain
- Delay up to 50 ms
- Subharmonic Synth
- Peak Plus limiter with adjustable threshold, attack and release
- 50 presets
- 3-step switchable ventilation
- HiQnet Band Manager and System Artchitect software control via USB port
- Displays mains voltage and power supply temperature

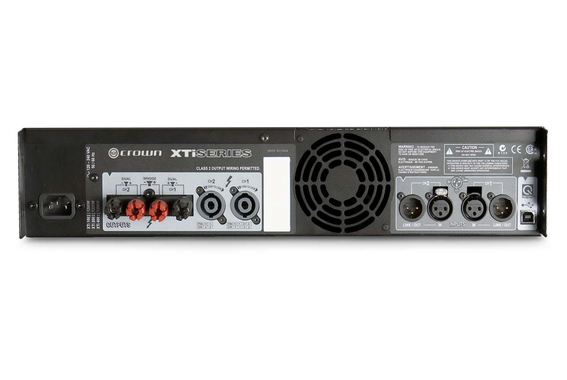

- Connections: 2x NL 4 Speakon out, Binding Post out, XLR in/out
- Height: 2 RU
- Mounting depth: 31.1 cm
- Weight 8.4 kg
Scope of delivery
- 1 x Crown XTI 1002 DSP power amplifier 2x 500W
Specification
- Product number 00027309
- Colour Black
- Height in U 2 U
- Power (Watts) 1000
- Number of channels 2
Accessories
Reviews
| 5 Stars |
|
2 |
| 4 Stars |
|
0 |
| 3 Stars |
|
0 |
| 2 Stars |
|
0 |
| 1 Star |
|
0 |
A verification of the ratings has taken place as follows: Only customers who are registered in our online store and have actually purchased the product from us can submit a rating for the item in the customer account.
Everything super , vielen Dank .
Review from on 24.12.2022
This rating has been translated automatically. Original language
This rating has been translated automatically. Original language
verified purchase
Best it fits everything very gladly again.
Very solid AMP with premium features at an unbeatable price
Review from on 16.12.2021
Variant Crown XTI 2002
This rating has been translated automatically. Original language
Variant Crown XTI 2002
This rating has been translated automatically. Original language
verified purchase
Looking for an affordable power amp with professional features like integrated DSP, I compared this power amp with the QSC GXD4.
Features (pros marked with + and cons with -):
+ Weight and size is OK Processing actually good. The AMP is the 2-3 generation and according to relevant test and product photos of the inside, very solidly built.
- Except the on / off switch this sits very wobbly and crooked.
This gives the impression that this is not very solid.
- Operation on the device
+ Lockout, except volume control, the settings can be locked by long press on UP + Down button. Unlock via software or again long press on UP+Down buttons.
+ Extensive setting of the limiter, which works great and intervenes barely audible but effective. During installation, the max. output can be easily limited. Even if the user turns the volume control to stop.
- Display indication and operation on the device is not intuitive or immediately understandable. As soon as the AMP is connected to the PC, however, this is negligible.
Adjustments of the DSP are intuitively possible in the software.
+++ The best and pro feature is the integrated DSP.
This offers everything the heart desires. According to WWW this is only possible in such a low-priced Crown AMP because the manufacturer uses the Harman Group.
So features like High-/Lowpass with different slopes of 6,12,18 and24db per octave as well as Butterworht and Likwitz-Riley settings, EQ with 8 parametric filters, Delay settings, Subhaminoc Synth and a per channel adjustable very good working Limiter with Threshold Attack and Release settings.
Compared to a speaker management system like DBX DriveRack PA2, the only thing missing is an automatic calibration.
But there are for speakers brand JBL and Co. presets that can be loaded.
+ The power amp is 2 Ohm stable (QSC only 4 Ohm stable according to the manual).
+ Fan is relatively large and 3-fold regulated
The QSC GXD4v amp had the following weaknesses and had to despite a similarly good price better optics / processing and more power back:
- Rel. small fan approx. 40mm which is permanently active. That is, it is regulated depending on the temperature... But he is active and perceptible even without level directly after switching on. He remains quiet but is still always active.
- DSP setting rel. manageable.
For example you can set highpass and lowpass filters but only in frequency and not in slope or type.
- USB connection is only for updating. There is no software to adjust or save the settings. Accordingly, the presets nut remain stored on the AMP.
Conclusion: I have decided for the weaker amplifier with worse optics but better features Crown XTI 1002.
For me decide is
1. the software Bandmanager 2 with which the DSP can be set intuitively on the PC and backups of the settings are very easy and
2. with the Crown is a much larger fan Verbaut approx. 80mm which starts only with load and/or temperature. That is, in the fixed installation where the AMP often only in standby waiting for signals, the cooling remains passive.
Features (pros marked with + and cons with -):
+ Weight and size is OK Processing actually good. The AMP is the 2-3 generation and according to relevant test and product photos of the inside, very solidly built.
- Except the on / off switch this sits very wobbly and crooked.
This gives the impression that this is not very solid.
- Operation on the device
+ Lockout, except volume control, the settings can be locked by long press on UP + Down button. Unlock via software or again long press on UP+Down buttons.
+ Extensive setting of the limiter, which works great and intervenes barely audible but effective. During installation, the max. output can be easily limited. Even if the user turns the volume control to stop.
- Display indication and operation on the device is not intuitive or immediately understandable. As soon as the AMP is connected to the PC, however, this is negligible.
Adjustments of the DSP are intuitively possible in the software.
+++ The best and pro feature is the integrated DSP.
This offers everything the heart desires. According to WWW this is only possible in such a low-priced Crown AMP because the manufacturer uses the Harman Group.
So features like High-/Lowpass with different slopes of 6,12,18 and24db per octave as well as Butterworht and Likwitz-Riley settings, EQ with 8 parametric filters, Delay settings, Subhaminoc Synth and a per channel adjustable very good working Limiter with Threshold Attack and Release settings.
Compared to a speaker management system like DBX DriveRack PA2, the only thing missing is an automatic calibration.
But there are for speakers brand JBL and Co. presets that can be loaded.
+ The power amp is 2 Ohm stable (QSC only 4 Ohm stable according to the manual).
+ Fan is relatively large and 3-fold regulated
The QSC GXD4v amp had the following weaknesses and had to despite a similarly good price better optics / processing and more power back:
- Rel. small fan approx. 40mm which is permanently active. That is, it is regulated depending on the temperature... But he is active and perceptible even without level directly after switching on. He remains quiet but is still always active.
- DSP setting rel. manageable.
For example you can set highpass and lowpass filters but only in frequency and not in slope or type.
- USB connection is only for updating. There is no software to adjust or save the settings. Accordingly, the presets nut remain stored on the AMP.
Conclusion: I have decided for the weaker amplifier with worse optics but better features Crown XTI 1002.
For me decide is
1. the software Bandmanager 2 with which the DSP can be set intuitively on the PC and backups of the settings are very easy and
2. with the Crown is a much larger fan Verbaut approx. 80mm which starts only with load and/or temperature. That is, in the fixed installation where the AMP often only in standby waiting for signals, the cooling remains passive.
