Must-Have for Event Professionals!
Pros know that meticulous planning down to the smallest detail is key to a successful event. Improvised, supposedly "creative" solutions are a no-go in event technology, especially when it comes to visitor safety. Anyone handling loose cables at festivals, markets, street parties, or club concerts with mats, makeshift wooden slat constructions, or sloppy tape fixes is acting not only irresponsibly but also highly unprofessionally.
Hazard Identified, Hazard Eliminated!

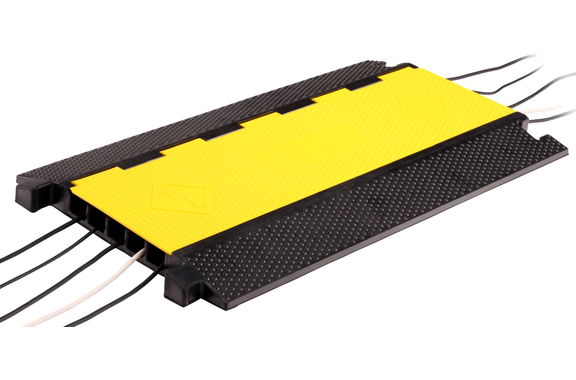

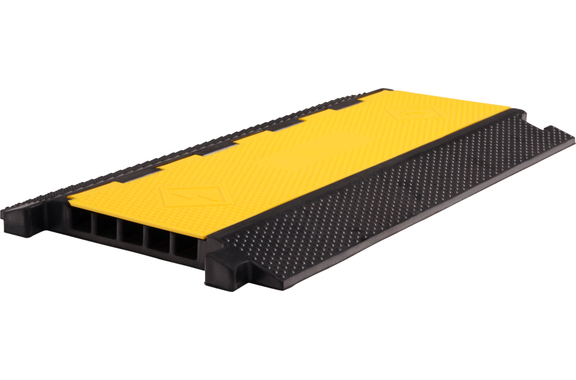

What hose bridges are for fire departments and THW, cable ramps are for event technicians: With the Pronomic Protector, loose cables are professionally bundled, guided, protected, and stored. This neat solution not only ends cable chaos but also meets the safety requirements for public events. The highly visible cable bridge – created by combining the black base with the signal yellow cover flap – generates maximum signaling/warning effect and minimizes the risk of tripping accidents.
Pro Tip: Liability in Case of Accidents
Event organizers who want to play it safe should never cut corners in the wrong place. Using cost-effective yet effective aids like cable bridges has already saved many organizers from liability claims. There are numerous court rulings that considered the organizer’s duty of traffic safety fulfilled in cases of tripping accidents at Christmas markets, etc., because they had proactively used hose or cable bridges to prevent accidents!
Built Tough!

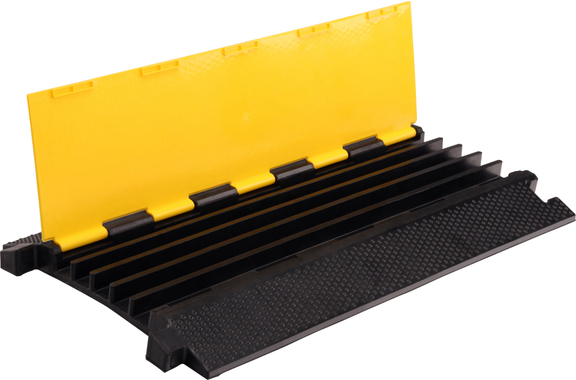

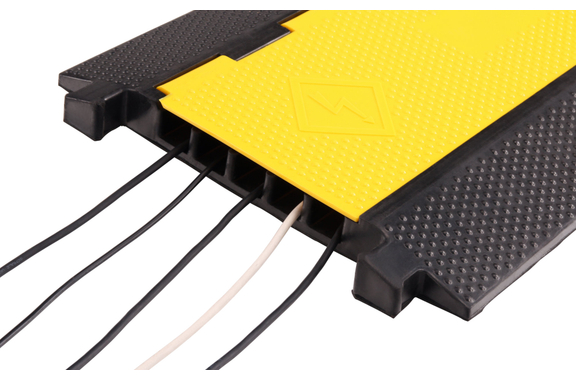

While personal protection naturally plays the far more important role, the Pronomic overpass protection simultaneously ensures that the cables used are protected from abrasion, tension, and crushing loads. The cable bridge withstands loads up to 7.5 t with its beveled ramps, so it can easily handle being "rolled over" by heavily loaded equipment vehicles. The Pronomic Protector 5-90, which due to its own weight of 11.4 kg does not need to be separately fixed to the ground, features three cable channels each with a cross-section of 37 x 28 mm. To insert the cables, simply lift the sturdy cover flap equipped with five hinges.
Elastic, Acid-Resistant, Flame-Retardant Profile
Rubber is an elastic raw material that offers good resistance and insensitivity to water, acids, and bases and is classified as flame-retardant. This makes it the ideal material for high-quality surface cable ducts. Its elasticity helps the overpass protection adapt optimally to different floor conditions even under heavy loads. Due to its resistance to a wide range of liquids, the overpass protection is also well suited to various environmental demands. The material’s flame retardancy adds another safety aspect to the Pronomic Protector.
No More Amateurish Makeshifts! Get the Protector Cable Bridges from Pronomic!
Please note: Rubber generally smells like rubber (e.g., known from new car tires), but the rubber odor will dissipate after a few weeks. We recommend airing it out longer outdoors (frost-free and protected from sunlight).
Features
- New improved version
- Cable ramp/overpass protection
- Load capacity up to 7.5 t (applies to vehicles at walking speed <10 km/h)
- Segment length: 90 cm +/- 1%
- Chambers/channels: 5
- Channel size (W x H): 37 x 28 mm
- Hinges on the cover flap: 5
- Connectable design
- Suitable for outdoor use
- Material: rubber/plastic
- Color: black/signal yellow
- Dimensions (L x W x H): 90 x 49 x 4.5 cm
- Weight: 11.4 kg
Scope of delivery

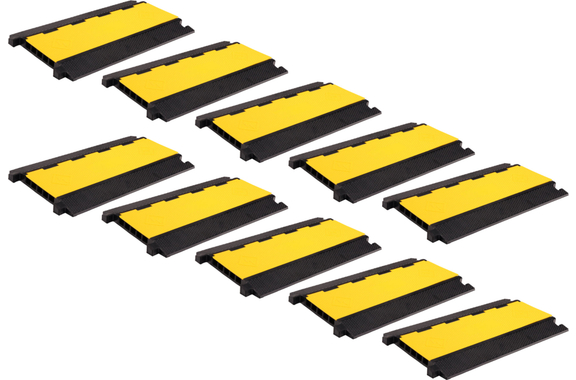

- 10 x Pronomic Protector 5-90L V2 Cable Bridge 5-Chamber connectable
Specification
- Product number 00041661
- Colour Black/Yellow
