Transform Your Acoustic Drum Set Into a Hybrid Kit!
The EAD10 acoustic electronic drum module instantly turns your acoustic drum set into a powerful digital/electronic hybrid with sampled sounds and studio-quality digital effects. It lets you play and record your acoustic drums along with your favorite artists from your music library or tracks from your friends, and share them digitally.
With the free iOS app you can record, edit and upload videos of your drum performances. The EAD10 improves every aspect of your drumming — the way you practice, record and play live, and makes your acoustic drums do more.
With the EAD10 you can change the sound of your acoustic drum set to the tone you want. Connect a smartphone to the EAD10 and play along with your favorite music. It can be used for many applications, from practice to live recording.

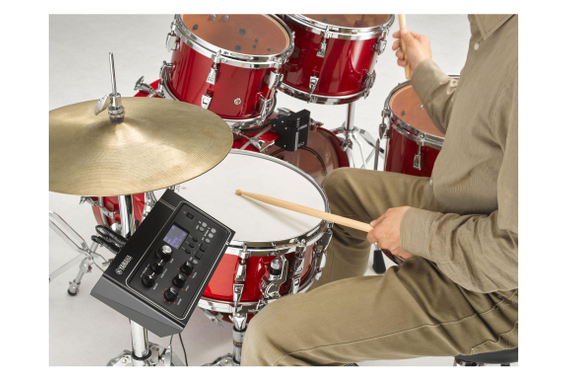

Simple Setup Lets You Hear Your Drum Sound Comfortably While You Play

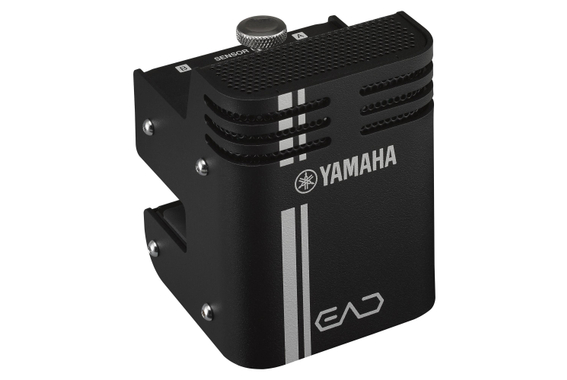

- The sensor unit that mounts to the bass drum simplifies setup
- The built-in XY stereo microphone provides a high-quality way to hear the whole drum kit with natural balance and in stereo
- A loud drum kit can be monitored at a more appropriate level over headphones or earphones
Change the Sound of Your Acoustic Drum Set to Your Desired Tone
- Effect settings can be tweaked with a single control and easily saved and recalled
- The PCM tone generator lets you alter your bass drum sound by using a triggered sound — even during play
- Play in a wide range of musical styles using effects, your own samples or internal triggered sounds
Use for Recording or Live Situations
- Record and playback via USB flash drive or USB audio
- The stereo output (Left/Right) makes it easy to connect to the PA
Make Your Drums Do More!
Features
Main Unit
- Sound Generation Unit
Scenes (Szenen): 50 Presets, 200 User
Reverb: 11
Effects: Mic: 21, Trigger: 10
Trigger Sounds:
- Sound generator: AWM2
- Maximum polyphony: 64
- Voices: 757 - Recorder
Recording time:
- Internal memory: about 1 min 30 sec
- USB flash drive: about 30 min/file
Format:
- Record/Playback: WAV (44,1 kHz, 16-Bit, Stereo) - Audio Files
Import limit: up to 100
Sampling rate on playback: 44,1 kHz
Wave memory: 32 MB
Maximum loadable sample size: 1 mono sample: 1,75 MB, 1 stereo sample: 3,5 MB
Sample format: WAV (16-Bit) - Click Track
Tempo: 30-300 BPM, tap tempo function
Time signature: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
Subdivisions: accented notes, quarter notes, eighth notes, sixteenth notes and eighth-note triplets - Functions: Trigger sensitivity adjustment, USB Audio/MIDI, headphone EQ
- User Interface
Display: graphic LC display (128 x 64 Pixel)
Other controls:
- Rotary knobs (see also Knob): MASTER VOLUME, AUDIO/CLICK VOLUME, SCENE, REVERB, EFFECT, TRIGGER

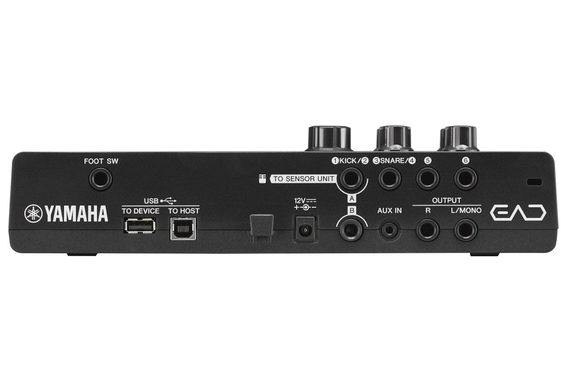

- Buttons: MENU, Sensor Unit, Click, RECORDER, EXIT, STORE, Functions 1-3, -, +, Standby/On - Connections
DC IN: DC IN (12 V)

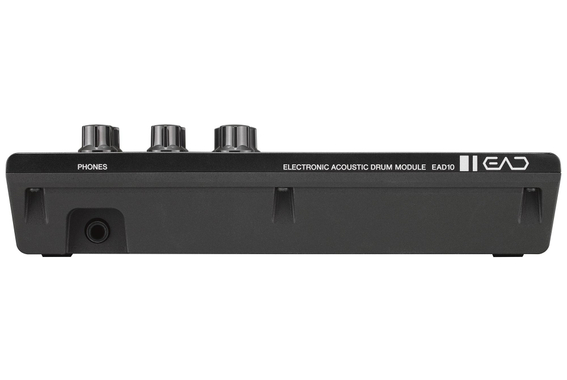

Headphones: PHONES (standard stereo jack)
AUX IN: AUX IN (stereo mini jack)
OUTPUT: OUTPUT L/MONO, R (standard jack)
USB: USB TO DEVICE, USB TO HOST
Sensor input:
- For trigger sensor A (standard stereo jack)
- For microphone sensor B (standard stereo jack)
Trigger input:
- Stereo (L: trigger, R: trigger) (e.g. kick, snare) (standard stereo jack)
- Three-zone (L: trigger, R: rim switch) (standard stereo jack)
Foot pedal: FOOT SW (standard stereo jack) - Power Supply
PA-150 (or equivalent Yamaha-recommended adapter)
Power consumption: 10 W (when using the PA-150 adapter)
Auto Power Off (automatic shutdown) - Size/Weight
Dimensions (W x D x H): 260 x 138 x 63 mm
Weight (main unit only): 654 g

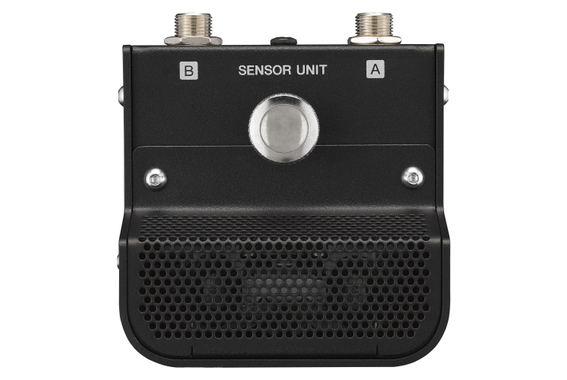

Sensor Unit
- Sensor types:
- Microphone: High-SPL microphone x 2
- Trigger: bass drum only x 1 - Connections
Sensor outputs:- For trigger sensor: A (standard jack)
For microphone sensor: B (standard stereo jack) - Size/Weight
Dimensions (W x D x H):76 x 78 x 88 mm
Weight (sensor unit only): 464 g
Scope of delivery
- 1 x Yamaha EAD 10 Module
- 1 x Yamaha EAD Sensor Unit
- 1 x Power Supply
- 1 x Module Mount
- 1 pair of connection cables
- 3 x Cable Ties
- 2 x Wing Screws for Module Mount
- 2 x Self-Adhesive Feet
- 1 x User Manual
Specification
- Product number 00052285
- Colour Black
Reviews
Questions about product
Question by Fracasso on 29.07.2020
But he also mikes the cymbals
Answer by Musikhaus Kirstein:
The Yamaha EAD10 also triggers cymbals.
