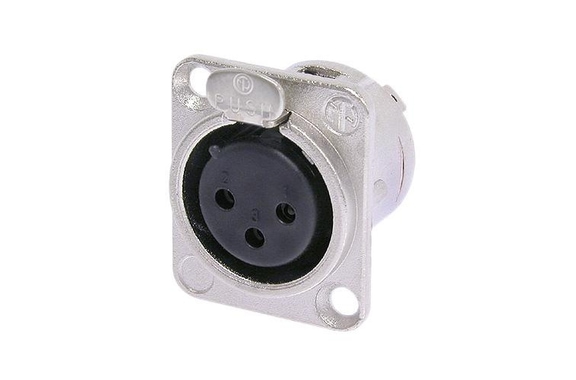

Neutrik NC3FDL1 XLR Panel Connector Female!
The panel connector NC3MDL1 from Neutrik is a 3-pin chassis connector with solder terminals and plated contacts. The standardized, nickel-plated D metal housing is rugged and designed for easy panel mounting.
Features
- Connection Type: XLR
- Gender: female
Electrical Data
- Capacitance between contacts: < 4 pF
- Contact resistance: < 5 mΩ (inner)
- Dielectric strength: 1.5 kV DC
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
Mechanical Data
- Insertion force: < 20 N
- Withdrawal force: < 20 N
- Durability: > 1000 mating cycles
- Conductor cross-section: max. 2.5 mm²
- Conductor cross-section: max. 14 AWG
- Termination type: Solder contacts
- Locking: Latch lock
- Housing shape: D
Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Bronze (CuSn8)
- Insert: Polyamide (PA 6.6 30% GR)
- Locking element: Steel Ck67
- Housing: Zinc diecast (ZnA14Cu1)
- Housing coating: Nickel
Environmental
- Approval: UL
- Flammability: UL 94 HB
- Standards compliance: IEC 61076-2-103
- Protection rating: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30°C to +80°C
Scope of delivery
- 1 x Neutrik NC3FDL1 XLR panel-mount socket, female, silver
Specification
- Product number 00003051
- Colour Silver
